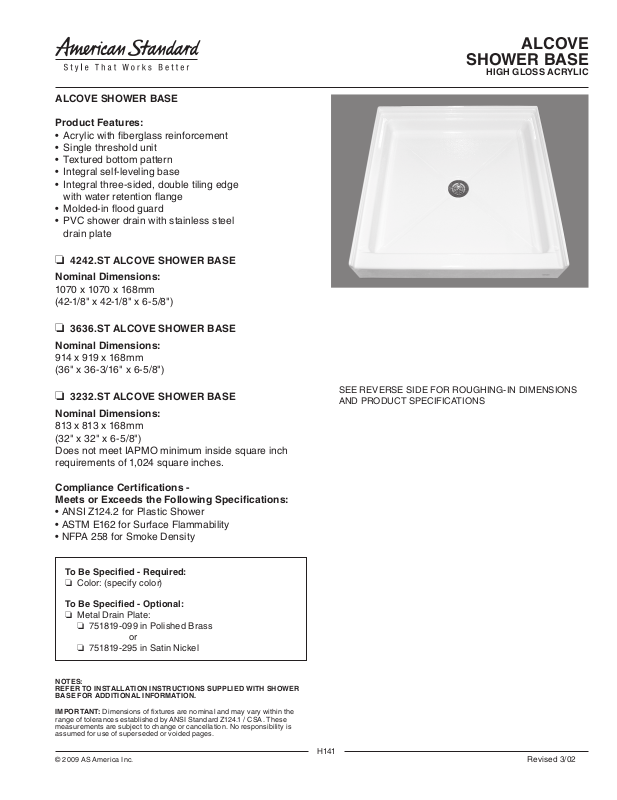

ALCOVE SHOWER BASE
Product Features:
• Acrylic with berglass reinforcement
• Single threshold unit
• Textured bottom pattern
• Integral self-leveling base
• Integral three-sided, double tiling edge
with water retention ange
• Molded-in ood guard
• PVC shower drain with stainless steel
drain plate
❏ 4242.ST ALCOVE SHOWER BASE
Nominal Dimensions:
1070 x 1070 x 168mm
(42-1/8" x 42-1/8" x 6-5/8")
❏ 3636.ST ALCOVE SHOWER BASE
Nominal Dimensions:
914 x 919 x 168mm
(36" x 36-3/16" x 6-5/8")
ALCOVE
SHOWER BASE
HIGH GLOSS ACRYLIC
❏ 3232.ST ALCOVE SHOWER BASE
Nominal Dimensions:
813 x 813 x 168mm
(32" x 32" x 6-5/8")
Does not meet IAPMO minimum inside square inch
requirements of 1,024 square inches.
Compliance Certications Meets or Exceeds the Following Specications:
• ANSI Z124.2 for Plastic Shower
• ASTM E162 for Surface Flammability
• NFPA 258 for Smoke Density
To Be Specied - Required:
❏ Color: (specify color)
To Be Specied - Optional:
❏ Metal Drain Plate:
❏ 751819-099 in Polished Brass
or
❏ 751819-295 in Satin Nickel
NOTES:
REFER TO I NSTALLATION INSTRUCTIONS SUPPLI ED WITH SHOWER
BASE FOR ADDITIONAL INFORMATION.
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ANSI Standard Z124.1 / CSA. These
measurements are subject to change or cancellation. No responsibilit y is
assumed for use of superseded or voided pages.
SEE REVERSE SIDE FOR ROUGHING-IN DIMENSIONS
AND PRODUCT SPECIFICATIONS
© 2009 AS America Inc.
H141
Revised 3/02
Page 2
INS TA LL ED S IZE
WEI GH T
WEI GH T w/ WA TER
SHO WE R WE LL AT S UM P
SHO WE R WE LL AT R IM
FLO OR L OA DI NG
(PR OJ EC TE D AREA)
107 0m m X 10 70mm X 16 8m m
(42 -1 /8 X 4 2-1/8 X 6 -5 /8 I N.)
43 Kg . (9 5 LBS.)
172 K g. ( 38 2 LBS .)
895 mm X 8 95 mm (3 4- 5/ 8 X 34 -5/ 8 IN .)
946 mm X 9 65 mm (3 7- 1/ 4 X 38 IN .)
151 K gs /S q. m. ( 32 L BS ./ SQ . F T. )
GENERAL SPECI FICATI ONS FO R 4242. ST SHO WER BA SE
INS TA LL ED S IZE
WEI GH T
WEI GH T w/ WA TER
SHO WE R WE LL AT S UM P
SHO WE R WE LL AT R IM
FLO OR L OA DI NG
(PR OJ EC TE D AREA)
914 x 9 19 x 168m m (3 6" x 3 6-3 /1 6" x 6 -5 /8")
25 Kg . (5 6 LBS.)
87 K g. ( 19 3 LBS .)
74 9m m X 71 1mm ( 29 -1 /2 X 2 8 I N. )
82 6m m X 78 7mm ( 32 -1 /2 X 3 1 I N. )
104 K gs /S q. m. ( 21 L BS ./ SQ . F T. )
GENERAL SPECI FICATI ONS FO R 3636. ST SHO WER BA SE
INS TA LL ED S IZE
WEI GH T
WEI GH T w/ WA TER
SHO WE R WE LL AT S UM P
SHO WE R WE LL AT R IM
FLO OR L OA DI NG
(PR OJ EC TE D AREA)
813 mm X 8 13 mm X 16 8m m
(32 X 3 2 X 6-5/8 I N. )
21 Kg . (4 6 LBS.)
70 Kg . (1 54 LBS. )
686 mm X 6 48 mm (2 7 X 25 -1 /2 IN .)
724 mm X 6 86 mm (2 8- 1/ 2 X 27 IN .)
105 K gs /S q. m. ( 22 L BS ./ SQ . F T. )
GENERAL SPECI FICATI ONS FO R 3232. ST SHO WER BA SE
1070mm
(42-1/ 8")
533mm
(21")
1070mm
(42-1/ 8")
527mm
(20-3/ 4")
143mm
(5-5/8 ")
168mm
(6-5/8 ")
ROUGH
FLOOR
NOM.
NOM.
INTEGR AL
TILING FLANGE
83mm ( 3-1/4") DIA.
OUTLET
SKID R ESISTANT
SURFAC E
4242.ST 3636.ST
919mm
(36-3/16")
457mm
(18")
914mm
(36")
451mm
(17-3/4")
143mm
(5-5/8")
168mm
(6-5/8")
ROUGH
FLOOR
NOM.
NOM.
INTEGRAL
TILING FLANGE
83mm
(3-1/4")
DIA.
OUTLET
SKID R ESISTANT
SURFAC E
813mm
(32")
406mm
(16")
813mm
(32")
391mm
(15-3/ 8")
143mm
(5-5/8 ")
168mm
(6-5/8 ")
ROUGH
FLOOR
NOM.
NOM.
INTEGR AL
TILING FLANGE
83mm ( 3-1/4") DIA.
OUTLET
SKID R ESISTANT
SURFAC E
ALCOVE
SHOWER BASE
HIGH GLOSS ACRYLIC
3232.ST
