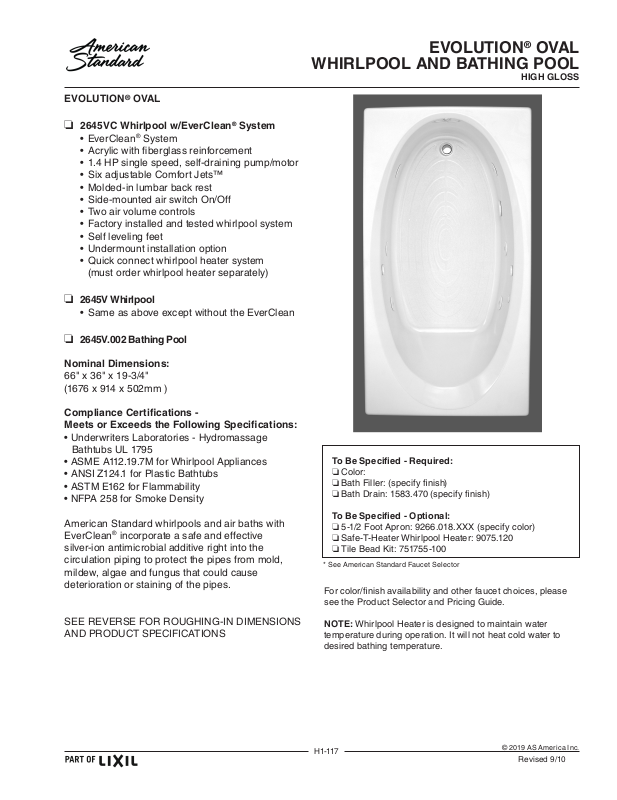

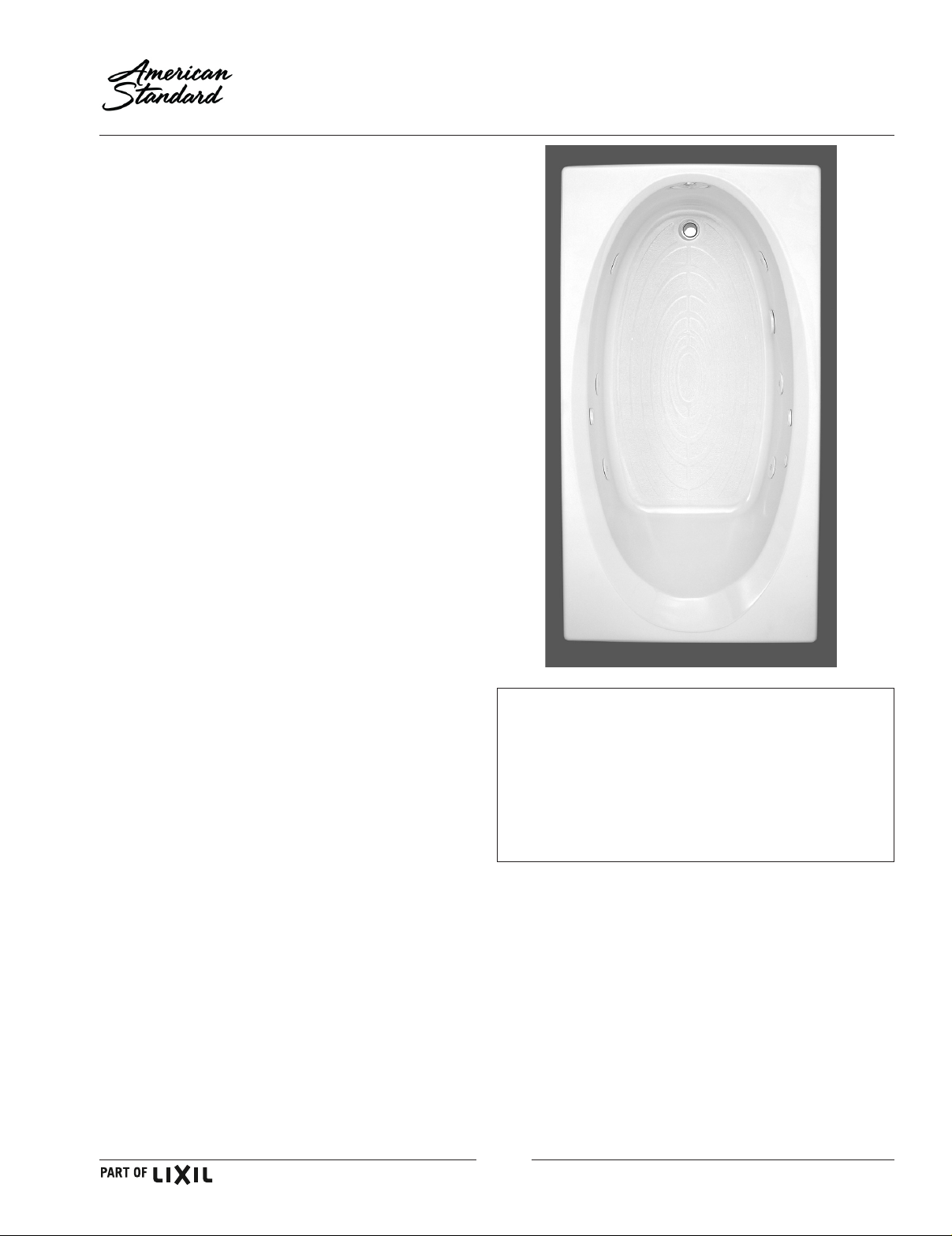

EVOLUTION® OVAL
EVOLUTION® OVAL
WHIRLPOOL AND BATHING POOL
HIGH GLOSS
❏ 2645VC Whirlpool w/EverClean
®
System
• EverClean® System
• Acrylic with berglass reinforcement
• 1.4 HP single speed, self-draining pump/motor
• Six adjustable Comfort Jets™
• Molded-in lumbar back rest
• Side-mounted air switch On/Off
• Two air volume controls
• Factory installed and tested whirlpool system
• Self leveling feet
• Undermount installation option
• Quick connect whirlpool heater system
(must order whirlpool heater separately)
❏ 2645V Whirlpool
• Same as above except without the EverClean
❏ 2645V.002 Bathing Pool
Nominal Dimensions:
66" x 36" x 19-3/4"
(1676 x 914 x 502mm )
Compliance Certications Meets or Exceeds the Following Specications:
• Underwriters Laboratories - Hydromassage
Bathtubs UL 1795
• ASME A112.19.7M for Whirlpool Appliances
• ANSI Z124.1 for Plastic Bathtubs
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
American Standard whirlpools and air baths with
EverClean® incorporate a safe and effective
silver-ion antimicrobial additive right into the
circulation piping to protect the pipes from mold,
mildew, algae and fungus that could cause
deterioration or staining of the pipes.
To Be Specied - Required:
❏ Color:
❏ Bath Filler: (specify nish)
❏ Bath Drain: 1583.470 (specify nish)
To Be Specied - Optional:
❏ 5-1/2 Foot Apron: 9266.018.XXX (specify color)
❏ Safe-T-Heater Whirlpool Heater: 9075.120
❏ Tile Bead Kit: 751755-100
* See American Standard Faucet Selector
For color/nish availability and other faucet choices, please
see the Product Selector and Pricing Guide.
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
AND PRODUCT SPECIFICATIONS
NOTE: Whirlpool Heater is designed to maintain water
temperature during operation. It will not heat cold water to
desired bathing temperature.
H1-117
© 2019 AS America Inc.
Revised 9/10
Page 2

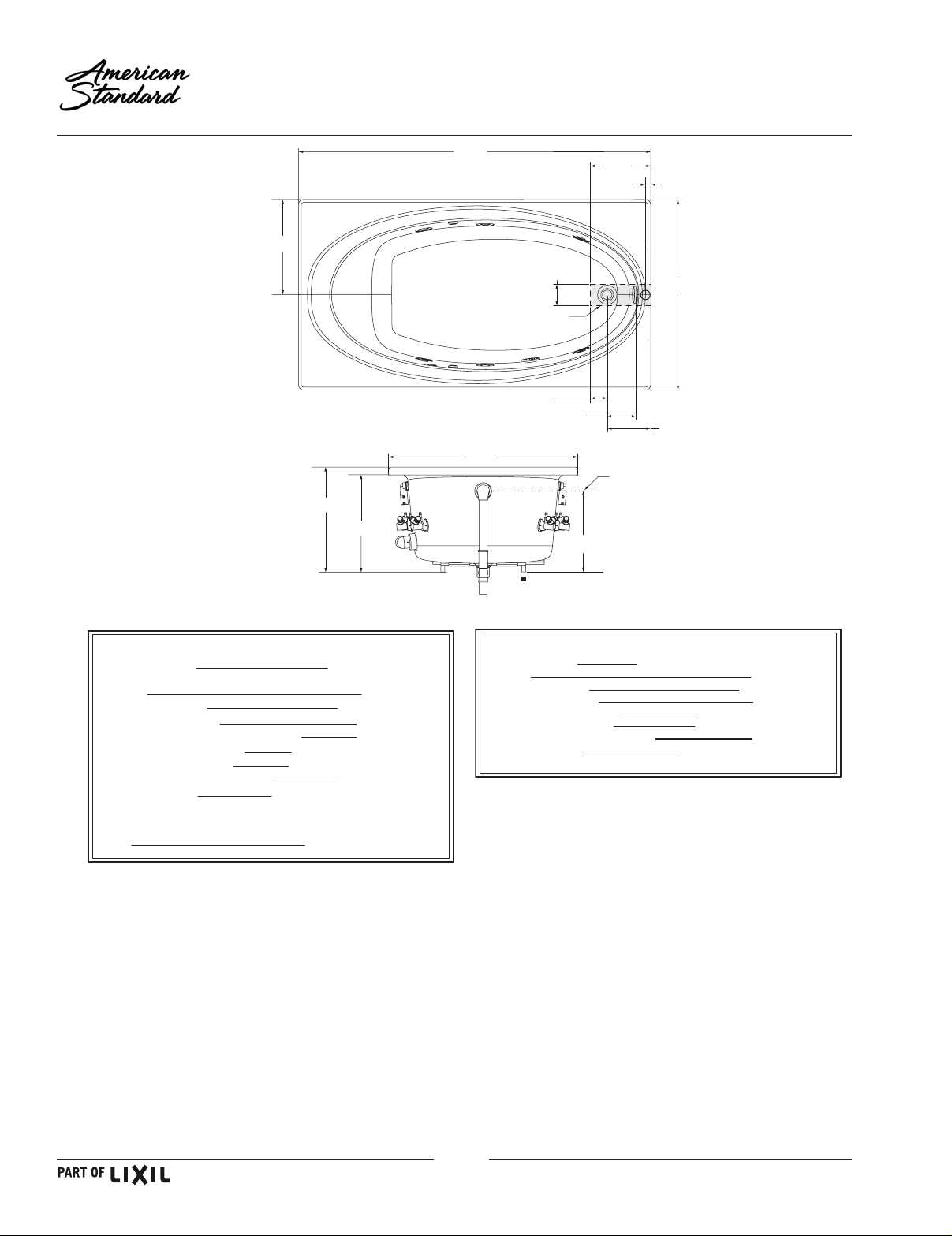

EVOLUTION® OVAL
66"
WHIRLPOOL AND BATHING POOL
HIGH GLOSS
2645V
Whirlpool shown
18"
(457mm)
19-3/4"(H)
(502mm)
18-1/4"(C)
(464mm)
(1676mm)
(914mm)
36"
(152mm)
CUT OUT IN FLOOR
FOR DRAIN
3"
(76mm)
6"
(137mm)
5-3/8"
15-1/4"(A)
(387mm)
11-1/4"
(286mm)
C/L OF
DRAIN
1-3/4"
(44mm)
(914mm)
8-1/4"
(210mm)
36"
GENERAL SPECIFICATIONS FOR 2645V WHIRLPOOL
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
WHIRLPOOL MIN. OPERATING VOL.
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
35 Lbs./Sq.Ft. (171 Kgs./Sq.m)
66 x 36 x 19-3/4 In.
(1676 x 914 x 502mm)
96 Lbs. (44 Kg.)
580 Lbs. (263 Kg.)
58 Gal. (219 L)
42 Gal. (159 L)
49 x 26 In. (1245 x 660mm)
62 X 32 In. (1575 x 813mm)
12-3/4 In. (324mm)
GENERAL SPECIFICATIONS FOR 2645V BATHING POOL
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
66 x 36 x 19-3/4 (1676 x 914 x 502mm)
49 x 26 In. (1245 x 660mm)
62 x 32 In. (1575 x 813mm)
34 Lbs./Sq.Ft. (167 Kgs./Sq.m)
81 Lbs. (37 Kg.)
565 Lbs. (256 Kg.)
58 Gal. (219 L.)
12-3/4 (324mm)
(PROJECTED AREA)
WHIRLPOOL ELECTRICAL SPECIFICATIONS
1.4 HP, 7.5 AMPS, 120V.PUMP
NOTES:
BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND, OR PENINSULA TYPE INSTALLATION. SUMP OF BATH
IS SUPPORTED BY INTEGRAL FEET. NO ADDITIONAL SUPPORT REQUIRED. ENCLOSING MATERIAL BY OTHERS.
■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.
OPTIONAL APRON 9266.018 OR 9366.018 AVAILABLE AND MUST BE ORDERED SEPARATELY.
FITTINGS NOT INCLUDED, MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1 and A112.19.7.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
H1-118
© 2019 AS America Inc.
Revised 9/10
