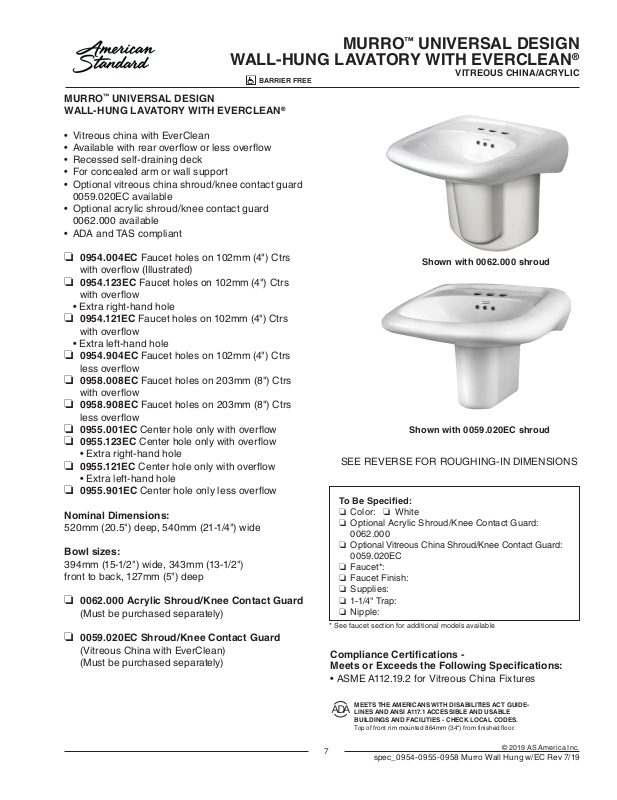

Page 1
MURRO™ UNIVERSAL DESIGN
BARRIER FREE
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDE-
Top of front rim mounted 864mm (34") from finished floor.
WALL-HUNG LAVATORY WITH EVERCLEAN
VITREOUS CHINA/ACRYLIC
®
MURRO™ UNIVERSAL DESIGN
WALL-HUNG LAVATORY WITH EVERCLEAN
®
• Vitreous china with EverClean
• Available with rear overow or less overow
• Recessed self-draining deck
• For concealed arm or wall support
• Optional vitreous china shroud/knee contact guard
0059.020EC available
• Optional acrylic shroud/knee contact guard
0062.000 available
• ADA and TAS compliant
❏ 0954.004EC Faucet holes on 102mm (4") Ctrs
with overow (Illustrated)
❏ 0954.123EC Faucet holes on 102mm (4") Ctrs
with overow
• Extra right-hand hole
❏ 0954.121EC Faucet holes on 102mm (4") Ctrs
with overow
• Extra left-hand hole
❏ 0954.904EC Faucet holes on 102mm (4") Ctrs
less overow
❏ 0958.008EC Faucet holes on 203mm (8") Ctrs
with overow
❏ 0958.908EC Faucet holes on 203mm (8") Ctrs
less overow
❏ 0955.001EC Center hole only with overow
❏ 0955.123EC Center hole only with overow
• Extra right-hand hole
❏ 09 5 5.121EC Center hole only with overow
• Extra left-hand hole
❏ 0955.901EC Center hole only less overow
Nominal Dimensions:
520mm (20.5") deep, 540mm (21-1/4") wide
Bowl sizes:
394mm (15-1/2") wide, 343mm (13-1/2")
front to back, 127mm (5") deep
❏ 0062.000 Acrylic Shroud/Knee Contact Guard
(Must be purchased separately)
❏ 0059.020EC Shroud/Knee Contact Guard
(Vitreous China with EverClean)
(Must be purchased separately)

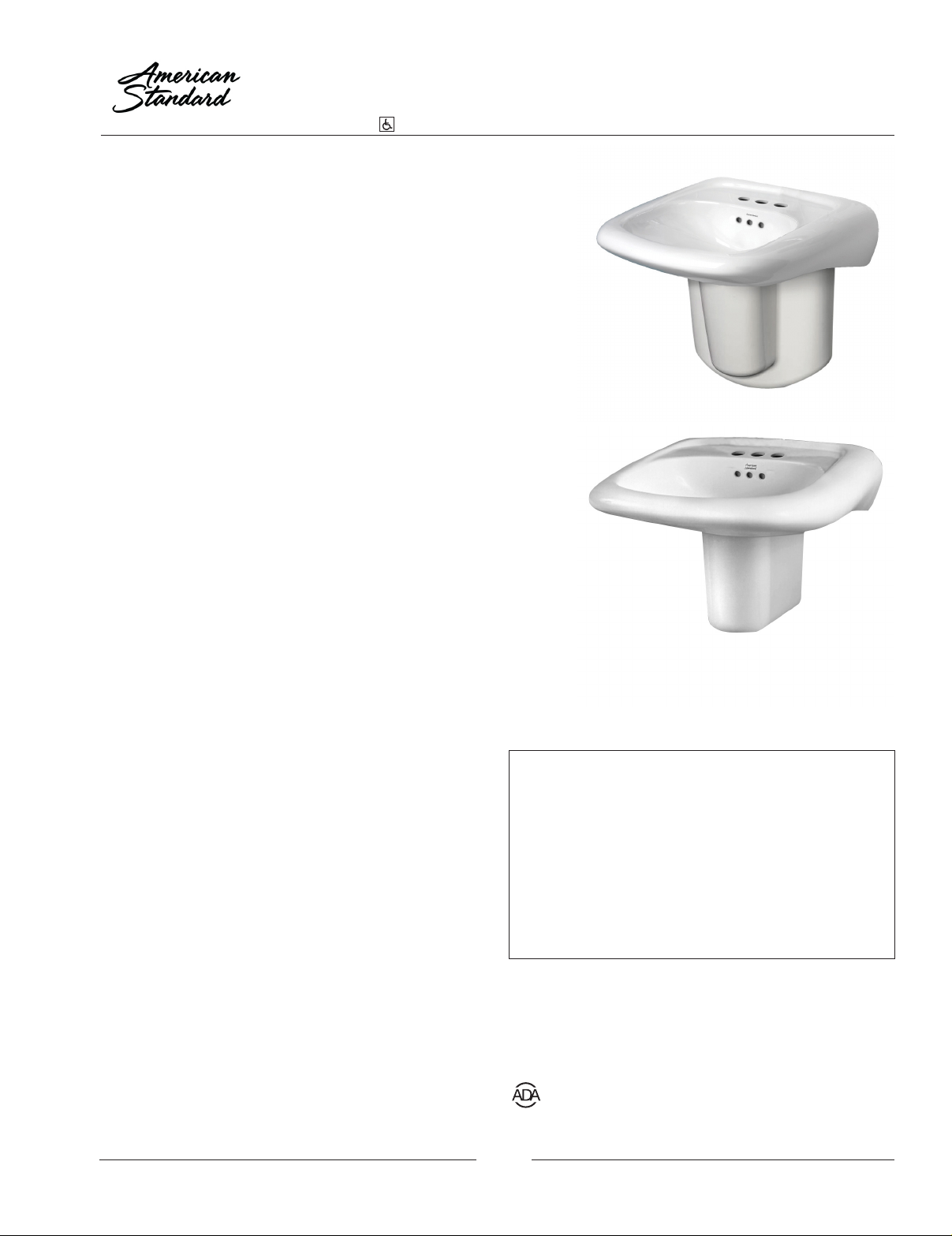

Shown with 0062.000 shroud
Shown with 0059.020EC shroud
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
To Be Specied:
❏ Color: ❏ White
❏ Optional Acrylic Shroud/Knee Contact Guard:
0062.000
❏
Optional Vitreous China Shroud/Knee Contact Guard:
0059.020EC
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
❏ Nipple:
* See faucet section for additional models available
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2 for Vitreous China Fixtures
LINES AND ANSI A117.1 ACCESSIBLE AND USABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.
7
spec_0954-0955-0958 Murro Wall Hung w/EC Rev 7/19
© 2019 AS America Inc.
Page 2

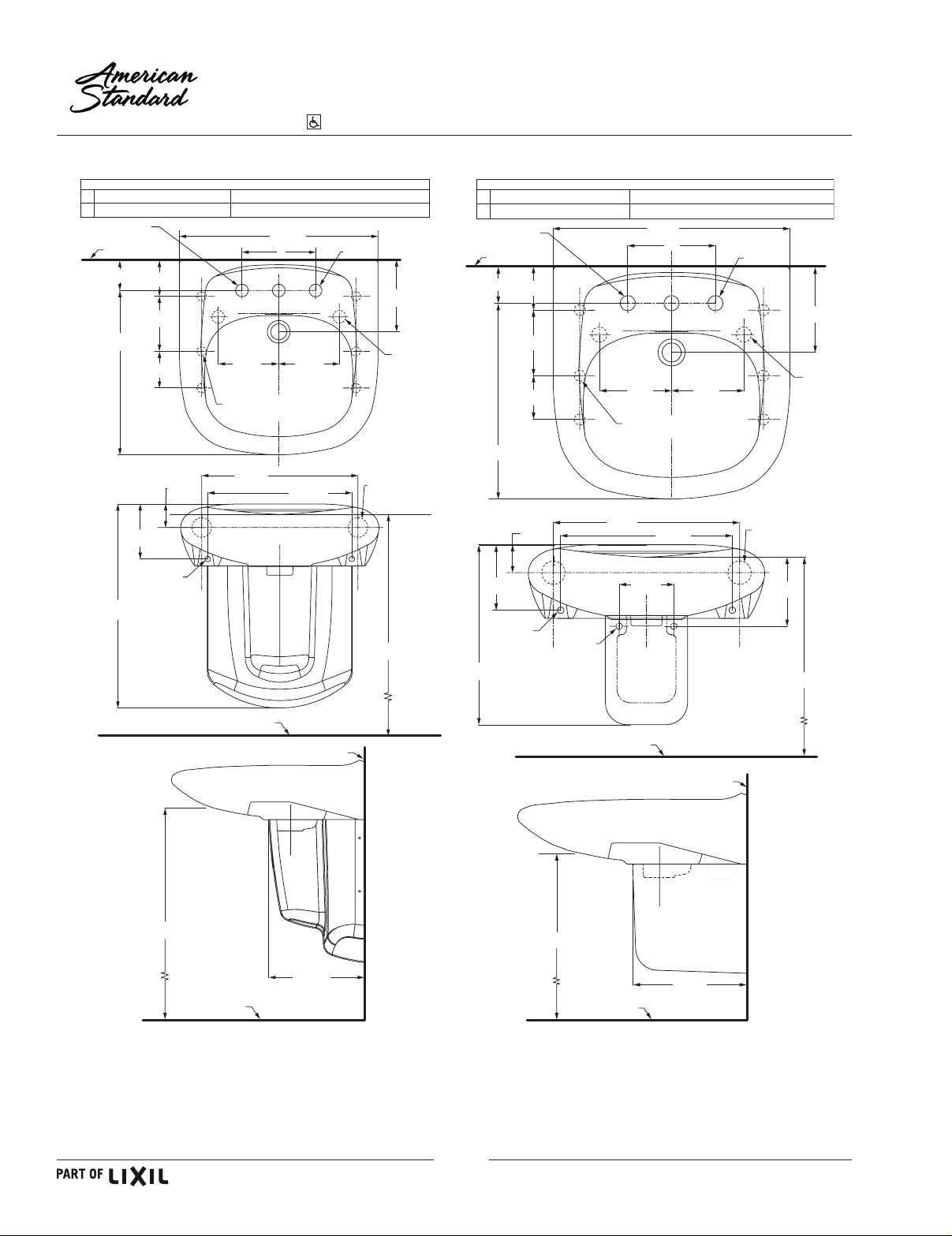

MURRO™ UNIVERSAL DESIGN
FAUCET HOLE SPREAD AND DIAMETER
FAUCET HOLE SPREAD AND DIAMETER
WALL-HUNG LAVATORY WITH EVERCLEAN
BARRIER FREE
MURRO WITH ACRYLIC SHROUD MURRO WITH VITREOUS CHINA SHROUD
VITREOUS CHINA/ACRYLIC
®
AB4" (102mm)
Ø 31.8mm, 1-1/4" ± 1/8" (3mm)
SEE CHART FOR
DIAMETER OF
FAUCET HOLES
FINISHED WALL
85 mm
102 mm
(3-5/16")
(3-15/16")
152 mm
(5-15/16")
455 mm
(17-3/4")
102 mm
(3-15/16")
65 mm
(2-9/16")
152 mm
(5-15/16")
Ø15 mm
(Ø9/16")
565 mm
(22-1/4")
8" (203mm)
Ø 35mm, 1-3/8" + 1/8" - 1/16" (+3mm/-1.5mm)
550 mm
(21-7/16")
A
168 mm
(6-9/16")
(6) 25 mm (1") DIA.
ACCESS HOLES
FOR CONC. ARMS
433 mm
(16-7/8")
168 mm
(6-9/16")
399 mm
(15-9/16")
B
(2) 54 mm (2-1/8")
DIA. PUNCH
FOR CONC. ARMS
864 mm
(34")
200 mm
(7-7/8")
Ø35 mm
(Ø1-3/8")
AB4" (102mm)
Ø 31.8mm, 1-1/4" ± 1/8" (3mm)
SEE CHART FOR
DIAMETER OF
FAUCET HOLES
FINISHED WALL
85 mm
102 mm
(3-5/16")
(3-15/16")
152 mm
(5-15/16")
102 mm
(3-15/16")
455 mm
(17-3/4")
65 mm
(2-9/16")
152 mm
(5-15/16")
Ø15 mm
(Ø9/16")
419 mm
(16-3/8")
Ø15 mm
(Ø9/16")
8" (203mm)
Ø 35mm, 1-3/8" + 1/8" - 1/16" (+3mm/-1.5mm)
550 mm
(21-7/16 ")
A
B
399 mm
(15-9/16")
168 mm
(6-9/16")
(2) 54 mm (2-1/8")
DIA. PUNCH
FOR CONC. ARMS
168 mm
(6-9/16")
(6) 25 mm (1") DIA.
ACCESS HOLES
FOR CONC. ARMS
433 mm
(16-7/8")
127 mm
(5")
160 mm
(6-1/4")
864 mm
200 mm
(7-7/8")
(34")
Ø35 mm
(Ø1-3/8")
FINISHED FLOOR
FINISHED WALL
743 mm
(29-1/4")
265 mm
(10-5/16")
SIDE PROFILE
FINISHED FLOOR
NOTES:
●LOOSE KEY ANGLE STOPS, LESS WALL ESCUTCHEONS. SUPPLIES REQUIRED.
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “ P" TRAP ARE SUGGESTED.
*
SHROUD/KNEE CONTACT GUARD 0059.020 NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
■ SUITABLE FOR REINFORCEMENT ONLY, ACTUAL DIMENSIONS MUST BE TAKEN FROM FIXTURE.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
INSTALLATION INSTRUCTIONS SUPPLIED WITH LAVATORY.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
(ADA)
8
FINISHED FLOOR
FINISHED WALL
743 mm
(29-1/4")
267 mm
(10-7/16")
SIDE PROFILE
FINISHED FLOOR
(ADA)
© 2019 AS America Inc.
spec_0954-0955-0958 Murro Wall Hung w/EC Rev 7/19
