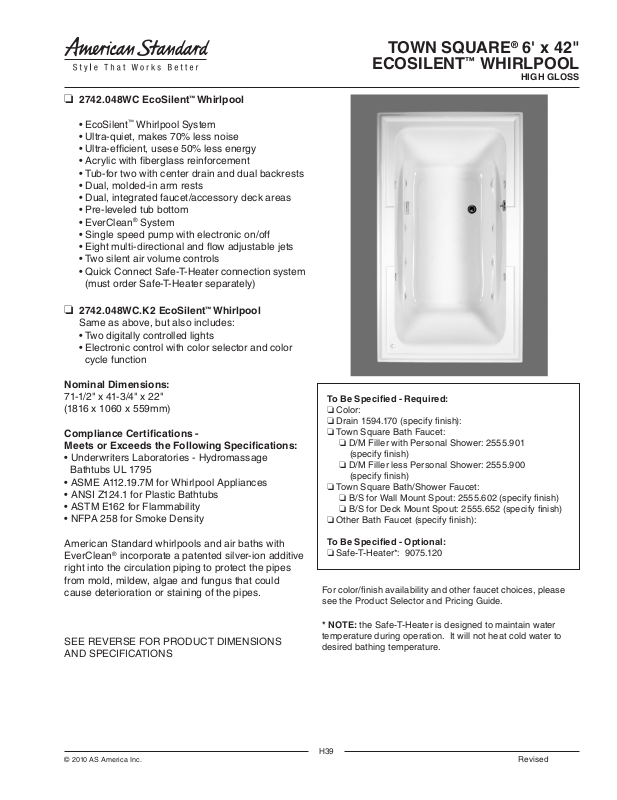

TOWN SQUARE® 6' x 42"
ECOSILENT™ WHIRLPOOL
HIGH GLOSS
❏ 2742.048WC EcoSilent
™
Whirlpool
• EcoSilent™ Whirlpool System
• Ultra-quiet, makes 70% less noise
• Ultra-efcient, usese 50% less energy
• Acrylic with berglass reinforcement
• Tub-for two with center drain and dual backrests
• Dual, molded-in arm rests
• Dual, integrated faucet/accessory deck areas
• Pre-leveled tub bottom
• EverClean® System
• Single speed pump with electronic on/off
• Eight multi-directional and ow adjustable jets
• Two silent air volume controls
• Quick Connect Safe-T-Heater connection system
(must order Safe-T-Heater separately)
❏ 2742.048WC.K2 EcoSilent
™
Whirlpool
Same as above, but also includes:
• Two digitally controlled lights
• Electronic control with color selector and color
cycle function
Nominal Dimensions:
71-1/2" x 41-3/4" x 22"
(1816 x 1060 x 559mm)
Compliance Certications Meets or Exceeds the Following Specications:
• Underwriters Laboratories - Hydromassage
Bathtubs UL 1795
• ASME A112.19.7M for Whirlpool Appliances
• ANSI Z124.1 for Plastic Bathtubs
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
To Be Specied - Required:
❏ Color:
❏ Drain 1594.170 (specify nish):
❏ Town Square Bath Faucet:
❏ D/M Filler with Personal Shower: 2555.901
(specify nish)
❏ D/M Filler less Personal Shower: 2555.900
(specify nish)
❏ Town Square Bath/Shower Faucet:
❏ B/S for Wall Mount Spout: 2555.602 (specify nish)
❏ B/S for Deck Mount Spout: 2555.652 (specify nish)
❏ Other Bath Faucet (specify nish):
American Standard whirlpools and air baths with
EverClean® incorporate a patented silver-ion additive
right into the circulation piping to protect the pipes
from mold, mildew, algae and fungus that could
cause deterioration or staining of the pipes.
SEE REVERSE FOR PRODUCT DIMENSIONS
AND SPECIFICATIONS
© 2010 AS America Inc.
To Be Specied - Optional:
❏ Safe-T-Heater*: 9075.120
For color/nish availability and other faucet choices, please
see the Product Selector and Pricing Guide.
* NOTE: the Safe-T-Heater is designed to maintain water
temperature during operation. It will not heat cold water to
desired bathing temperature.
H39
Revised
Page 2
TOWN SQUARE® 6' x 42"
41-3/4"
(1060mm)
26-3/4
(679mm)
C/L OF DRAIN OUTLET
71-1/2"
(1816mm)
35-3/4"
(908mm)
13-1/4"
(337mm)
4"
(102mm)
3"
(76m m)
FLOO R CUT OUT
5" X 15"
(127 X 38 1mm)
OUTL INE O F CUTO UT
70" X 40- 1/4"
(177 8 X 1 022mm)
PROV IDE A CCESS
TO P UMP F OR
SERV ICE O N ALL
INST ALLAT IONS
INTE GRAL
FITT ING D ECK
3" X 14"
(76 X 356 mm)
ON/O FF
SWIT CH
LEVE LING STRING ER
(NOT FOR SUPPOR T)
1-1/2" N.P.T. THREADS
2"
(51m m)
3-1/ 4"
(83m m)
C/L OF
OVER FLOW
20"
(508 mm)
22"
(559 mm)
ROUG H
FLOO R
INTE GRAL
FEET
SUPP ORT
1-1/2" O.D.TAILPIECE
5/8"
(16m m)
3"
(76m m)
PUMP
3/4"
(19m m)
JETS (8)
EDGE OF
FLOO R
CUTO UT
SUCT ION
PUMP
SAFE-THEATER
REMOVABLE
BLANK
GENERAL SPECIF ICATION S FOR 2 742 Eco Silent™ WHIRLP OOL
71- 1/2 x 4 1-3 /4 x 22 In . (18 16 x 1060 x 559 mm)
115 Lbs. ( 52 Kg.)
690 Lbs. ( 313 Kg.)
69 Gal. (2 61 L)
60 Gal. (2 27 L)
41 x 21- 1/ 2 I n. (1 04 1 x 546m m)
62 x 31- 1/ 2 I n. (1 57 4 x 800m m)
14- 1/4 I n. (3 62mm)
33 Lbs. /S q.F t. (1 63 Kg s./Sq .m )
27. 8
55. 7
2.1 HP, 14 .4 AMPS ,1 20V .WHI RLPOO L PUM P
WHIRLPO OL ELEC TRICAL SPECIFI CATIONS
INS TALLE D SIZ E
WEI GHT
WEI GHT w /W ATE R
GAL . TO OV ERF LOW
WHI RLPOO L MIN . OPE RA TIN G VOL .
BAT HING WE LL AT SU MP
BAT HING WE LL AT RI M
WAT ER DE PT H T O OVE RF LOW
FLO OR LO AD ING
(PR OJECT ED AR EA)
PTS .
CUB E (F T3)
ECOSILENT™ WHIRLPOOL
HIGH GLOSS
BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND OR PENINSULA TYPE INSTALLATION. SUMP OF
BATH IS SUPPORTED BY INTEGR AL FEET. NO ADDITIONAL SUPPORT REQUIRED. ENCLOSING MATERIALS BY OTHERS.
● IF INSTALLING A DECK-MOUNTED FIT TING, BEFORE DRILLING ANY HOLES: CHECK FOR INTERFERENCE WITH CIRCULATING SYSTEM
PIPING AND DRAIN OVERFLOW. MOUNTING HOLES DRILLED BY INSTALLER.
■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1 / CSA
Certied. These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaet.
© 2010 AS America Inc.
NOTES:
H40
Revised
