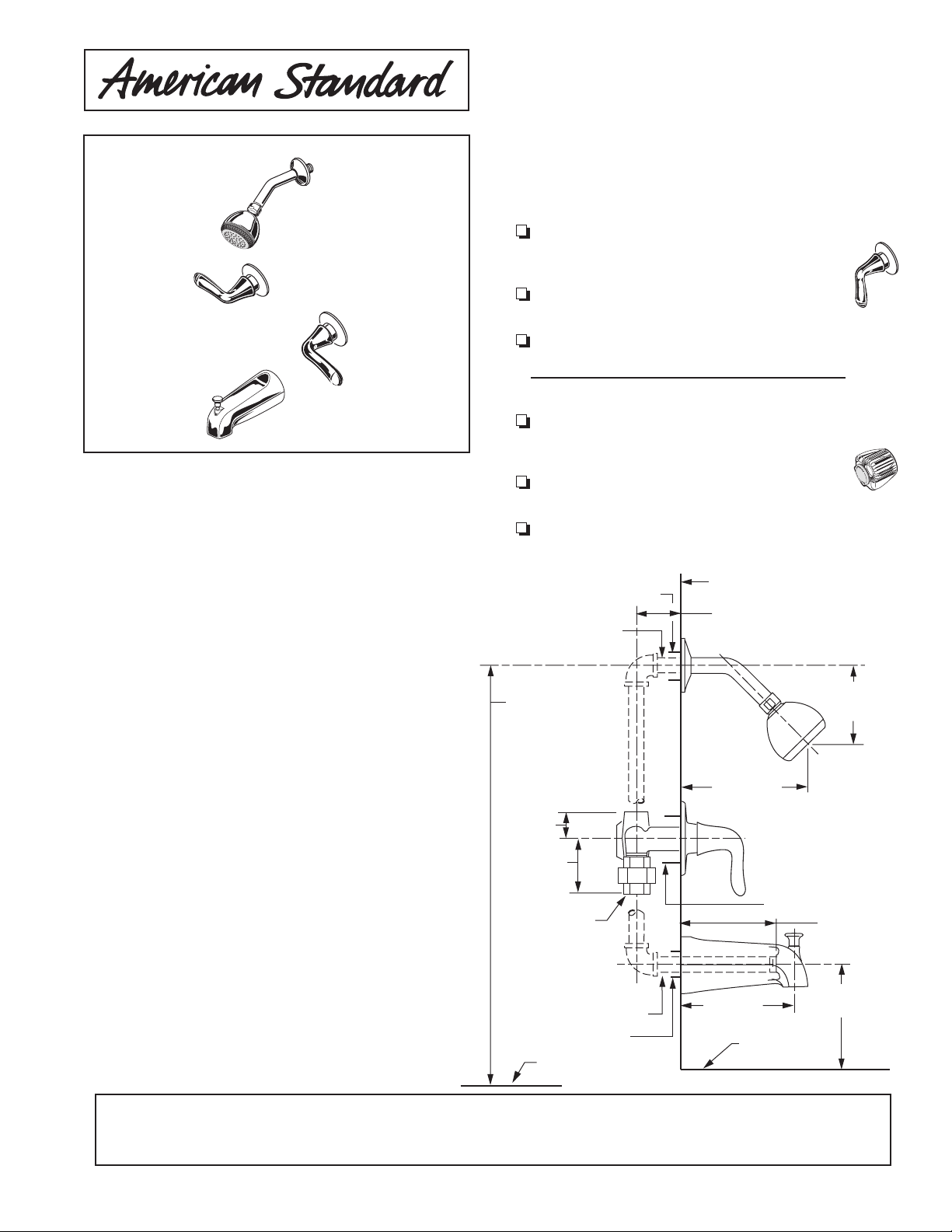

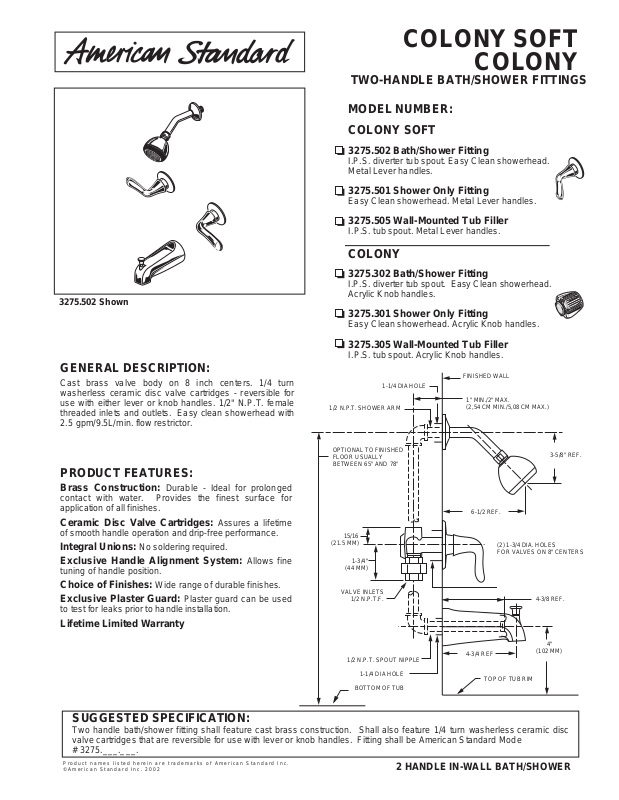

3275.502 Shown
COLONY SOFT
COLONY
TWO-HANDLE BATH/SHOWER FITTINGS
MODEL NUMBER:
COLONY SOFT
3275.502 Bath/Shower Fitting
I.P.S. diverter tub spout. Easy Clean showerhead.
Metal Lever handles.
3275.501 Shower Only Fitting
Easy Clean showerhead. Metal Lever handles.
3275.505 Wall-Mounted Tub Filler
I.P.S. tub spout. Metal Lever handles.
COLONY
3275.302 Bath/Shower Fitting
I.P.S. diverter tub spout. Easy Clean showerhead.
Acrylic Knob handles.
3275.301 Shower Only Fitting
Easy Clean showerhead. Acrylic Knob handles.
GENERAL DESCRIPTION:
Cast brass valve body on 8 inch centers. 1/4 turn
washerless ceramic disc valve cartridges - reversible for
use with either lever or knob handles. 1/2" N.P.T. female
threaded inlets and outlets. Easy clean showerhead with
2.5 gpm/9.5L/min. flow restrictor.
PRODUCT FEATURES:
Brass Construction: Durable - Ideal for prolonged
contact with water. Provides the finest surface for
application of all finishes.
Ceramic Disc Valve Cartridges: Assures a lifetime
of smooth handle operation and drip-free performance.
Integral Unions: No soldering required.
Exclusive Handle Alignment System: Allows fine
tuning of handle position.
Choice of Finishes: Wide range of durable finishes.
Exclusive Plaster Guard: Plaster guard can be used
to test for leaks prior to handle installation.
Lifetime Limited Warranty
3275.305 Wall-Mounted Tub Filler
I.P.S. tub spout. Acrylic Knob handles.
1-1/4 DIA HOLE
1/2 N.P.T. SHOWER ARM
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 78''
15/16
(21.5 MM)
1-3/4"
(44 MM)
VALVE INLETS
1/2 N.P.T.F.
FINISHED WALL
1" MIN./2" MAX.
(2,54 CM MIN./5,08 CM MAX.)
6-1/2 REF.
(2) 1-3/4 DIA. HOLES
FOR VALVES ON 8" CENTERS
3-5/8" REF.
4-3/8 REF.
1/2 N.P.T. SPOUT NIPPLE
1-1/4 DIA HOLE
BOTTOM OF TUB
4-3/4 REF
TOP OF TUB RIM
(102 MM)
SUGGESTED SPECIFICATION:
Two handle bath/shower fitting shall feature cast brass construction. Shall also feature 1/4 turn washerless ceramic disc
valve cartridges that are reversible for use with lever or knob handles. Fitting shall be American Standard Mode
# 3275.___.___.
Product names listed herein are trademarks of American Standard Inc.
©American Standard Inc. 2002
2 HANDLE IN-WALL BATH/SHOWER
4"

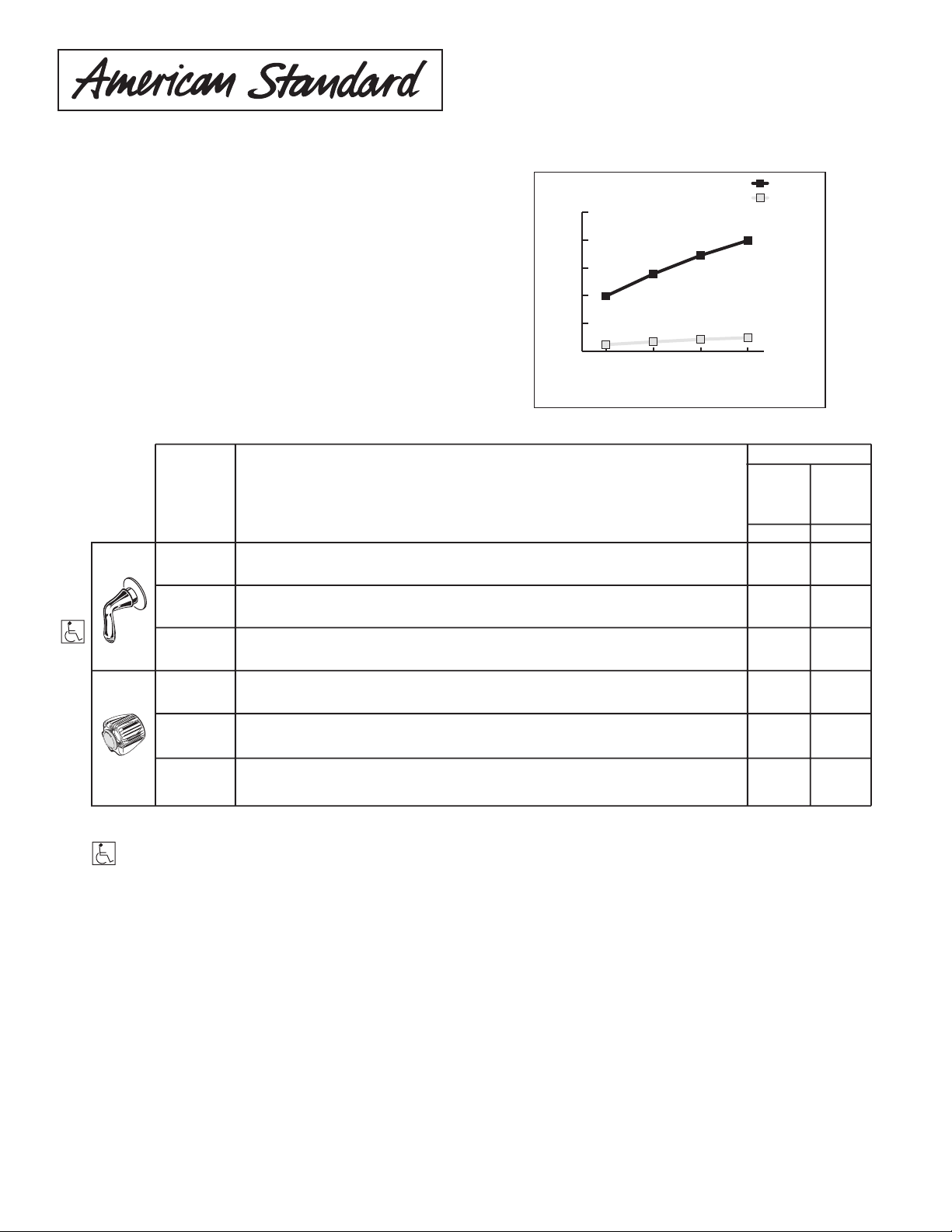

Page 2
COLONY SOFT
COLONY
TWO-HANDLE BATH/SHOWER FITTINGS
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112.18.1M
CSA B 125
Product
Number
3275.502
3275.501
Description
Two handle Bath/Shower. I.P.S. diverter tub spout. Easy Clean Showerhead.
Metal Lever handles.
Two handle Shower Only. Easy Clean Showerhead.
Metal Lever handles.
FLOW RATE*
25
20
15
10
5
GALLONS PER MINUTE
0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
SPOUT
SHOWER
80604020
Finish Options
Polished
Chrome
002
PVD
Polished
Brass
099
3275.505
3275.302
3275.301
3275.305
Wall Mounted Tub Filler. I.P.S. tub spout. Metal Lever handles.
Two handle Bath/Shower. I.P.S. diverter tub spout. Easy Clean Showerhead.
Acrylic Knob handles.
Two handle Shower Only. Easy Clean Showerhead.
Acrylic Knob handles.
Wall Mounted Tub Filler. I.P.S. tub spout. Acrylic Knob handles.
N/A = NOT AVAILABLE
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
N/A
N/A
N/A
