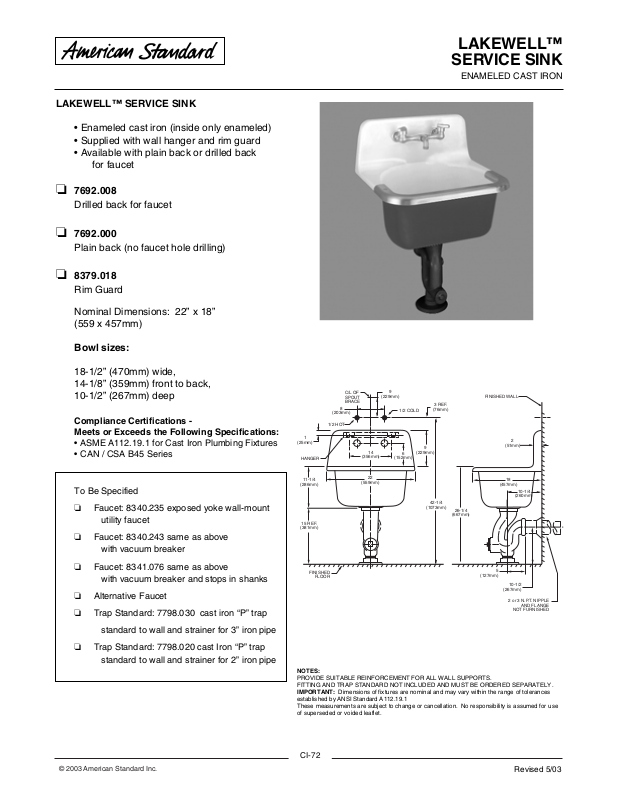

Page 1
© 2003 American Standard Inc.
CI-72
LAKEWELL™
SERVICE SINK
ENAMELED CAST IRON

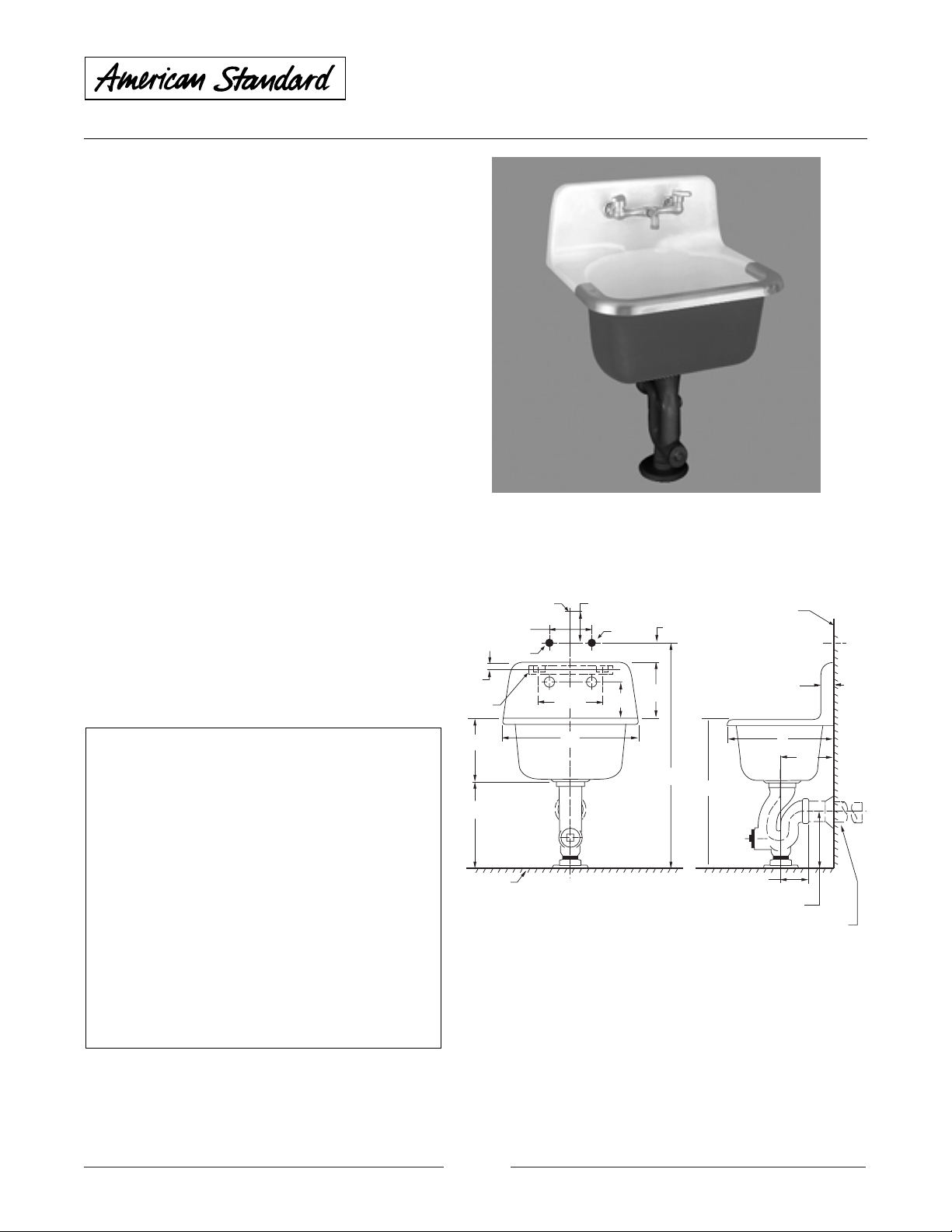

LAKEWELL™ SERVICE SINK
• Enameled cast iron (inside only enameled)
• Supplied with wall hanger and rim guard
• Available with plain back or drilled back
for faucet
❏ 7692.008
Drilled back for faucet
❏ 7692.000
Plain back (no faucet hole drilling)
❏ 8379.018
Rim Guard
Nominal Dimensions: 22” x 18”
(559 x 457mm)
Bowl sizes:
18-1/2” (470mm) wide,
14-1/8” (359mm) front to back,
10-1/2” (267mm) deep
Compliance Certifications Meets or Exceeds the Following Specifications:
• ASME A112.19.1 for Cast Iron Plumbing Fixtures
• CAN / CSA B45 Series
To Be Specified
❏ Faucet: 8340.235 exposed yoke wall-mount
utility faucet
❏ Faucet: 8340.243 same as above
with vacuum breaker
❏ Faucet: 8341.076 same as above
with vacuum breaker and stops in shanks
❏ Alternative Faucet
❏ Trap Standard: 7798.030 cast iron “P” trap
standard to wall and strainer for 3” iron pipe
❏ Trap Standard: 7798.020 cast Iron “P” trap
standard to wall and strainer for 2” iron pipe
NOTES:
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
FITTING AND TRAP STANDARD NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances
established by ANSI Standard A112.19.1
These measurements are subject to change or cancellation. No responsibility is assumed for use
of superseded or voided leaflet.
Revised 5/03
1
(25mm)
HANGER
11-1/4
(286mm)
15 REF.
(381mm)
FINISHED
FLOOR
(203mm)
1/2 HOT
8
C/L OF
SPOUT
BRACE
14
(356mm)
22
(559mm)
9
(229mm)
1/2 COLD
6
(152mm)
9
(229mm)
(1073mm)
3 REF.
(76mm)
42-1/4
26-1/4
(667mm)
FINISHED WALL
(457mm)
5
(127mm)
2
(51mm)
18
10-1/4
(260mm)
10-1/2
(267mm)
2 or 3 N.P.T. NIPPLE
AND FLANGE
NOT FURNISHED
Page 2

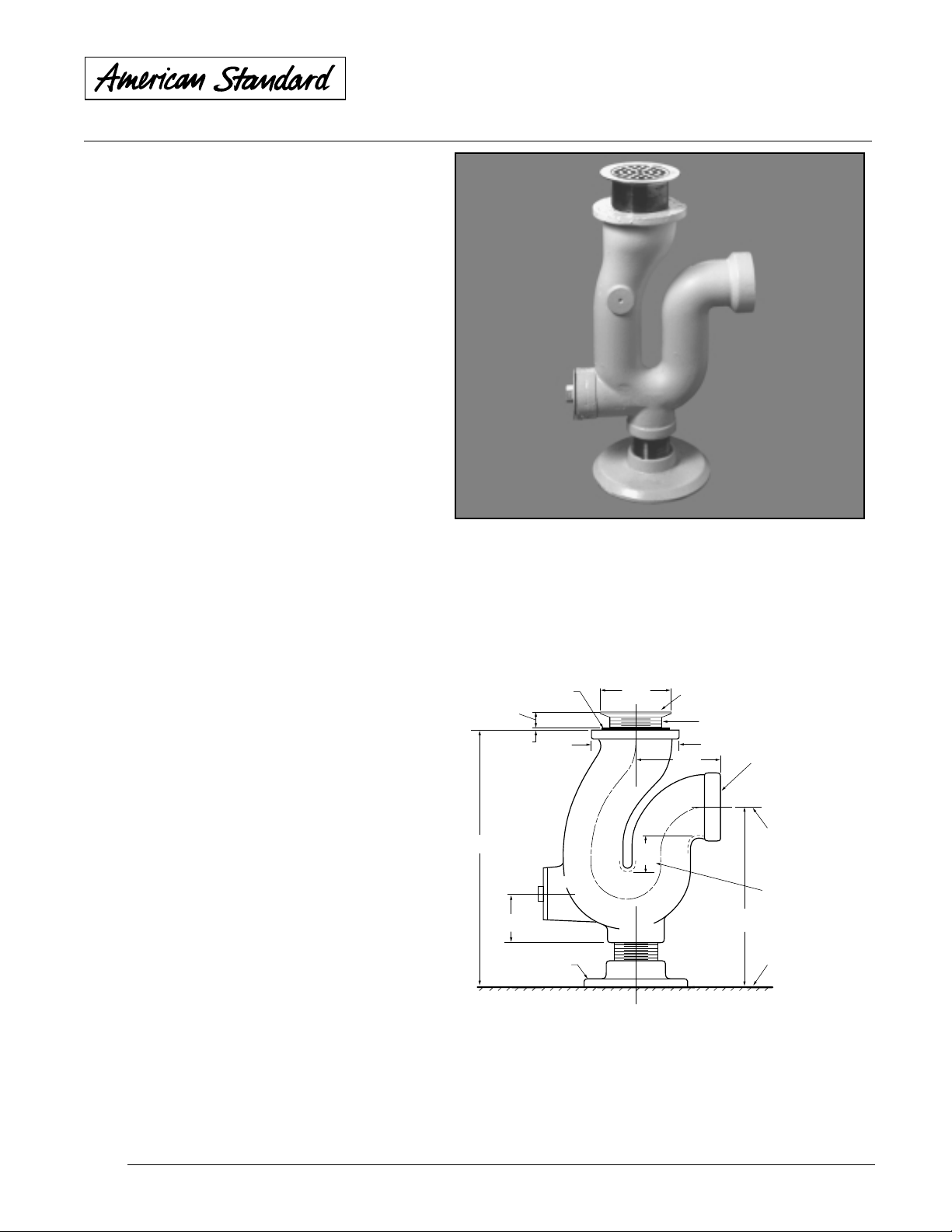

TRAP STANDARDS
ENAMELED CAST IRON
TRAP STANDARDS
❏ 7798.020
2” iron pipe with cleanout plug and strainer
❏ 7798.030
3” iron pipe with cleanout plug and strainer
Compliance Certifications Meets or Exceeds the Following Specifications:
• ASME A112.19.1 for Cast Iron Plumbing Fixtures
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances
established by ANSI Standard A112.19.1
These measurements are subject to change or cancellation. No responsibility is assumed for use
of superseded or voided leaflet.j
© 2002 American Standard Inc.
9/02
SPS 7798
7798.020 / .030 IS FOR ENAMELED IRON SERVICE SINK
102mm
(4)
51mm
(2)
SEAL
REMOVABLE PERFORATED GRID
2.882 X 11-1/2
3 N.P.T. INSIDE THREADS
127mm
(5)
FOR 7798.030
2 N.P.T. INSIDE THREADS
FOR 7798.020
C/L OF OUTLET
67mm(2-5/8) SEAL
WHEN OUTLET
THREADED 51mm(2)
267mm
(10-1/2)
FINISHED
FLOOR
MAX. 25mm (1)
MIN. 8mm (5/16)
381mm
(15)
108mm
(4-1/4)
3mm
(1/8)
WASHER
117mm
(4-5/8)
DIA.
152mm
(6)
DIA.
