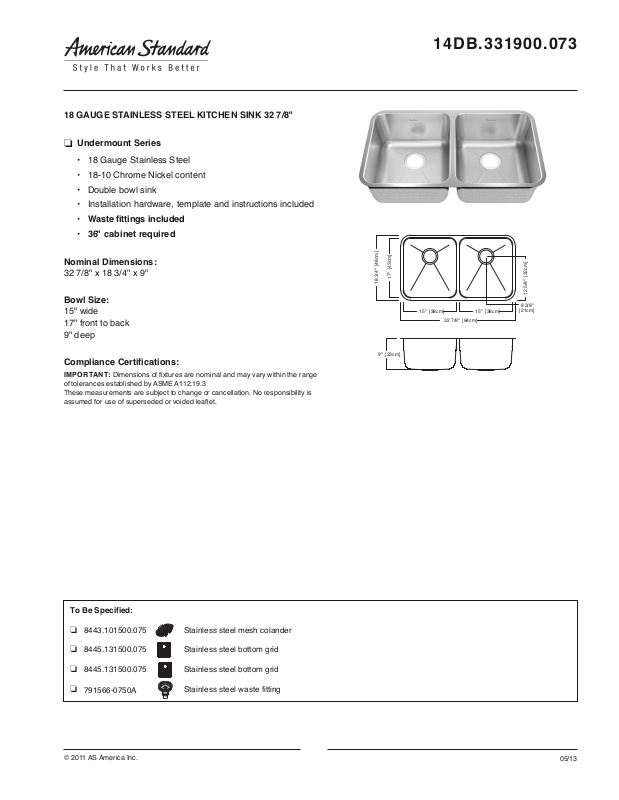

18 GAUGE STAINLESS STEEL KITCHEN SINK 32 7/8"
9" [23cm]
18 3/4" [48cm]
32 7/8" [84cm]
8 3/8"
[21cm]
1
2
5
/
8
"
[
3
2
c
m
]
15" [38cm] 15" [38cm]
17" [43cm]
Undermount Series
❏
• 18 Gauge Stainless Steel
• 18-10 Chrome Nickel content
• Double bowl sink
• Installation hardware, template and instructions included
• Waste fittings included
• 36" cabinet required
Nominal Dimensions:
32 7/8" x 18 3/4" x 9"
Bowl Size:
15" wide
17" front to back
9" deep
14DB.331900.073
Compliance Certifications:
IMPOR TANT: Dimensions of fixtures are nominal and may vary within the range
of tolerances established by ASME A112.19.3
These measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided leaflet.
To Be Specified:
❏ 8443.101500.075 Stainless steel mesh colander
❏ 8445.131500.075 Stainless steel bottom grid
❏ 8445.131500.075 Stainless steel bottom grid
❏
791566-0750A
Stainless steel waste fitting
© 2011 AS America Inc.
05/13
