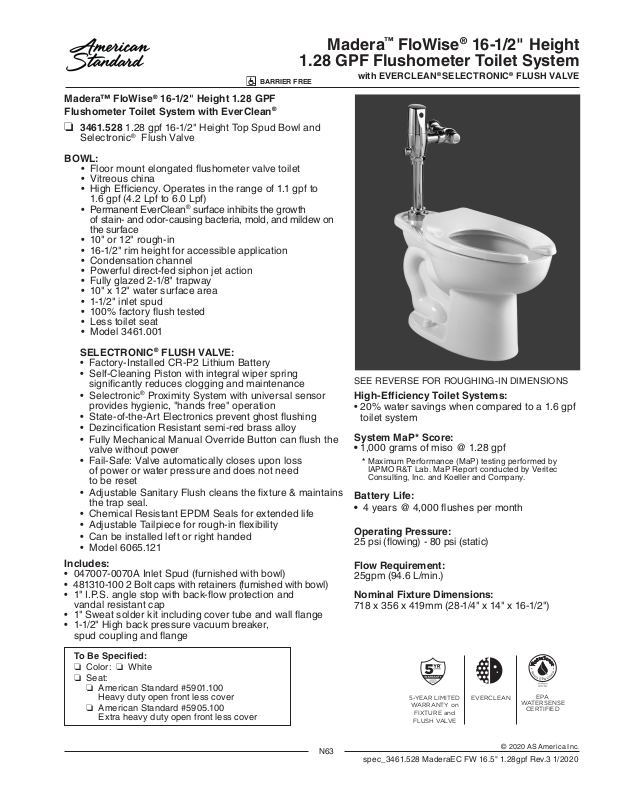

Page 1

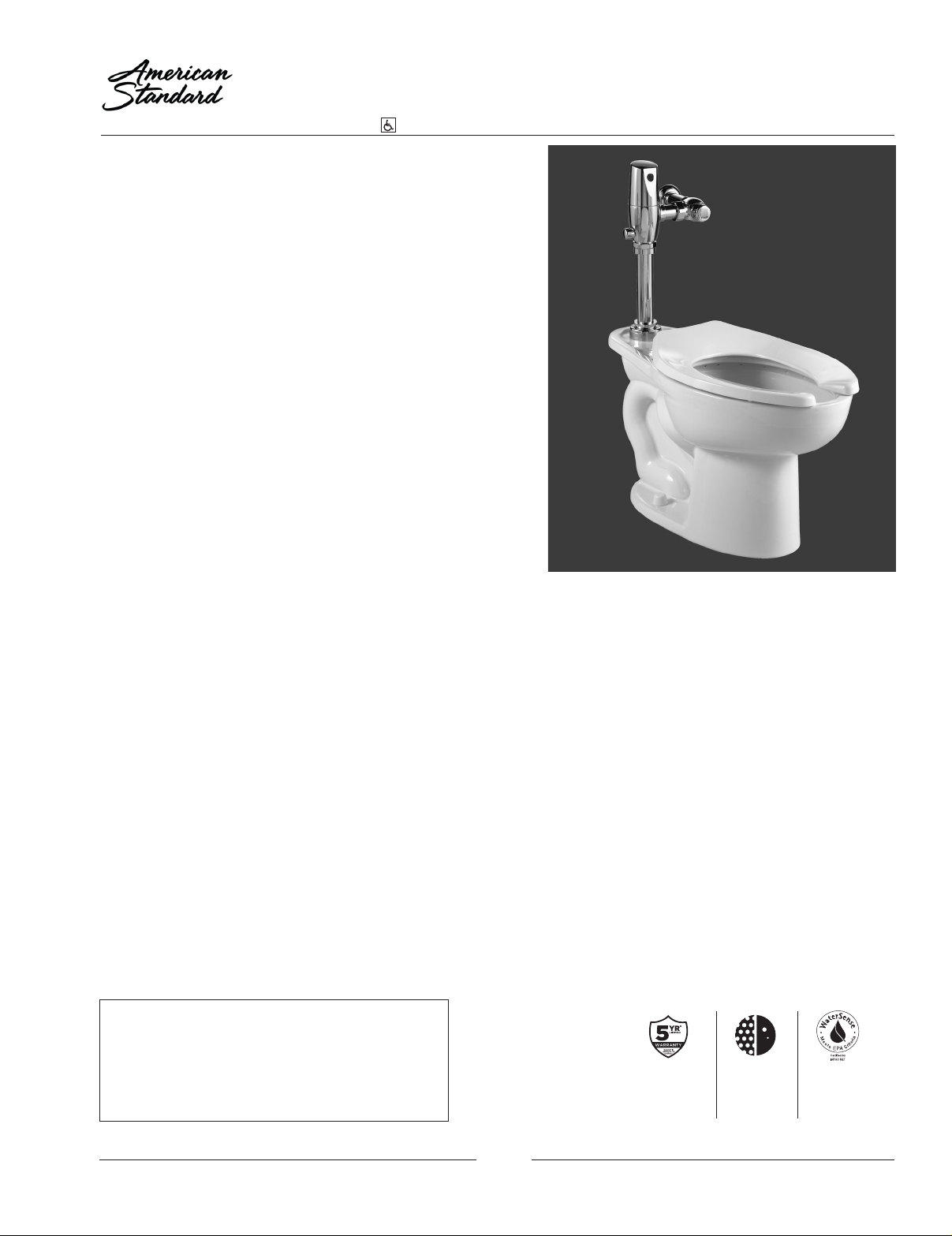

1.28 GPF Flushometer Toilet System
BARRIER FREE
Madera™ FloWise
Flushometer Toilet System with EverClean
❏ 3461.528 1.28 gpf 16-1/2" Height Top Spud Bowl and
Selectronic® Flush Valve
BOWL:
• Floor mount elongated ushometer valve toilet
• Vitreous china
• High Efficiency. Operates in the range of 1.1 gpf to
1.6 gpf (4.2 Lpf to 6.0 Lpf)
• Permanent EverClean® surface inhibits the growth
of stain- and odor-causing bacteria, mold, and mildew on
the surface
• 10" or 12" rough-in
• 16-1/2" rim height for accessible application
• Condensation channel
• Powerful direct-fed siphon jet action
• Fully glazed 2-1/8" trapway
• 10" x 12" water surface area
• 1-1/2" inlet spud
• 100% factory ush tested
• Less toilet seat
• Model 3461.001
®
16-1/2" Height 1.28 GPF
®
Madera™ FloWise® 16-1/2" Height
with EVERCLEAN® SELECTRONIC® FLUSH VALVE
SELECTRONIC® FLU S H VALVE:
• Factory-Installed CR-P2 Lithium Battery
• Self-Cleaning Piston with integral wiper spring
signicantly reduces clogging and maintenance
• Selectronic® Proximity System with universal sensor
provides hygienic, "hands free" operation
• State-of-the-Art Electronics prevent ghost ushing
• Dezincication Resistant semi-red brass alloy
• Fully Mechanical Manual Override Button can ush the
valve without power
• Fail-Safe: Valve automatically closes upon loss
of power or water pressure and does not need
to be reset
• Adjustable Sanitary Flush cleans the xture & maintains
the trap seal.
• Chemical Resistant EPDM Seals for extended life
• Adjustable Tailpiece for rough-in exibility
• Can be installed left or right handed
• Model 6065.121
Includes:
• 047007-0070A Inlet Spud (furnished with bowl)
• 481310-100 2 Bolt caps with retainers (furnished with bowl)
• 1" I.P.S. angle stop with back-ow protection and
vandal resistant cap
• 1" Sweat solder kit including cover tube and wall ange
• 1-1/2" High back pressure vacuum breaker,
spud coupling and ange
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
High-Efficiency Toilet Systems:
• 20% water savings when compared to a 1.6 gpf
toilet system
System MaP* Score:
• 1,000 grams of miso @ 1.28 gpf
* Maximum Performance (MaP) testing performed by
IAPMO R&T Lab. MaP Report conducted by Veritec
Consulting, Inc. and Koeller and Company.
Battery Life:
• 4 years @ 4,000 ushes per month
Operating Pressure:
25 psi (owing) - 80 psi (static)
Flow Requirement:
25gpm (94.6 L/min.)
Nominal Fixture Dimensions:
718 x 356 x 419mm (28-1/4" x 14" x 16-1/2")
To Be Specied:
❏ Color: ❏ White
❏ Seat:
❏ American Standard #5901.100
Heavy duty open front less cover
❏ American Standard #5905.100
Extra heavy duty open front less cover
N63
WARRANTY on
FIXTURE and
FLUSH VALVE
spec_ 3461.528 MaderaEC FW 16.5" 1.28gpf Rev.3 1/2020
EVERCLEAN5-YEAR LIMITED
© 2020 AS America Inc.
EPA
WATERSENSE
CERTIFIED
Page 2
1.28 GPF Flushometer Toilet System
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
BUILDING FACILITIES - CHECK LOCAL CODES.
BARRIER FREE
Madera™ FloWise® 16-1/2" Height
with EVERCLEAN® SELECTRONIC® FLUSH VALVE
Fixture Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008 / CSA B45.1-08 for
Vitreous China Fixtures

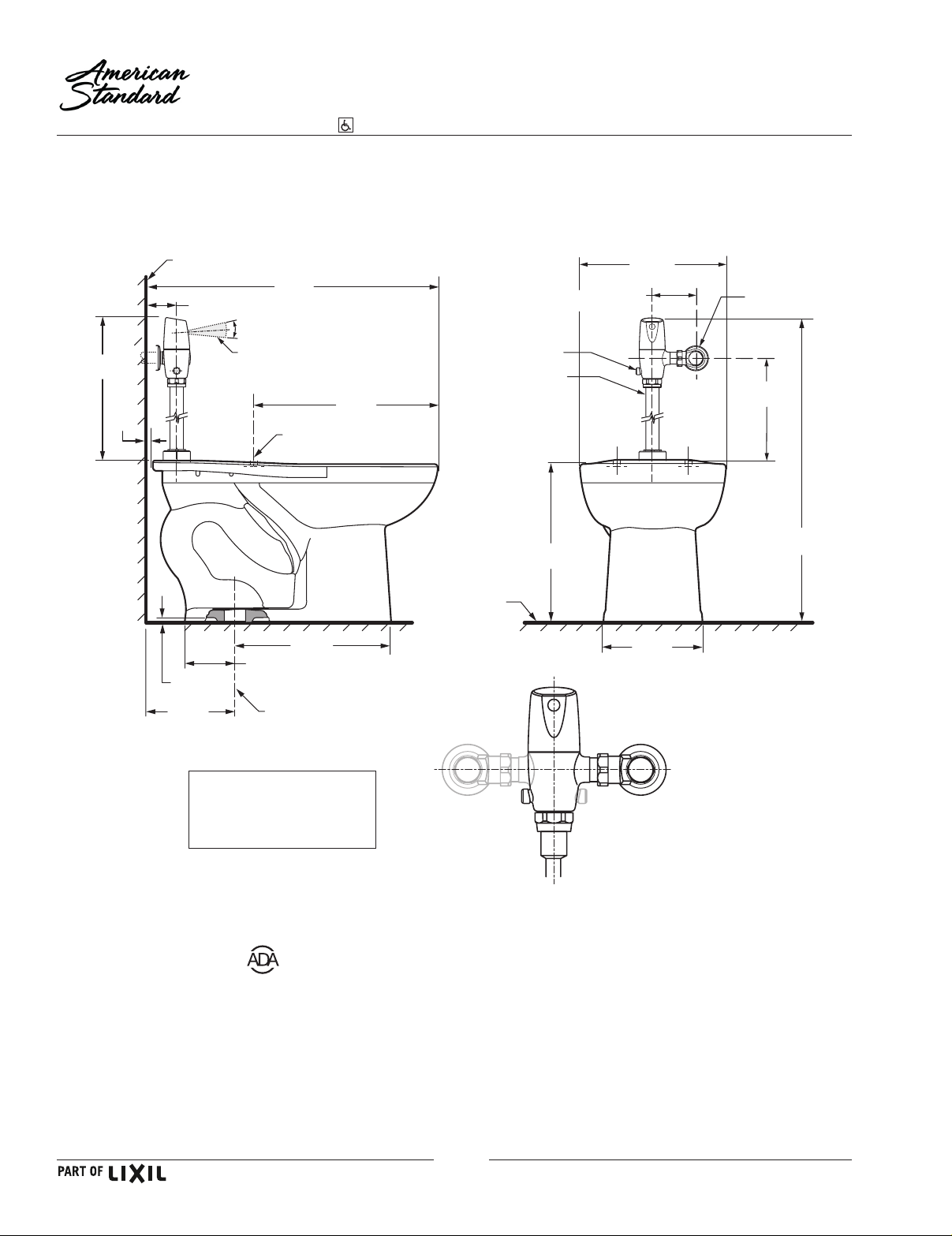

FINISHED WALL
718mm
")
(28-1/4
15˚
DETECTION ZONE
400mm-800mm
(15-3/4" TO 31-1/2")
C/L OF SEAT POST HOLES
140mm (5-1/2
470mm
(18-1/2
") CENTERS
")
419mm
(16-1/2")
25mm
(1")
102mm
(4")
Valve Listings:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant
MANUAL
OVERRIDE
BUTTON
*CRITICAL
LEVEL
419mm
(16-1/2
FINISHED
FLOOR
108-134mm
(4-1/4" to 5-1/4")
")
356mm
(14")
-C-L-
SUPPLY
DN 25mm
(1" I.P.S.)
293mm
(11- 1/2")
839mm
")
(33
338mm
(13-5/16
150mm
13mm
(1/2
")
254mm
")
(10
(5-7/8")
C/L OF OUTLET
*Note: The Critical Line (-C-L-)
on Vacuum Breaker must
typically be a minimum of
6" (152mm) above fixture.
Consult Codes for details.
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE
NOTES:
TO COMPLY WITH AREA CODE GOVERNING THE HEIGHT OF VACUUM
BREAKER ON THE FLUSHOMETER VALVE, THE PLUMBER MUST
VERIFY DIMENSIONS SHOWN FOR SUPPLY ROUGHING.
THIS TOILET DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION
OF 254MM (10") AND A MAXIMUM DIMENSION OF 305MM (12") FROM
FINISHED WALL TO C/L OF OUTLET.
IMPORTANT: Dimensions of x tures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
")
238mm
(9-3/8
")
VALVE LEFT or RIGHT HAND INSTALLATION
N64
© 2020 AS America Inc.
spec_ 3461.528 MaderaEC FW 16.5" 1.28gpf Rev.3 1/2020
