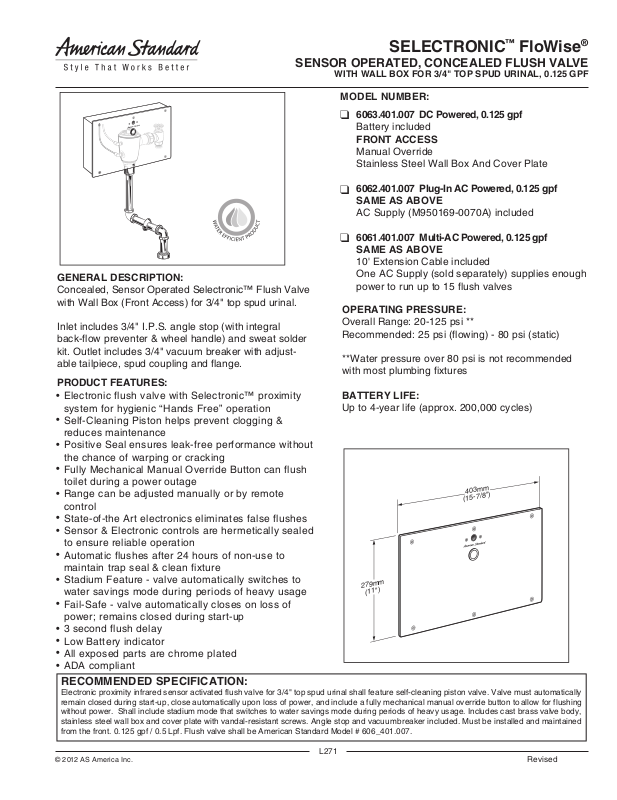

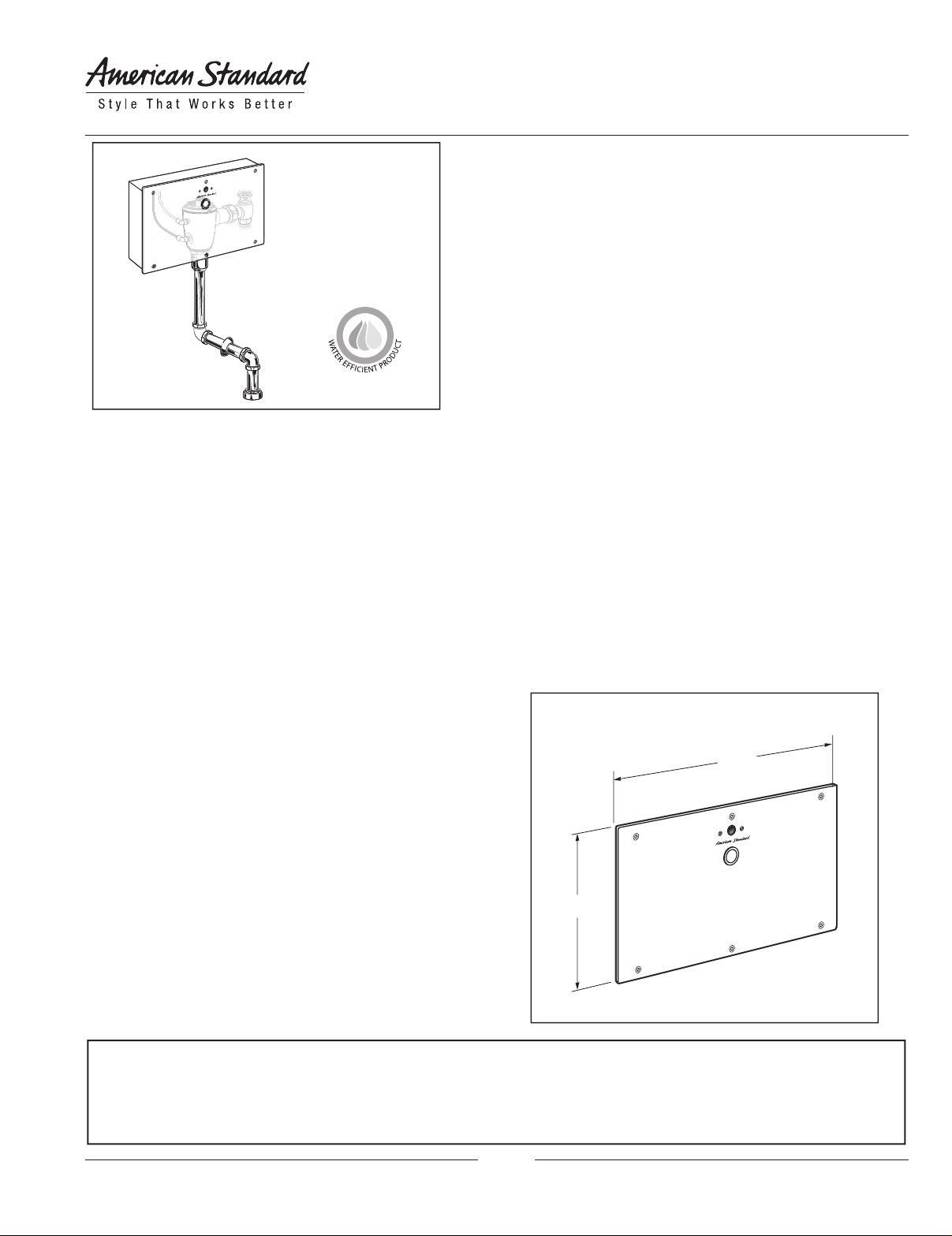

MODEL NUMBER:
One AC Supply (sold separately) supplies enough
SELECTRONIC™ FloWise
SENSOR OPERATED, CONCEALED FLUSH VALVE
WITH WALL BOX FOR 3/4" TOP SPUD URINAL, 0.125 GPF
6063.401.007 DC Powered, 0.125 gpf
❑
Battery included
FRONT ACCESS
GENERAL DESCRIPTION:
Concealed, Sensor Operated Selectronic™ Flush Valve
with Wall Box (Front Access) for 3/4" top spud urinal.
Inlet includes 3/4" I.P.S. angle stop (with integral
back-flow preventer & wheel handle) and sweat solder
kit. Outlet includes 3/4" vacuum breaker with adjustable tailpiece, spud coupling and flange.
PRODUCT FEATURES:
•
Electronic flush valve with Selectronic™ proximity
system for hygienic “Hands Free” operation
•
Self-Cleaning Piston helps prevent clogging &
reduces maintenance
•
Positive Seal ensures leak-free performance without
the chance of warping or cracking
•
Fully Mechanical Manual Override Button can flush
toilet during a power outage
•
Range can be adjusted manually or by remote
control
•
State-of-the Art electronics eliminates false flushes
•
Sensor & Electronic controls are hermetically sealed
to ensure reliable operation
•
Automatic flushes after 24 hours of non-use to
maintain trap seal & clean fixture
•
Stadium Feature - valve automatically switches to
water savings mode during periods of heavy usage
•
Fail-Safe - valve automatically closes on loss of
power; remains closed during start-up
•
3 second flush delay
•
Low Battery indicator
•
All exposed parts are chrome plated
•
ADA compliant
RECOMMENDED SPECIFICATION:
Electronic proximity infrared sensor activated flush valve for 3/4" top spud urinal shall feature self-cleaning piston valve. Valve must automatically
remain closed during start-up, close automatically upon loss of power, and include a fully mechanical manual override button to allow for flushing
without power. Shall include stadium mode that switches to water savings mode during periods of heavy usage. Includes cast brass valve body,
stainless steel wall box and cover plate with vandal-resistant screws. Angle stop and vacuum breaker included. Must be installed and maintained
from the front. 0.125 gpf / 0.5 Lpf. Flush valve shall be American Standard Model # 606_401.007.
Manual Override
Stainless Steel Wall Box And Cover Plate
6062.401.007 Plug-In AC Powered, 0.125 gpf
❑
SAME AS ABOVE
AC Supply (M950169-0070A) included
6061.401.007 Multi-AC Powered, 0.125 gpf
❑
SAME AS ABOVE
10' Extension Cable included
power to run up to 15 flush valves
OPERATING PRESSURE:
Overall Range: 20-125 psi **
Recommended: 25 psi (flowing) - 80 psi (static)
**Water pressure over 80 psi is not recommended
with most plumbing fixtures
BATTERY LIFE:
Up to 4-year life (approx. 200,000 cycles)
403mm
(15-7/8")
279mm
(11")
®
© 2012 AS America Inc.
L271
Revised
Page 2
LISTINGS:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant
SELECTRONIC™ FloWise
SENSOR OPERATED, CONCEALED FLUSH VALVE
WITH WALL BOX FOR 3/4" TOP SPUD URINAL, 0.125 GPF
®

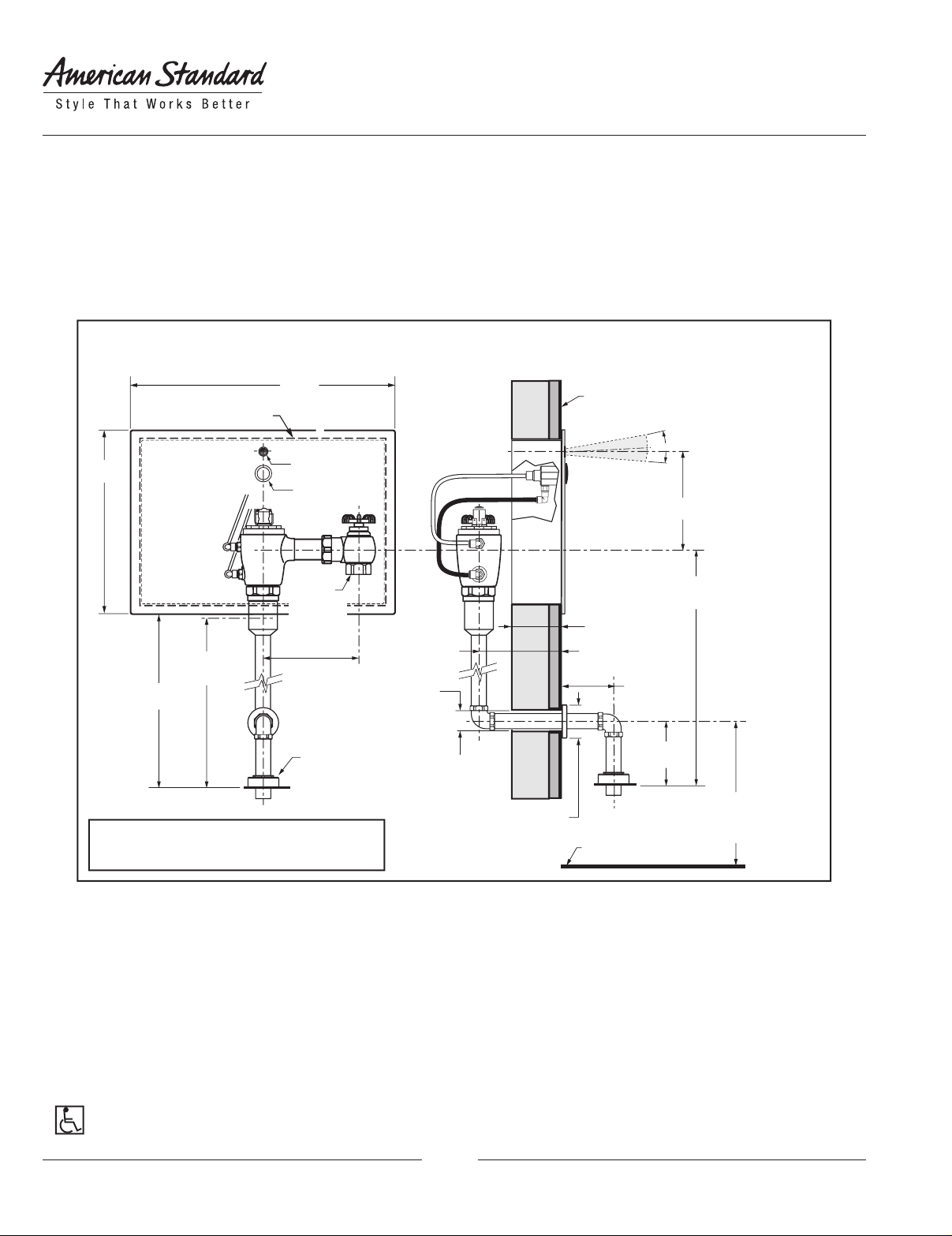

Roughing-in Dimensions
3/4” TOP SPUD URINAL
403mm
387mm x 267mm
(15-1/4" X 10-1/2")
ROUGH OPENING FOR BOX
279mm
(11")
*
-C-L-
152mm
(6") MIN.
203mm
(8") REF.
*Note: The Critical Line (-C-L-) on Vacuum
Breaker must typically be 6
above fixture. Consult Codes for details.
(15-7/8")
SENSOR
OVERRIDE
BUTTON
SUPPLY
DN 19mm
(3/4") I.P.S.
-C-L-
115mm-134mm
(4-1/2" TO 5-1/4")
FOR 3/4" TOP
SPUD FIXTURE
(152mm) min.
"
32mm
(1-1/4") DIA.
TOP SPUD
FIXTURES
60mm
(2-3-8") DIA.
FINISHED WALL
(15-7/8") MIN. TO
WALL THICKNESS
51mm (2")
+ WALL THICKNESS
73 TO 137mm
(2-7/8") MIN. TO
(5-3/8") MAX.
114mm
(4-1/2") MAX.
SUPPLY ON BACK INLET FIXTURES,
REFER TO FIXTURE BEING INSTALLED
FINISHED FLOOR
15˚
200mm
(7-7/8")
403 TO 441mm
(17-3/8") MAX.
FOR LOCATION OF INLET
FOR CORRECT HEIGHT FROM
FINISHED FLOOR
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES
