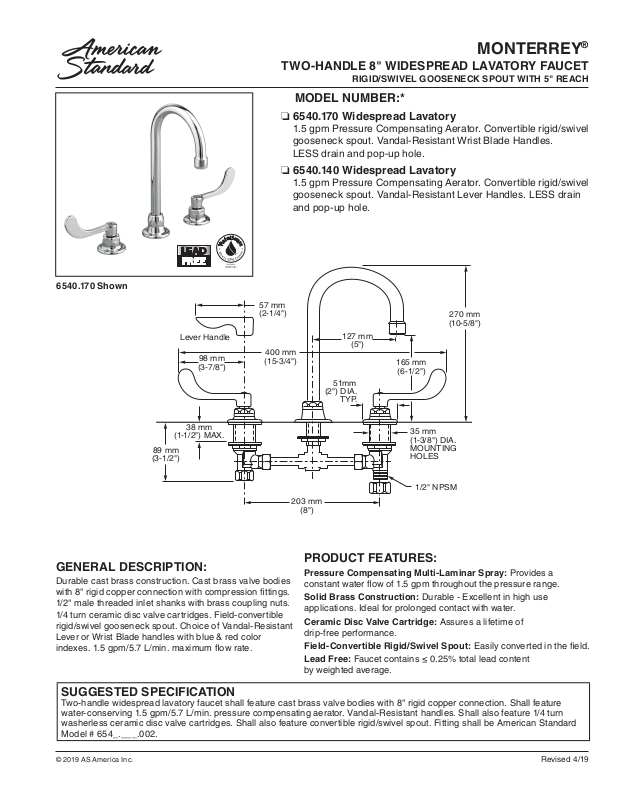

Page 1
6540.170 Shown
Lever Handle
98 mm
(3-7/8")
MONTERREY
TWO-HANDLE 8" WIDESPREAD LAVATORY FAUCET
RIGID/SWIVEL GOOSENECK SPOUT WITH 5" REACH
MODEL NUMBER:*
❏ 6540.170 Widespread Lavatory
1.5 gpm Pressure Compensating Aerator. Convertible rigid/swivel
gooseneck spout. Vandal-Resistant Wrist Blade Handles.
LESS drain and pop-up hole.
❏ 6540.140 Widespread Lavatory
1.5 gpm Pressure Compensating Aerator. Convertible rigid/swivel
gooseneck spout. Vandal-Resistant Lever Handles. LESS drain
and pop-up hole.
57 mm
(2-1/4")
400 mm
(15-3/4")
127 mm
(5")
165 mm
(6-1/2")
51mm
(2") DIA.
TYP.
270 mm
(10-5/8")
®
38 mm
(1-1/2") MAX.
89 mm
(3-1/2")
203 mm
(8")
35 mm
(1-3/8") DIA.
MOUNTING
HOLES
1/2" NPSM
PRODUCT FEATURES:
GENERAL DESCRIPTION:
Durable cast brass construction. Cast brass valve bodies
with 8" rigid copper connection with compression ttings.
1/2" male threaded inlet shanks with brass coupling nuts.
1/4 turn ceramic disc valve cartridges. Field-convertible
rigid/swivel gooseneck spout. Choice of Vandal-Resistant
Lever or Wrist Blade handles with blue & red color
indexes. 1.5 gpm/5.7 L/min. maximum ow rate.
Pressure Compensating Multi-Laminar Spray: Provides a
constant water ow of 1.5 gpm throughout the pressure range.
Solid Brass Construction: Durable - Excellent in high use
applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Field-Convertible Rigid/Swivel Spout: Easily converted in the eld.
Lead Free: Faucet contains ≤ 0.25% total lead content
by weighted average.
SUGGESTED SPECIFICATION
Two-handle widespread lavatory faucet shall feature cast brass valve bodies with 8" rigid copper connection. Shall feature
water-conserving 1.5 gpm/5.7 L/min. pressure compensating aerator. Vandal-Resistant handles. Shall also feature 1/4 turn
washerless ceramic disc valve cartridges. Shall also feature convertible rigid/swivel spout. Fitting shall be American Standard
Model # 654_.__ _.002.
© 2019 AS America Inc.
Revised 4/19
Page 2
MONTERREY
TWO-HANDLE 8" WIDESPREAD LAVATORY FAUCET
RIGID/SWIVEL GOOSENECK SPOUT WITH 5" REACH
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112 .18 .1
CSA B125.1
NSF 372
Product
Number Description
Widespread Lavatory with convertible rigid/swivel gooseneck spout. 1.5 gpm/5.7 L/min
65 4 0.17 0
6540.140
pressure compensating aerator. Vandal-Resistant Wrist Blade Handles. LESS drain
and pop-up hole.
Widespread Lavatory with convertible rigid/swivel gooseneck spout. 1.5 gpm/5.7 L/min
pressure compensating aerator. Vandal-Resistant Lever Handles. LESS drain and
pop-up hole.
FLOW RATE*
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
10080604020
Finish
Polished
Chrome
002
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for accessible and
usable building facilities - check local codes
Other Aerators Available:
Part Suffix Description
LV15 1.5 gpm (5.7 Lpm) Vandal-Resistant PCA Non-Aerated Laminar Flow Outlet
V15 1.5 gpm (5.7 Lpm) PCA Vandal-Resistant Aerator
LV10 1.0 gpm (3.8 Lpm) Vandal-Resistant PCA Non-Aerated Laminar Flow Outlet
V10 1.0 gpm (3.8 Lpm) Vandal-Resistant PCA Aerator
V05* 0.5 gpm (1.9 Lpm) PCA Vandal-Resistant Multi-Laminar Spray
V035* t0.35 gpm (1.3 Lpm) Vandal-Resistant PCA Non-Aerated Spray
PCA - Pressure Compensating
*Meets Cal Green Code
© 2019 AS America Inc.
Revised 4/19
