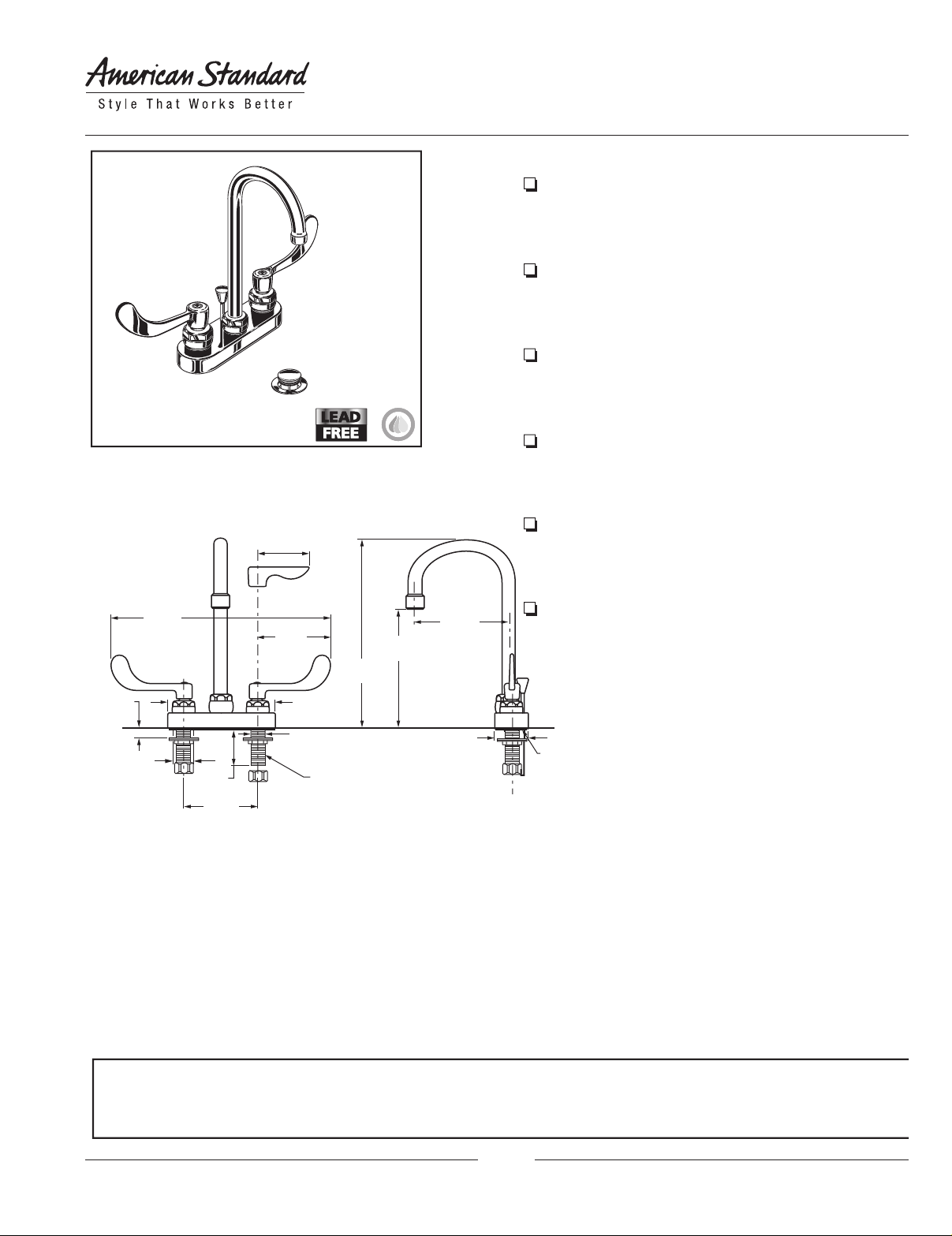

298mm

(11-3/4")

35mm

(1-3/8")

MAX.

32mm

(1-1/4")DIA.

MOUNTING

HOLES

51mm

(2

102mm

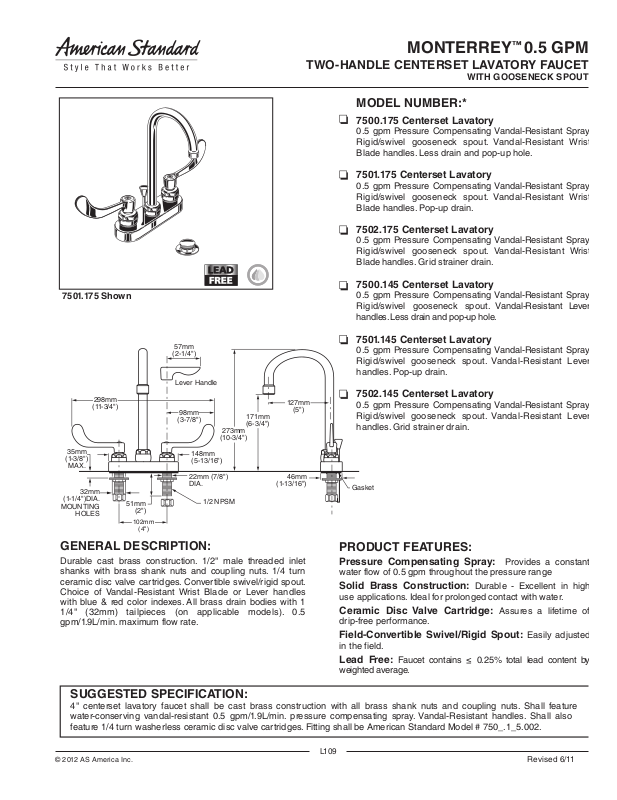

MONTERREY™ 0.5 GPM

TWO-HANDLE CENTERSET LAVATORY FAUCET

WITH GOOSENECK SPOUT

MODEL NUMBER:*

7500.175 Centerset Lavatory

0.5 gpm Pressure Compensating Vandal-Resistant Spr
Rigid/swivel gooseneck spout. Vandal-Resistant Wr
Blade handles. Less drain and pop-up hole.

7501.175 Centerset Lavatory

0.5 gpm Pressure Compensating Vandal-Resistant Spr
Rigid/swivel gooseneck spout. Vandal-Resistant Wr

Blade handles. Pop-up drain.

7502.175 Centerset Lavatory

0.5 gpm Pressure Compensating Vandal-Resistant Spr
Rigid/swivel gooseneck spout. Vandal-Resistant Wr
Blade handles. Grid strainer drain.

7500.145 Centerset Lavatory

0.5 gpm Pressure Compensating Vandal-Resistant Spr
Rigid/swivel gooseneck spout. Vandal-Resistant Leve
handles. Less drain and pop-up hole.

57mm

(2-1/4")

Lever Handle

127mm

"

)

(5")

46mm

(1-13/16

"

)

98mm

(3-7/8")

148mm
(5-13/16

22mm (7/8")
DIA.

"

)

"

)

(4

1/2 NPSM

273mm

(10-3/4

")

171mm
(6-3/4

"

)

7501.145 Centerset Lavatory

0.5 gpm Pressure Compensating Vandal-Resistant Spr
Rigid/swivel gooseneck spout. Vandal-Resistant Leve
handles. Pop-up drain.

7502.145 Centerset Lavatory

0.5 gpm Pressure Compensating Vandal-Resistant Spr
Rigid/swivel gooseneck spout. Vandal-Resistant Leve
handles. Grid strainer drain.

Gasket

GENERAL DESCRIPTION:

Durable cast brass construction. 1/2" male threaded inlet
shanks with brass shank nuts and coupling nuts. 1/4 turn
ceramic disc valve cartridges. Convertible swivel/rigid spout.
Choice of Vandal-Resistant Wrist Blade or Lever handles
with blue & red color indexes. All brass drain bodies with 1
1/4" (32mm) tailpieces (on applicable models). 0.5
gpm/1.9L/min. maximum flow rate.

PRODUCT FEATURES:

Pressure Compensating Spray: Provides a

water flow of 0.5 gpm throughout the pressure range

Solid Brass Construction: Durable - Excellent in

use applications. Ideal for prolonged contact with water.

Ceramic Disc Valve Cartridge: Assures a lifetime

drip-free performance.

Field-Convertible Swivel/Rigid Spout: Easily adjust

in the field.

Lead Free: Faucet contains ≤ 0.25% total lead content

weighted average.

SUGGESTED SPECIFICATION:

4" centerset lavatory faucet shall be cast brass construction with all brass shank nuts and coupling nuts. Shall feature
water-conserving vandal-resistant 0.5 gpm/1.9L/min. pressure compensating spray. Vandal-Resistant handles. Shall also
feature 1/4 turn washerless ceramic disc valve cartridges. Fitting shall be American Standard Model # 750_.1_5.002.

© 2012 AS America Inc.

L10 9

Revised 6/11

MONTERREY™ 0.5 GPM

S

TWO-HANDLE CENTERSET LAVATORY FAUCET

WITH GOOSENECK SPOUT

CODES AND STANDARDS

These products meet or exceed the following
codes and standards:

ANSI A117.1
ASME A112.18.1
CSA B 125
NSF 61/Section 9 and Annex G

Product
Number

7500.175

7501. 175

7502.175

7500.145

7501. 145

7502.145

MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINE
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES

Description

Centerset Lavatory with rigid/swivel gooseneck spout. 0.5 gpm/1.9L/min pressure compensating
vandal-resistant spray. Vandal-Resistant Wrist Blade Handles. Less drain and pop-up hole.

Centerset Lavatory with rigid/swivel gooseneck spout. 0.5 gpm/1.9L/min pressure compensating
vandal-resistant spray. Vandal-Resistant Wrist Blade Handles. Pop-up drain.

Centerset Lavatory with rigid/swivel gooseneck spout. 0.5 gpm/1.9L/min pressure compensating
vandal-resistant spray. Vandal-Resistant Wrist Blade Handles. Grid strainer drain.

Centerset Lavatory with rigid/swivel gooseneck spout. 0.5 gpm/1.9L/min pressure compensating
vandal-resistant spray. Vandal-Resistant Lever Handles. Less drain and pop-up hole.

Centerset Lavatory with rigid/swivel gooseneck spout. 0.5 gpm/1.9L/min pressure compensating
vandal-resistant spray. Vandal-Resistant Lever Handles. Pop-up drain.

Centerset Lavatory with rigid/swivel gooseneck spout. 0.5 gpm/1.9L/min pressure compensating
vandal-resistant spray. Vandal-Resistant Lever Handles. Grid strainer drain.

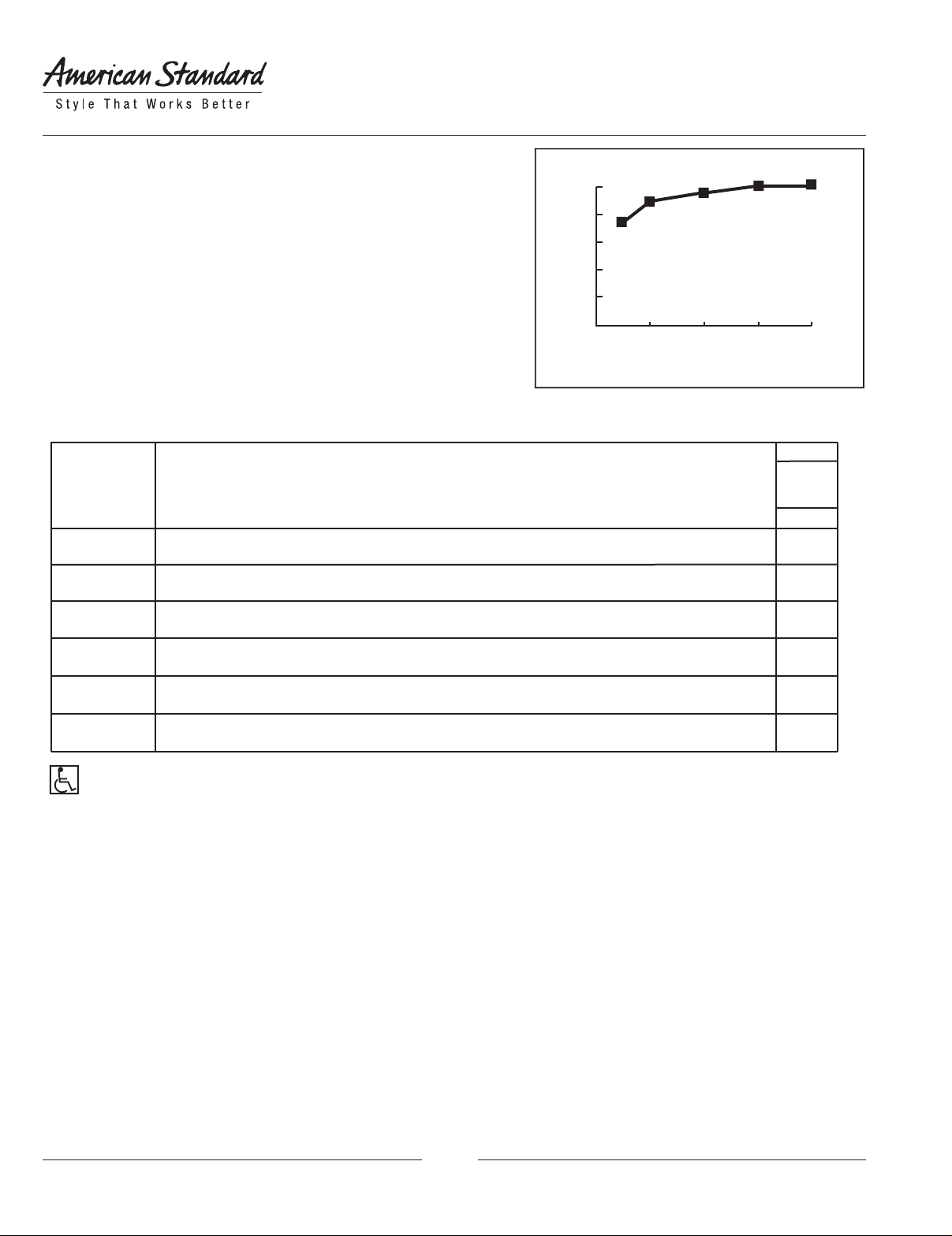

FLOW RATE*

0.5

0.4

0.3

0.2

0.1

GALLONS PER MINUTE

0.0

*Flow rates shown are for mixed hot and cold.

INLET PRESSURE (PSI)

80604020

Finish

Polished

Chrome

002

© 2012 AS America Inc.

L110

Revised 6/11
