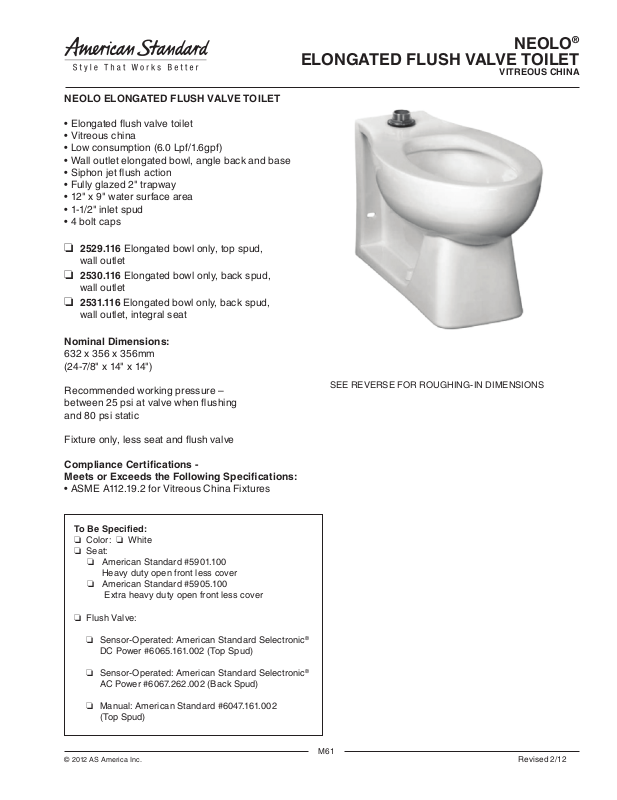

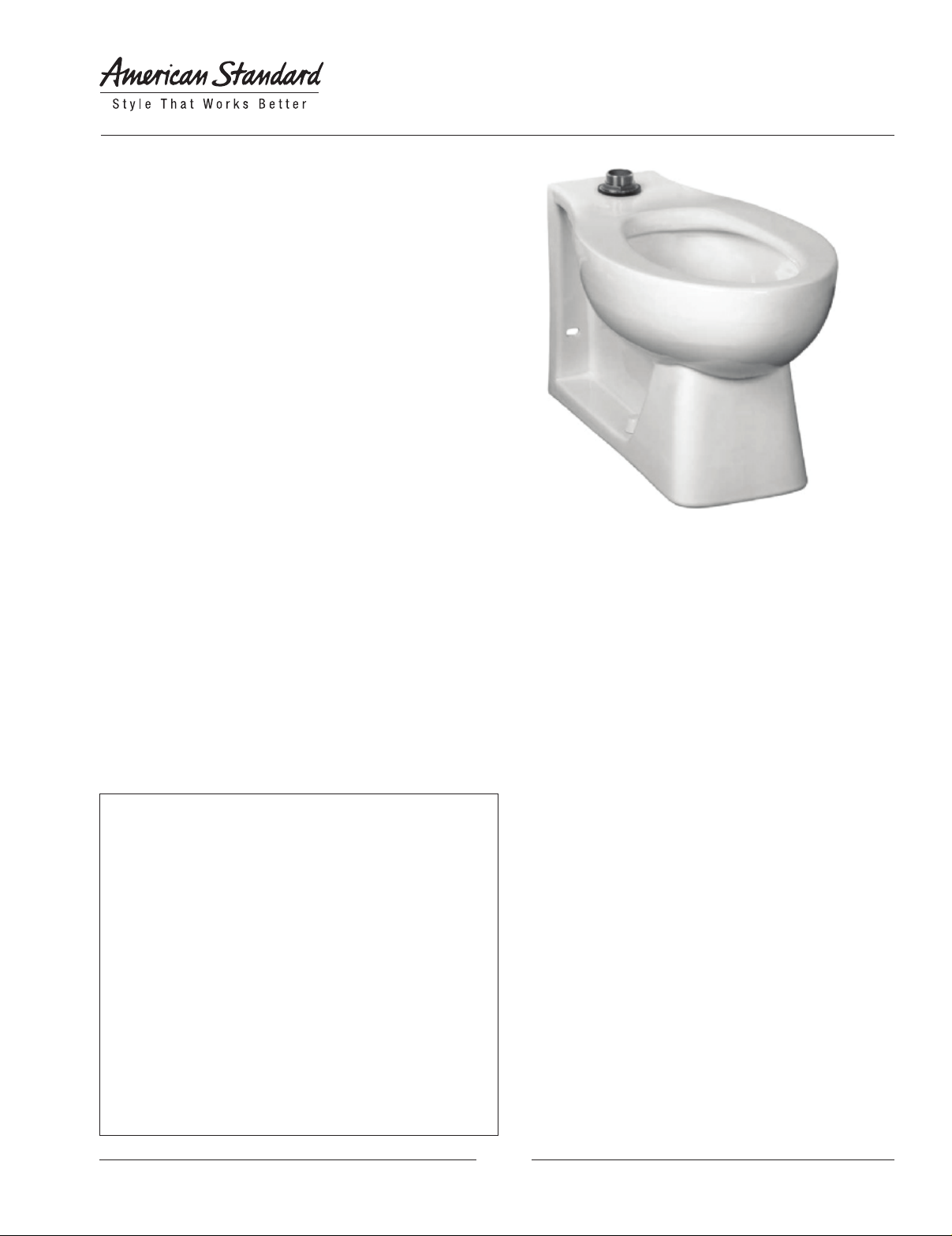

NEOLO ELONGATED FLUSH VALVE TOILET
• Elongated ush valve toilet
• Vitreous china
• Low consumption (6.0 Lpf/1.6gpf)
• Wall outlet elongated bowl, angle back and base
• Siphon jet ush action
• Fully glazed 2" trapway
• 12" x 9" water surface area
• 1-1/2" inlet spud
• 4 bolt caps
❏ 25 2 9.116 Elongated bowl only, top spud,
wall outlet
❏ 2530.116 Elongated bowl only, back spud,
wall outlet
❏ 25 3 1.116 Elongated bowl only, back spud,
wall outlet, integral seat

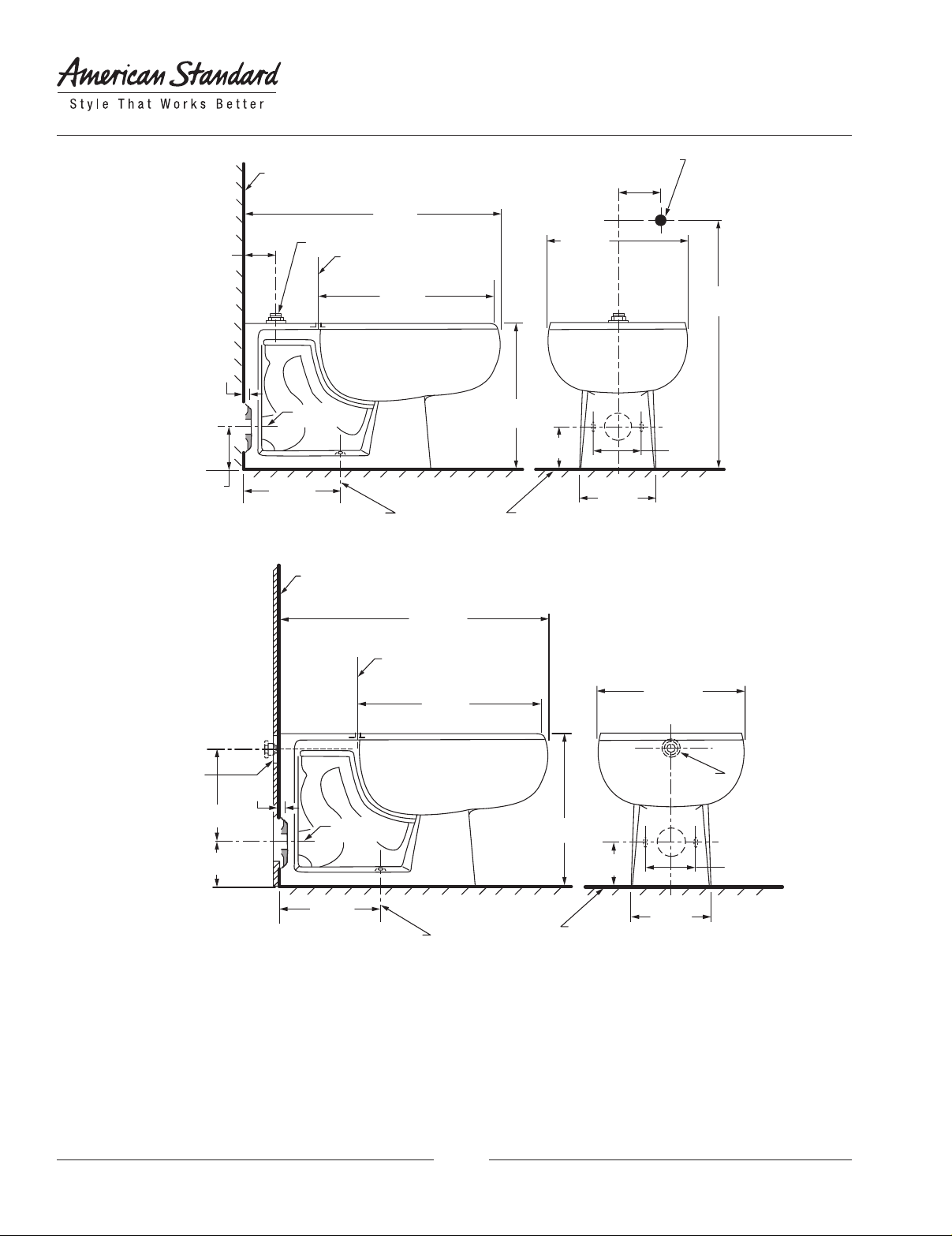

NEOLO
®
ELONGATED FLUSH VALVE TOILET
VITREOUS CHINA
Nominal Dimensions:
632 x 356 x 356mm
(24-7/8" x 14" x 14")
Recommended working pressure –
between 25 psi at valve when ushing
and 80 psi static
Fixture only, less seat and ush valve
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2 for Vitreous China Fixtures
To Be Specied:
❏ Color: ❏ White
❏ Seat:
❏ American Standard #5901.100
Heavy duty open front less cover
❏ American Standard #5905.100
Extra heavy duty open front less cover
❏ Flush Valve:
❏ Sensor-Operated: American Standard Selectronic®
DC Power #6065.161.002 (Top Spud)
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
❏ Sensor-Operated: American Standard Selectronic®
AC Power #6067.262.002 (Back Spud)
❏ Manual: American Standard #6047.161.002
(Top Spud)
© 2012 AS America Inc.
M61
Revised 2/12
Page 2
NEOLO
®
ELONGATED FLUSH VALVE TOILET
VITREOUS CHINA
2529.116 Top Sp u d
76mm
(3")
108mm
(4-1/4")
2530.116 / 2531.116
Back Spud
FINISHED WALL
632mm
(24-7/8")
38mm (1-1/2") SPUD
C/L OF SEAT POST HOLE
140mm (5-1/2") CENTERS
476mm
(18-3/4")
19mm(3/4")
C/L OF
OUTLET
267mm
(10-1/2")
C/L OF 1/2" DIA. BOLT
HOLES ON 140mm (5-1/2) CENTERS
FINISHED WALL
632mm
(24-7/8")
25mm (1") N.P.T. OR C.W.T.
SUPPLY TO FLUSH VALVE
108mm - 134mm
(4-1/4" - 5-1/4")
352mm
(13-7/8")
356mm
(14")
108mm
(4-1/4")
222mm
FINISHED
FLOOR
(8-3/4")
660mm
152mm
(6")
(26")
70mm
(2-3/4")
DIA. HOLE
IN WALL
20mm
(3/4")
216mm
(8-1/2")
108mm
(4-1/4)
C/L OF 13mm (1/2") DIA. BOLT
HOLES ON 140mm (5-1/2") CENTERS
C/L OF
OUTLET
257mm
(10-1/8")
NOTES:
WASTE OUTLET SEAL RING MUST BE NEOPRENE OR GRAPHITEFELT (WAX RING NOT RECOMMENDED).
TO COMPLY WITH AREA CODE GOVERNING THE HEIGHT OF VACUUM
BREAKER ON FLUSH VALVE, THE PLUMBER MUST VERIFY
DIMENSIONS SHOWN FOR SUPPLY ROUGHING.
FLUSH VALVE NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of xtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibilit y is
assumed for use of superseded or voided pages.
C/L OF SEAT POST HOLE
140mm (5-1/2") CENTERS
479mm
(18-7/8")
356mm
(14")
FINISHED
FLOOR
108mm
(4-1/4)
356mm
(14")
38mm
(1-1/2")
SPUD
222mm
(8-3/4")
152mm
(6")
© 2012 AS America Inc.
M62
Revised 2/12
