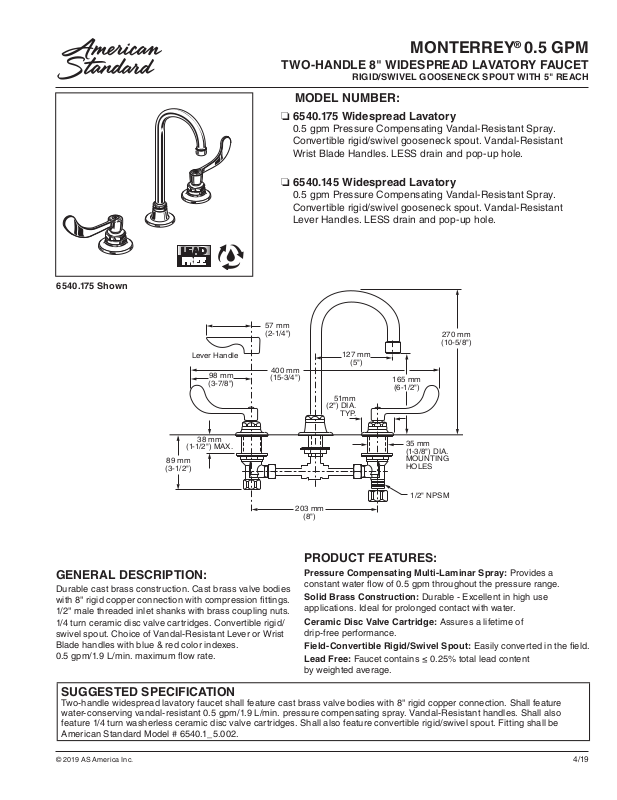

Page 1
6540.175 Shown
Lever Handle
98 mm
(3-7/8")
MONTERREY® 0.5 GPM
TWO-HANDLE 8" WIDESPREAD LAVATORY FAUCET
RIGID/SWIVEL GOOSENECK SPOUT WITH 5" REACH
MODEL NUMBER:
❏ 6540.175 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant Spray.
Convertible rigid/swivel gooseneck spout. Vandal-Resistant
Wrist Blade Handles. LESS drain and pop-up hole.
❏ 6540.145 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant Spray.
Convertible rigid/swivel gooseneck spout. Vandal-Resistant
Lever Handles. LESS drain and pop-up hole.
57 mm
"
)
(2-1/4
400 mm
(15-3/4")
127 mm
51mm
(2") DIA.
TYP.
(5")
165 mm
(6-1/2")
270 mm
(10-5/8")
89 mm
(3-1/2")
38 mm
(1-1/2") MAX.
203 mm
(8")
35 mm
(1-3/8") DIA.
MOUNTING
HOLES
1/2" NPSM
PRODUCT FEATURES:
GENERAL DESCRIPTION:
Durable cast brass construction. Cast brass valve bodies
with 8" rigid copper connection with compression ttings.
1/2" male threaded inlet shanks with brass coupling nuts.
1/4 turn ceramic disc valve cartridges. Convertible rigid/
swivel spout. Choice of Vandal-Resistant Lever or Wrist
Blade handles with blue & red color indexes.
0.5 gpm/1.9 L/min. maximum ow rate.
Pressure Compensating Multi-Laminar Spray: Provides a
constant water ow of 0.5 gpm throughout the pressure range.
Solid Brass Construction: Durable - Excellent in high use
applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Field-Convertible Rigid/Swivel Spout: Easily converted in the eld.
Lead Free: Faucet contains ≤ 0.25% total lead content
by weighted average.
SUGGESTED SPECIFICATION
Two-handle widespread lavatory faucet shall feature cast brass valve bodies with 8" rigid copper connection. Shall feature
water-conserving vandal-resistant 0.5 gpm/1.9 L/min. pressure compensating spray. Vandal-Resistant handles. Shall also
feature 1/4 turn washerless ceramic disc valve cartridges. Shall also feature convertible rigid/swivel spout. Fitting shall be
American Standard Model # 6540.1_5.002.
© 2019 AS America Inc.
4/19
Page 2
MONTERREY® 0.5 GPM
TWO-HANDLE 8" WIDESPREAD LAVATORY FAUCET
RIGID/SWIVEL GOOSENECK SPOUT WITH 5" REACH
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
AN SI 117.1
ASME A112 .18 .1
CSA B125.1
NSF 372
Product
Number Description
Widespread Lavatory with convertible rigid/swivel gooseneck spout. 0.5 gpm/1.9 L/min
65 4 0.17 5
6540.145
pressure compensating vandal-resistant multi-laminar spray. Vandal-Resistant Wrist Blade
Handles. LESS drain and pop-up hole.
Widespread Lavatory with convertible rigid/swivel gooseneck spout. 0.5 gpm/1.9 L/min
pressure compensating vandal-resistant multi-laminar spray. Vandal-Resistant Lever
Handles. LESS drain and pop-up hole.
FLOW RATE*
0.5
0.4
0.3
0.2
0.1
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
80604020
Finish
Polished
Chrome
002
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for accessible and
usable building facilities - check local codes
© 2019 AS America Inc.
4/19
