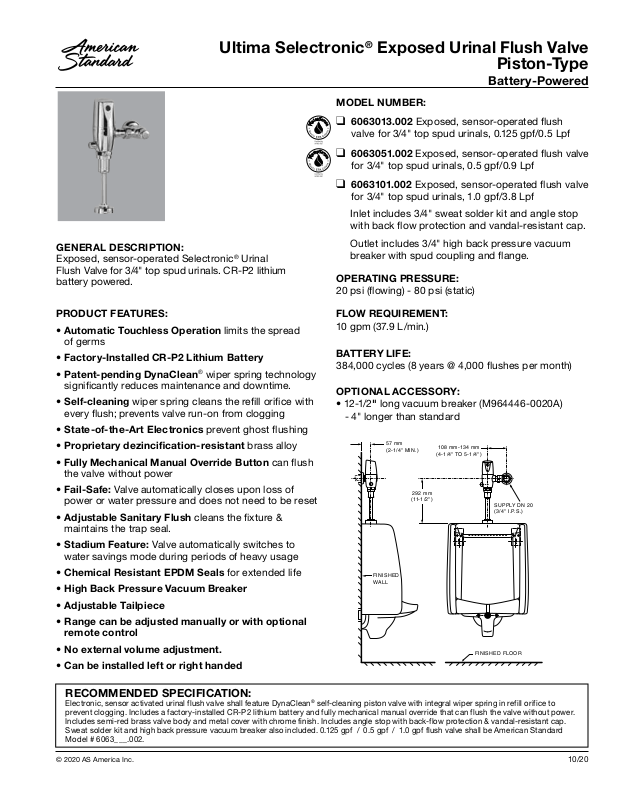

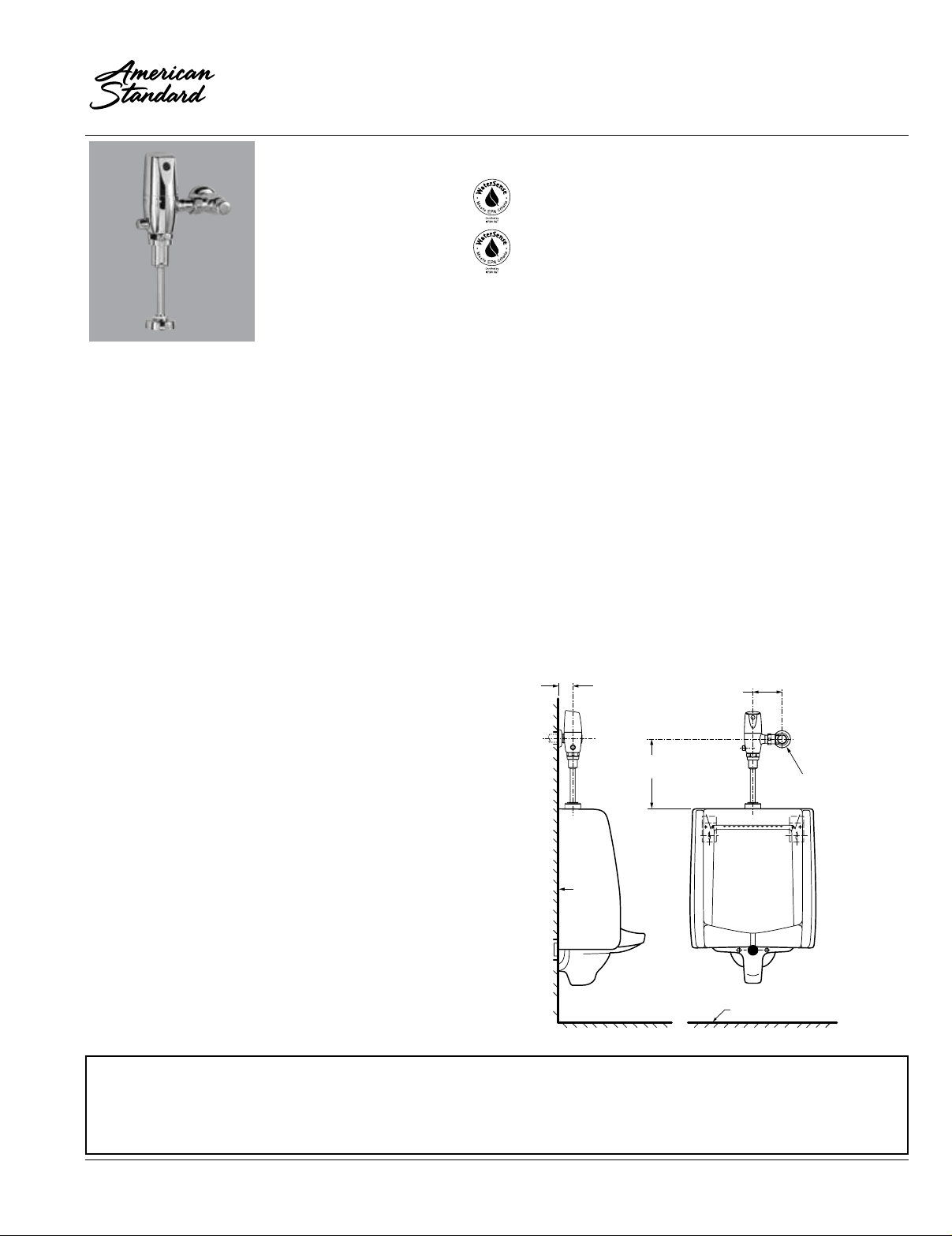

Ultima Selectronic® Exposed Urinal Flush Valve
GENERAL DESCRIPTION:
Exposed, sensor-operated Selectronic® Urinal
Flush Valve for 3/4" top spud urinals. CR-P2 lithium
battery powered.
Piston-Type
Battery-Powered
MODEL NUMBER:
❑ 60 63013.002 Exposed, sensor-operated ush
valve for 3/4" top spud urinals, 0.125 gpf/0.5 Lpf
❑ 6063051.002 Exposed, sensor-operated ush valve
for 3/4" top spud urinals, 0.5 gpf/0.9 Lpf
❑ 60 63101.002 Exposed, sensor-operated ush valve
for 3/4" top spud urinals, 1.0 gpf/3.8 Lpf
Inlet includes 3/4" sweat solder kit and angle stop
with back ow protection and vandal-resistant cap.
Outlet includes 3/4" high back pressure vacuum
breaker with spud coupling and ange.
OPERATING PRESSURE:
20 psi (owing) - 80 psi (static)
PRODUCT FEATURES:
• Automatic Touchless Operation limits the spread
of germs
• Factory-Installed CR-P2 Lithium Battery
• Patent-pending DynaClean® wiper spring technology
signicantly reduces maintenance and downtime.
• Self-cleaning wiper spring cleans the rell orice with
every ush; prevents valve run-on from clogging
• State-of-the-Art Electronics prevent ghost ushing
• Proprietary dezincification-resistant brass alloy
• Fully Mechanical Manual Override Button can ush
the valve without power
• Fail-Safe: Valve automatically closes upon loss of
power or water pressure and does not need to be reset
• Adjustable Sanitary Flush cleans the xture &
maintains the trap seal.
• Stadium Feature: Valve automatically switches to
water savings mode during periods of heavy usage
• Chemical Resistant EPDM Seals for extended life
• High Back Pressure Vacuum Breaker
• Adjustable Tailpiece
• Range can be adjusted manually or with optional
remote control
• No external volume adjustment.
• Can be installed left or right handed
FLOW REQUIREMENT:
10 gpm (37.9 L/min.)
BATTERY LIFE:
384,000 cycles (8 years @ 4,000 ushes per month)
OPTIONAL ACCESSORY:
• 12-1/2" long vacuum breaker (M964446-0020A)
- 4" longer than standard
57 mm
(2-1/4" MIN.)
FINISHED
WALL
292 mm
(11-1/2")
108 mm-134 mm
(4-1/4" TO 5-1/4")
-C-L-
SUPPLY DN 20
(3/4" I.P. S.)
FINISHED FLOOR
RECOMMENDED SPECIFICATION:
Electronic, sensor activated urinal flush valve shall feature DynaClean® self-cleaning piston valve with integral wiper spring in refill orifice to
prevent clogging. Includes a factory-installed CR-P2 lithium batter y and fully mechanical manual override that can flush the valve without power.
Includes semi-red brass valve body and metal cover with chrome finish. Includes angle stop with back-flow protection & vandal-resistant cap.
Sweat solder kit and high back pressure vacuum breaker also included. 0.125 gpf / 0.5 gpf / 1.0 gpf flush valve shall be American Standard
Model # 6063_ __.002.
© 2020 AS America Inc.
10/20
Page 2
LISTINGS:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant
LISTINGS:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant

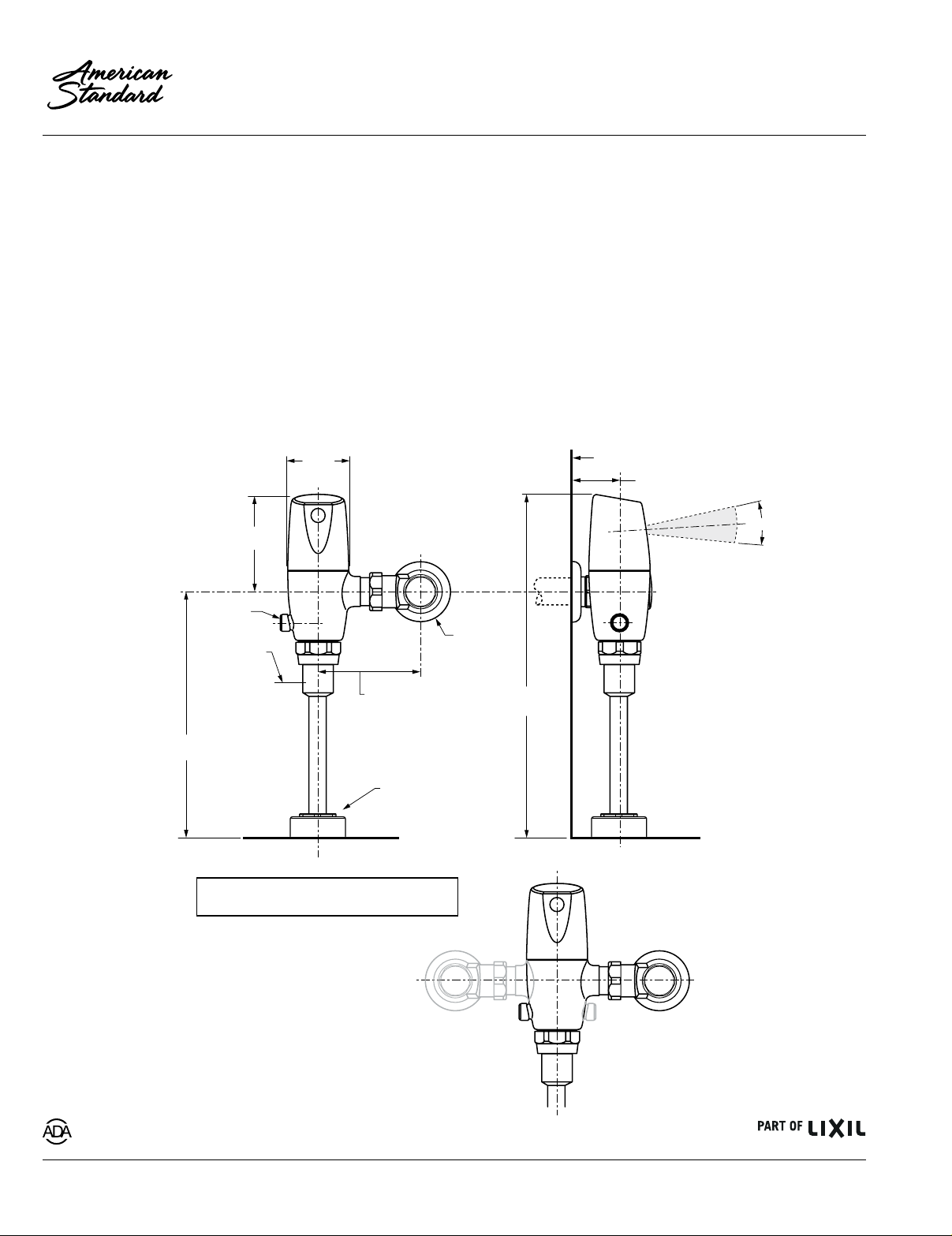

Roughing-in Dimensions
Ultima Selectronic® Exposed Urinal Flush Valve
Piston-Type
Battery-Powered
72 mm
(2-7/8")
FINISHED WALL
57 mm
(2-1/4" MIN.)
114 mm
(4-1/2")
MANUAL
OVERRIDE
BUTTON
*CRITICAL
LEVEL
-C-L-
292 mm
(11-1/2")
*Note: The Critical Line (-C-L-) on Vacuum Breaker
must typically be 6
Codes for details.
(152mm) above fixture. Consult
"
108 mm-134 mm
(4-1/4" TO 5-1/4")
SUPPLY
DN 25 mm
(3/4" I.P. S.)
FOR 3/4" TOP
SPUD FIXTURES
406 mm
(16")
15˚
DETECTION ZONE
400 mm-800 mm
(15-3/4" TO 31-1/2")
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES
© 2020 AS America Inc.
Right or Left Hand Installation
10/20
