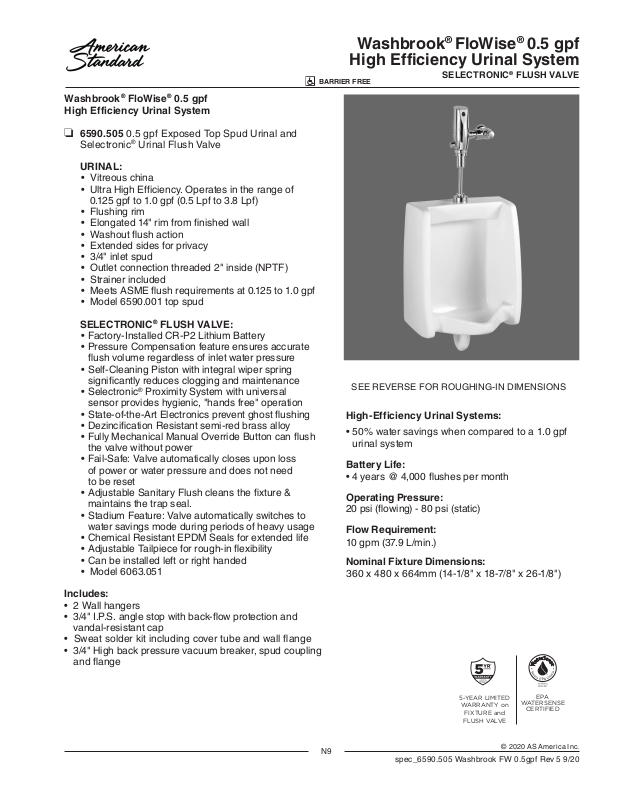

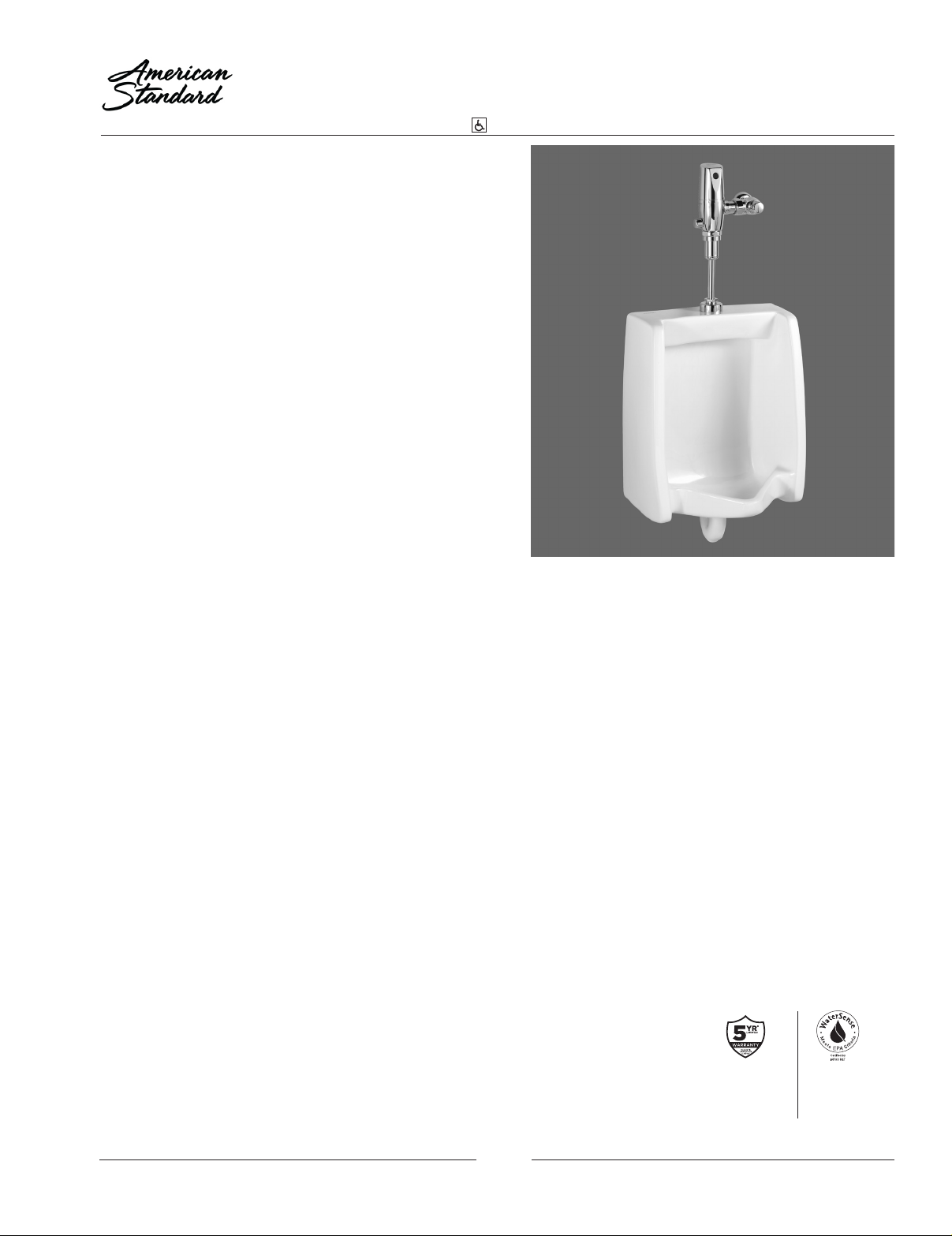

Washbrook® FloWise® 0.5 gpf
High Efficiency Urinal System
❏ 6590.505 0.5 gpf Exposed Top Spud Urinal and
Selectronic® Urinal Flush Valve
URINAL:
• Vitreous china
• Ultra High Efficiency. Operates in the range of
0.125 gpf to 1.0 gpf (0.5 Lpf to 3.8 Lpf)
• Flushing rim
• Elongated 14" rim from nished wall
• Washout ush action
• Extended sides for privacy
• 3/4" inlet spud
• Outlet connection threaded 2" inside (NPTF)
• Strainer included
• Meets ASME ush requirements at 0.125 to 1.0 gpf
• Model 6590.001 top spud
SELECTRONIC® FLU S H VALVE:
• Factory-Installed CR-P2 Lithium Battery
• Pressure Compensation feature ensures accurate
ush volume regardless of inlet water pressure
• Self-Cleaning Piston with integral wiper spring
signicantly reduces clogging and maintenance
• Selectronic® Proximity System with universal
sensor provides hygienic, "hands free" operation
• State-of-the-Art Electronics prevent ghost ushing
• Dezincication Resistant semi-red brass alloy
• Fully Mechanical Manual Override Button can ush
the valve without power
• Fail-Safe: Valve automatically closes upon loss
of power or water pressure and does not need
to be reset
• Adjustable Sanitary Flush cleans the xture &
maintains the trap seal.
• Stadium Feature: Valve automatically switches to
water savings mode during periods of heavy usage
• Chemical Resistant EPDM Seals for extended life
• Adjustable Tailpiece for rough-in exibility
• Can be installed left or right handed
• Model 6063.051
Includes:
• 2 Wall hangers
• 3/4" I.P.S. angle stop with back-ow protection and
vandal-resistant cap
• Sweat solder kit including cover tube and wall ange
• 3/4" High back pressure vacuum breaker, spud coupling
and ange
Washbrook® FloWise® 0.5 gpf
High Efficiency Urinal System
BARRIER FREE
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
High-Efficiency Urinal Systems:
• 50% water savings when compared to a 1.0 gpf
urinal system
Battery Life:
• 4 years @ 4,000 ushes per month
Operating Pressure:
20 psi (owing) - 80 psi (static)
Flow Requirement:
10 gpm (37.9 L/min.)
Nominal Fixture Dimensions:
360 x 480 x 664mm (14-1/8" x 18-7/8" x 26-1/8")
SELECTRONIC® FLUSH VALVE
N9
5-YEAR LIMITED
WARRANTY on
FIXTURE and
FLUSH VALVE
© 2020 AS America Inc.
spec_6590.505 Washbrook FW 0.5gpf Rev 5 9/20
EPA
WATERSENSE
CERTIFIED
Page 2
High Efficiency Urinal System
.

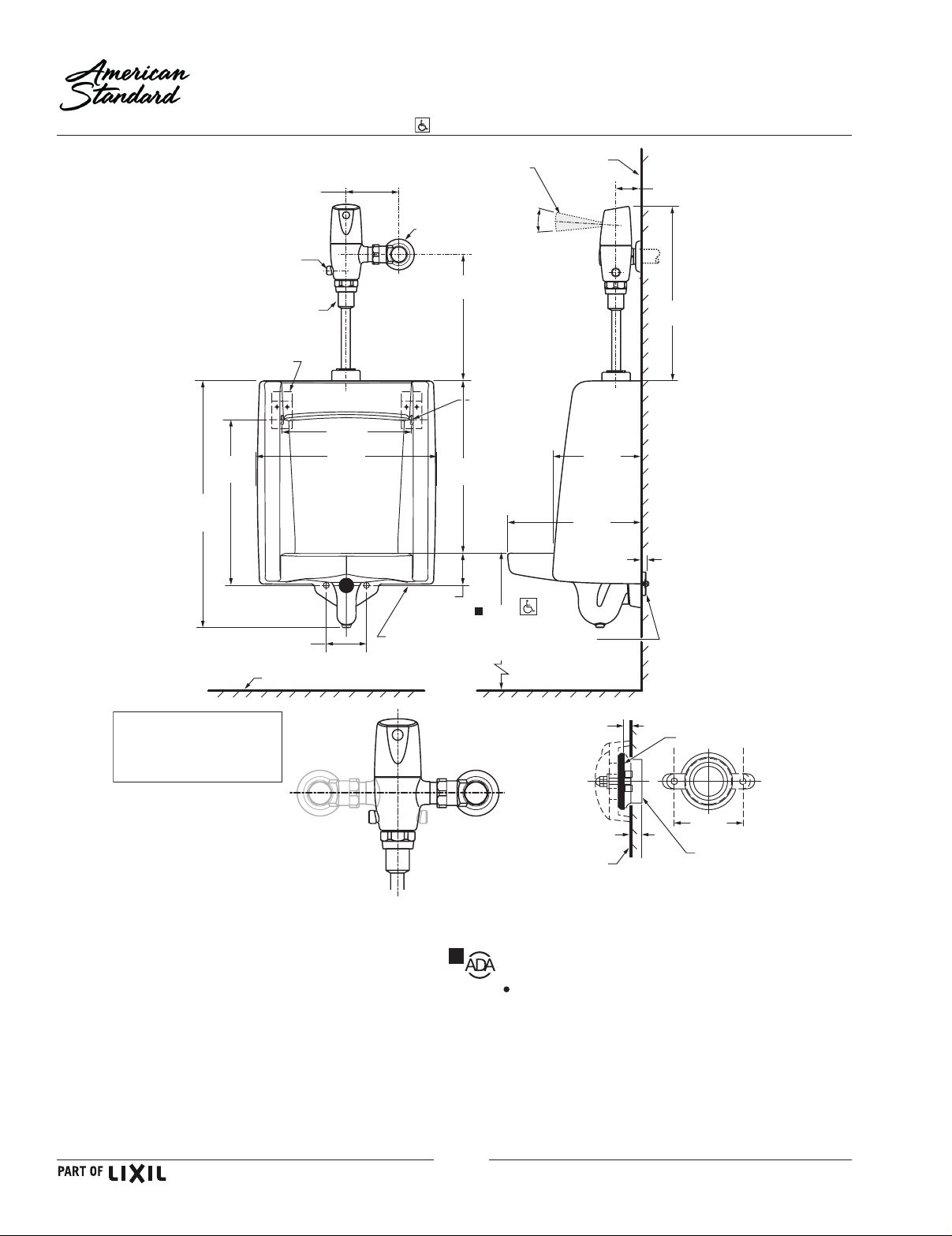

DETAIL OF OUTLET CONNECTION
VALVE LEFT or RIGHT HAND INSTALLATION
DETECTION ZONE
BARRIER FREE
Washbrook® FloWise® 0.5 gpf
SELECTRONIC® FLUSH VALVE
*CRITICAL LEVEL
445mm
(17-1/2")
664mm
(26-1/8")
REF.
108-133mm
(4-1/4" to 5-1/4")
MANUAL
OVERRIDE
BUTTON
K2 HANGERS
102mm
(4")
FINISHED FLOOR
-C-L-
343mm
(13-1/2")
480mm
(18-7/8")
(15-3/4" TO 31-1/2")
SUPPLY
DN 20mm
(3/4" I.P. S.)
293mm
(11- 1/2")
(18-1/4")
83mm
(3-1/4")
C/L OF
OUTLET
400mm-800mm
8mm X 25mm
(5/16" X 1")
SLOT
464mm
432mm
(17") MAX
610mm
(24")
OPTIONAL
FINISHED
WALL
15˚
235mm
(9-1/4")
360mm
(14-1/8")
2" N.P.T.
FEMALE OUTLET
CONNECTION
13mm
(1/2")
64mm
(2-1/2")
419mm
(16-1/2")
*Note: The Critical Line (-C-L-)
on Vacuum Breaker must
typically be a minimum of
6" (152mm) above fixture.
Consult Codes for details.
Fixture Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008/CSA B45.1-08 for Vitreous
China Fixtures
Valve Listings:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant
13mm
(1/2")
13mm
(1/2")
FINISHED WALL
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE BUILDINGS AND
FACILITIES - CHECK LOCAL CODES.
When installed so top of rim is 432mm (17") MAXIMUM from finished floor
NOTES:
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
IMPORTANT: Dimensions of x tures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
N10
spec_6590.505 Washbrook FW 0.5gpf Rev 5 9/20
GASKET
102mm
(4")
2" N.P.T.
INSIDE THREADS
© 2020 AS America Inc.
