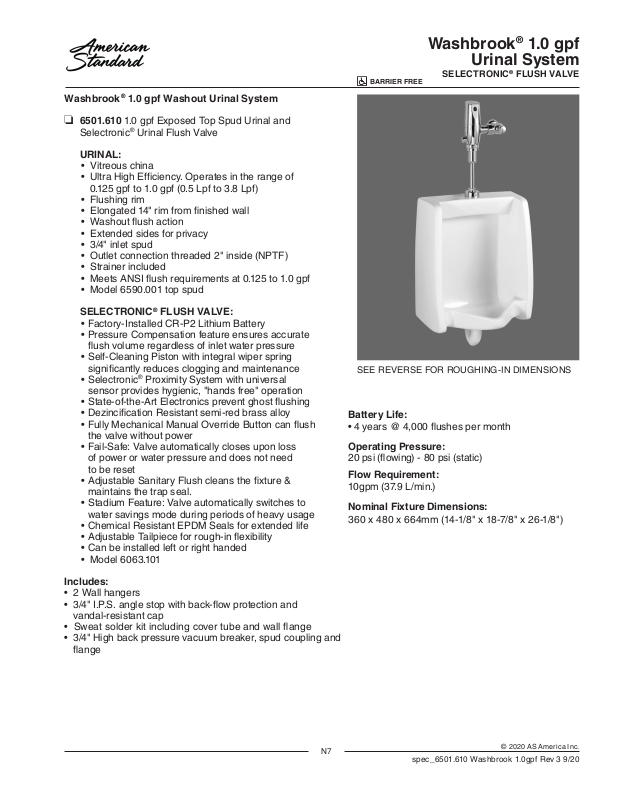

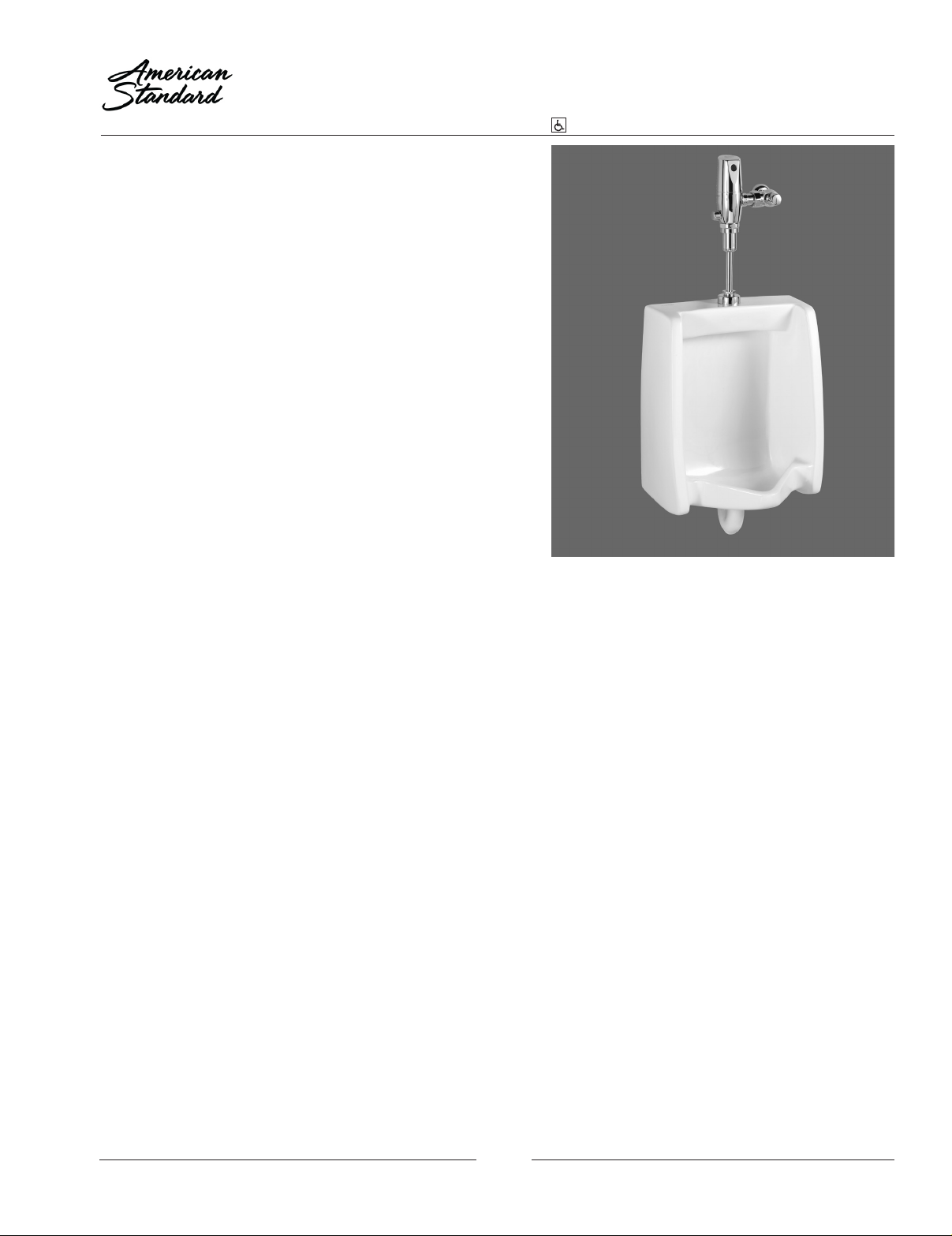

Washbrook® 1.0 gpf Washout Urinal System
❏ 6501.610 1.0 gpf Exposed Top Spud Urinal and
Selectronic® Urinal Flush Valve
URINAL:
• Vitreous china
• Ultra High Efficiency. Operates in the range of
0.125 gpf to 1.0 gpf (0.5 Lpf to 3.8 Lpf)
• Flushing rim
• Elongated 14" rim from nished wall
• Washout ush action
• Extended sides for privacy
• 3/4" inlet spud
• Outlet connection threaded 2" inside (NPTF)
• Strainer included
• Meets ANSI ush requirements at 0.125 to 1.0 gpf
• Model 6590.001 top spud
SELECTRONIC® FLU S H VALVE:
• Factory-Installed CR-P2 Lithium Battery
• Pressure Compensation feature ensures accurate
ush volume regardless of inlet water pressure
• Self-Cleaning Piston with integral wiper spring
signicantly reduces clogging and maintenance
• Selectronic® Proximity System with universal
sensor provides hygienic, "hands free" operation
• State-of-the-Art Electronics prevent ghost ushing
• Dezincication Resistant semi-red brass alloy
• Fully Mechanical Manual Override Button can ush
the valve without power
• Fail-Safe: Valve automatically closes upon loss
of power or water pressure and does not need
to be reset
• Adjustable Sanitary Flush cleans the xture &
maintains the trap seal.
• Stadium Feature: Valve automatically switches to
water savings mode during periods of heavy usage
• Chemical Resistant EPDM Seals for extended life
• Adjustable Tailpiece for rough-in exibility
• Can be installed left or right handed
• Model 6063.101
Includes:
• 2 Wall hangers
• 3/4" I.P.S. angle stop with back-ow protection and
vandal-resistant cap
• Sweat solder kit including cover tube and wall ange
• 3/4" High back pressure vacuum breaker, spud coupling and
ange
Washbrook® 1.0 gpf
Urinal System
BARRIER FREE
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
Battery Life:
• 4 years @ 4,000 ushes per month
Operating Pressure:
20 psi (owing) - 80 psi (static)
Flow Requirement:
10gpm (37.9 L/min.)
Nominal Fixture Dimensions:
360 x 480 x 664mm (14-1/8" x 18-7/8" x 26-1/8")
SELECTRONIC® FLUSH VALVE
N7
© 2020 AS America Inc.
spec_6501.610 Washbrook 1.0gpf Rev 3 9/20

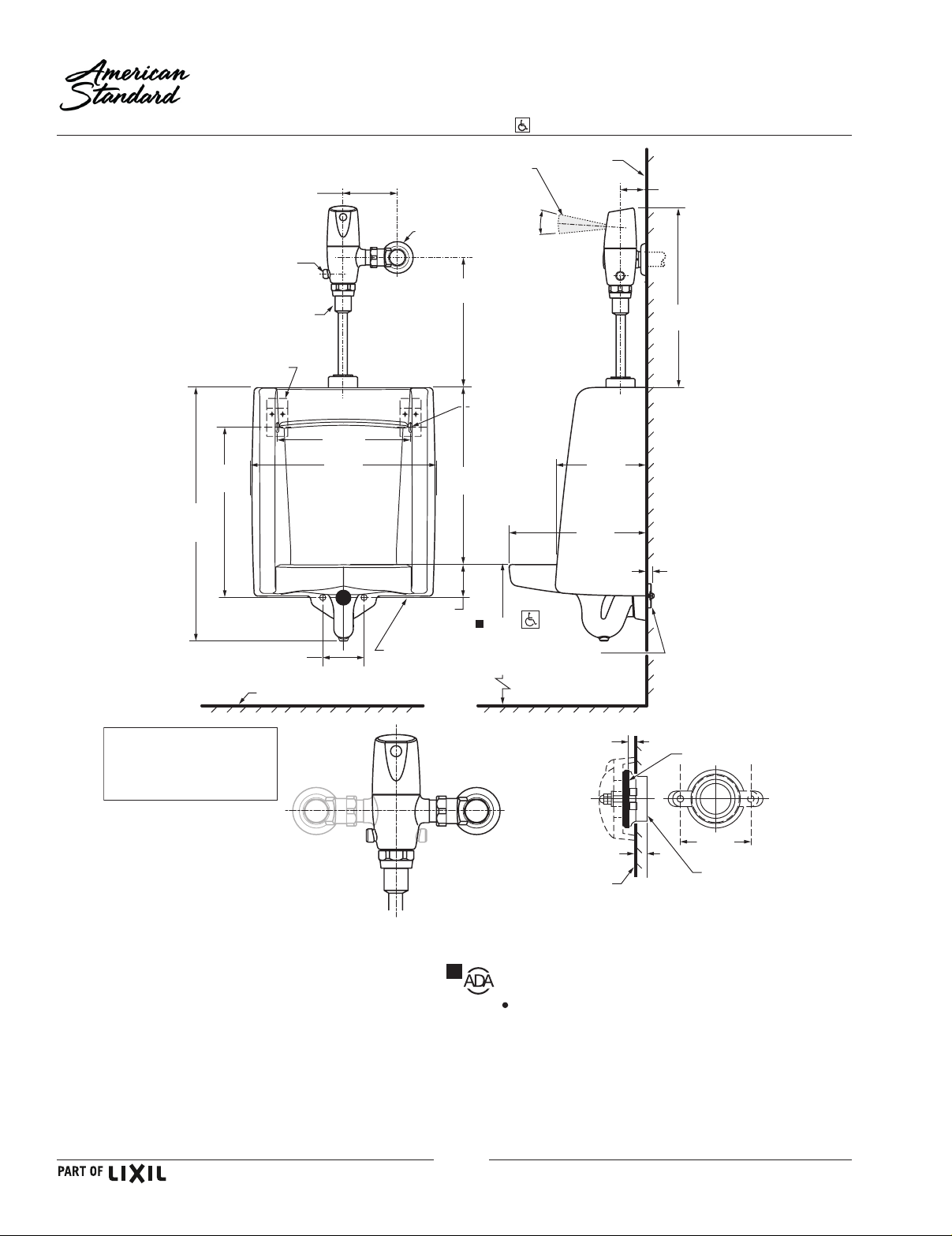

Page 2
BARRIER FREE
.
13mm
(1/2")
102mm
(4")
GASKET
2" N.P.T.
INSIDE THREADS
DETAIL OF OUTLET CONNECTION
FINISHED WALL
13mm
(1/2")
FINISHED
WALL
*Note: The Critical Line (-C-L-)
on Vacuum Breaker must
typically be a minimum of
6" (152mm) above fixture.
Consult Codes for details.
VALVE LEFT or RIGHT HAND INSTALLATION
SUPPLY
DN 20mm
(3/4" I.P. S.)
64mm
(2-1/2")
DETECTION ZONE
400mm-800mm
(15-3/4" TO 31-1/2")
15˚
108-133mm
(4-1/4" to 5-1/4")
419mm
(16-1/2")
293mm
(11- 1/2")
MANUAL
OVERRIDE
BUTTON
*CRITICAL LEVEL
-C-L-
445mm
(17-1/2")
664mm
(26-1/8")
REF.
464mm
(18-1/4")
83mm
(3-1/4")
102mm
(4")
480mm
(18-7/8")
343mm
(13-1/2")
C/L OF
OUTLET
K2 HANGERS
8mm X 25mm
(5/16" X 1")
SLOT
235mm
(9-1/4")
360mm
(14-1/8")
2" N.P.T.
FEMALE OUTLET
CONNECTION
13mm
(1/2")
FINISHED FLOOR
432mm
(17") MAX
610mm
(24")
OPTIONAL
Washbrook® 1.0 gpf
Urinal System
SELECTRONIC® FLUSH VALVE
Fixture Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008/CSA B45.1-08 for Vitreous
China Fixtures
Valve Listings:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE BUILDINGS AND
FACILITIES - CHECK LOCAL CODES.
When installed so top of rim is 432mm (17") MAXIMUM from finished floor
NOTES:
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
IMPORTANT: Dimensions of xtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
N8
spec_6501.610 Washbrook 1.0gpf Rev 3 9/20
© 2020 AS America Inc.
