American Standard ASD8708 Installation & Assembly

SELECTRONIC

I.C. Faucet

®

MODEL NUMBERS

6053.193

6055.193

605B.193

CAUTION: Use only American Standard supplied

transformers and cable sets. Using non-AS
supplied cables, or cutting, splicing or modifying
any components will void the warranty.

Product No.’s & Options 1

Specications 2

I.C. Faucet shown installed on

American Standard 9118.111 Sink

Faucet Installation 2-3

Electrical Installation 4-6

Start-up / Maintenance 7-8

FAQ’s / Troubleshooting 9-10

Installation Instructions

Parts 11

Certied to comply with:

• ASME A112.18.1

NOTE TO INSTALLER: Please give this manual to the customer after installation.

To learn more about American Standard Selectronic® Products visit our website at: www.americanstandard-us.com
or e-mail us at: [e-mail]

For Parts, Service, Warranty or other Assistance,
please call (844) CRT-TEAM / [phone] (In Canada: 1-800-387-0369)
(In Toronto Area only: 1-905-306-1093)

© 2019 AS America Inc.

1

M965651 Rev. 2.0 (3/19)

Thank you for selecting American-Standard...the benchmark of ne quality for over 100 years. To ensure
that your installation proceeds smoothly--please read these instructions carefully before you begin.

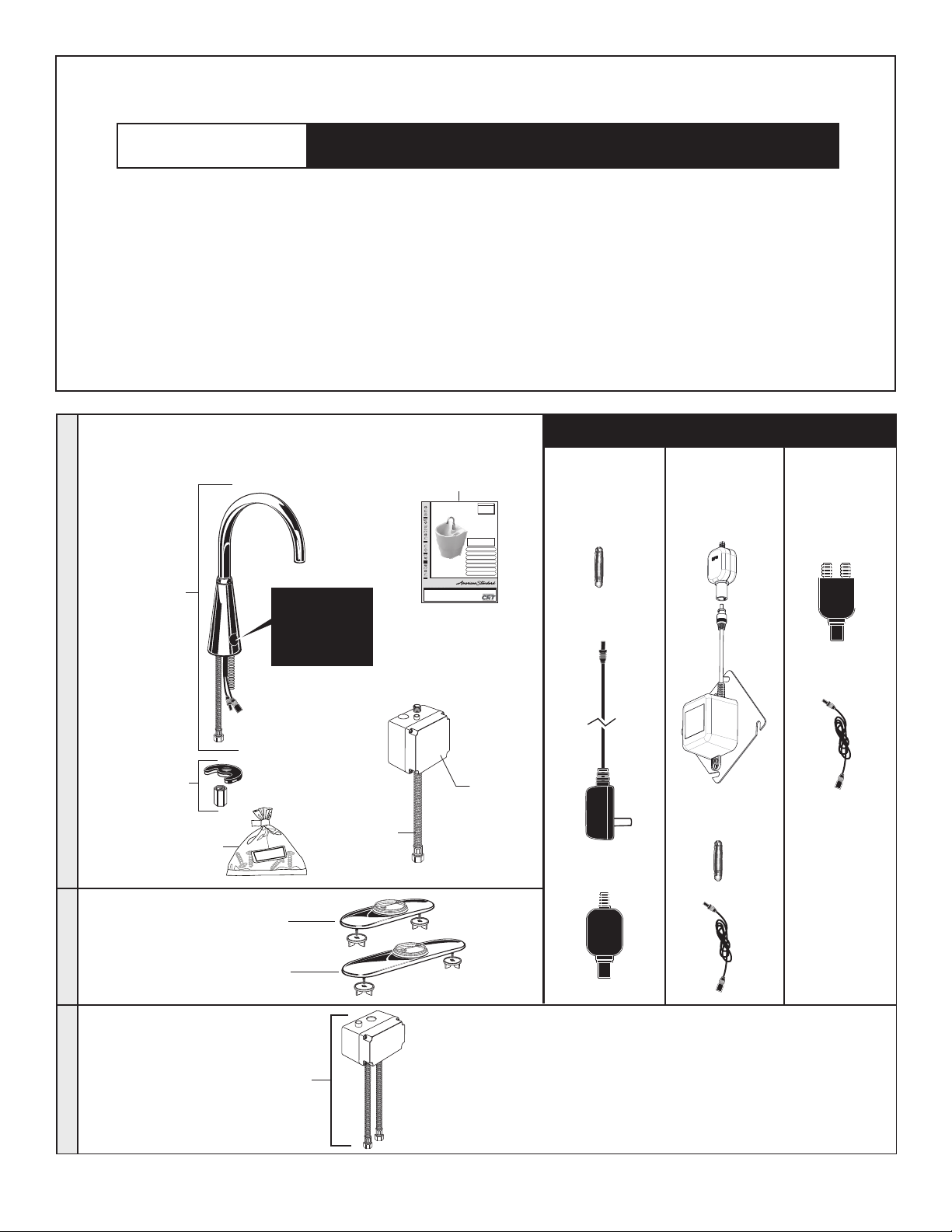

UNPACKING

Some Residual Water May Remain In The Valve During Shipping

The illustration below shows the tting and all loose items after they have been removed
from the carton. Some items may be packaged partially assembled to other items.

All American Standard Products Are Water Tested At Our Factory.

PRODUCT No.s

605X.193

1. Installation Instructions

2. Spout Assembly

3. Mounting Kit

4. Control Box

5. Supply Hose

2

DO NOT REMOVE
PROTECTIVE FILM
FROM SENSOR
EYE UNTIL
INSTALLATION IS
COMPLETE.

6. 4" Deck plate (optional, must be ordered separately)

7. 8" Deck plate (optional, must be ordered separately)

8. Mixing Valve (optional, must be ordered separately)

9. Control Box Cover Screws

POWER KITS SOLD SEPARATELY

1

MODEL NUMBERS

®

SELECTRONIC
I.C.

Certified to comply with ASME A112.18.1

© 2015 American Standard

Ins tallation Instruction s

NOTE TO INSTALLER: Please give this manual to the customer after installation.NOTE TO INSTALLER: Please give this manual to the customer after installation.

To learn more about American Standard Selectronic® Products visit our website at: www.americanstandard-us.com
or e-mail us at: [e-mail]

For Parts, Service, Warranty or other Assistance,

please call (844) CRT-TEAM / [phone] (In Canada: 1-800-387-0369)

Control Faucet

I.C. Faucet shown Installed on

-American Standard 9118.111 Infection Control Sink

(In Toronto Area only: 1-905-306-1093)

6053.193

6055.193
605B.193

CAUTION: Use only American Standard

supplied cable sets. Using non-AS supplied
cables, or cutting, splicing or modifying any
components will void the warranty.

Product No.'s & Options

Specifications

Faucet Installation

Electrical Installation

Start-up / Maintenance

FAQ’s / Troubleshooting

Parts

Plug-In AC

Power Kit

PK00. PAC

1
1

2
2

2-3
2-3

4-6
4-6

7-8
7-8

9-10
9-10

11
11

Hard-Wired AC

Power Kit

PK00.HAC PK00.MAC

Multi-AC

Power Kit

Deck Plate Mixing ValveBase Product

605P400

605P800

605XTMV

© 2019 AS America Inc.

3

4

5

9

6

7

8

2

M965651 Rev. 2.0 (3/19)

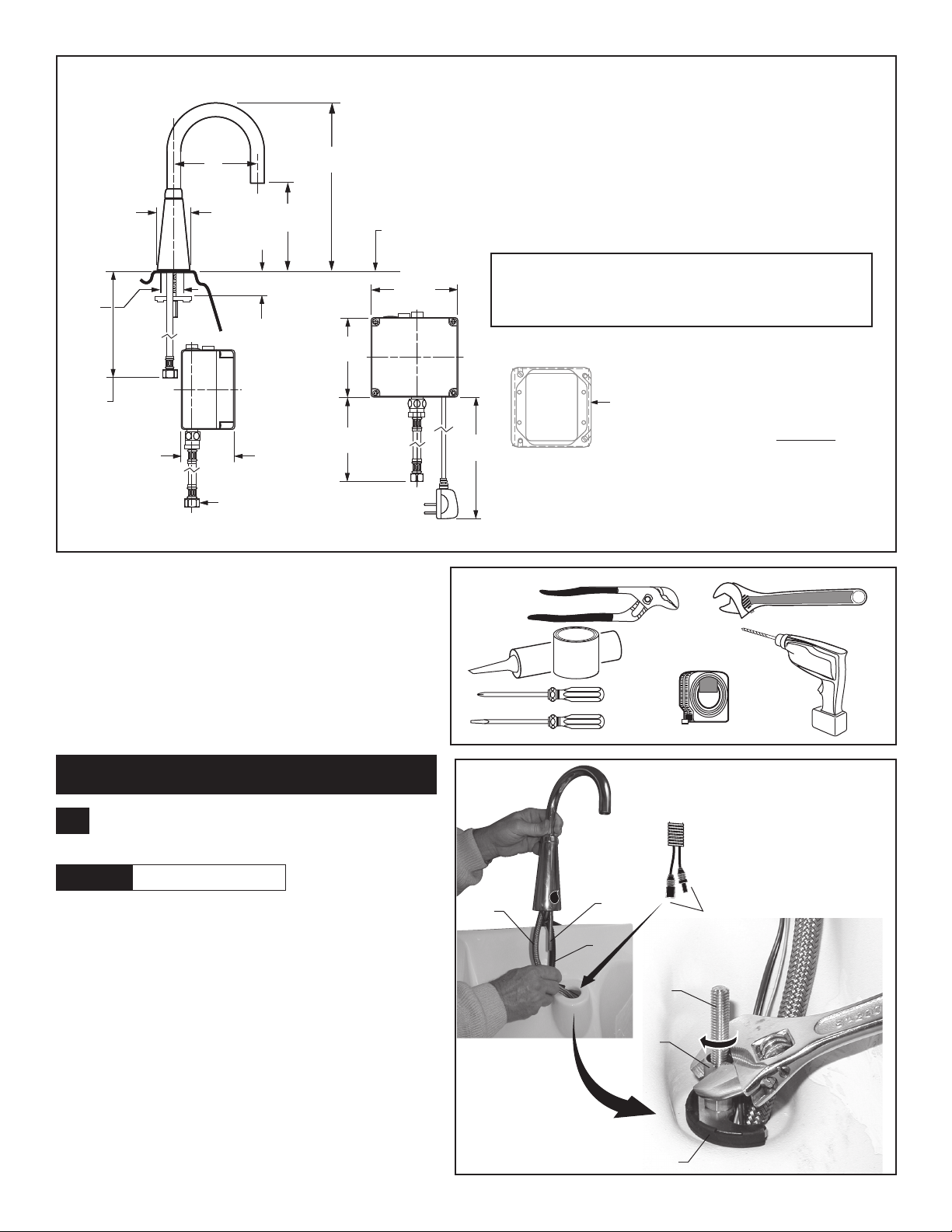

Roughing-in Dimensions

(127mm)

(127mm)

5"

5"

(243mm)

(243mm)

9-9/16"

9-9/16"

GENERAL DESCRIPTION

Electronic faucet with proximity operation. Vandal resistant,
solid brass construction, single post mounting. Operates on DC
(battery/power pack) or AC permanent power (plug-in/hardwire).
In-line strainer for solenoid is integral. Single inlet 3/8
compression, built-in check valves, and exible stainless steel
16-1/4" reach inlet hose for spout connection.

(53mm)

(53mm)

2-1/8" DIA.

2-1/8" DIA.

60mm

60mm

(2-3/8) MAX.

(2-3/8) MAX.

32mm

32mm

(1-1/4) DIA.

(1-1/4) DIA.

413mm

413mm
(16-1/4)

(16-1/4)

81mm

81mm

(3-3/16)

(3-3/16)

3/8" COMP.

3/8" COMP.

RECOMMENDED TOOLS

1. Slip Joint Pliers

2. Adjustable Wrench

3. Plumbers’ Putty or Caulking

4. Phillips Screwdriver

5. Flat Blade Screwdriver

6. Electric Drill & 1/4" Drill Bit

7. Tape Measure

(133mm)

(133mm)

5-1/4"

5-1/4"

114mm

114mm

(4-1/2)

(4-1/2)

500mm

500mm

(20")

(20")

MOUNTING

MOUNTING
SURFACE

SURFACE

125mm

125mm

(4-7/8)

(4-7/8)

Note: All plumbing and electrical wiring must be installed

in accordance with applicable codes, regulations
and standards.

CAUTION: Use only American Standard supplied

transformers and cable sets. Using non-AS supplied cables,
or cutting, splicing or modifying any components will void
the warranty.

RECOMENDED ELECTRICAL BOX OR

RECOMENDED ELECTRICAL BOX OR
EQUIVALENT BY OTHERS

EQUIVALENT BY OTHERS
4" (102mm) SQ. X 3-1/2" (89mm) DEEP ELECTRICAL BOX

4" (102mm) SQ. X 3-1/2" (89mm) DEEP ELECTRICAL BOX

Hubbel-RACO #256 OR EQUAL (BY OTHERS).

1524mm

1524mm

(60)

(60)

HARD-WIRED AND MULTI AC 10’ MAX. CABLE LENGTH

HARD-WIRED AND MULTI AC 10’ MAX. CABLE LENGTH

Hubbel-RACO #256 OR EQUAL (BY OTHERS).

1

2

3

4

7

10'

6

5

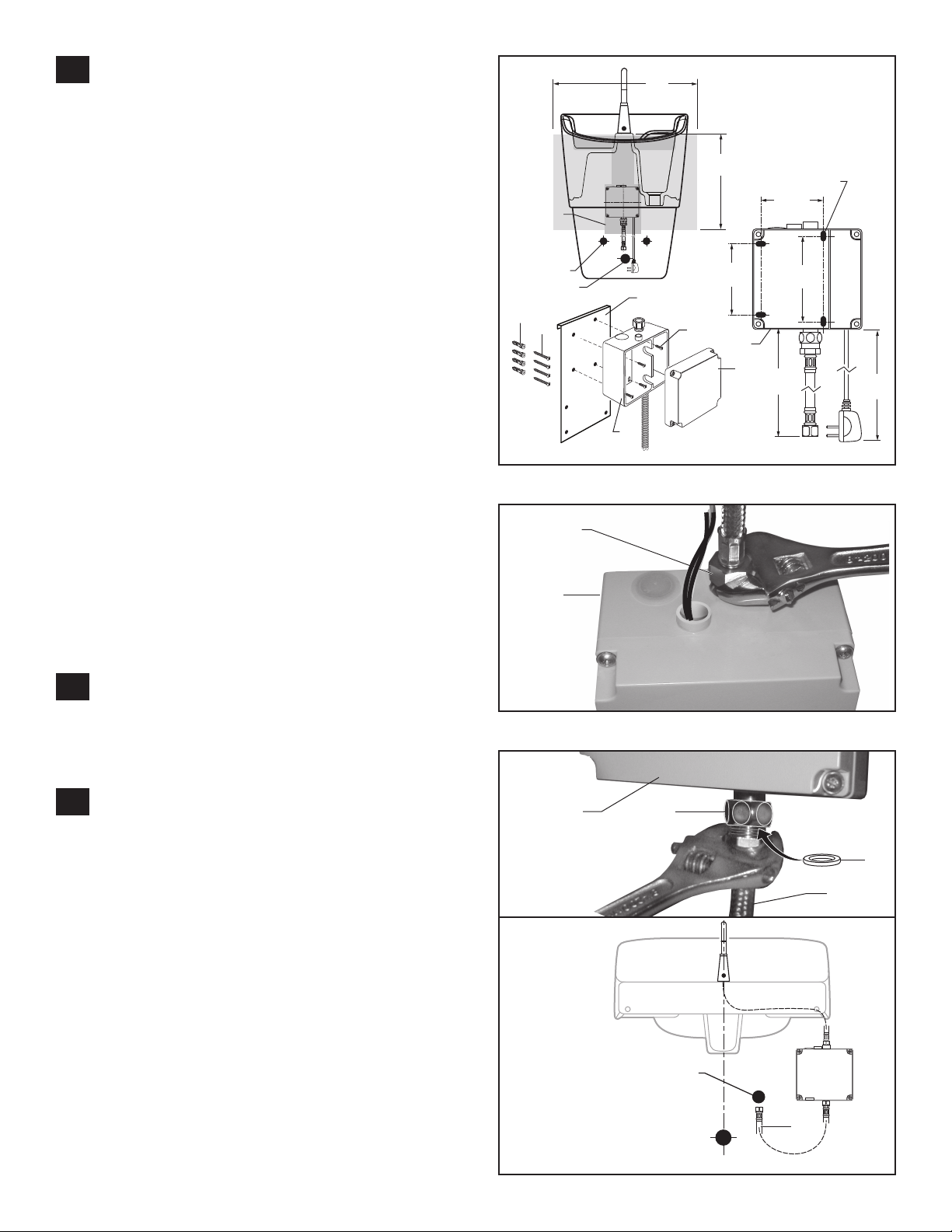

FAUCET INSTALLATION

SPOUT ASSEMBLY INSTALLATION;

1

Fig. 1

CAUTION

1. Insert CABLES (1), FLEX HOSE (2) and SPOUT
SHANK (3) through center hole of mounting surface.

2. Assemble “C” WASHER (4) and LOCKNUT (5)

onto SPOUT SHANK (3) from underside of
mounting surface.

3. Align FAUCET and tighten LOCKNUT (5).

Note: 4" and 8" Deck Plates are available for other

© 2019 AS America Inc.

Turn off hot and cold water
supplies before beginning.

installations, see page one for information.

Fig. 1

3

SENSOR
CABLES

2

3

1

1

3

5

4

M965651 Rev. 2.0 (3/19)

MOUNT CONTROL BOX; Fig. 2

2

NOTE: The illustration shows the Infection Control faucet
mounted on the American Standard Infection Control
Sink. Faucet can be installed on any sink or countertop.
For futher instructions regarding faucet installation on the
American Standard Infection Control Sink, see instruction
sheet No. 7301793-100 (Infection Control Sink System)
supplied with Sink.

1. For installation on Infection Control Sink, mount
CONTROL BOX (1) on MOUNTING BRACKET (2) with
the SCREWS (3) provided.

2. For all other sinks or countertops, determine location of

CONTROL BOX (1). It must be located with-in the 14"
(356mm) by 21" (533mm) shaded area shown in Figure 2 in
order for electrical connections from the spout assembly to
be made properly.

NOTE: CONTROL BOX SUPPLY HOSE is 20". Distance
between wall supply and CONTROL BOX (1) must
be taken into consideration.

3. Remove tape from CONTROL BOX COVER (6) and pull off

COVER (6). Hold the CONTROL BOX (1) in desired location
and mark the four mounting hole locations as shown.

NOTE: Find plastic bag containing 4 M5X16 screws to be
used for securing the CONTROL BOX (1) when
installation is complete.

NOTE: For AC installation, make power supply connection
before mounting CONTROL BOX (1) to wall.

4. It is recommended that the CONTROL BOX (1) be secured

to a wall stud or cross brace within the wall using the
SCREWS (3) supplied. If the CONTROL BOX (1) is to be
installed on tile or plaster walls, the ANCHORS (5) and
SCREWS (4) should be used.

Fig. 2

2

MOUNTING

BRACKET

SUPPLIES

5

4

Fig. 3

WASTE

2

21"

(533mm)

14"

(356mm)

(76mm)

MOUNTING

2

BRACKET

3

1

1

3"

1

6

ENCLOSURE

MOU NTING

2-3/4"

(71mm)

3-3/4"

(96mm)

20"

(500mm)

HOLES

1524mm

(60)

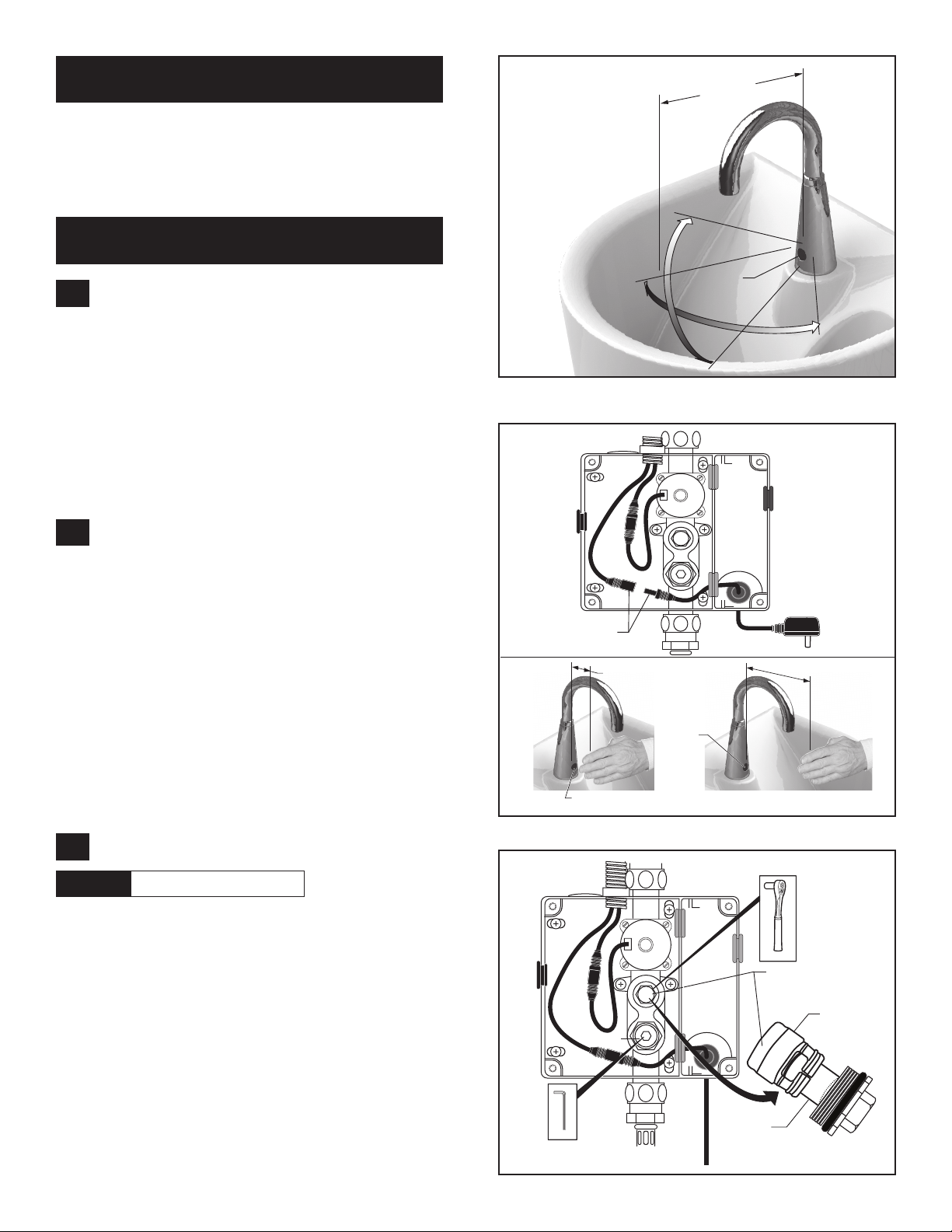

CONNECT SPOUT HOSE TO CONTROL BOX;

3

Fig. 3

1. Connect SUPPLY NUT (1) from spout hose to nipple on top

of CONTROL BOX (2). Tighten with adjustable wrench to
make a water tight connection. Fig. 3.

CONNECT WATER SUPPLY TO CONTROL

4

BOX AND WALL SUPPLY; Fig. 4, 4a

NOTE: If using the optional Mixing Valve, see sheet

#M968808 for installation instructions.

1. Insert FIBER WASHER (4) into SUPPLY NUT (1) on
CONTROL BOX (2).

2. Connect FLEXIBLE SUPPLY HOSE (3) to SUPPLY NUT (1)

on CONTROL BOX (2). Tighten to make a water tight
connection. Use two wrenches to tighten if necessary. Fig. 4.

3. Connect FLEXIBLE SUPPLY HOSE (3) directly to wall

supply. Connection on FLEXIBLE SUPPLY HOSE (3) is 3/8"
compression. Use adjustable wrench to tighten connection.
Do not over tighten. Fig. 4a.

Note: FLEXIBLE SUPPLY HOSE (3) measures 20" from

the bottom of the CONTROL BOX (2) base. If additional
supply length is required, installer must purchase parts
separately.

Impor tant: If FLEXIBLE SUPPLY HOSE (3) is too long, loop to

avoid kinking.

Fig. 4

Fig. 4a

OTHER SINK

INSTALLATION

2

COLD WATER OR

1

TEMPERED

WALL SUPPLY

4

3

3

© 2019 AS America Inc.

4

M965651 Rev. 2.0 (3/19)

ELECTRICAL INSTALLATION

Product Page

Fig. 1

1

Plug-In AC Power Kit (PK00.PAC)

Hard-Wired AC Power Kit (PK00.HAC)

Multi-AC Power Kit (PK00.MAC)

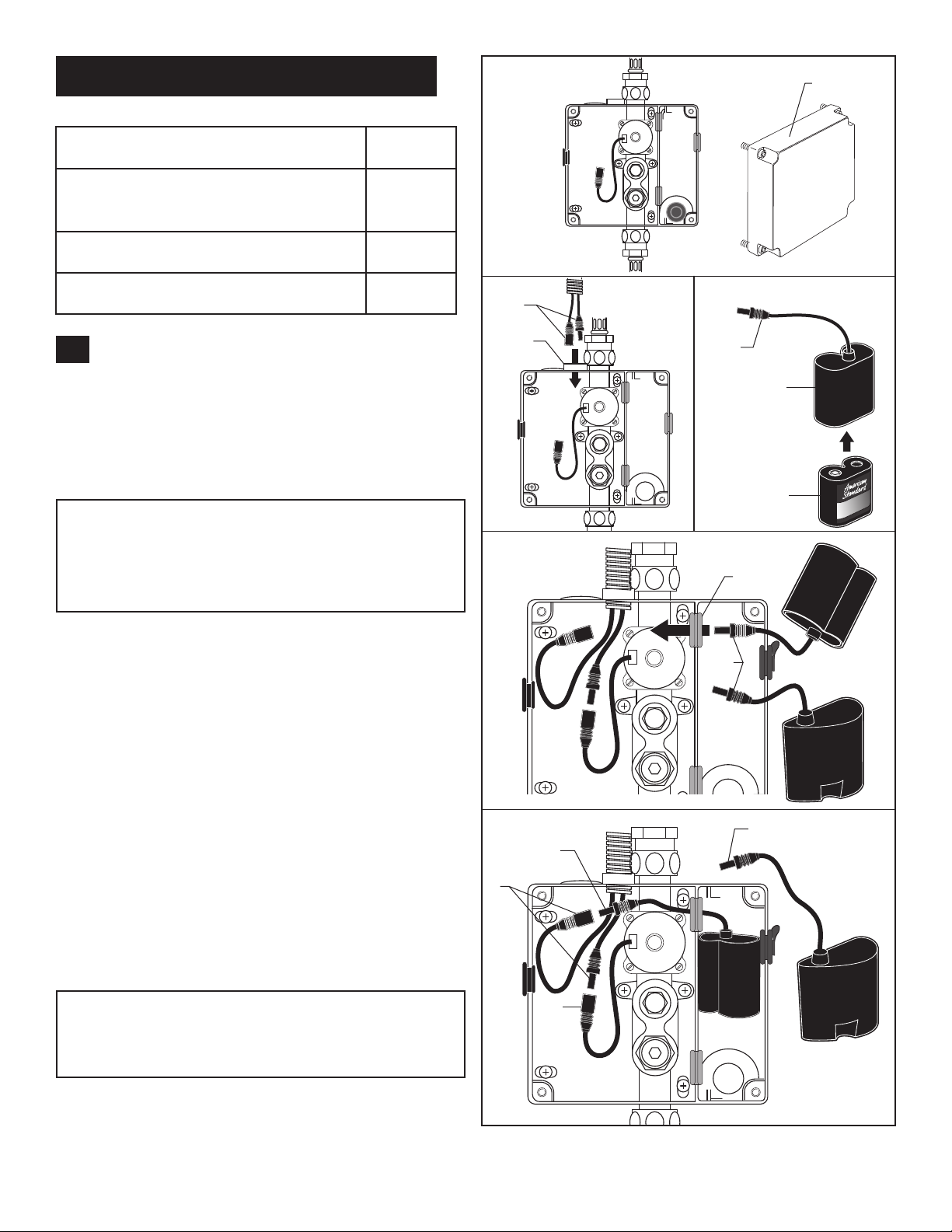

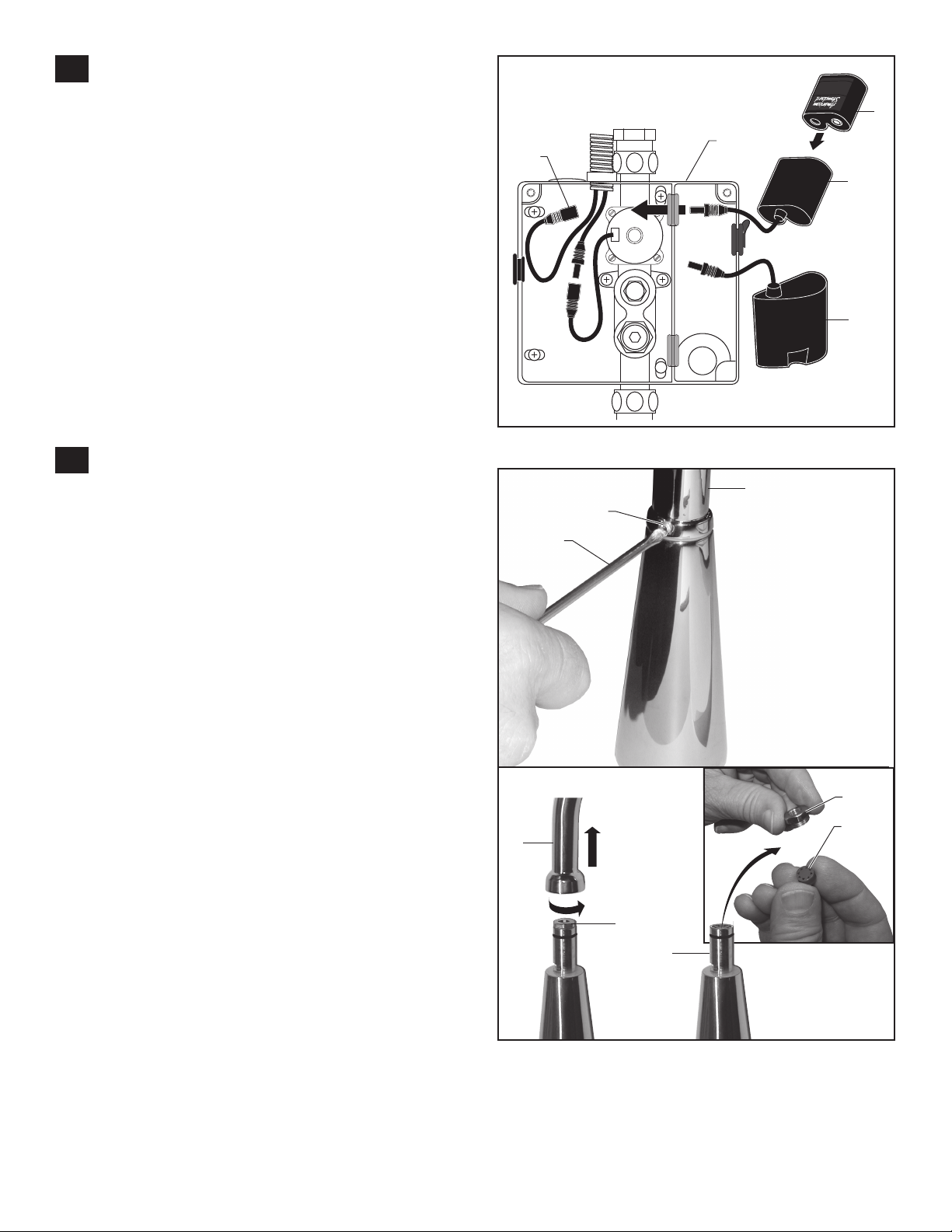

DC VERSIONS ; Fig. 1

A

• PWRX

6

6

7

• STANDARD BATTERY

1. Remove CONTROL BOX COVER (1). Fig. 1.

2. Feed the CABLES (2) through the top of CONTROL BOX

(3). Fig. 1a.

FOR STANDARD BATTERY VERSION ONLY

3. Insert BATTERY (4) into BATTERY HOLDER (5),

make sure the shape of the BATTERY (4) follows the
shape of the BATTERY HOLDER (5) and terminal end
is inserted rst. Fig. 1b.

4. Insert the BATTERY CONNECTOR (5a) from the

Standard Battery or PWRX BATTERY PACK through side
GROMMET (6) as shown. Fig. 1c.

Fig. 1a

2

3

Fig. 1c

Fig. 1b

5a

5

5

INSTALL BATTERY

4

STANDARD

BATTERY

6

5a

CR-P2

PWRX

5. Connect SOLENOID CABLE (7) and BATTERY

CONNECTOR (5a) to CABLES (2).
Place Standard Battery or PWRX BATTERY PACK into
housing. Fig. 1d.

6. Reinstall CONTROL BOX COVER (1). Tighten cover

screws rmly.

CAUTION: Use only American Standard supplied cable sets.
Using non-AS supplied cables, or cutting, splicing or modifying
any components will void the warranty.

Fig. 1d

2

5a

5a

7

STANDARD

BATTERY

PWRX

© 2019 AS America Inc.

5

M965651 Rev. 2.0 (3/19)

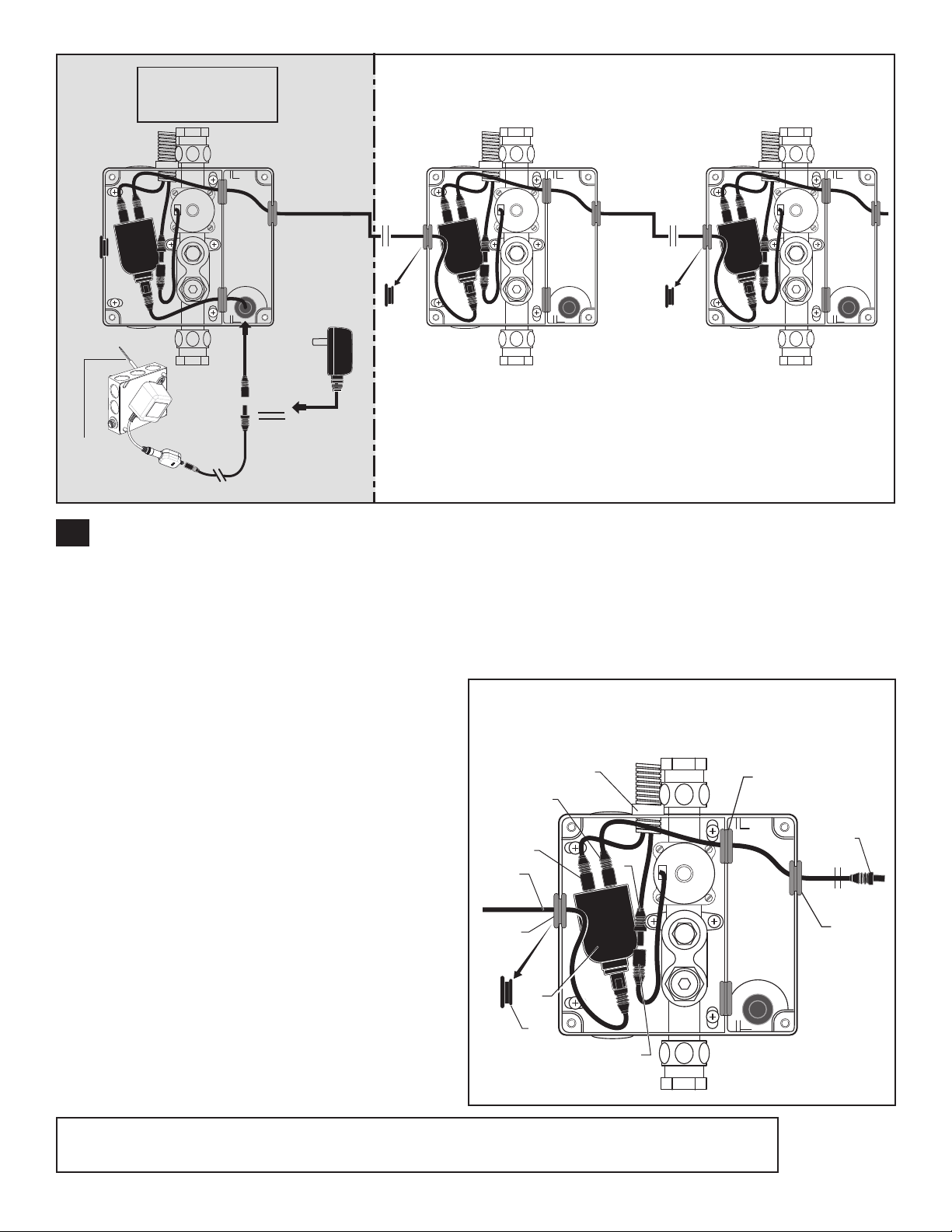

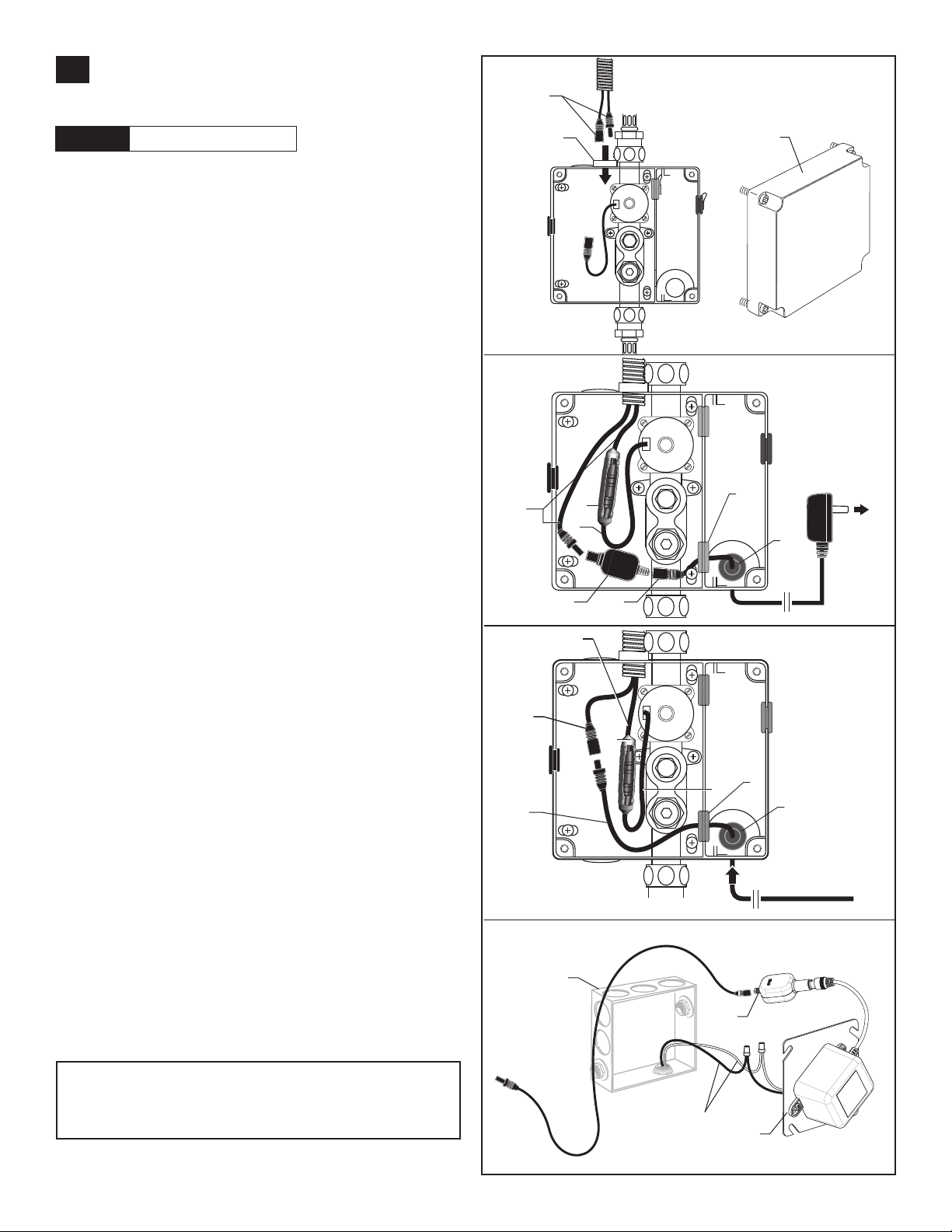

AC VERSION; Fig. 2

B

• PLUG-IN

• HARDWARE

CAUTION

Note: For AC installation, make power supply connection

1. Remove CONTROL BOX COVER (1). Feed the
EXTENSION CABLES (2) from the Faucet through
the top of ENCLOSURE (3).

Disconnect AC power supply
before opening CONTOL BOX.

before mounting CONTROL BOX (3) to wall.

FOR AC PLUG-IN ONLY

2a. Insert POWER CORD (8) through POWER SUPPLY

GROMMET (9). Fig. 2a.

3a. Insert POWER CORD (8) through side GROMMET (6)

as shown. Fig. 2a.

4a. Connect one of the CABLES (2) to SOLENOID

CABLE (7) and the other to the SINGLE AC
ADAPTER (10). Connect POWER CORD (8) to Single
AC Adapter (10) and install CONNECTOR LOCKING
DEVICE (16). Fig. 2a.

5a. Mount CONTROL BOX to wall. Replace CONTROL BOX

COVER (1). Tighten cover screws rmly.

6a. Plug AC POWER SUPPLY into wall outlet.

Fig. 2

Fig. 2a

2

2

3

16
7

1

PLUG INTO

6

WALL OUTLET

9

FOR HARDWIRE HOOK-UP ONLY

2b. Insert one end of the 10' EXTENSION (10a) through

POWER SUPPLY GROMMET (9). Fig. 2b.

3b. Insert 10' EXTENSION (10a) through side

GROMMET (6) as shown. Fig. 2b.

4b. Connect CABLES (2) to SOLENOID CABLE (7) and the

other to the 10' EXTENSION CABLE (10a). Install
CONNECTOR LOCKING DEVICE (16). Fig. 2b.

Contractor to supply ELECTRICAL BOX (12) and power
to POWER SUPPLY (13).

5b. Mount POWER SUPPLY (13) onto ELECTRICAL

BOX (12). Connect connections to POWER SUPPLY
CONNECTIONS (14). Fig. 2c.

6b. Connect the10' EXTENSION (10b) to the POWER

SUPPLY CABLE (15). Fig. 2c.

Fig. 2b

2

10a

Fig. 2c

12

810

2

16

6

7

9

FROM ELECTRICAL BOX
WITH POWER SUPPLY

10b

10' EXTENSION

15

CAUTION: Use only American Standard supplied cable sets.
Using non-AS supplied cables, or cutting, splicing or modifying
any components will void the warranty.

© 2019 AS America Inc.

14

BLACK & WHITE
POWER
CONNECTIONS

6

13

M965651 Rev. 2.0 (3/19)

Fig. 3

Unit #1

Already installed

AC POWER

SUPPLY

Unit #2 Unit #3

10 ft.

EXTENSION

CABLE

OR

BLACK &
WHITE
POWER
CONNECTIONS

MULTI-AC VERSION (DAISY-CHAIN); Fig. 3, 3a

C

*MAXIMUM OF 15 UNITS PER AC POWER SUPPLY.

10' MAXIMUM CABLE LENGTH BETWEEN UNITS.

Important: All control box covers must be removed before beginning to make daisy-chain connections.

Disconnect the rst unit’s Y-Adapter from power supply before making daisy-chain connections.

Note: For Unit #1 electrical instructions, refer to section B (page 6).

For subsequent Units, refer to instructions below...

1. Remove COVERS from all CONTROL BOXES (3).

2. Remove solid black plug grommet from left side of all

Fig. 3a

Unit #2 Detail

CONTROL BOXES (3), and replace with GRAY
GROMMET (5b). (Supplied with each Faucet).

3. Insert pervious unit’s 10' EXTENSION (11a) through

gray GROMMET (5b) and connect to single terminal
of Y-ADAPTER (11).

4. Feed CABLES (2) through the top of CONTROL BOX (3).

10a

3

6a

Connect one CABLE (2) to the SOLENOID CABLE (7),
and the other to either of the two available terminals of
the Y-ADAPTER (11). Connect the current unit’s 10'
EXTENSION (10a) to available terminal of the

11a

2

2

Y-ADAPTER (11).

5. Feed the other end of the 10 ft.EXTENSION (10b)

through the two GRAY GROMMETS (6a and 6b) and

5b

connect to the single terminal of the next unit’s
Y-ADAPTER (11). Place Y-ADAPTER (11) into
CONTROL BOX (3).

6. Repeat Steps above for each additional Unit, for a

Max. of 15 Units on one AC POWER SUPPLY.

7. Reinstall CONTROL BOX COVERS. Tighten cover

screws rmly.

11

5

7

10b

6b

CAUTION: Use only American Standard supplied transformers and cable sets. Using non-AS supplied cables, or

cutting, splicing or modifying any components will void the warranty.

© 2019 AS America Inc.

7

M965651 Rev. 2.0 (3/19)

TEST INSTALLED FAUCET

TO ENSURE A LAMINAR WATER FLOW, the air must be

slowly purged from the spout. To do so, cover the SENSOR (1)
while slowly opening the water supply valves. When the water
ows as a solid, smooth, steady stream, uncover the
SENSOR (1) and fully open the water supply valve. Fig. 1.

MAINTENANCE

Fig. 1

DETECTION

ZONE

HAND WASH SENSOR OPERATION; Fig. 1

A

When the Sensor detects a user, the water immediately starts
to ow. Water ow will stop 2 seconds after user is out of
sensor range. The off delay allows the user to comfortably
move his hands without the ow cycling on and off. As a
precaution, a safety timer will turn off the water after the
sensor has been blocked for 59 seconds. The water will stay
off until the blockage is removed from the detection zone.

Detection Zone: 2" - 10" (50mm - 250mm)
Default: Set at Factory 6" (150mm)

B

CHANGE SENSOR RANGE;
(Factory set at 6") Fig. 2, 2a

1. Remove CONTROL BOX COVER. Disconnect Power Supply
(1), then reconnect. Fig. 2.

2. While the SENSOR CONTROL LED (2) is blinking slowly,

place your hand 1 - 2 in. (30-50mm) in front of the sensor.

Fig. 2a.

3. When the LED stops blinking and stays “ON”, move your

hand to the desired position and hold in place until the LED
begins to blink again. Fig. 2a.

4. Once the SENSOR CONTROL LED (2) begins to blink

again, remove your hand from the detection zone. When the
ashing stops, the detection distance is set.

5. Reinstall CONTROL BOX COVERS (2). Tighten cover

screws rmly.

Fig. 2

Fig. 2a

1

1" - 2 " ( 30m m - 50 mm

BLINKING L ED

2

BLINKING

2

LED

1

UP TO 1 0" (2 50mm)

CLEAN FILTER ASSEMBLY; Fig. 3

C

CAUTION

Before opening CONTROL BOX
disconnect AC power supply.

1. Remove CONTROL BOX COVER.

2. Close SUPPLY STOP (13) with 4mm Hex wrench.

Note: Activate sensor to keep water owing out of

faucet while shutting off.

3. Unthread FILTER ASSEMBLY (6) using a 7/16" socket.

4. Pull out the FILTER ASSEMBLY (6), remove and clean

white debris cup and lter screen.

5. Install the FILTER ASSEMBLY (6) back in its place and

tighten with a 7/16" socket.

Caution: Do not over tighten.

6. Open SUPPLY STOP (13) with 4mm Hex wrench.

7. Reinstall CONTROL BOX COVER. Tighten cover

screws rmly.

© 2019 AS America Inc.

Fig. 3

7/1 6" SOCKET

6

WHITE
DEBRIS
CUP

13

FILTER

4mm HE X WRENC H

8

SCR EEN

M965651 Rev. 2.0 (3/19)

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

INSTALL / REPLACE THE BATTERY or

D

PWRX BATTERY PACK; Fig. 4

1. Remove CONTROL BOX COVER (1).

2. Disconnect Battery Holder (3) from CABLE (5).

3. Remove old BATTERY from Battery Holder (3). Install new

BATTERY (2) making sure the terminal side is inserted rst
and shape of the battery follows the shape of the BATTERY
HOLDER (3).

4. Reconnect BATTERY HOLDER (3) to CABLE (5).

5. To replace PWRX BATTERY PACK (4), unplug and

replace with new Power Pack.

6. Reinstall CONTROL BOX COVER. Tighten cover

screws rmly.

CLEAN AND REMOVE FLOW RESTRICTOR;

E

Fig. 5

1. Remove SET SCREW (1) with FLAT BLADE

SCREWDRIVER (2). Pull off SPOUT (3) from faucet
base. Fig. 5.

2. Remove HOUSING (4) and remove FLOW

RESTRICTOR (5). Fig. 5a.

3. Clean FLOW RESTRICTOR (5). Reassemble and

install into SPOUT BASE (6). Reassemble
SPOUT (3) onto SPOUT BASE (6) and tighten
SET SCREW (1). Fig. 5.

Fig. 4

Fig.5

CR-P2

2

STANDARD

1

BATTERY

5

6

3

4

PWRX

3

1

2

© 2019 AS America Inc.

Fig.5a

4

3

PULL UP TO
REMOVE SPOUT

4

6

9

M965651 Rev. 2.0 (3/19)

5

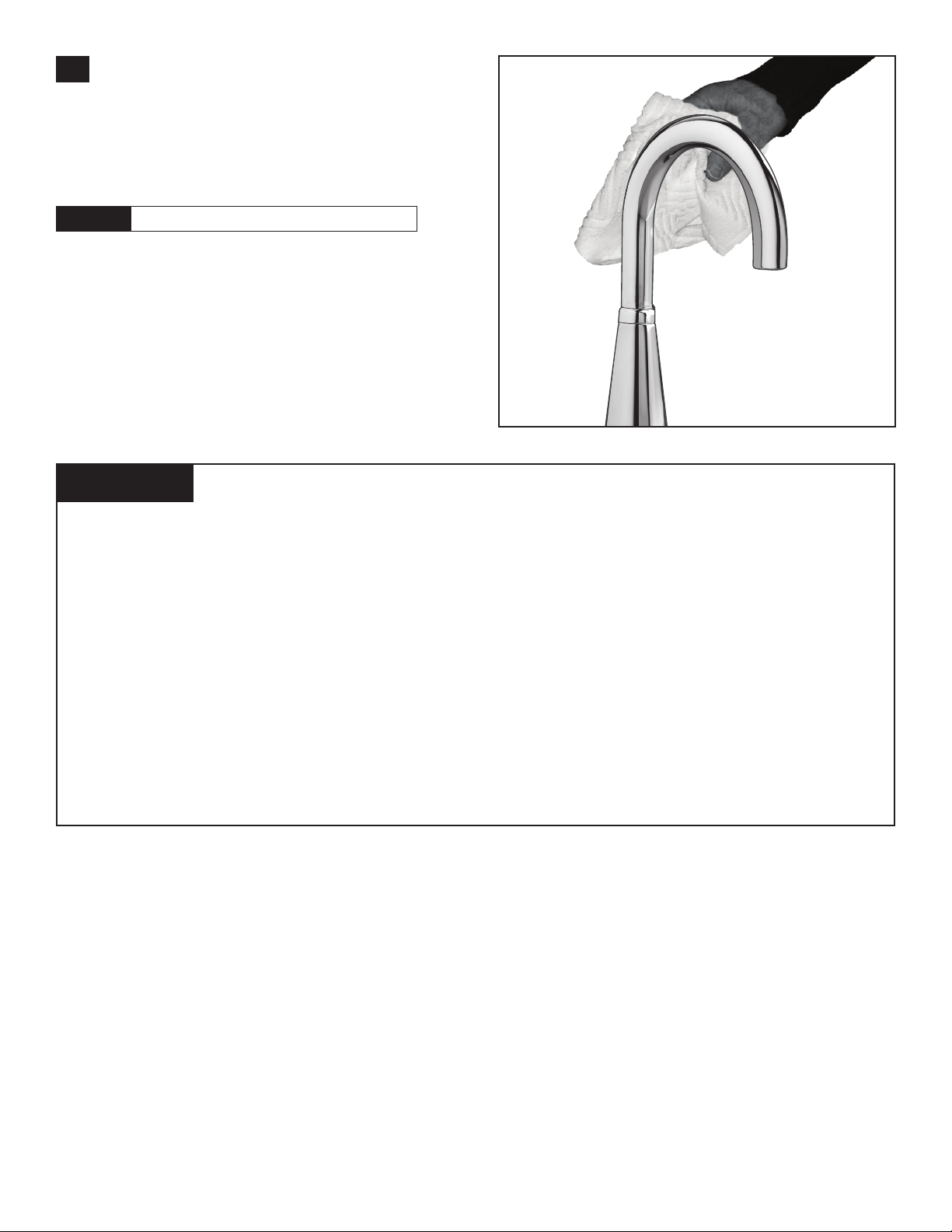

GENERAL CLEANING; Fig. 5

F

1. Only use a damp, soft cloth to clean the spout and

the sensor.

2. For tougher dirt, use a soft cloth with diluted dish

washing detergent. Wipe the area using a wet cloth.

Fig.6

CAUTION

Do not scratch the sensor when cleaning. Avoid using
any abrasives or harsh detergents or chemicals.

FAQ’S

Q: How will I know if the battery needs to be replaced?

A: Valve will not open and sensor will continuously blink 2 times interrupted by a pause, for up to 7 days.

Q: Why has the ow rate of the faucet reduced signicantly?
A: The lter assembly, ow regulator or areator/spray may be clogged. Check and clean. Refer to Start-up/

Mainenance, sections C, D and E.

Q: Why doesn’t water ow out of faucet when I’m within the sensor detection zone?

A: Battery may need replacement. If sensor continuously blinks 2 times interrupted by pause, replace battery

or call (844) CRT-TEAM / [phone].Z

Q: What is the normal operating pressure range?

A: Faucet will operate with supply pressures ranging from 20-80 psi.

© 2019 AS America Inc.

10

M965651 Rev. 2.0 (3/19)

TROUBLESHOOTING FLOW CHARTS

UNIT DOES NOT FUNCTION

ARE EXTERNAL SUPPLY
STOPS OPEN?

YES

IS INTERNAL SUPPLY
STOP OPEN?

YES

REPEATED DOUBLE FLASH
ON SENSOR?

YES

NO

1 1

RECONNECT BATTERY TO SENSOR.
DOES SENSOR FLASH FOR 5 SECONDS?

2 2

YES

REPLACE SOLENOID

WATER IS CONTINUOUSLY RUNNING

RECONNECT BATTERY TO SENSOR.
DOES SENSOR FLASH FOR 5 SECONDS?

NO

NO

NO

NO

NO

OPEN EXTERNAL SUPPLY STOPS.

OPEN INTERNAL SUPPLY STOP.
(HEX KEY NEEDED)

CRITICALLY LOW BATTERY.
INSTALL NEW BATTERY.

DEAD BATTERY. INSTALL
NEW BATTERY. REPEAT.

CHECK FOR DAMAGE TO SENSOR WIRE INSULATION.
REPLACE SENSOR.

CHECK FOR DAMAGE TO SENSOR WIRE INSULATION.
REPLACE SENSOR.

REPLACE SOLENOID

LOW FLOW ISSUES

ARE INTERNAL & EXTERNAL SUPPLY
STOPS FULLY OPEN?

LOW FLOW COULD BE CAUSED BY DEBRIS
IN THE FILTER ASSEMBLY, FLOW REGULATOR
OR AERATOR/SPRAY. REMOVE, CLEAN AND
INSERT BACK TO ORIGINAL POSITION.

© 2019 AS America Inc.

YES

YES

NO

FULLY OPEN INTERNAL & EXTERNAL SUPPLY
STOPS BY TURNING COUNTER CLOCKWISE.

For toll-free information and answers to your questions, call:

Mon. - Fri. 8:00 a.m. to 8:00 p.m. EST Saturday 10:00 a.m. to 4:00 p.m. EST

IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)

Product names listed herein are trademarks of AS America, Inc. ©2019

To learn more about American Standard Selectronic® Products visit our website at:
www.americanstandard-us.com or e-mail us at: [e-mail]

11

HOT LINE FOR HELP

(844) CRT-TEAM / [phone]

IN MEXICO 01-800-839-1200

Weekdays 8:00 a.m. to 7:00 p.m. EST

M965651 Rev. 2.0 (3/19)
