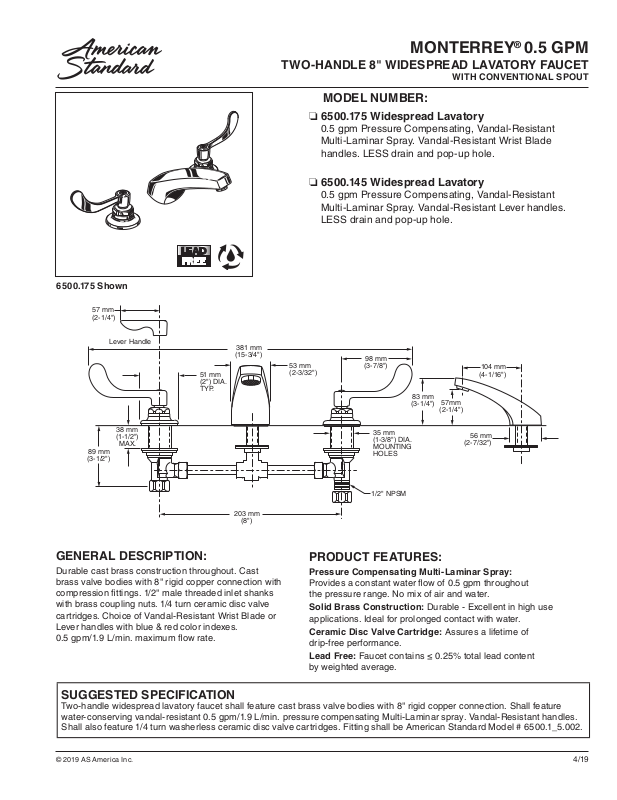

Page 1
6500.175 Shown
57 mm
(2-1/4")
MONTERREY® 0.5 GPM
TWO-HANDLE 8" WIDESPREAD LAVATORY FAUCET
WITH CONVENTIONAL SPOUT
MODEL NUMBER:
❏ 6500.175 Widespread Lavatory
0.5 gpm Pressure Compensating, Vandal-Resistant
Multi-Laminar Spray. Vandal-Resistant Wrist Blade
handles. LESS drain and pop-up hole.
❏ 6500.145 Widespread Lavatory
0.5 gpm Pressure Compensating, Vandal-Resistant
Multi-Laminar Spray. Vandal-Resistant Lever handles.
LESS drain and pop-up hole.
89 mm
(3-1/2")
Lever Handle
38 mm
(1-1/2")
MAX.
51 mm
(2
TYP.
"
) DIA.
381 mm
(15-3/4
203 mm
(8
"
)
"
)
GENERAL DESCRIPTION:
Durable cast brass construction throughout. Cast
brass valve bodies with 8" rigid copper connection with
compression ttings. 1/2" male threaded inlet shanks
with brass coupling nuts. 1/4 turn ceramic disc valve
cartridges. Choice of Vandal-Resistant Wrist Blade or
Lever handles with blue & red color indexes.
0.5 gpm/1.9 L/min. maximum ow rate.
53 mm
(2-3/32
"
)
98 mm
(3-7/8")
35 mm
(1-3/8") DIA.
MOUNTING
HOLES
1/2" NPSM
83 mm
(3-1/4
"
)
57mm
(2-1/4
"
)
(2-7/32
104 mm
(4-1/16")
56 mm
"
)
PRODUCT FEATURES:
Pressure Compensating Multi-Laminar Spray:
Provides a constant water ow of 0.5 gpm throughout
the pressure range. No mix of air and water.
Solid Brass Construction: Durable - Excellent in high use
applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content
by weighted average.
SUGGESTED SPECIFICATION
Two-handle widespread lavatory faucet shall feature cast brass valve bodies with 8" rigid copper connection. Shall feature
water-conserving vandal-resistant 0.5 gpm/1.9 L/min. pressure compensating Multi-Laminar spray. Vandal-Resistant handles.
Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Fitting shall be American Standard Model # 6500.1_5.002.
© 2019 AS America Inc.
4/19
Page 2
MONTERREY® 0.5 GPM
TWO-HANDLE 8" WIDESPREAD LAVATORY FAUCET
WITH CONVENTIONAL SPOUT
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
AN SI 117.1
ASME A112 .18 .1
CSA B125.1
NSF 372
Product
Number Description
65 0 0.175
Widespread Lavatory. 0.5 gpm/1.9 L/min pressure compensating vandal-resistant
multi-laminar spray. Vandal-Resistant Wrist Blade Handles. LESS drain and pop-up hole.
FLOW RATE*
0.5
0.4
0.3
0.2
0.1
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
80604020
Finish
Polished
Chrome
002
65 0 0.145
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for accessible and
usable building facilities - check local codes
Widespread Lavatory. 0.5 gpm/1.9 L/min pressure compensating vandal-resistant
multi-laminar spray. Vandal-Resistant Lever Handles. LESS drain and pop-up hole.
© 2019 AS America Inc.
419
