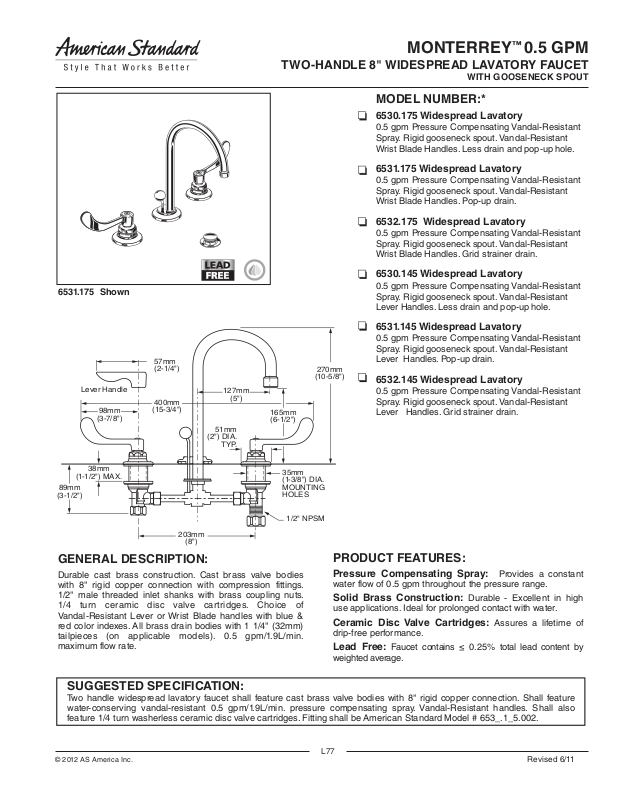

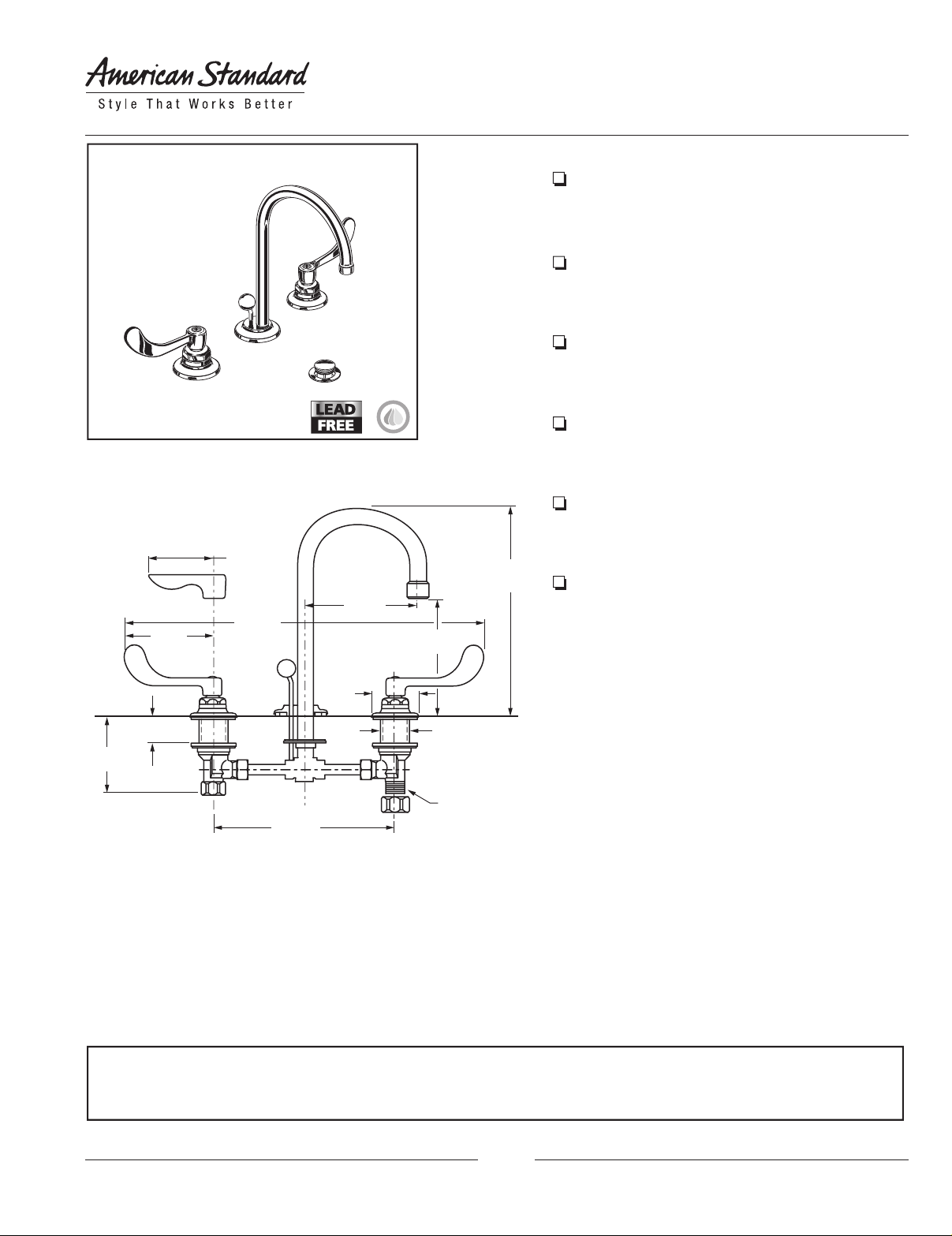

6531.175 Shown
Lever Handle
98mm
"
)
(3-7/8
57mm
(2-1/4
400mm
(15-3/4
MONTERREY™ 0.5 GPM
TWO-HANDLE 8" WIDESPREAD LAVATORY FAUCET
WITH GOOSENECK SPOUT
MODEL NUMBER:*
6530.175 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant
Spray. Rigid gooseneck spout. Vandal-Resistant
Wrist Blade Handles. Less drain and pop-up hole.
6531.175 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant
Spray. Rigid gooseneck spout. Vandal-Resistant
Wrist Blade Handles. Pop-up drain.
6532.175 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant
Spray. Rigid gooseneck spout. Vandal-Resistant
Wrist Blade Handles. Grid strainer drain.
6530.145 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant
Spray. Rigid gooseneck spout. Vandal-Resistant
Lever Handles. Less drain and pop-up hole.
6531.145 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant
Spray. Rigid gooseneck spout. Vandal-Resistant
"
)
127mm
(5
"
)
"
)
51mm
"
) DIA.
(2
TYP.
165mm
(6-1/2
270mm
(10-5/8
"
)
"
)
Lever Handles. Pop-up drain.
6532.145 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant
Spray. Rigid gooseneck spout. Vandal-Resistant
Lever Handles. Grid strainer drain.
38mm
(1-1/2
"
) MAX.
89mm
(3-1/2
"
)
203mm
"
)
(8
GENERAL DESCRIPTION:
Durable cast brass construction. Cast brass valve bodies
with 8" rigid copper connection with compression fittings.
1/2" male threaded inlet shanks with brass coupling nuts.
1/4 turn ceramic disc valve cartridges. Choice of
Vandal-Resistant Lever or Wrist Blade handles with blue &
red color indexes. All brass drain bodies with 1 1/4" (32mm)
tailpieces (on applicable models). 0.5 gpm/1.9L/min.
maximum flow rate.
35mm
(1-3/8
"
) DIA.
MOUNTING
HOLES
"
NPSM
1/2
PRODUCT FEATURES:
Pressure Compensating Spray: Provides a constant
water flow of 0.5 gpm throughout the pressure range.
Solid Brass Construction: Durable - Excellent in high
use applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION:
Two handle widespread lavatory faucet shall feature cast brass valve bodies with 8" rigid copper connection. Shall feature
water-conserving vandal-resistant 0.5 gpm/1.9L/min. pressure compensating spray. Vandal-Resistant handles. Shall also
feature 1/4 turn washerless ceramic disc valve cartridges. Fitting shall be American Standard Model # 653_.1_5.002.
© 2012 AS America Inc.
L77
Revised 6/11
Page 2
MONTERREY™ 0.5 GPM
TWO-HANDLE 8" WIDESPREAD LAVATORY FAUCET
WITH GOOSENECK SPOUT
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B 125
NSF 61/Section 9 and Annex G
Product
Number
6530.175
6531.175
6532.175
6530.145
6531.145
6532.145
Description
Widespread Lavatory with rigid gooseneck spout. 0.5 gpm/1.9L/min pressure compensating
vandal-resistant spray. Vandal-Resistant Wrist Blade Handles. Less drain and pop-up hole.
Widespread Lavatory with rigid gooseneck spout. 0.5 gpm/1.9L/min pressure compensating
vandal-resistant spray. Vandal-Resistant Wrist Blade Handles. Pop-up drain.
Widespread Lavatory with rigid gooseneck spout. 0.5 gpm/1.9L/min pressure compensating
vandal-resistant spray. Vandal-Resistant Wrist Blade Handles. Grid strainer drain.
Widespread Lavatory with rigid gooseneck spout. 0.5 gpm/1.9L/min pressure compensating
vandal-resistant spray. Vandal-Resistant Lever Handles. Less drain and pop-up hole.
Widespread Lavatory with rigid gooseneck spout. 0.5 gpm/1.9L/min pressure compensating
vandal-resistant spray. Vandal-Resistant Lever Handles. Pop-up drain.
Widespread Lavatory with rigid gooseneck spout. 0.5 gpm/1.9L/min pressure compensating
vandal-resistant spray. Vandal-Resistant Lever Handles. Grid strainer drain.

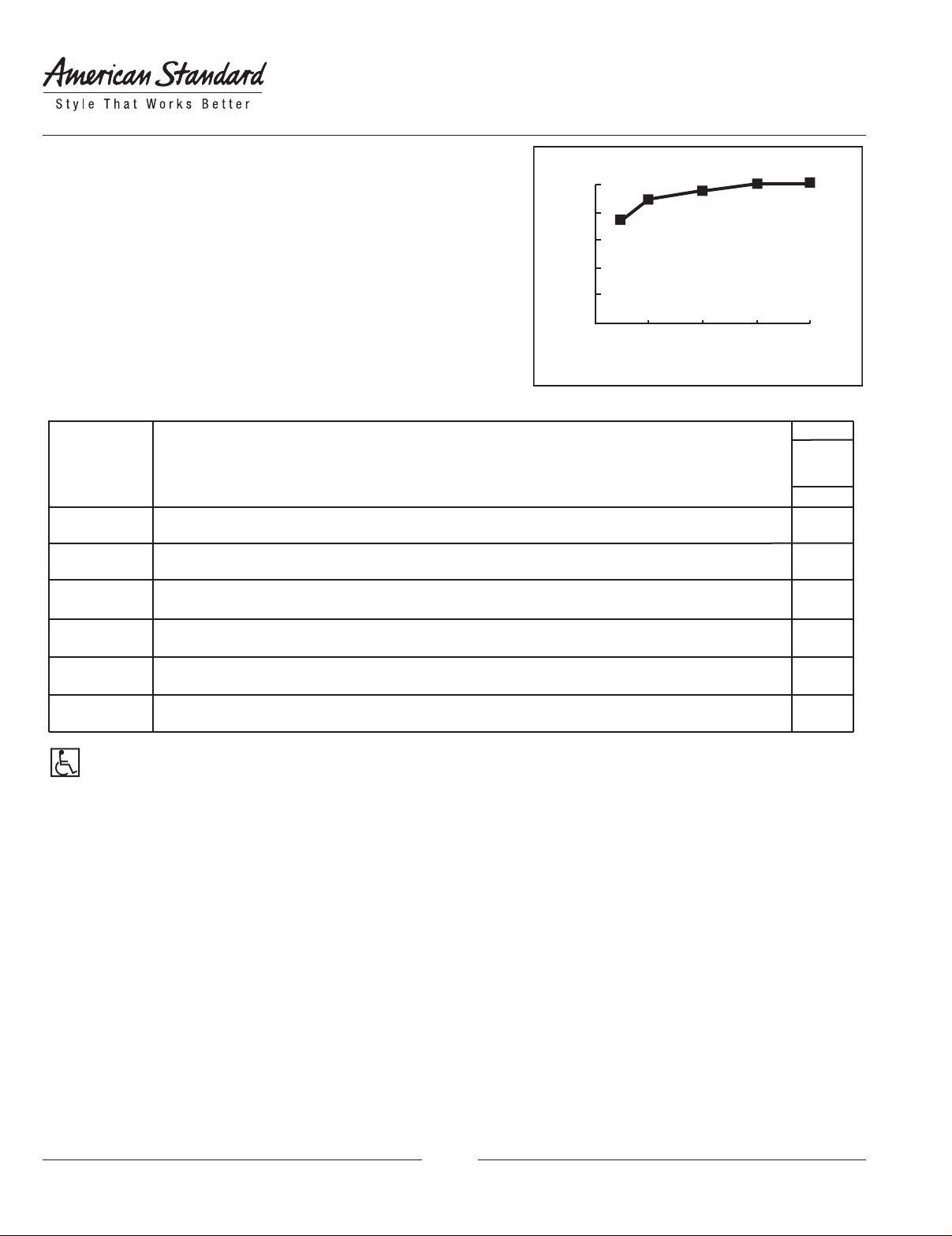

FLOW RATE*
0.5
0.4
0.3
0.2
0.1
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
80604020
Finish
Polished
Chrome
002
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES
© 2012 AS America Inc.
L78
Revised 6/11
