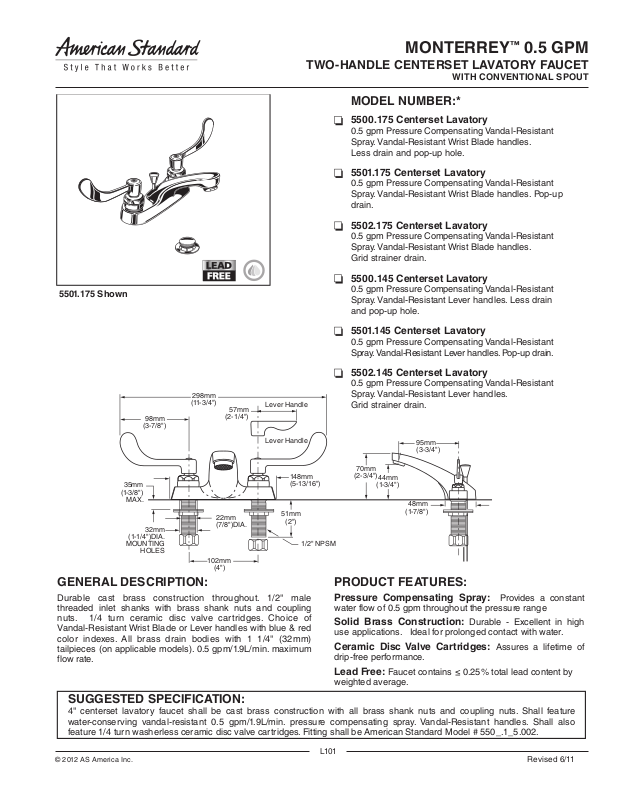

MODEL NUMBER:*
5501.175 Shown
US
U
G
C
SCC
OC
CO
S
98mm
(3-7/8")
298mm
(11-3/4
"
)
57mm
(2-1/4")

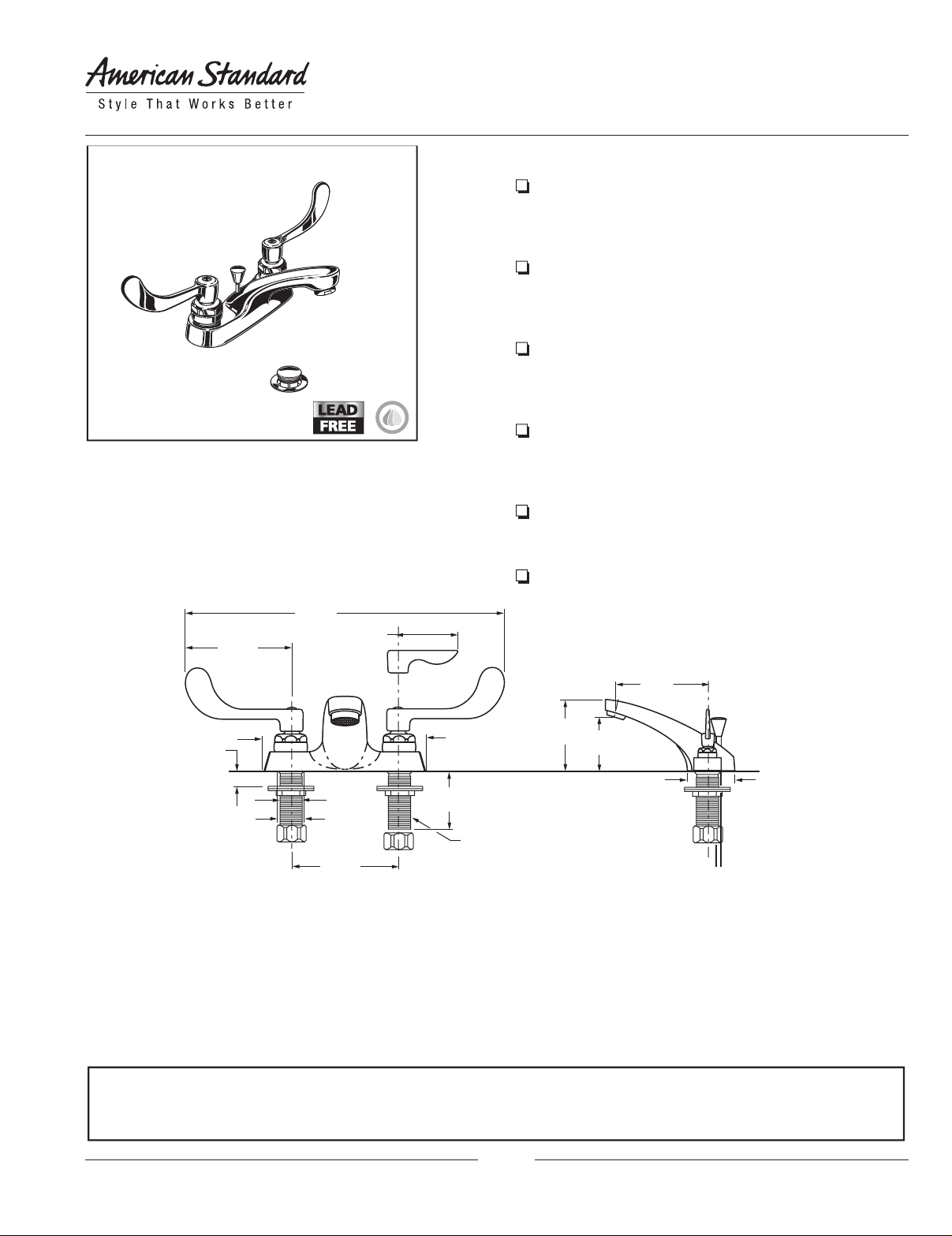

TWO-HANDLE CENTERSET LAVATORY FAUCET
Lever Handle
Lever Handle
MONTERREY™ 0.5 GPM
WITH CONVENTIONAL SPOUT
5500.175 Centerset Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant
Spray. Vandal-Resistant Wrist Blade handles.
Less drain and pop-up hole.
5501.175 Centerset Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant
Spray. Vandal-Resistant Wrist Blade handles. Pop-up
drain.
5502.175 Centerset Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant
Spray. Vandal-Resistant Wrist Blade handles.
Grid strainer drain.
5500.145 Centerset Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant
Spray. Vandal-Resistant Lever handles. Less drain
and pop-up hole.
5501.145 Centerset Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant
Spray. Vandal-Resistant Lever handles. Pop-up drain.
5502.145 Centerset Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant
Spray. Vandal-Resistant Lever handles.
Grid strainer drain.
95mm
(3-3/4")
70mm
(2-3/4
"
148mm
35mm
"
)
(1-3/8
MAX.
32mm
(1-1/4
MOUNTING
HOLES
"
)DIA.
22mm
(7/8")DIA.
102mm
(4
"
)
(5-13/16")
51mm
(2")
1/2" NPSM
GENERAL DESCRIPTION:
Durable cast brass construction throughout. 1/2" male
threaded inlet shanks with brass shank nuts and coupling
nuts. 1/4 turn ceramic disc valve cartridges. Choice of
Vandal-Resistant Wrist Blade or Lever handles with blue & red
color indexes. All brass drain bodies with 1 1/4" (32mm)
tailpieces (on applicable models). 0.5 gpm/1.9L/min. maximum
flow rate.
PRODUCT FEATURES:
Pressure Compensating Spray: Provides a constant
water flow of 0.5 gpm throughout the pressure range
Solid Brass Construction: Durable - Excellent in high
use applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
)
44mm
(1-3/4
"
)
48mm
"
)
(1-7/8
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION:
4" centerset lavatory faucet shall be cast brass construction with all brass shank nuts and coupling nuts. Shall feature
water-conserving vandal-resistant 0.5 gpm/1.9L/min. pressure compensating spray. Vandal-Resistant handles. Shall also
feature 1/4 turn washerless ceramic disc valve cartridges. Fitting shall be American Standard Model # 550_.1_5.002.
© 2012 AS America Inc.
L101
Revised 6/11
Page 2

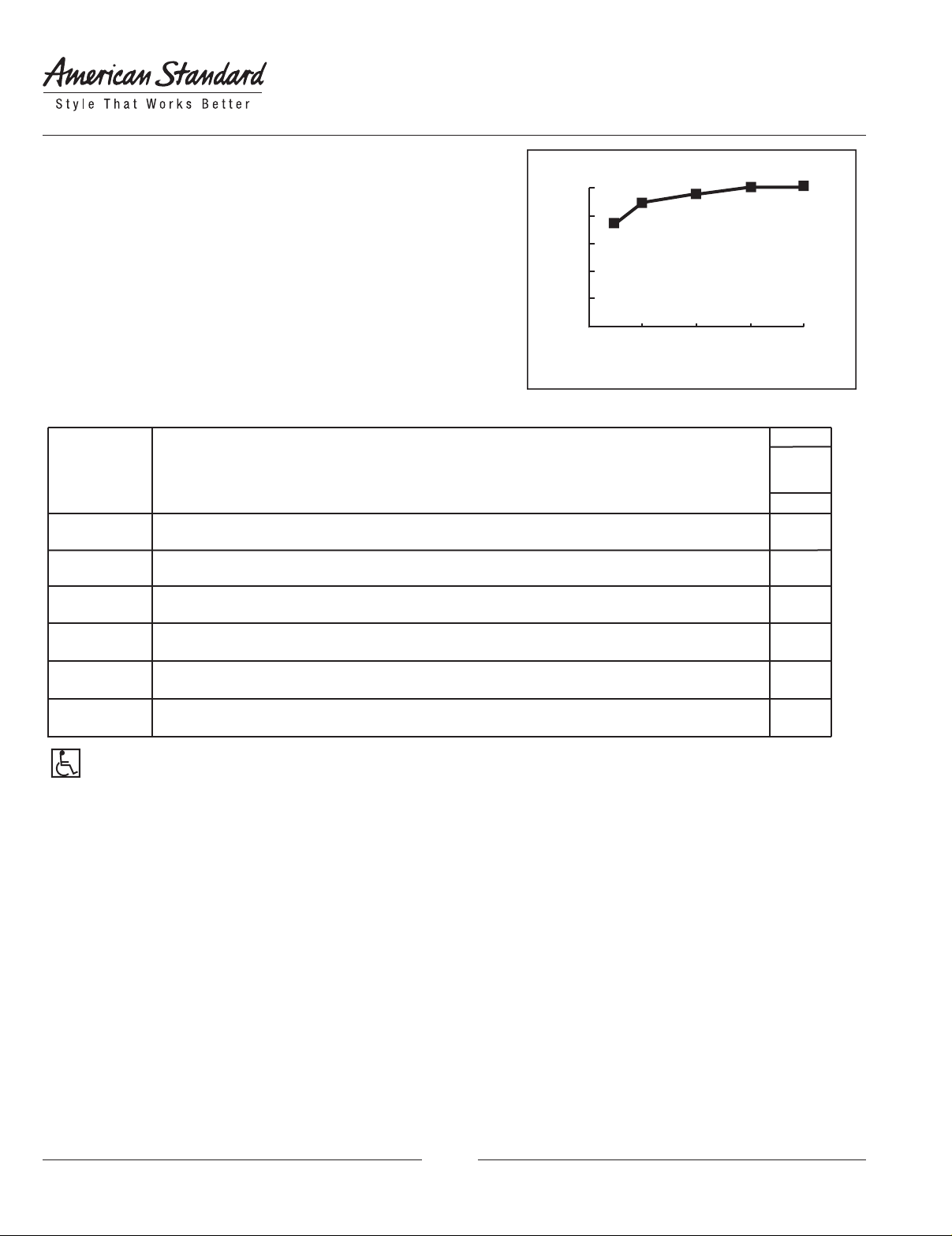

MONTERREY™ 0.5 GPM
US
TWO-HANDLE CENTERSET LAVATORY FAUCET
WITH CONVENTIONAL SPOUT
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B 125
NSF 61/Section 9 and Annex G
Product
Number
5500.175
5501. 175
5502.175
5500.145
5501. 145
5502.145
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
ABLE BUILDING FACILITIES-CHECK LOCAL CODES
Description
Centerset Lavatory. 0.5 gpm/1.9L/min pressure compensating vandal-resistant spray.
Vandal-Resistant Wrist Blade Handles. Less drain and pop-up hole.
Centerset Lavatory. 0.5 gpm/1.9L/min pressure compensating vandal-resistant spray.
Vandal-Resistant Wrist Blade Handles. Pop-up drain.
Centerset Lavatory. 0.5 gpm/1.9L/min pressure compensating vandal-resistant spray.
Vandal-Resistant Wrist Blade Handles. Grid strainer drain.
Centerset Lavatory. 0.5 gpm/1.9L/min pressure compensating vandal-resistant spray.
Vandal-Resistant Lever Handles. Less drain and pop-up hole.
Centerset Lavatory. 0.5 gpm/1.9L/min pressure compensating vandal-resistant spray.
Vandal-Resistant Lever Handles. Pop-up drain.
Centerset Lavatory. 0.5 gpm/1.9L/min pressure compensating vandal-resistant spray.
Vandal-Resistant Lever Handles. Grid strainer drain.
FLOW RATE*
0.5
0.4
0.3
0.2
0.1
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
80604020
Finish
Polished
Chrome
002
© 2012 AS America Inc.
L10 2
Revised 6/11
