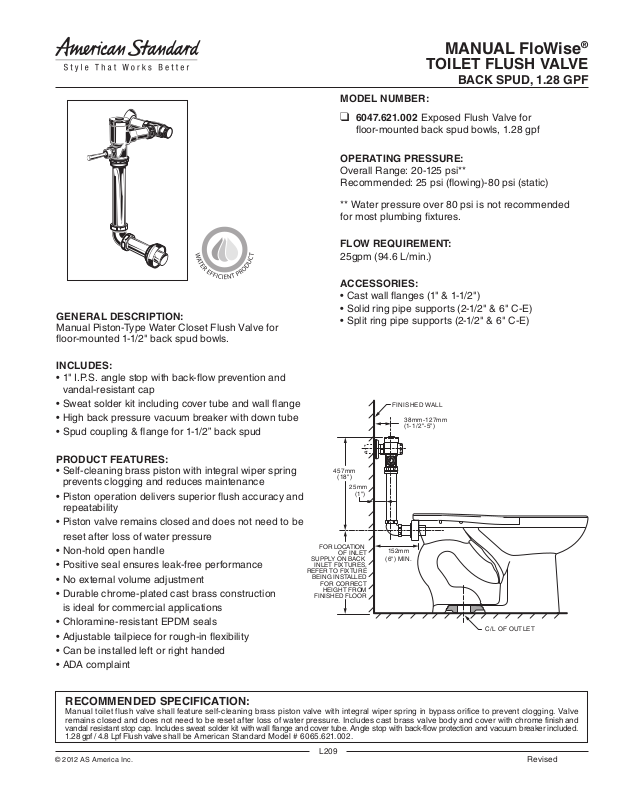

Page 1
GENERAL DESCRIPTION:
Manual Piston-Type Water Closet Flush Valve for
oor-mounted 1-1/2" back spud bowls.
MANUAL FloWise
TOILET FLUSH VALVE
BACK SPUD, 1.28 GPF
MODEL NUMBER:
❑ 6047.621.002 Exposed Flush Valve for
oor-mounted back spud bowls, 1.28 gpf
OPERATING PRESSURE:
Overall Range: 20-125 psi**
Recommended: 25 psi (owing)-80 psi (static)
** Water pressure over 80 psi is not recommended
for most plumbing xtures.
FLOW REQUIREMENT:
25gpm (94.6 L/min.)
ACCESSORIES:
• Cast wall anges (1" & 1-1/2")
• Solid ring pipe supports (2-1/2" & 6" C-E)
• Split ring pipe supports (2-1/2" & 6" C-E)
®
INCLUDES:
• 1" I.P.S. angle stop with back-ow prevention and
vandal-resistant cap
• Sweat solder kit including cover tube and wall ange
• High back pressure vacuum breaker with down tube
• Spud coupling & ange for 1-1/2” back spud
PRODUCT FEATURES:
• Self-cleaning brass piston with integral wiper spring
prevents clogging and reduces maintenance
• Piston operation delivers superior ush accuracy and
repeatability
• Piston valve remains closed and does not need to be
reset after loss of water pressure
• Non-hold open handle
• Positive seal ensures leak-free performance
• No external volume adjustment
• Durable chrome-plated cast brass construction
is ideal for commercial applications
• Chloramine-resistant EPDM seals
• Adjustable tailpiece for rough-in exibility
• Can be installed left or right handed
• ADA complaint

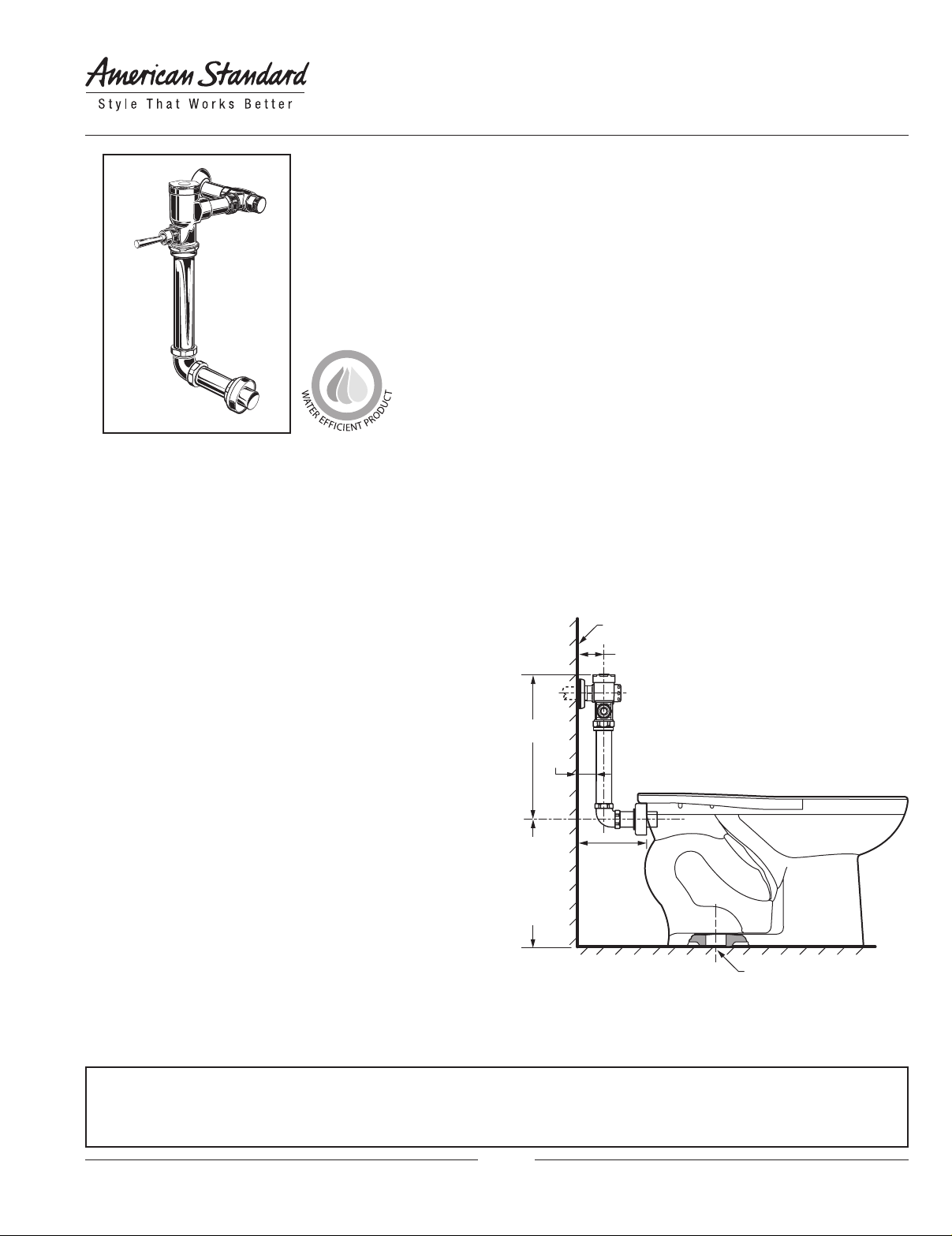

457mm
(18")
25mm
(1")
FOR LOCATION
OF INLET
SUPPLY ON BACK
INLET FIXTURES,
REFER TO FIXTURE
BEING INSTALLED
FOR CORRECT
HEIGHT FROM
FINISHED FLOOR
FINISHED WALL
38mm-127mm
(1-1/2"-5")
152mm
") MIN.
(6
C/L OF OUTLET
RECOMMENDED SPECIFICATION:
Manual toilet flush valve shall feature self-cleaning brass piston valve with integral wiper spring in bypass orifice to prevent clogging. Valve
remains closed and does not need to be reset after loss of water pressure. Includes cast brass valve body and cover with chrome finish and
vandal resistant stop cap. Includes sweat solder kit with wall flange and cover tube. Angle stop with back-flow protection and vacuum breaker included.
1.28 gpf / 4.8 Lpf Flush valve shall be American Standard Model # 6065.621.002.
© 2012 AS America Inc.
L209
Revised
Page 2
LISTINGS:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant
MANUAL TOILET
FLU SH VALVE
BACK SPUD, 1.28 GPF

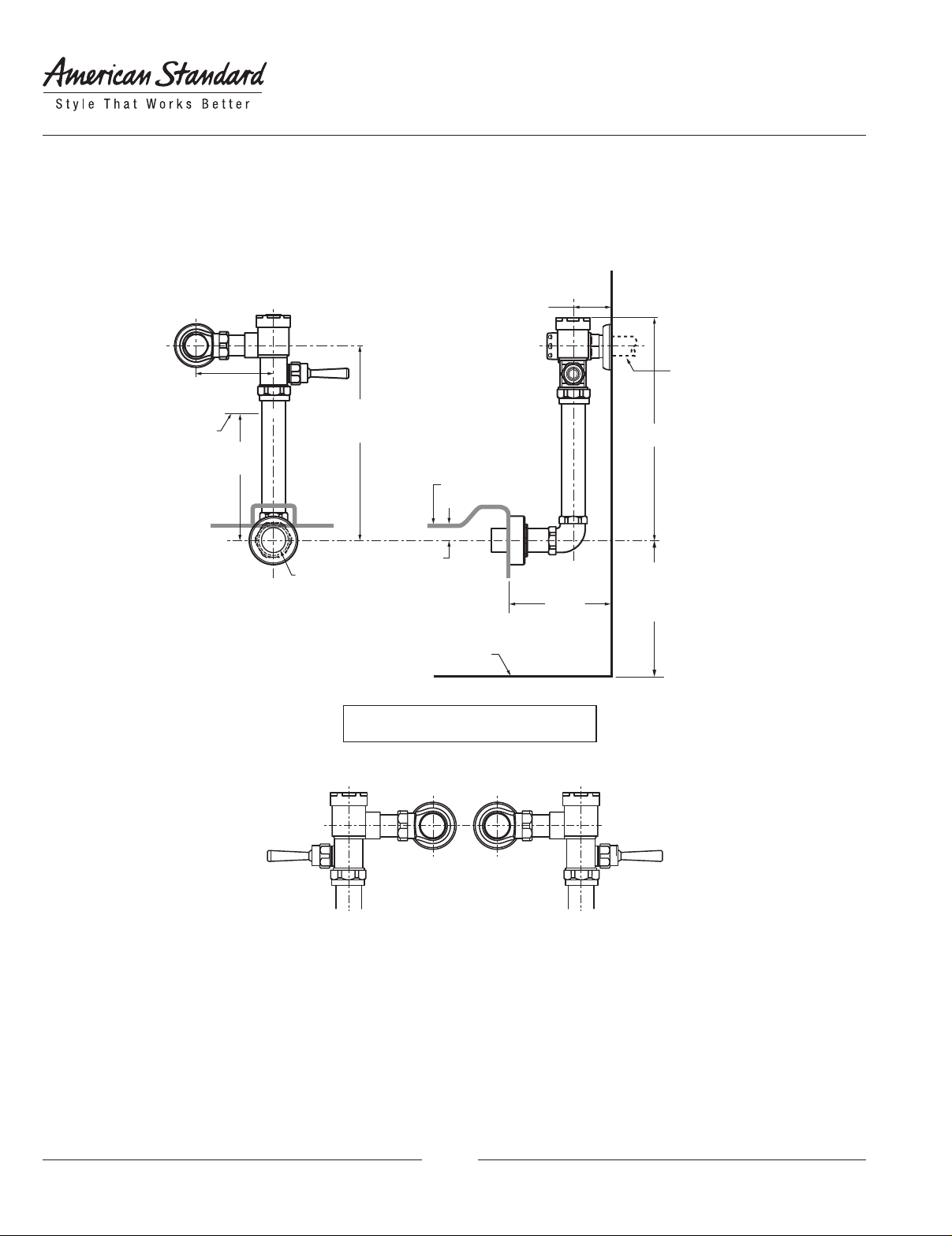

108mm-133mm
(4-1/4" to 5-1/4")
*CRITICAL
LEVEL
EXPOSED BACK SPUD
-C-L-
152mm
(6")
(Min.)
FOR 1-1/2" BACK
SPUD FIXTURES
38mm-127mm
(1-1/2-5")
ROUGH-IN
DIMENSION
406mm
(16")
TOP OF
FIXTURE
REFER TO
FIXTURE
DRAWING
(6") MIN.
FINISHED FLOOR
*Note: The Critical Line (-C-L-) on Vacuum Breaker
must typically be a minimum of 6" (152mm) above
fixture. Consult Codes for details.
152mm
SUPPLY
DN 25mm
(1" I.P.S.)
457mm
(18")
FOR LOCATION OF INLET
SUPPLY ON BACK INLET
FIXTURES, REFER TO FIXTURE
BEING INSTALLED
FOR CORRECT HEIGHT FROM
FINISHED FLOOR
© 2012 AS America Inc.
Valve Left or Right Hand Installation
L210
Revised
