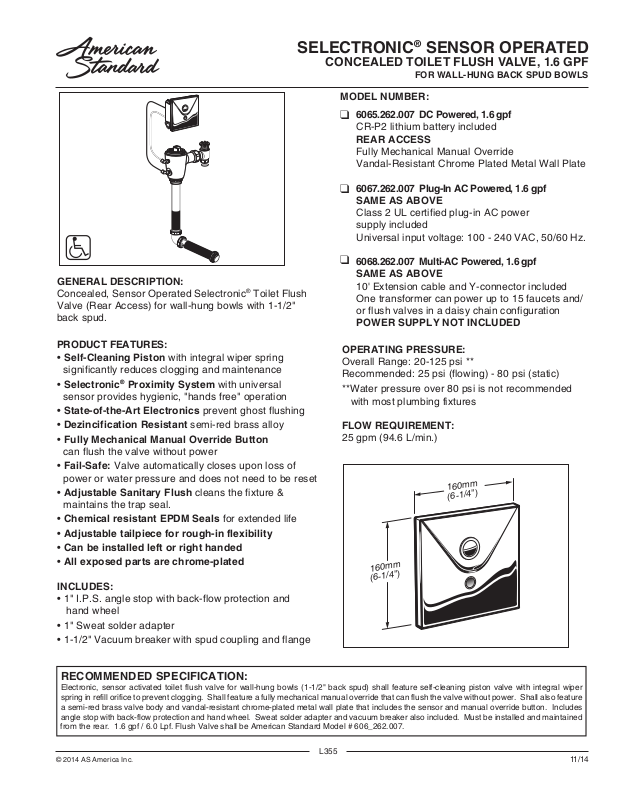

Page 1
MODEL NUMBER:
GENERAL DESCRIPTION:

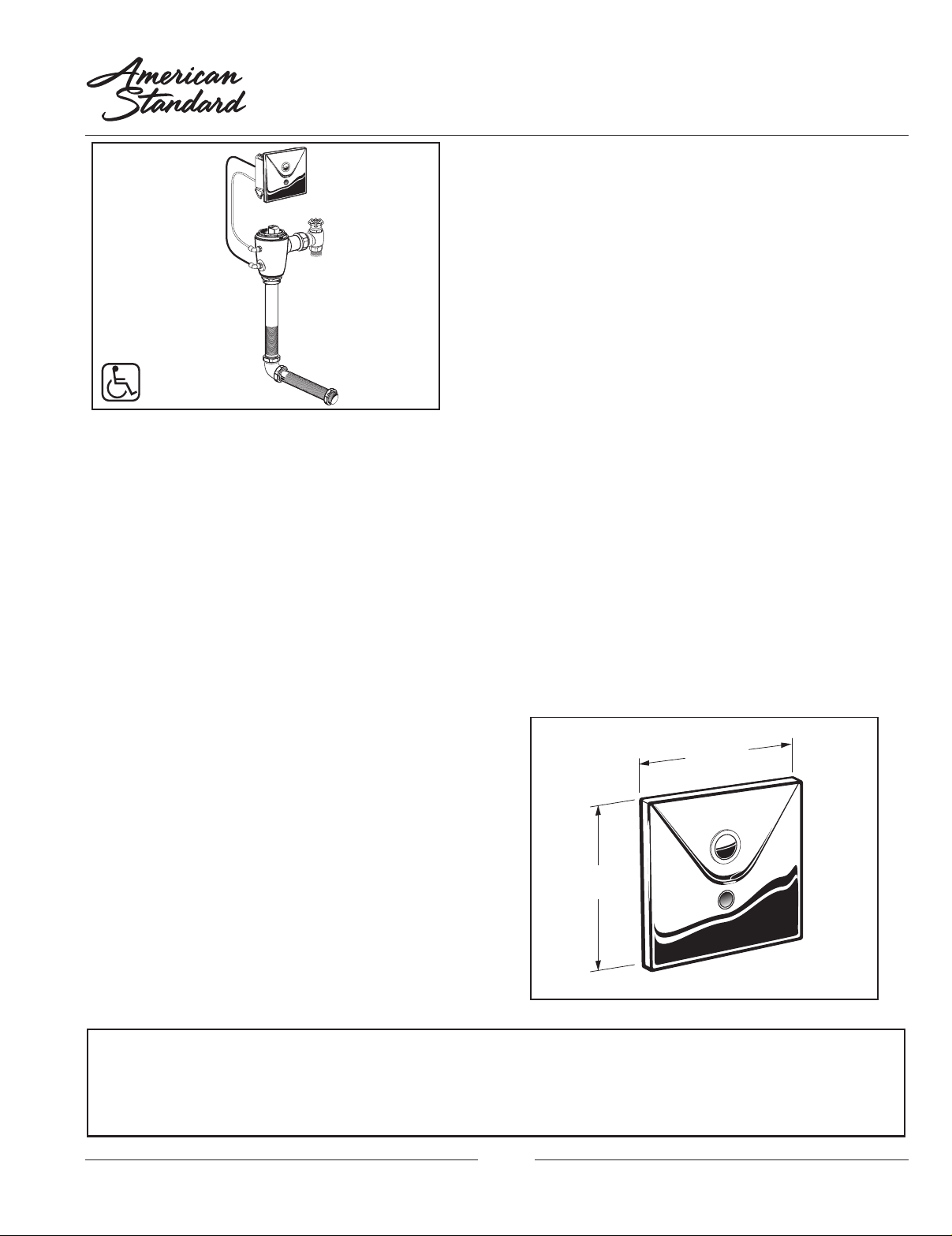

Concealed, Sensor Operated Selectronic
®
Toilet Flush
Valve (Rear Access) for wall-hung bowls with 1-1/2"
back spud.
SELECTRONIC® SENSOR OPERATED
CONCEALED TOILET FLUSH VALVE, 1.6 GPF
FOR WALL-HUNG BACK SPUD BOWLS
6065.262.007 DC Powered, 1.6 gpf
❑
CR-P2 lithium battery included
REAR ACCESS
Fully Mechanical Manual Override
Vandal-Resistant Chrome Plated Metal Wall Plate
6067.262.007 Plug-In AC Powered, 1.6 gpf
❑
SAME AS ABOVE
Class 2 UL certified plug-in AC power
supply included
Universal input voltage: 100 - 240 VAC, 50/60 Hz.
❑
6068.262.007 Multi-AC Powered, 1.6 gpf
SAME AS ABOVE
10' Extension cable and Y-connector included
One transformer can power up to 15 faucets and/
or flush valves in a daisy chain configuration
POWER SUPPLY NOT INCLUDED
PRODUCT FEATURES:
• Self-Cleaning Piston with integral wiper spring
significantly reduces clogging and maintenance
• Selectronic
®
Proximity System with universal
sensor provides hygienic, "hands free" operation
• State-of-the-Art Electronics prevent ghost flushing
• Dezincification Resistant semi-red brass alloy
• Fully Mechanical Manual Override Button
can flush the valve without power
• Fail-Safe: Valve automatically closes upon loss of
power or water pressure and does not need to be reset
• Adjustable Sanitary Flush cleans the fixture &
maintains the trap seal.
• Chemical resistant EPDM Seals for extended life
• Adjustable tailpiece for rough-in flexibility
• Can be installed left or right handed
• All exposed parts are chrome-plated
INCLUDES:
• 1" I.P.S. angle stop with back-flow protection and
hand wheel
• 1" Sweat solder adapter
• 1-1/2" Vacuum breaker with spud coupling and flange
OPERATING PRESSURE:
Overall Range: 20-125 psi **
Recommended: 25 psi (flowing) - 80 psi (static)
**Water pressure over 80 psi is not recommended
with most plumbing fixtures
FLOW REQUIREMENT:
25 gpm (94.6 L/min.)
160mm
(6-1/4")
160mm
(6-1/4")
RECOMMENDED SPECIFICATION:
Electronic, sensor activated toilet flush valve for wall-hung bowls (1-1/2" back spud) shall feature self-cleaning piston valve with integral wiper
spring in refill orifice to prevent clogging. Shall feature a fully mechanical manual override that can flush the valve without power. Shall also feature
a semi-red brass valve body and vandal-resistant chrome-plated metal wall plate that includes the sensor and manual override button. Includes
angle stop with back-flow protection and hand wheel. Sweat solder adapter and vacuum breaker also included. Must be installed and maintained
from the rear. 1.6 gpf / 6.0 Lpf. Flush Valve shall be American Standard Model # 606_262.007.
© 2014 AS America Inc.
L355
11/ 14
Page 2
LISTINGS:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant
SELECTRONIC® SENSOR OPERATED
CONCEALED TOILET FLUSH VALVE, 1.6 GPF
FOR WALL-HUNG BACK SPUD BOWLS

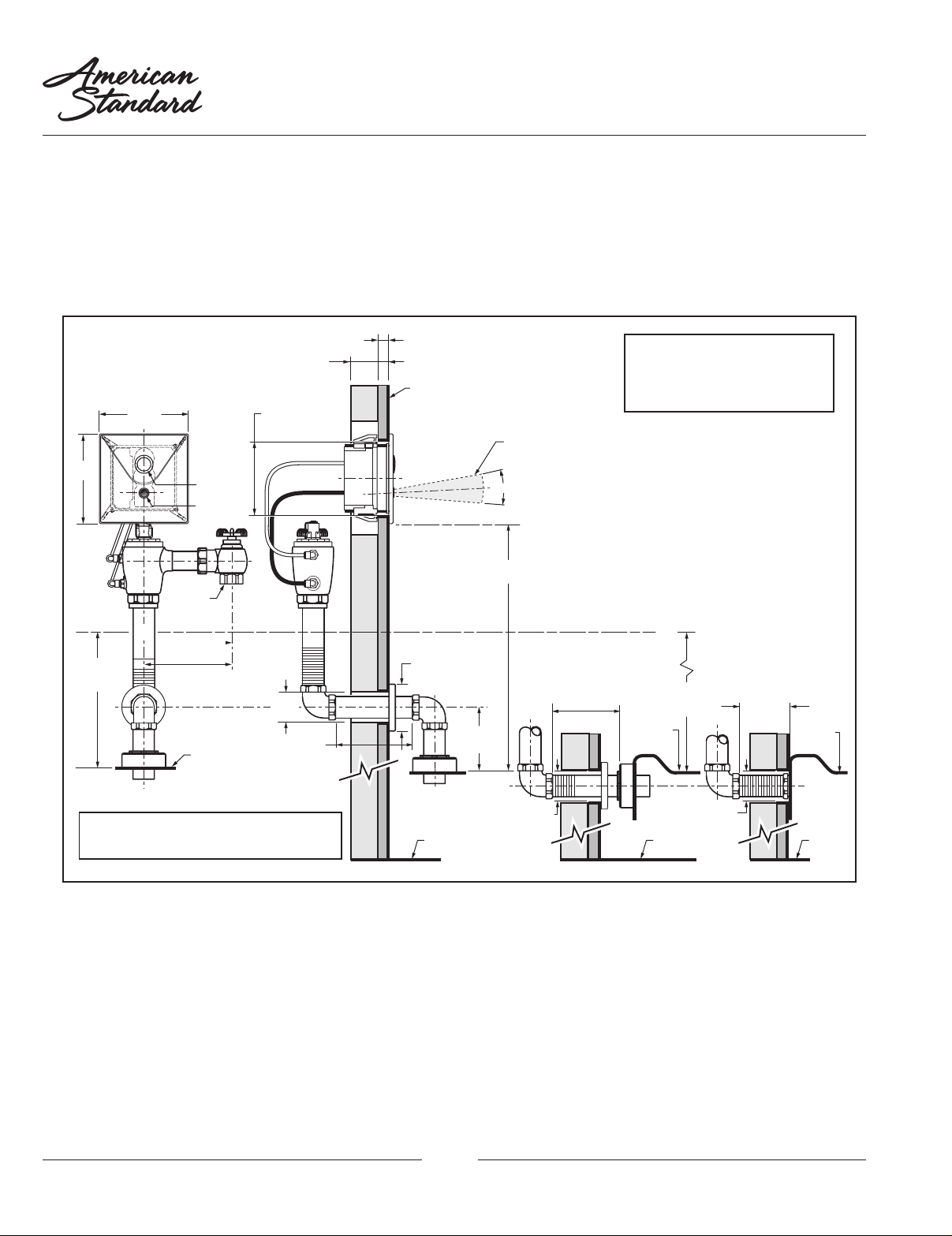

Roughing-in Dimensions
top SPUD TOILET
160mm
(6-1/4)
*-C-L-
152mm MIN.
(6) MIN.
160mm
(6-1/4)
OVERRIDE
BUTTON
SENSOR
SUPPLY
(1) NPT
-C-L- -C-L-
108mm-134mm
(4-1/4 TO 5-1/4)
TOP OF
FIXTURE
127mm X 127mm
(5X5 CUTOUT
FOR BOX)
51mm
(2)
400mm MAX.
(15-3/4) MAX.
25mm (1) MAX.
WALL THICKNESS
FINISHED
WALL
TOP SPUD
TOILET
70mm
(2-3/4) DIA.
128mm MAX.
(5) MAX.
CAUTION: Use only American Standard
supplied cable sets. Using non-AS
supplied cables, or cutting, splicing or
modifying any components will void the
warranty.
DETECTION ZONE
400mm-800mm
(Factory Setting: 400mm)
15˚
360mm MAX.
(14-3/16) MAX.
FOR LOCATION OF INLET SUPPLY ON BACK INLET
FIXTURES AND CORRECT HEIGHT FROM FINISHED FLOOR,
REFER TO FIXTURE INSTRUCTION SHEET.
EXPOSED BACK
SPUD TOILET
*-C-L-
450mm MAX.
(17-3/4) MAX.
152mm MIN.
TOP OF
FIXTURE
(6) MIN.
CONCEALED BACK
SPUD TOILET
240mm MAX.
(9-1/2) MAX.
FIXTURE
TOP OF
*Note: The Critical Line (-C-L-) on Vacuum
Breaker must typically be 6
above fixture. Consult Codes for details.
© 2014 AS America Inc.
" (152mm) min.
FINISHED
FLOOR
L356
51mm
(2)
FINISHED
FLOOR
51mm
(2)
FINISHED
FLOOR
11/ 14
