MONTERREY
™

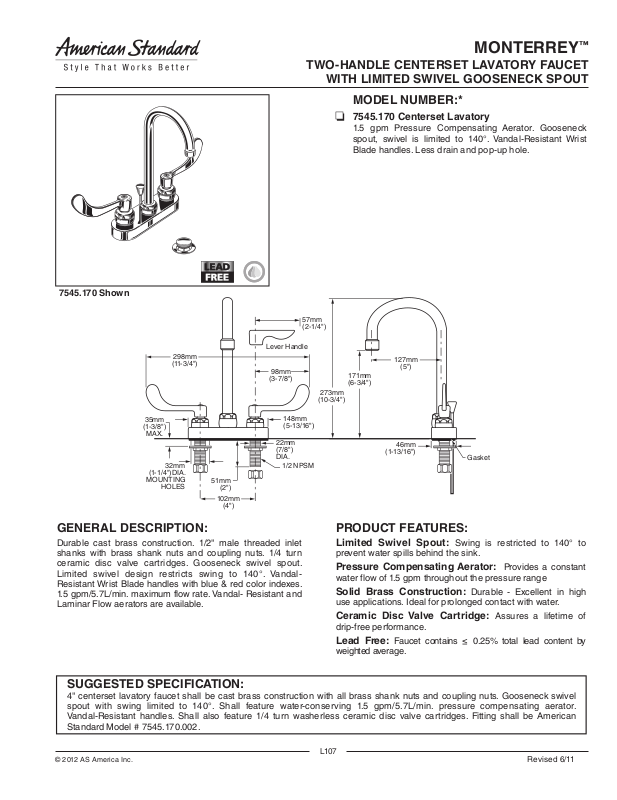

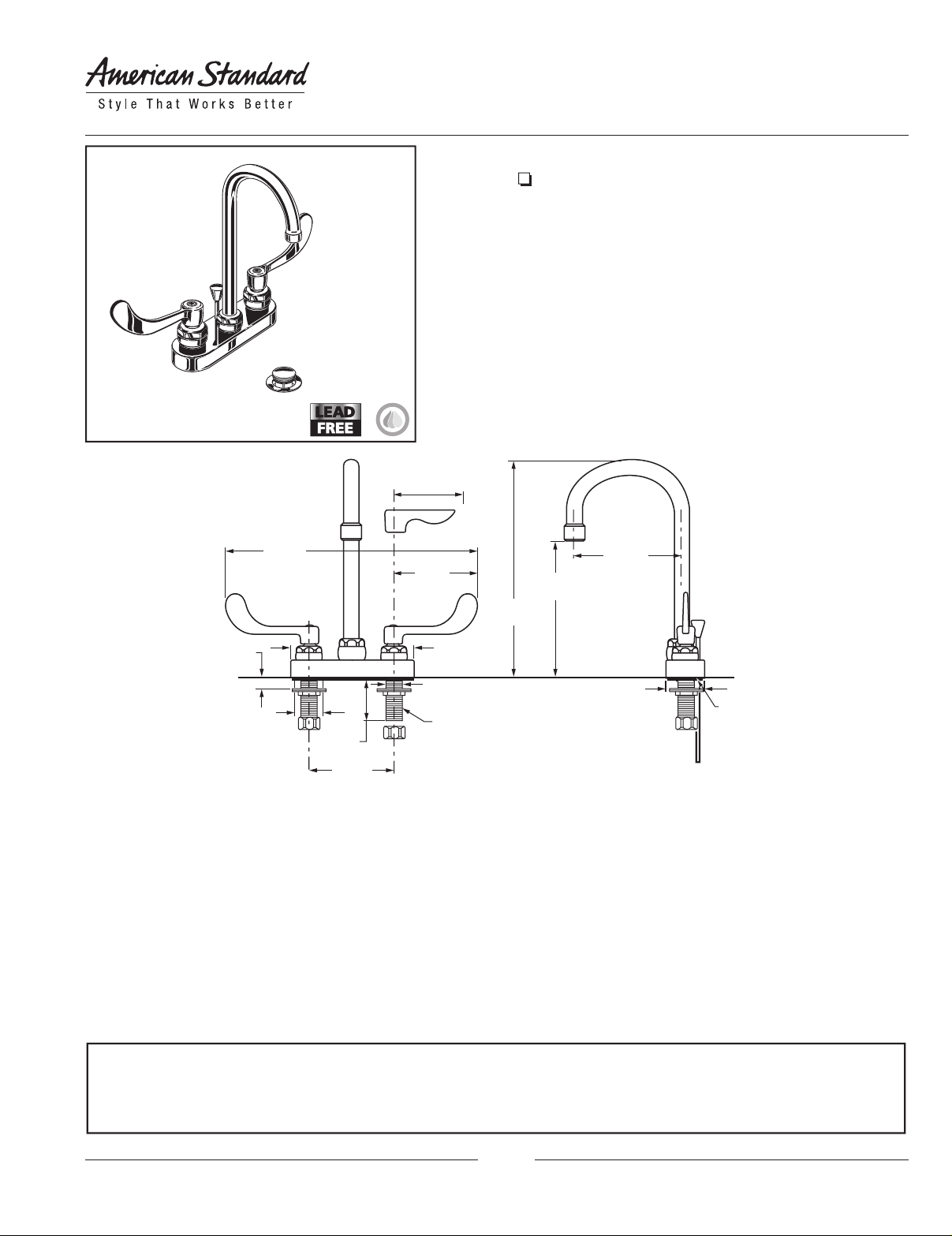

TWO-HANDLE CENTERSET LAVATORY FAUCET
WITH LIMITED SWIVEL GOOSENECK SPOUT
MODEL NUMBER:*
7545.170 Centerset Lavatory
1. 5 gpm Pressure Compensating Aerator. Goosenec
spout, swivel is limited to 140°. Vandal-Resistant Wrist
Blade handles. Less drain and pop-up hole.
57mm
(2-1/4")
Lever Handle
98mm
(3-7/8")
148mm
(5-13/16
22mm
(7/8")
DIA.
1/2 NPSM
35mm
(1-3/8")
MAX.
32mm
(1-1/4")DIA.
MOUNTING
HOLES
298mm
(11-3/4
"
)
51mm
"
)
(2
102mm
"
)
(4
GENERAL DESCRIPTION:
Durable cast brass construction. 1/2" male threaded inlet
shanks with brass shank nuts and coupling nuts. 1/4 turn
ceramic disc valve cartridges. Gooseneck swivel spout.
Limited swivel design restricts swing to 140°. VandalResistant Wrist Blade handles with blue & red color indexes.
1.5 gpm/5.7L/min. maximum flow rate. Vandal- Resistant and
Laminar Flow aerators are available.
127mm
(5")
46mm
(1-13/16
"
)
Gasket
")
273mm
(10-3/4
171mm
(6-3/4
"
)
"
)
PRODUCT FEATURES:
Limited Swivel Spout: Swing is restricted to 140° to
prevent water spills behind the sink.
Pressure Compensating Aerator: Provides a
water flow of 1.5 gpm throughout the pressure range
Solid Brass Construction: Durable - Excellent in high
use applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION:
4" centerset lavatory faucet shall be cast brass construction with all brass shank nuts and coupling nuts. Gooseneck swivel
spout with swing limited to 140°. Shall feature water-conserving 1. 5 gpm/5.7L/min. pressure compensating aerator.
Vandal-Resistant handles. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Fitting shall be American
Standard Model # 7545.170.002.
© 2012 AS America Inc.
L107
Revised 6/11
Page 2
S
MONTERREY
™
TWO-HANDLE CENTERSET LAVATORY FAUCET
WITH LIMITED SWIVEL GOOSENECK SPOUT
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B 125
NSF 61/Section 9 and Annex G
Product
Number
7545.170
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINE
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES
Description
Centerset Lavatory with limited swivel gooseneck spout. 1.5 gpm/5.7L/min pressure
compensating aerator. Vandal-Resistant Wrist Blade Handles. Less drain and pop-up hole.

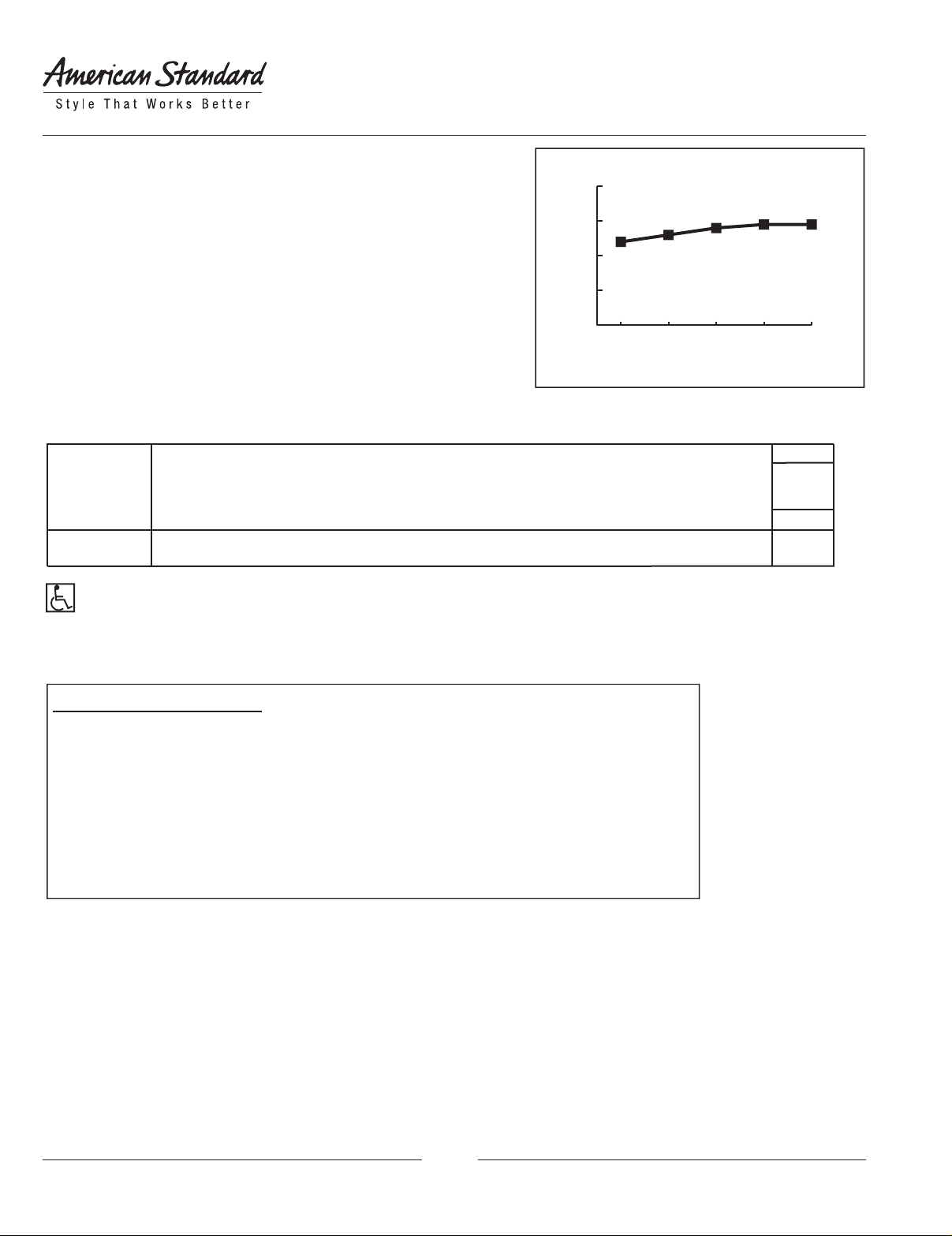

FLOW RATE*
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
10080604020
Finish
Polished
Chrome
002
Other Aerators Available:
Part Suffix Description
LV22
V22
A15LV
LV15
V15
LV10
V10
V05
V035**
*PCA - Pressure Compensating
**Meets Cal Green Code
© 2012 AS America Inc.
2.2 gpm (8.3 Lpm) Vandal-Resistant Non-Aerated Laminar Flow Outlet
2.2 gpm (8.3 Lpm) Vandal-Resistant Aerator
Anti-Microbial 1.5 gpm (5.7 Lpm) Vandal-Resistant Non-Aerated Laminar Flow Outlet
1.5 gpm (5.7 Lpm) PCA Vandal-Resistant Non-Aerated Laminar Flow Outlet
.5 gpm (5.7 Lpm) PCA Vandal-Resistant Aerator
1.0 gpm (3.8 Lpm) PCA Vandal-Resistant Non-Aerated Laminar Flow Outlet
1.0 gpm (3.8 Lpm) PCA Vandal-Resistant Aerator
0.5 gpm (1.9 Lpm) PCA Vandal-Resistant Non-Aerated Spray
0.35 gpm (1.3 Lpm) PCA Vandal-Resistant Non-Aerated Spray
L10 8
Revised 6/11
