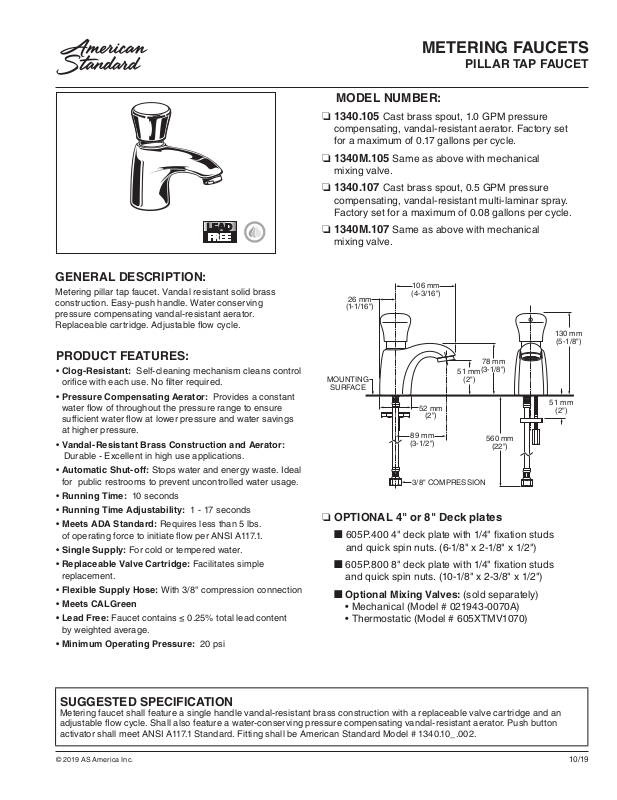

Page 1
METERING FAUCETS
PILLAR TAP FAUCET
MODEL NUMBER:
❏ 134 0.10 5 Cast brass spout, 1.0 GPM pressure
compensating, vandal-resistant aerator. Factory set
for a maximum of 0.17 gallons per cycle.
❏ 1340M.105 Same as above with mechanical
mixing valve.
❏ 134 0.10 7 Cast brass spout, 0.5 GPM pressure
compensating, vandal-resistant multi-laminar spray.
Factory set for a maximum of 0.08 gallons per cycle.
❏ 134 0M.107 Same as above with mechanical
mixing valve.
GENERAL DESCRIPTION:
Metering pillar tap faucet. Vandal resistant solid brass
construction. Easy-push handle. Water conserving
pressure compensating vandal-resistant aerator.
Replaceable cartridge. Adjustable ow cycle.
PRODUCT FEATURES:
• Clog-Resistant: Self-cleaning mechanism cleans control
orice with each use. No lter required.
• Pressure Compensating Aerator: Provides a constant
water ow of throughout the pressure range to ensure
sufficient water ow at lower pressure and water savings
at higher pressure.
• Vandal-Resistant Brass Construction and Aerator:
Durable - Excellent in high use applications.
• Automatic Shut-off: Stops water and energy waste. Ideal
for public restrooms to prevent uncontrolled water usage.
• Running Time: 10 seconds
• Running Time Adjustability: 1 - 17 seconds
• Meets ADA Standard: Requires less than 5 lbs.
of operating force to initiate ow per ANSI A117.1.
• Single Supply: For cold or tempered water.
• Replaceable Valve Cartridge: Facilitates simple
replacement.
• Flexible Supply Hose: With 3/8" compression connection
• Meets CALGreen
• Lead Free: Faucet contains ≤ 0.25% total lead content
by weighted average.
• Minimum Operating Pressure: 20 psi

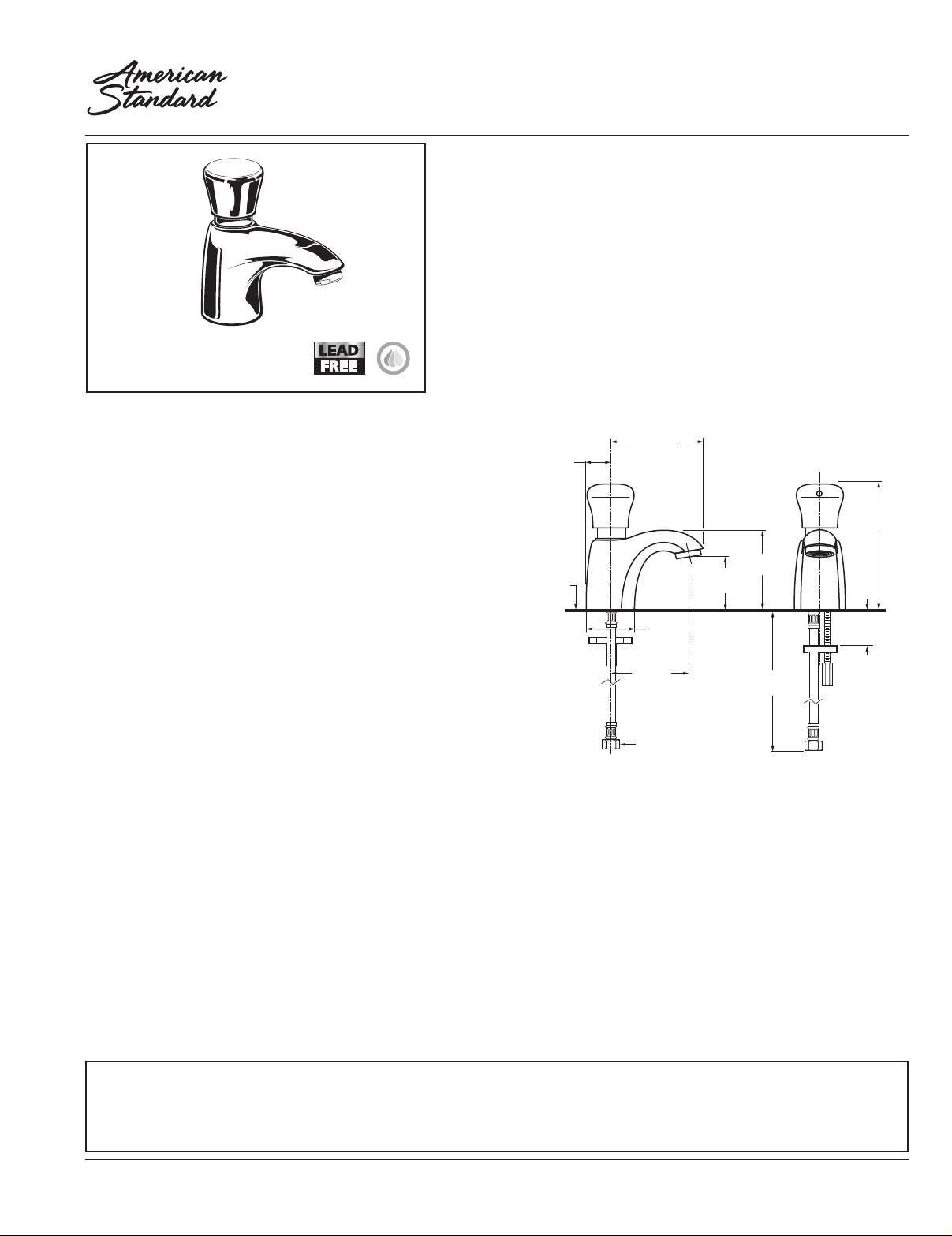

106 mm
26 mm
(1-1/16")
MOUNTING
SURFACE
(4-3/16")
51 mm
(2")
52 mm
(2")
89 mm
(3-1/2")
3/8" COMPRESSION
78 mm
(3-1/8")
560 mm
(22")
130 mm
(5-1/8")
51 mm
(2")
❏ OPTIONAL 4" or 8" Deck plates
■ 605P.400 4" deck plate with 1/4" xation studs
and quick spin nuts. (6-1/8" x 2-1/8" x 1/2")
■ 605P.800 8" deck plate with 1/4" xation studs
and quick spin nuts. (10-1/8" x 2-3/8" x 1/2")
■ Optional Mixing Valves: (sold separately)
• Mechanical (Model # 021943-0070A)
• Thermostatic (Model # 605XTMV1070)
SUGGESTED SPECIFICATION
Metering faucet shall feature a single handle vandal-resistant brass construction with a replaceable valve cartridge and an
adjustable ow cycle. Shall also feature a water-conserving pressure compensating vandal-resistant aerator. Push button
activator shall meet ANSI A117.1 Standard. Fitting shall be American Standard Model # 1340.10_.002.
© 2019 AS America Inc.
10/19
Page 2
METERING FAUCETS
PILLAR TAP FAUCET
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANS I A117.1
ASME A112 .18.1
CSA B125
NSF 372
Meets the American Disabilities Act Guidelines
ANS I A117.1 Requirements for the accessible
and usable building facilities - check local codes.

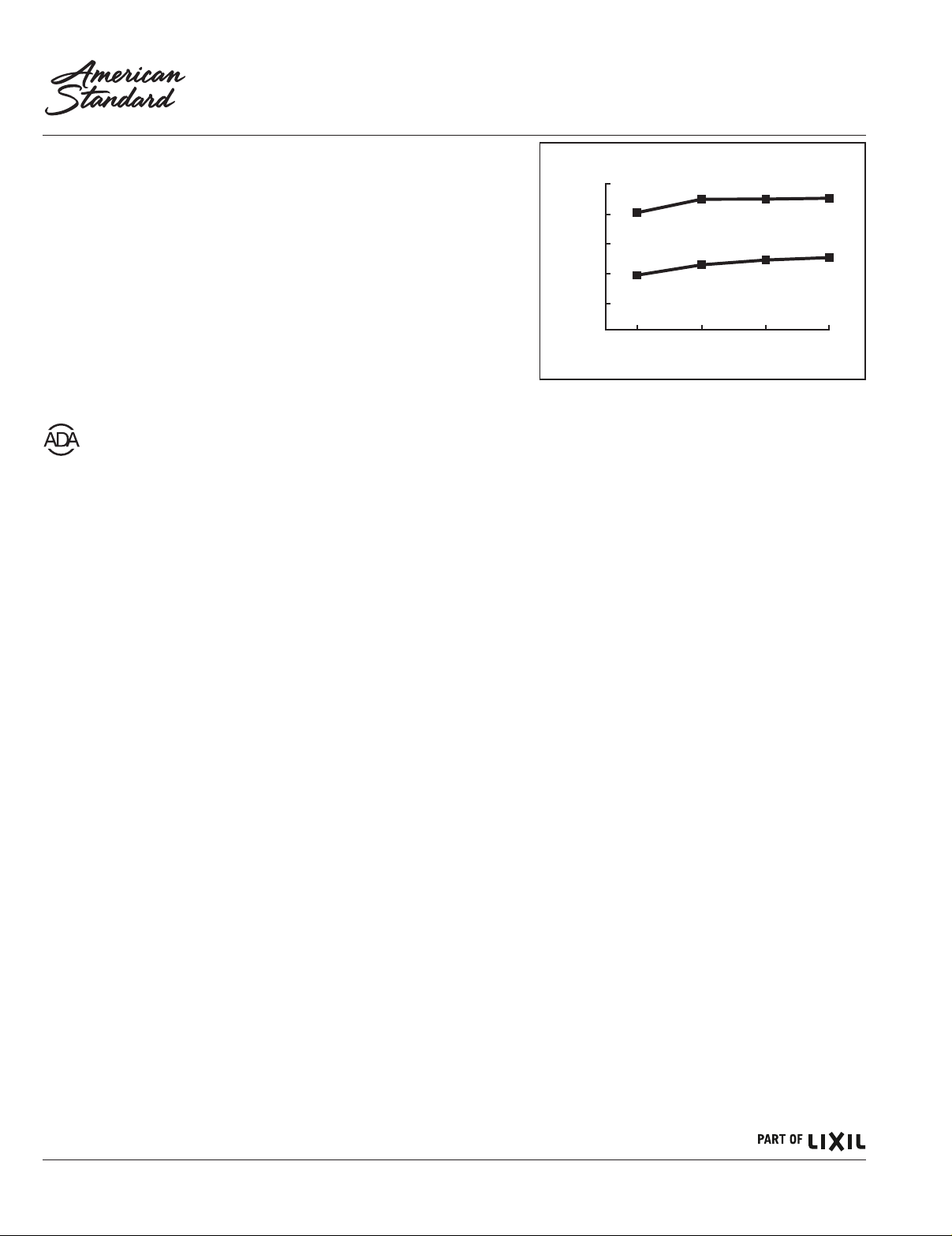

1.0
0.8
0.6
0.4
FLOW RATE (GPM)
0.2
0.0
FLOW RATE*
1.0
0.5
20 40 8060
PRESSURE (PSI)
© 2019 AS America Inc.
10/19
