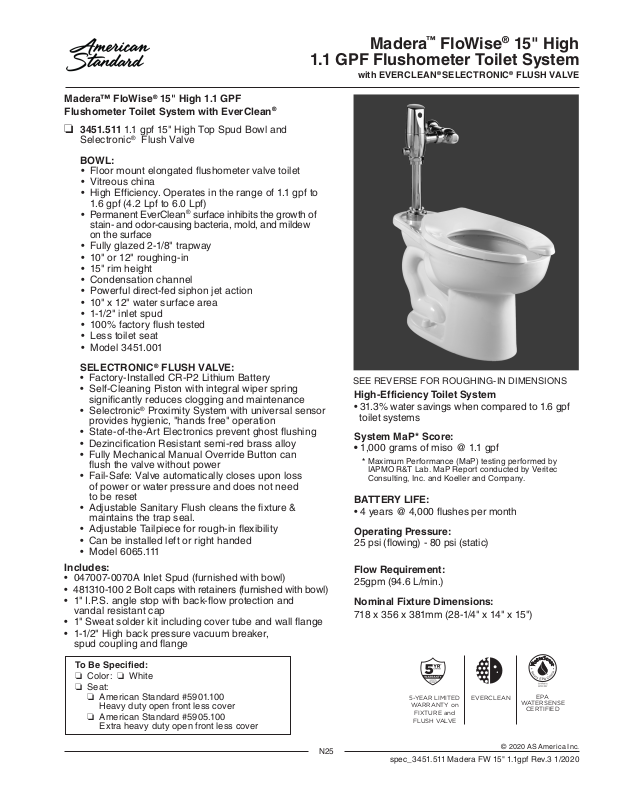

Madera™ FloWise® 15" High
1.1 GPF Flushometer Toilet System
with EVERCLEAN® SELECTRONIC® FLUSH VALVE
Madera™ FloWise® 15" High 1.1 GPF
Flushometer Toilet System with EverClean
®
❏ 3451.511 1.1 gpf 15" High Top Spud Bowl and
Selectronic® Flush Valve
BOWL:
• Floor mount elongated ushometer valve toilet
• Vitreous china
• High Efficiency. Operates in the range of 1.1 gpf to
1.6 gpf (4.2 Lpf to 6.0 Lpf)
• Permanent EverClean® surface inhibits the growth of
stain- and odor-causing bacteria, mold, and mildew
on the surface
• Fully glazed 2-1/8" trapway
• 10" or 12" roughing-in
• 15" rim height
• Condensation channel
• Powerful direct-fed siphon jet action
• 10" x 12" water surface area
• 1-1/2" inlet spud
• 100% factory ush tested
• Less toilet seat
• Model 3451.001
SELECTRONIC® FLU S H VALVE:
• Factory-Installed CR-P2 Lithium Battery
• Self-Cleaning Piston with integral wiper spring
signicantly reduces clogging and maintenance
• Selectronic® Proximity System with universal sensor
provides hygienic, "hands free" operation
• State-of-the-Art Electronics prevent ghost ushing
• Dezincication Resistant semi-red brass alloy
• Fully Mechanical Manual Override Button can
ush the valve without power
• Fail-Safe: Valve automatically closes upon loss
of power or water pressure and does not need
to be reset
• Adjustable Sanitary Flush cleans the xture &
maintains the trap seal.
• Adjustable Tailpiece for rough-in exibility
• Can be installed left or right handed
• M od el 6 0 6 5.111
Includes:
• 047007-0070A Inlet Spud (furnished with bowl)
• 481310-100 2 Bolt caps with retainers (furnished with bowl)
• 1" I.P.S. angle stop with back-ow protection and
vandal resistant cap
• 1" Sweat solder kit including cover tube and wall ange
• 1-1/2" High back pressure vacuum breaker,
spud coupling and ange
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
High-Efficiency Toilet System
• 31.3% water savings when compared to 1.6 gpf
toilet systems
System MaP* Score:
• 1,000 grams of miso @ 1.1 gpf
* Maximum Performance (MaP) testing performed by
IAPMO R&T Lab. MaP Report conducted by Veritec
Consulting, Inc. and Koeller and Company.
BATTERY LIFE:
• 4 years @ 4,000 ushes per month
Operating Pressure:
25 psi (owing) - 80 psi (static)
Flow Requirement:
25gpm (94.6 L/min.)
Nominal Fixture Dimensions:
718 x 356 x 381mm (28-1/4" x 14" x 15")
To Be Specied:
❏ Color: ❏ White
❏ Seat:
❏ American Standard #5901.100
Heavy duty open front less cover
❏ American Standard #5905.100
Extra heavy duty open front less cover
N25
WARRANTY on
FIXTURE and
FLUSH VALVE
spec_ 3451.511 Madera FW 15" 1.1gpf Rev.3 1/2020
EVERCLEAN5-YEAR LIMITED
© 2020 AS America Inc.
EPA
WATERSENSE
CERTIFIED
Page 2

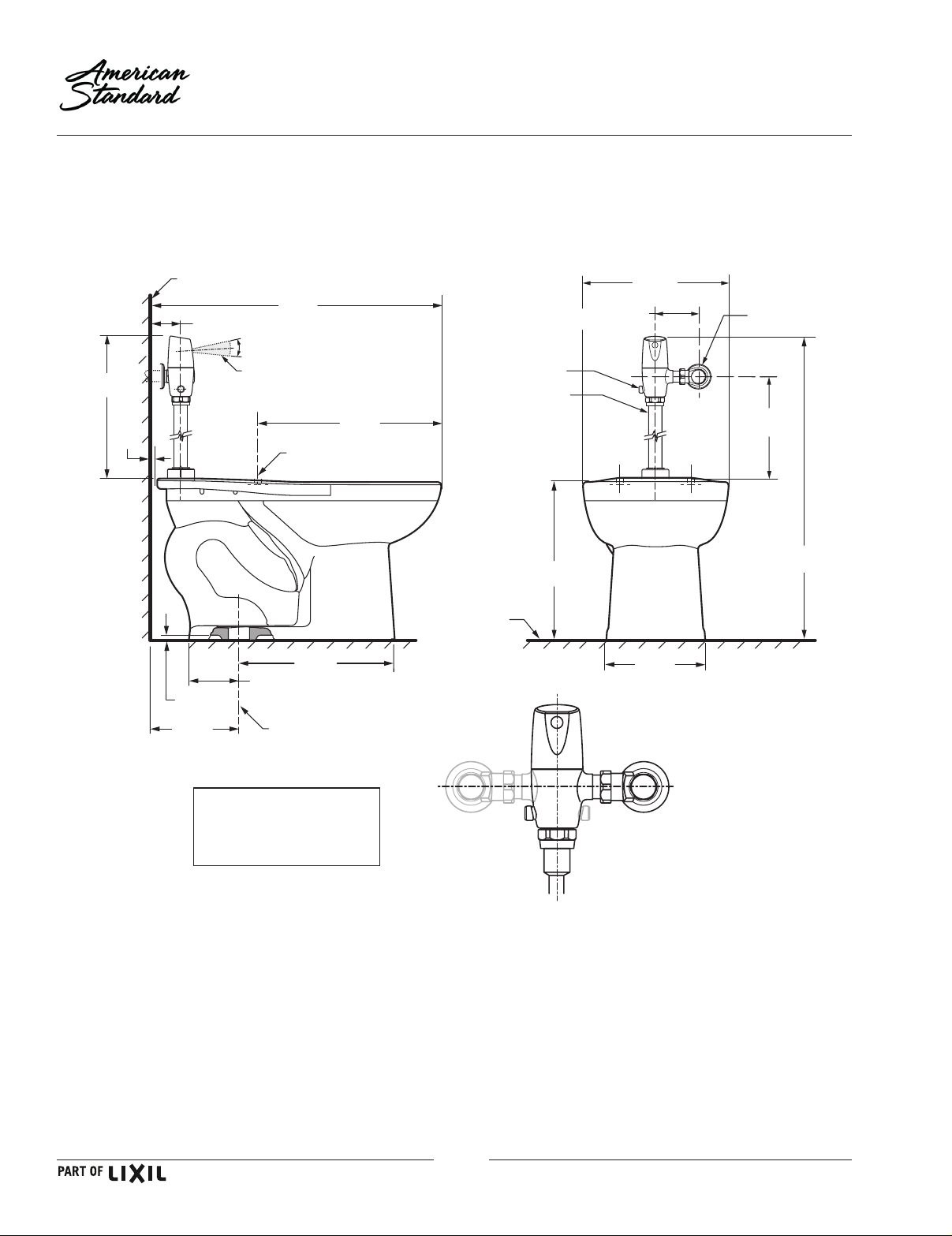

FINISHED WALL
356mm
VALVE LEFT or RIGHT HAND INSTALLATION
Madera™ FloWise® 15" High
1.1 GPF Flushometer Toilet System
with EVERCLEAN® SELECTRONIC® FLUSH VALVE
Fixture Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008 / CSA B45.1-08 for
Vitreous China Fixtures
718mm
")
(28-1/4
15˚
DETECTION ZONE
400mm-800mm
(15-3/4" TO 31-1/2")
C/L OF SEAT POST HOLES
140mm (5-1/2
470mm
(18-1/2
") CENTERS
")
419mm
(16-1/2")
25mm
(1")
102mm
(4")
Valve Listings:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant
MANUAL
OVERRIDE
BUTTON
*CRITICAL
LEVEL
381mm
")
(15
FINISHED
FLOOR
108-134mm
(4-1/4" to 5-1/4")
(14")
-C-L-
SUPPLY
DN 25mm
(1" I.P.S.)
293mm
(11-1/2")
800mm
(31-1/2
")
338mm
(13-5/16
150mm
13mm
(1/2
")
254mm
")
(10
(5-7/8")
C/L OF OUTLET
*Note: The Critical Line (-C-L-)
on Vacuum Breaker must
typically be a minimum of
6" (152mm) above fixture.
Consult Codes for details.
NOTES:
TO COMPLY WITH AREA CODE GOVERNING THE HEIGHT OF VACUUM
BREAKER ON THE FLUSHOMETER VALVE, THE PLUMBER MUST
VERIFY DIMENSIONS SHOWN FOR SUPPLY ROUGHING.
THIS TOILET DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION
OF 254MM (10") AND A MAXIMUM DIMENSION OF 305MM (12") FROM
FINISHED WALL TO C/L OF OUTLET.
FLUSHMETER VALVE REQUIREMENTS FOR 12" (305MM) ROUGH-IN:
SWEAT EXTENSION NIPPLE IS REQUIRED.
REFER TO VALVE MANUFACTURER AND LOCAL CODES
IMPORTANT: Dimensions of xtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
")
N26
238mm
(9-3/8
")
© 2020 AS America Inc.
spec_ 3451.511 Madera FW 15" 1.1gpf Rev.3 1/2020
