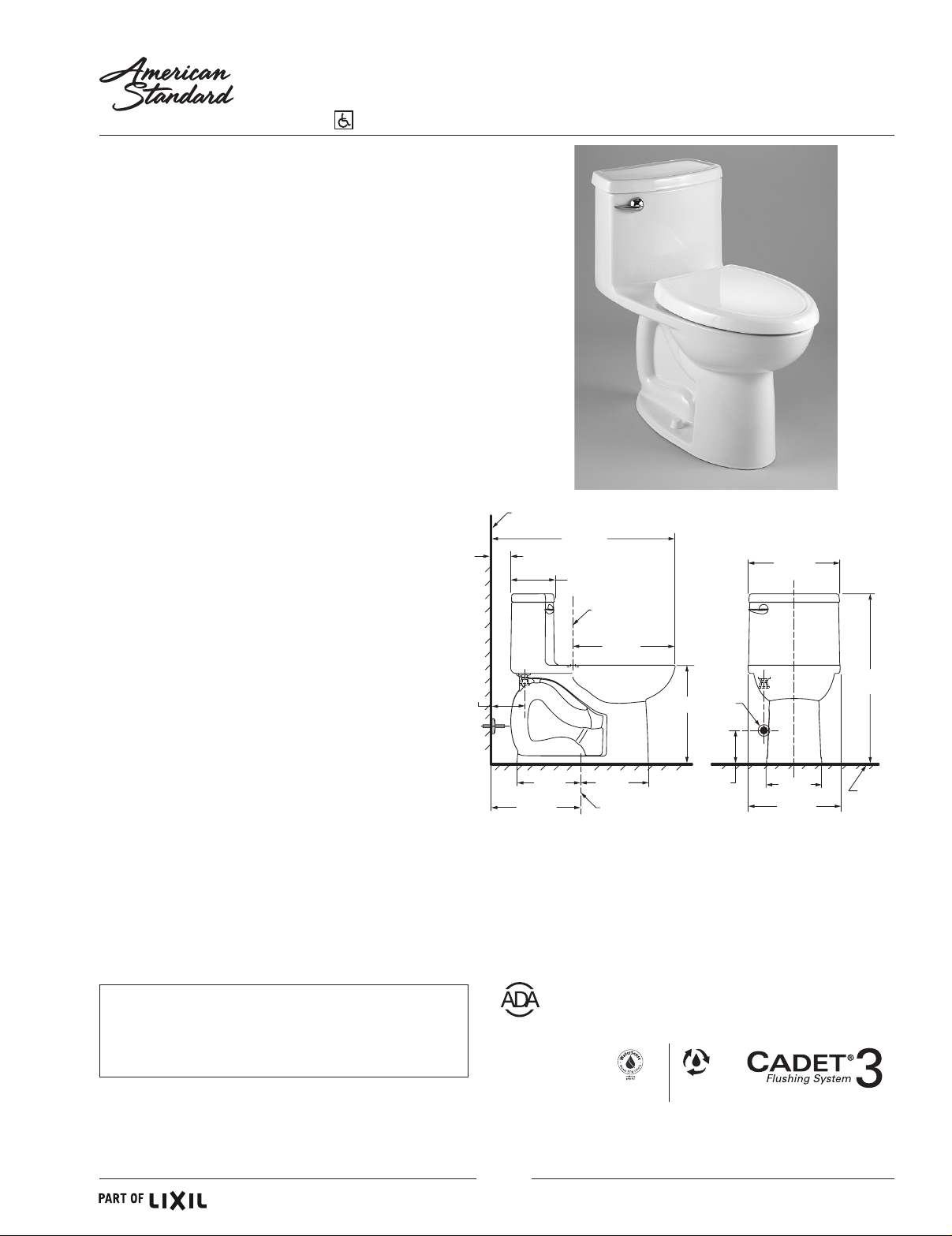

COMPACT CADET® 3 FloWise® RIGHT HEIGHT
724mm
(28-1/2")
159mm
(6-1/4")
16 ± 6mm
(5/8" ± 1/4")
419mm
(16-1/2")
292mm
(11-1/2")
267mm
(10-1/2")
724mm
(28-1/2")
381mm
(15")
394mm
(15-1/2")
79mm
(3-1/8")
FINISHED WALL
470mm
(18-1/2")
305mm
(12")
C/L OF OUTLET
241mm
(9-1/2")
140mm
(5-1/2")
SUPPLY
AS
REQ'D
*
FINISHED
FLOOR
C/L OF SEAT POST
HOLES 140mm
(5-1/2") CENTERS
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
BARRIER FREE

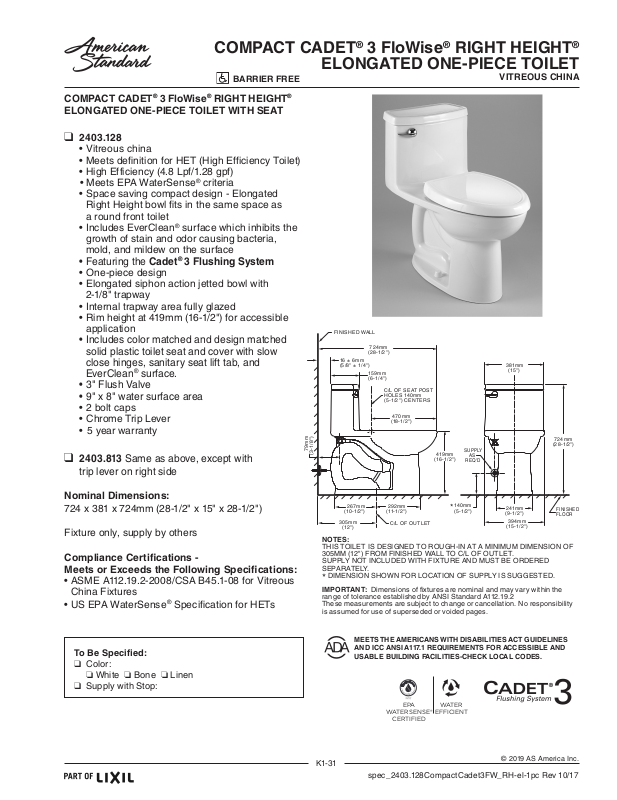

COMPACT CADET® 3 FloWise® RIGHT HEIGHT®
ELONGATED ONE-PIECE TOILET WITH SEAT
❑ 2403.128
• Vitreous china
• Meets denition for HET (High Efficiency Toilet)
• High Efficiency (4.8 Lpf/1.28 gpf)
• Meets EPA WaterSense® criteria
• Space saving compact design - Elongated
Right Height bowl ts in the same space as
a round front toilet
• Includes EverClean® surface which inhibits the
growth of stain and odor causing bacteria,
mold, and mildew on the surface
• Featuring the Cadet® 3 Flushing System
• One-piece design
• Elongated siphon action jetted bowl with
2-1/8" trapway
• Internal trapway area fully glazed
• Rim height at 419mm (16-1/2") for accessible
application
• Includes color matched and design matched
solid plastic toilet seat and cover with slow
close hinges, sanitary seat lift tab, and
EverClean® surface.
• 3" Flush Valve
• 9" x 8" water surface area
• 2 bolt caps
• Chrome Trip Lever
• 5 year warranty
®
ELONGATED ONE-PIECE TOILET
VITREOUS CHINA
❑
2403.813 Same as above, except with
trip lever on right side
Nominal Dimensions:
724 x 381 x 724mm (28-1/2" x 15" x 28-1/2")
Fixture only, supply by others
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008/CSA B45.1-08 for Vitreous
China Fixtures
• US EPA WaterSense® Specication for HETs
To Be Specied:
❑ Color:
❏ White ❏ Bone ❏ Linen
❑ Supply with Stop:
NOTES:
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF
305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPAR ATELY.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerance established by ANSI Standard A112.19.2
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
AND ICC ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES.
EPA
WATERSENSE®
CERTIFIED
WATER
EFFICIENT
K1-31
© 2019 AS America Inc.
spec_2403.128CompactCadet3FW_RH-el-1pc Rev 10/17
