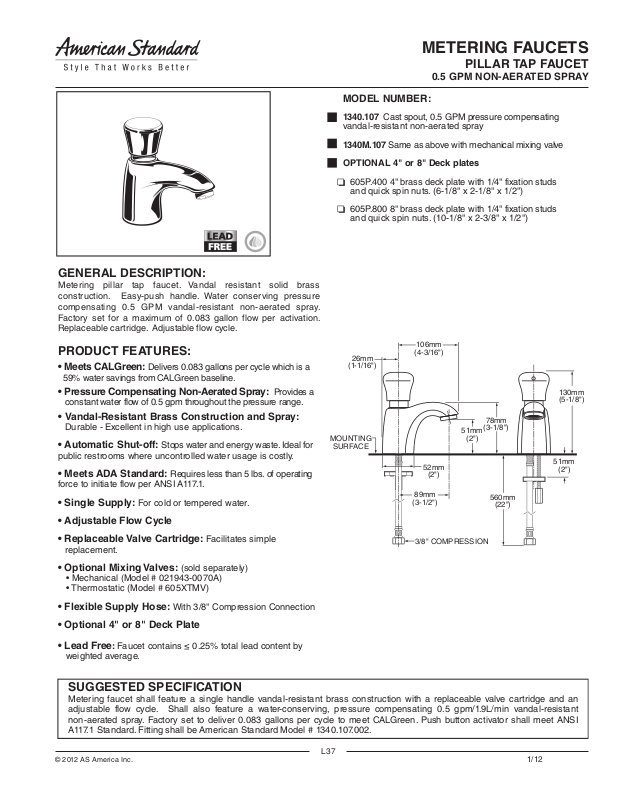

GENERAL DESCRIPTION:
Metering pillar tap faucet. Vandal resistant solid brass
construction. Easy-push handle. Water conserving pressure
compensating 0.5 GPM vandal-resistant non-aerated spray.
Factory set for a maximum of 0.083 gallon flow per activation.
Replaceable cartridge. Adjustable flow cycle.
PRODUCT FEATURES:
• Meets CALGreen:
59% water savings from CALGreen baseline.
• Pressure Compensating Non-Aerated Spray:
constant water flow of 0.5 gpm throughout the pressure range.
• Vandal-Resistant Brass Construction and Spray:
Durable - Excellent in high use applications.
• Automatic Shut-off: Stops water and energy waste. Ideal for
public restrooms where uncontrolled water usage is costly.
• Meets ADA Standard: Requires less than 5 lbs. of operating
force to initiate flow per ANSI A117.1.
• Single Supply: For cold or tempered water.
• Adjustable Flow Cycle
Delivers 0.083 gallons per cycle which is a
Provides a
METERING FAUCETS
PILLAR TAP FAUCET
0.5 GPM NON-AERATED SPRAY
MODEL NUMBER:
1340.107 Cast spout, 0.5 GPM pressure compensating
vandal-resistant non-aerated spray
1340M.107 Same as above with mechanical mixing valve
OPTIONAL 4" or 8" Deck plates
605P.400 4" brass deck plate with 1/4" fixation studs
and quick spin nuts. (6-1/8" x 2-1/8" x 1/2")
605P.800 8" brass deck plate with 1/4" fixation studs
and quick spin nuts. (10-1/8" x 2-3/8" x 1/2")

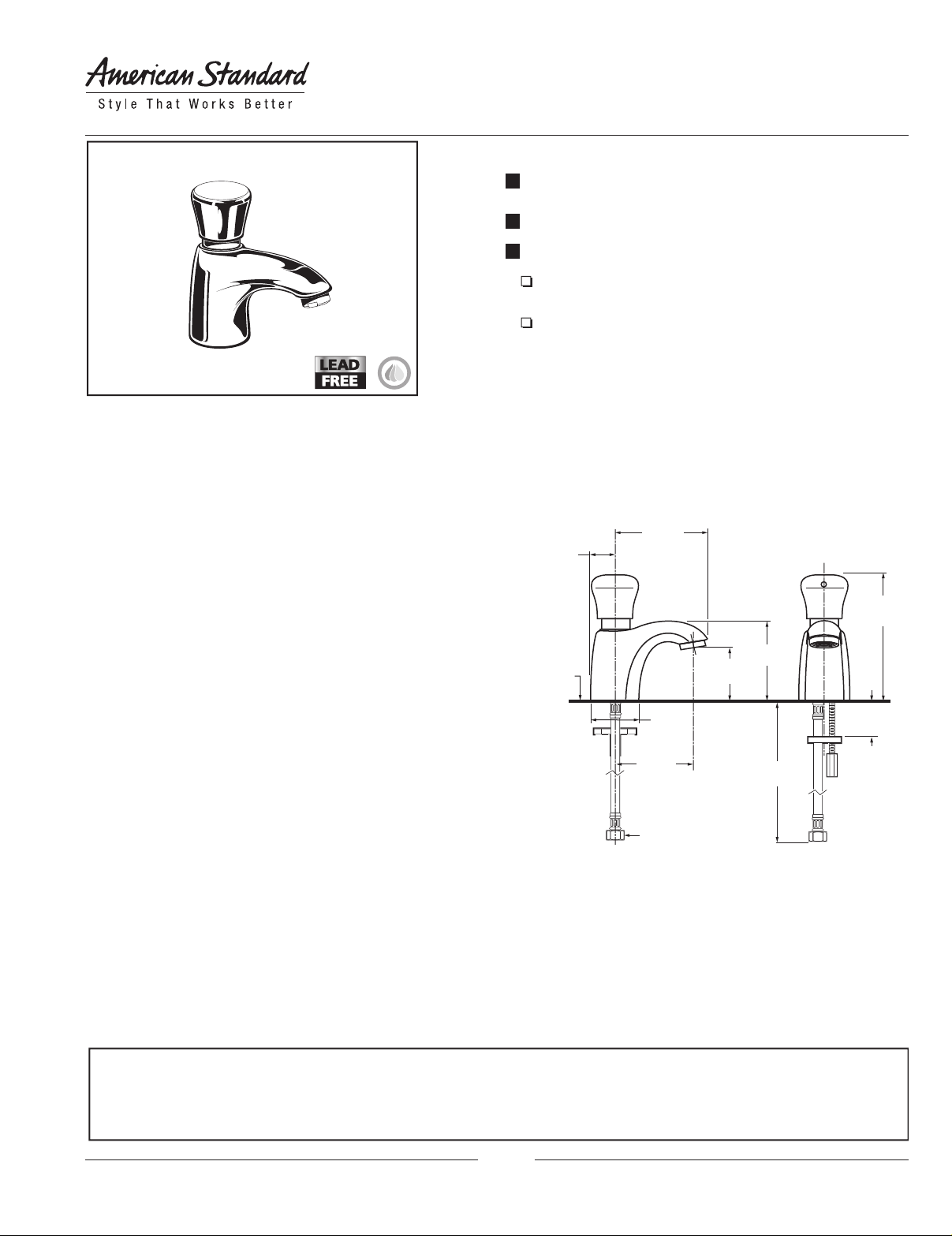

106mm
26mm
(1-1/16")
MOUNTING
SURFACE
(4-3/16")
52mm
(2")
89mm
(3-1/2")
51mm
(2")
78mm
(3-1/8")
560mm
(22")
130mm
(5-1/8")
51mm
(2")
• Replaceable Valve Cartridge:
Facilitates simple
3/8" COMPRESSION
replacement.
• Optional Mixing Valves: (sold separately)
• Mechanical (Model # 021943-0070A)
• Thermostatic (Model # 605XTMV)
• Flexible Supply Hose:
With 3/8" Compression Connection
• Optional 4" or 8" Deck Plate
• Lead Free
weighted average.
: Faucet contains ≤ 0.25% total lead content by
SUGGESTED SPECIFICATION
Metering faucet shall feature a single handle vandal-resistant brass construction with a replaceable valve cartridge and an
adjustable flow cycle. Shall also feature a water-conserving, pressure compensating 0.5 gpm/1.9L/min vandal-resistant
non-aerated spray. Factory set to deliver 0.083 gallons per cycle to meet CALGreen. Push button activator shall meet ANSI
A117.1 Standard. Fitting shall be American Standard Model # 1340.107.002.
© 2012 AS America Inc.
L37
1/12
Page 2
METERING FAUCETS
PILLAR TAP FAUCET
0.5 GPM NON-AERATED SPRAY
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B 125
NSF 61/Section 9 and Annex G
CALGreen
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES

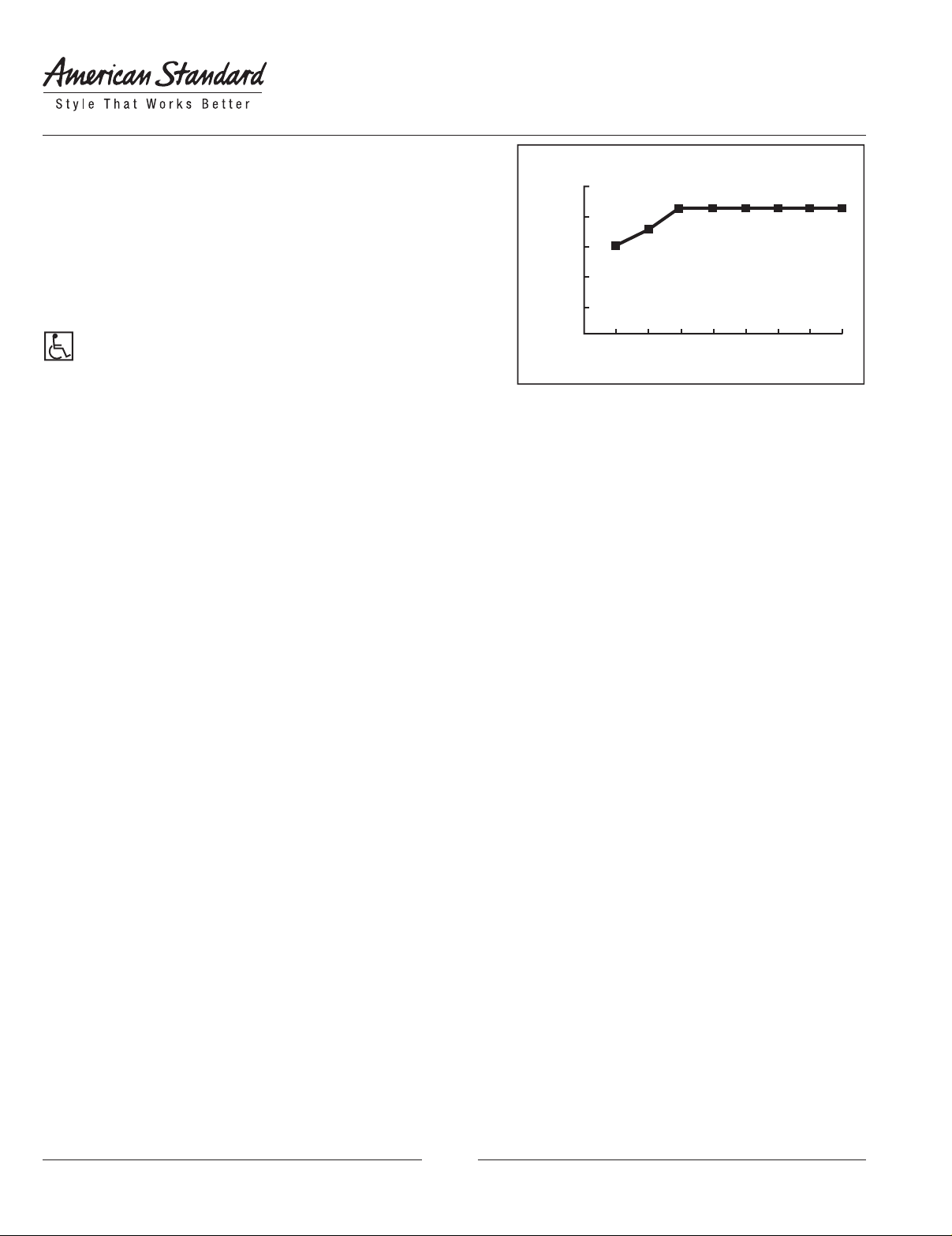

VOLUME PER CYCLE (GAL)
0.10
0.08
0.06
0.04
0.02
0.00
FLOW RATE*
10 30 705020 40 8060
PRESSURE (PSI)
© 2012 AS America Inc.
L38
1/12
