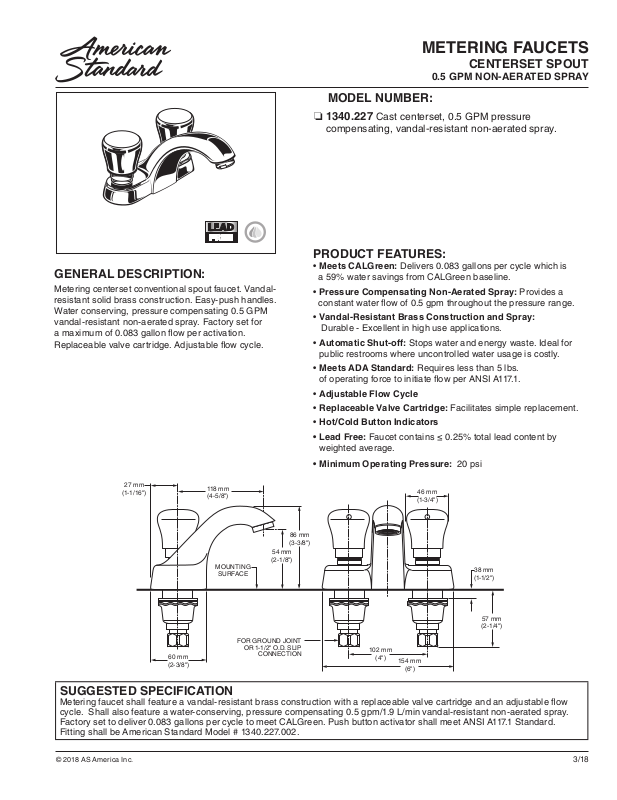

American Standard ASD8264 Specifications

GENERAL DESCRIPTION:

Metering centerset conventional spout faucet. Vandal-
resistant solid brass construction. Easy-push handles.
Water conserving, pressure compensating 0.5 GPM
vandal-resistant non-aerated spray. Factory set for
a maximum of 0.083 gallon ow per activation.
Replaceable valve cartridge. Adjustable ow cycle.

METERING FAUCETS

CENTERSET SPOUT

0.5 GPM NON-AERATED SPRAY

MODEL NUMBER:

❏ 1340.227 Cast centerset, 0.5 GPM pressure

compensating, vandal-resistant non-aerated spray.

PRODUCT FEATURES:

• Meets CALGreen: Delivers 0.083 gallons per cycle which is
a 59% water savings from CALGreen baseline.

• Pressure Compensating Non-Aerated Spray: Provides a
constant water ow of 0.5 gpm throughout the pressure range.

• Vandal-Resistant Brass Construction and Spray:

Durable - Excellent in high use applications.

• Automatic Shut-off: Stops water and energy waste. Ideal for
public restrooms where uncontrolled water usage is costly.

• Meets ADA Standard: Requires less than 5 lbs.
of operating force to initiate ow per ANSI A117.1.

• Adjustable Flow Cycle

• Replaceable Valve Cartridge: Facilitates simple replacement.

• Hot/Cold Button Indicators

• Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.

• Minimum Operating Pressure: 20 psi

27 mm

(1-1/16

")

60 mm

(2-3/8

118 mm

")

(4-5/8

86 mm

(3-3/8

54 mm

MOUNTING

SURFACE

FOR GROUND JOINT

")

(2-1/8

OR 1-1/2" O.D. SLIP

CONNECTION

")

")

102 mm

")

(4

154 mm

")

(6

46 mm
(1-3/4

")

38 mm

")

(1-1/2

57 mm

")

(2-1/4

SUGGESTED SPECIFICATION

Metering faucet shall feature a vandal-resistant brass construction with a replaceable valve cartridge and an adjustable ow
cycle. Shall also feature a water-conserving, pressure compensating 0.5 gpm/1.9 L/min vandal-resistant non-aerated spray.
Factory set to deliver 0.083 gallons per cycle to meet CALGreen. Push button activator shall meet ANSI A117.1 Standard.
Fitting shall be American Standard Model # 1340.227.002.

© 2018 AS America Inc.

3/18

METERING FAUCETS

CENTERSET SPOUT

0.5 GPM NON-AERATED SPRAY

CODES AND STANDARDS

These products meet or exceed the following
codes and standards:

ANS I A117.1
ASME A112 .18 .1
CSA B 125
NSF 61/Section 9 and Annex G
CALGreen

Meets the American Disabilities Act Guidelines
ANS I A117.1 Requirements for the accessible
and usable building facilities - check local codes.

VOLUME PER CYCLE (GAL)

0.10

0.08

0.06

0.04

0.02

0.00

FLOW RATE*

10 30 705020 40 8060

PRESSURE (PSI)
