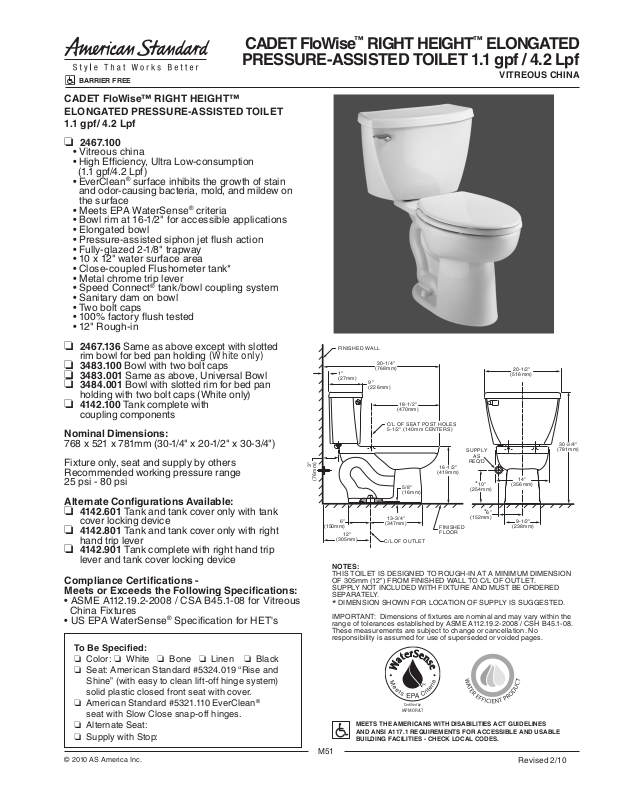

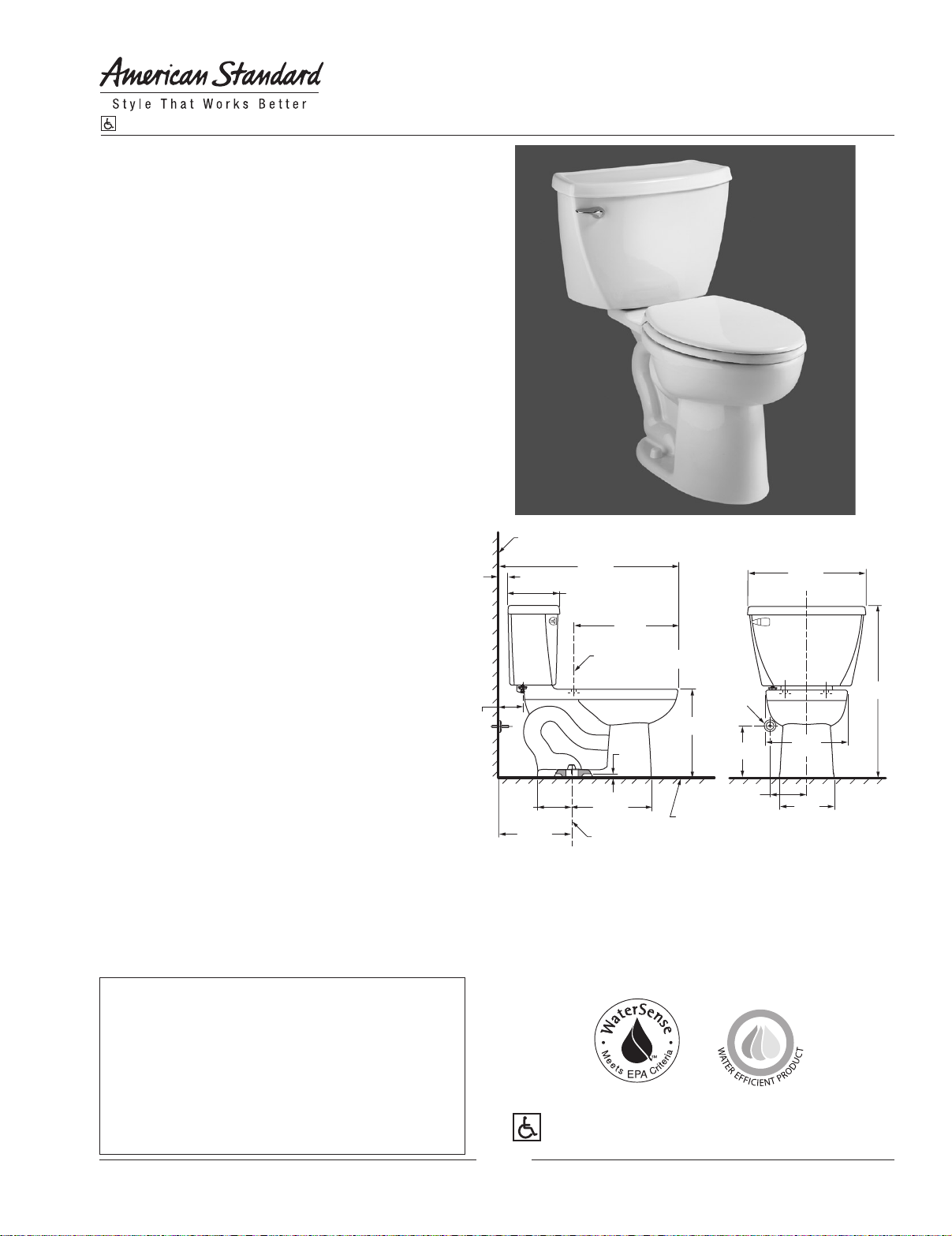

Page 1
CADET FloWise™ RIGHT HEIGHT™ ELONGATED
12"
(30 5mm)
30- 1/4"
(76 8mm)
C/L OF OUTLET
FIN ISHE D WALL
9"
(22 6mm)
1"
(27 mm)
16- 1/2"
(41 9mm)
18- 1/2"
(47 0mm)
C/L OF SEAT P OST HO LES
5-1 /2" (140mm CENTE RS)
13- 3/4"
(34 7mm)
6"
(150mm)
FIN ISHE D
FLO OR
30- 3/4"
(78 1mm)
9-1 /2"
(23 8mm)
20- 1/2"
(51 6mm)
14"
(35 6mm)
*6"
(15 2mm)
*10 "
(25 4mm)
SUP PLY
AS
REQ 'D
5/8 "
(16 mm)
3"
(76 mm)
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE
BUILDING FACILITIES - CHECK LOCAL CODES.
BARRIER FREE
Certified by
IAPMO R&T
PRESSURE-ASSISTED TOILET 1.1 gpf / 4.2 Lpf
CADET FloWise™ RIGHT HEIGHT™
ELONGATED PRESSURE-ASSISTED TOILET
1.1 gpf/ 4.2 Lpf
❏ 2467.100
• Vitreous china
• High Efciency, Ultra Low-consumption
(1.1 gpf/4.2 Lpf)
• EverClean® surface inhibits the growth of stain
and odor-causing bacteria, mold, and mildew on
the surface
• Meets EPA WaterSense® criteria
• Bowl rim at 16-1/2" for accessible applications
• Elongated bowl
• Pressure-assisted siphon jet ush action
• Fully-glazed 2-1/8" trapway
• 10 x 12" water surface area
• Close-coupled Flushometer tank*
• Metal chrome trip lever
• Speed Connect® tank/bowl coupling system
• Sanitary dam on bowl
• Two bolt caps
• 100% factory ush tested
• 12" Rough-in
VITREOUS CHINA
❏ 2467.136 Same as above except with slotted
rim bowl for bed pan holding (White only)
❏ 3483.100 Bowl with two bolt caps
❏ 3483.001 Same as above, Universal Bowl
❏ 3484.001 Bowl with slotted rim for bed pan
holding with two bolt caps (White only)
❏ 4142.100 Tank complete with
coupling components
Nominal Dimensions:
768 x 521 x 781mm (30-1/4" x 20-1/2" x 30-3/4")
Fixture only, seat and supply by others
Recommended working pressure range
25 psi - 80 psi
Alternate Congurations Available:
❏ 4142.601 Tank and tank cover only with tank
cover locking device
❏ 4142.801 Tank and tank cover only with right
hand trip lever
❏ 4142.901 Tank complete with right hand trip
lever and tank cover locking device
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008 / CSA B45.1-08 for Vitreous
China Fixtures
• US EPA WaterSense® Specication for HET's
To Be Specied:
❏ Color: ❏ White ❏ Bone ❏ Linen ❏ Black
❏ Seat: American Standard #5324.019 “Rise and
Shine” (with easy to clean lift-off hinge system)
solid plastic closed front seat with cover.
❏ American Standard #5321.110 EverClean
seat with Slow Close snap-off hinges.
❏ Alternate Seat:
❏ Supply with Stop:
© 2010 AS America Inc.
®
NOTES:
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION
OF 305mm (12") FROM FINISHED WALL TO C/L OF OUTLET.
SUPPLY NOT INCLUDED WITH FIX TURE AND MUST BE ORDERED
SEPARATELY.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ASME A112.19.2-2008 / CSH B45.1-08.
These measurements are subject to change or cancellation. No
responsibility is assumed for use of superseded or voided pages.
M51
Revised 2/10
