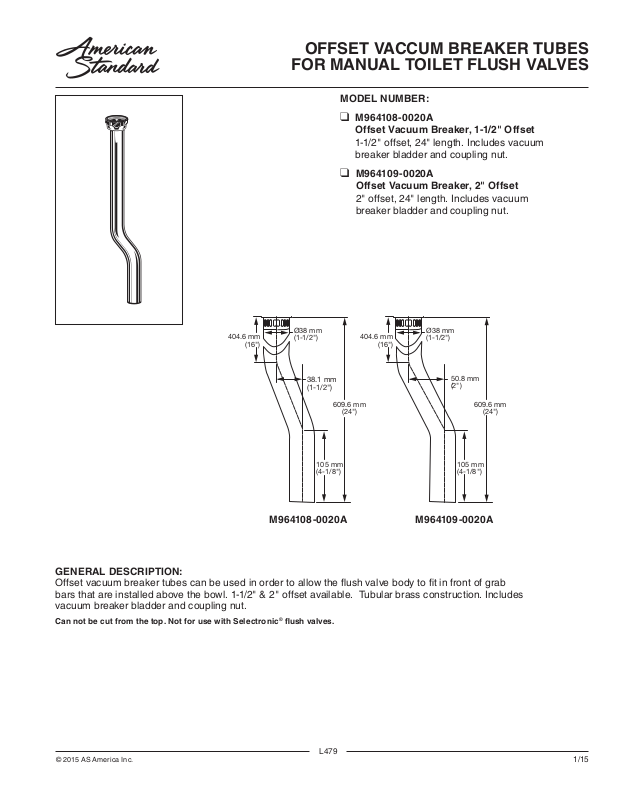

OFFSET VACCUM BREAKER TUBES
FOR MANUAL TOILET FLUSH VALVES
MODEL NUMBER:
❑ M964108-0020A
Offset Vacuum Breaker, 1-1/2" Offset
1-1/2" offset, 24" length. Includes vacuum
breaker bladder and coupling nut.
❑ M964109-0020A
Offset Vacuum Breaker, 2" Offset
2" offset, 24" length. Includes vacuum
breaker bladder and coupling nut.
404.6 mm
(16")
Ø38 mm
(1-1/2")
38.1 mm
(1-1/2")
609.6 mm
105 mm
(4-1/8")
(24")
404.6 mm
(16")
Ø38 mm
(1-1/2")
50.8 mm
(2")
105 mm
(4-1/8")
609.6 mm
(24")
M964108-0020A M964109-0020A
GENERAL DESCRIPTION:
Offset vacuum breaker tubes can be used in order to allow the ush valve body to t in front of grab
bars that are installed above the bowl. 1-1/2" & 2" offset available. Tubular brass construction. Includes
vacuum breaker bladder and coupling nut.
Can not be cut from the top. Not for use with Selectronic® ush valves.
© 2015 AS America Inc.
L479
1/15
