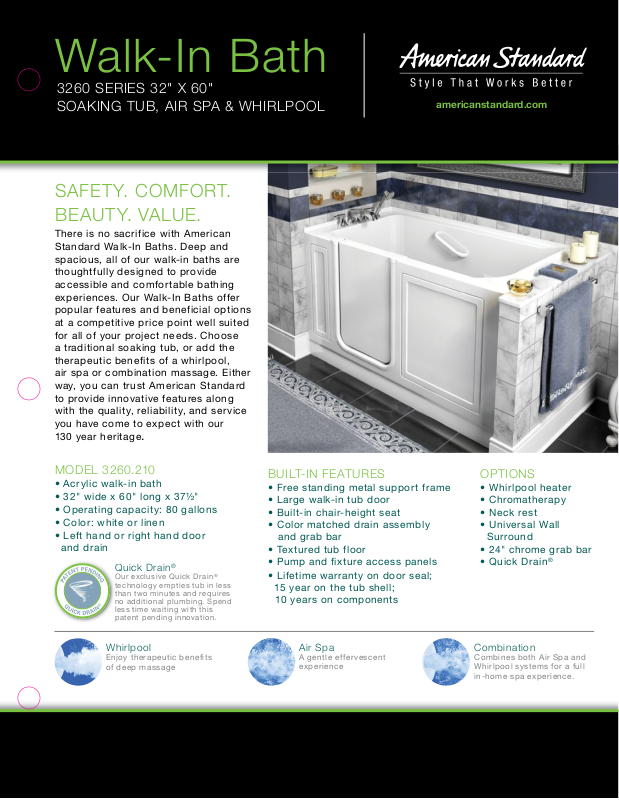

Walk-In Bath
3260 SERIES 32" X 60"
SOAKING TUB, AIR SPA & WHIRLPOOL
SAFETY. COMFORT.
BEAUTY. VALUE.
There is no sacrifice with American
Standard Walk-In Baths. Deep and
spacious, all of our walk-in baths are
thoughtfully designed to provide
accessible and comfortable bathing
experiences. Our Walk-In Baths offer
popular features and beneficial options
at a competitive price point well suited
for all of your project needs. Choose
a traditional soaking tub, or add the
therapeutic benefits of a whirlpool,
air spa or combination massage. Either
way, you can trust American Standard
to provide innovative features along
with the quality, reliability, and service
you have come to expect with our
130 year heritage.
americanstandard.com
MODEL 3260.210
• Acrylic walk-in bath
• 32" wide x 60" long x 37½"
• Operating capacity: 80 gallons
• Color: white or linen
• Left hand or right hand door
and drain
Quick Drain
Our exclusive Quick Drain
ur
technology empties tub in less
han
than two minutes and requires
no a
no additional plumbing. Spend
ess
less time waiting with this
ate
patent pending innovation
Whirlpool
Enjoy therapeutic benefits
of deep massage
®
BUILT-IN FEATURES
• Free standing metal support frame
• Large walk-in tub door
• Built-in chair-height seat
• Color matched drain assembly
and grab bar
• Textured tub floor
• Pump and fixture access panels
®
• Lifetime warranty on door seal;
OPTIONS
• Whirlpool heater
• Chromatherapy
• Neck rest
• Universal Wall
Surround
• 24" chrome grab bar
• Quick Drain
®
15 year on the tub shell;
10 years on components
.
Air Spa
A gentle effervescent
experience
Combination
Combines both Air Spa and
Whirlpool systems for a full
in-home spa experience.
Page 2
32" X 60" WALK-IN BATH,
SOAKING TUB, AIR SPA & WHIRLPOOL
3260.210.SXX Soaking Tub
• Acrylic with fi berglass reinforcement
• Free standing metal support frame with fi ve
adjustable leveling feet
• Patented door system technology
• Contoured, 17” high, built-in seat
• Built-in grab bar and textured tub fl oor
• Faucet / accessory deck areas
• Color matched cable driven drain assembly
3260.210.WXX Whirlpool system
• 1 HP variable fl ow pump system
• 12 adjustable massage jets
• Automatic Tub Cleaning System - Ozone
3260.210.AXX Air Spa system
• 1 HP variable fl ow heater blower
• Multiple seat and fl oor air injectors
• Automatic purge cycle
3260.210.CXX Combo system
• Combines Whirlpool and Air Spa System
Nominal Dimensions:
32" x 60" x 37-1/2"
(813 x 1524 x 953mm)
Compliance Certifi cations Meets or Exceeds the Following Specifi cations:
• ETL – INTERTEK SEMKO
• IAPMO - USPC
• ANSI Z 124.1.2 –for Plastic Bathtubs
• ASME A112.19.7 – Whirlpool Appliances
• ASME A112.19.15 –for Walk-in Bathtubs
• CSA B-45.5 – Canadian Plumbing Fixtures
15"
(381mm)
32-1/2"
(826mm)
5"
(127mm)
37-1/2"
(953mm)
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
OPERATING GALLON
FLOOR LOADING
(PROJECTED AREA)
CUBE (FT3)
59-1/2"
11"
(279mm)
21"
(533mm)
12"
(305mm)
GENERAL SPECIFICATIONS FOR 3260.210.XXX
(1511mm)
25"
26"
(660mm)
LEG ROOM
17-5/8"
(448mm)
30"
(762mm)
WALK-IN BATHING TUB
60 x 32 x 37-1/2 In. (1524 x 813 x 953mm)
(635mm)
16-1/2"
(419mm)
16-1/2"
(419mm)
(432mm)
SEAT HEIGHT
65 Lbs./Sq. Ft. (321.25 Kgs/Sq. m.)
17"
210 Lbs. (95 Kg.)
877 Lbs. (398 Kg.)
80 Gal. (302 L.)
41.7
3"
(76mm)
26"
(660mm)
2"
(51mm)
ROUGH
FLOOR
To Be Spe c i fi ed - Required:
❏ Drain Confi guration: Left (L) Or Right (R)
❏ Color: White (W) Or Linen (L)
❏ Faucet
❏ Whirlpool Heater*: 9ILH (Whirlpool System Only)
❏ Chromatherapy: 9CTP
❏ Neck Rest: 9NR
* NOTE: The whirlpool heater is designed to
maintain water temperature during operation.
NOTES:
TUB IS SUPPORTED BY THE FR AME AND FIVE INTEGR ATED
ADJUSTABLE FEET, NO ADDITIONAL SUPPORT IS REQUIRED.
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH TUB
FOR ADDITIONAL INFORMATION.
FAUCET NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT TO SUB FLOOR
FOR ALL SUPPORTS.
IMPORTANT: Dimensions of fi xtures are nominal, may vary and are
subject to change or cancellation.
No responsibility is assumed for use of superseded or voided leafl et.
It will not heat cold water to desired
bathing temperature.
©2012 AS America, Inc. Printed in U.S.A. SAE11E12 Revised 3/12
