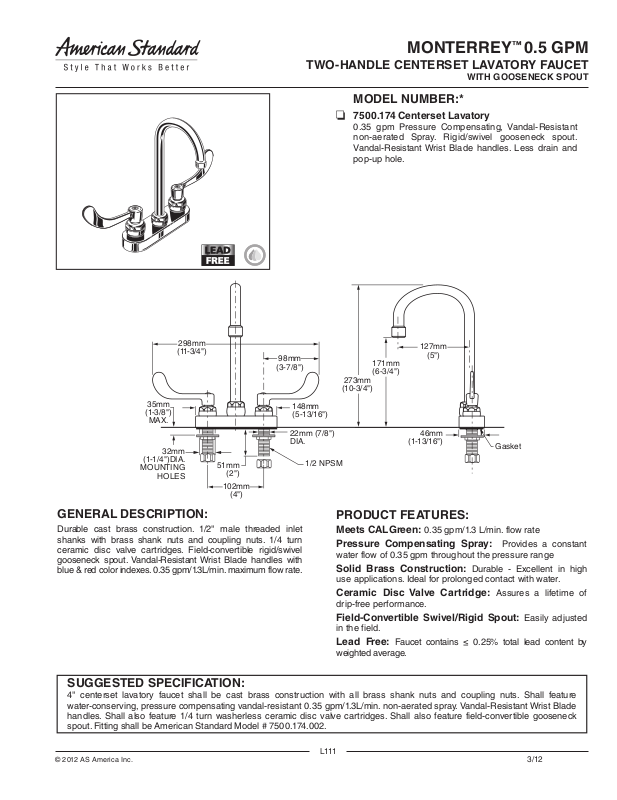

MONTERREY™ 0.5 GPM
constant
high
ed
S
C
S
S
SCG
S
TWO-HANDLE CENTERSET LAVATORY FAUCET
WITH GOOSENECK SPOUT
MODEL NUMBER:*
7500.174 Centerset Lavatory
0.35 gpm Pressure Compensating, Vandal-Resistant
non-aerated Spray. Rigid/swivel gooseneck spout.
Vandal-Resistant Wr ist Blade handles. Less drain and
pop-up hole.
298mm
35mm
"
)
(1-3/8
MAX.
32mm
(1-1/4")DIA.
MOUNTING
HOLES
(11-3/4")
51mm
(2
102mm
(4
"
)
"
)
98mm
(3-7/8")
148mm
(5-13/16
22mm (7/8")
DIA.
GENERAL DESCRIPTION:
Durable cast brass construction. 1/2" male threaded inlet
shanks with brass shank nuts and coupling nuts. 1/4 turn
ceramic disc valve cartridges. Field-convertible rigid/swivel
gooseneck spout. Vandal-Resistant Wr ist Blade handles with
blue & red color indexes. 0.35 gpm/1.3L/min. maximum flow rate.
")
1/2 NPSM
127mm
273mm
(10-3/4
171mm
(6-3/4
"
)
"
)
(5")
46mm
(1-13/16
"
)
Gasket
PRODUCT FEATURES:
Meets CALGreen: 0.35 gpm/1.3 L/min. flow rate
Pressure Compensating Spray: Provides a
water flow of 0.35 gpm throughout the pressure range
Solid Brass Construction: Durable - Excellent in
use applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Field-Convertible Swivel/Rigid Spout: Easily adjust
in the field.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION:
4" centerset lavatory faucet shall be cast brass construction with all brass shank nuts and coupling nuts. Shall feature
water-conserving, pressure compensating vandal-resistant 0.35 gpm/1.3L/min. non-aerated spray. Vandal-Resistant Wrist Blade
handles. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Shall also feature field-convertible gooseneck
spout. Fitting shall be American Standard Model # 7500.174.002.
© 2012 AS America Inc.
L111
3/12
Page 2
S
MONTERREY™ 0.35 GPM
TWO-HANDLE CENTERSET LAVATORY FAUCET
WITH GOOSENECK SPOUT
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B 125
NSF 61/Section 9 and Annex G
CALGreen
Product
Number
7500.174
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINE
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES
Description
Centerset Lavatory with rigid/swivel gooseneck spout. 0.35 gpm/1.3L/min pressure compensating,
vandal-resistant non-aerated spray. Vandal-Resistant Wrist Blade Handles. Less drain and pop-up hole.
FLOW RATE*
0.4
0.3
0.2
0.1
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
80604020
Finish
Polished
Chrome
002
© 2012 AS America Inc.
L112
3/12
