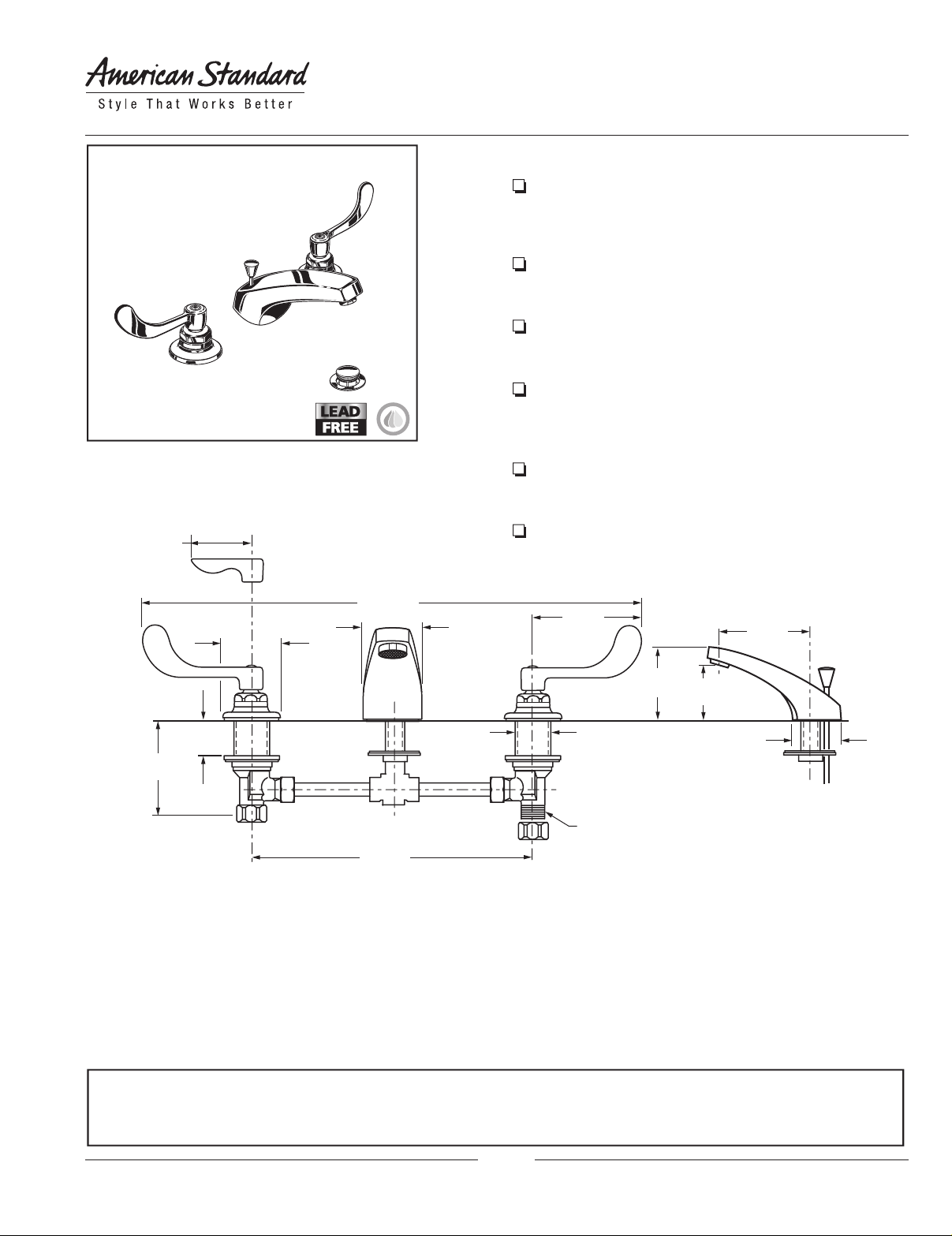

6501.175 Shown

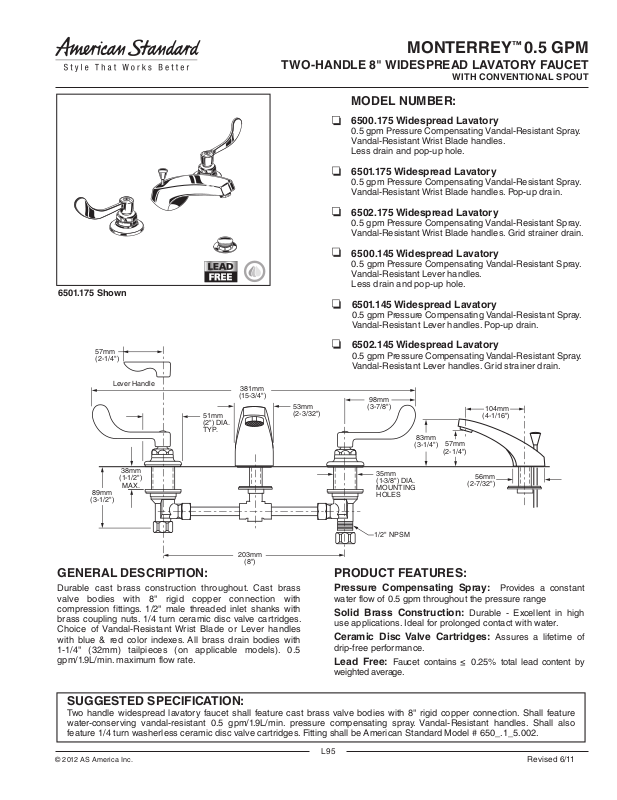

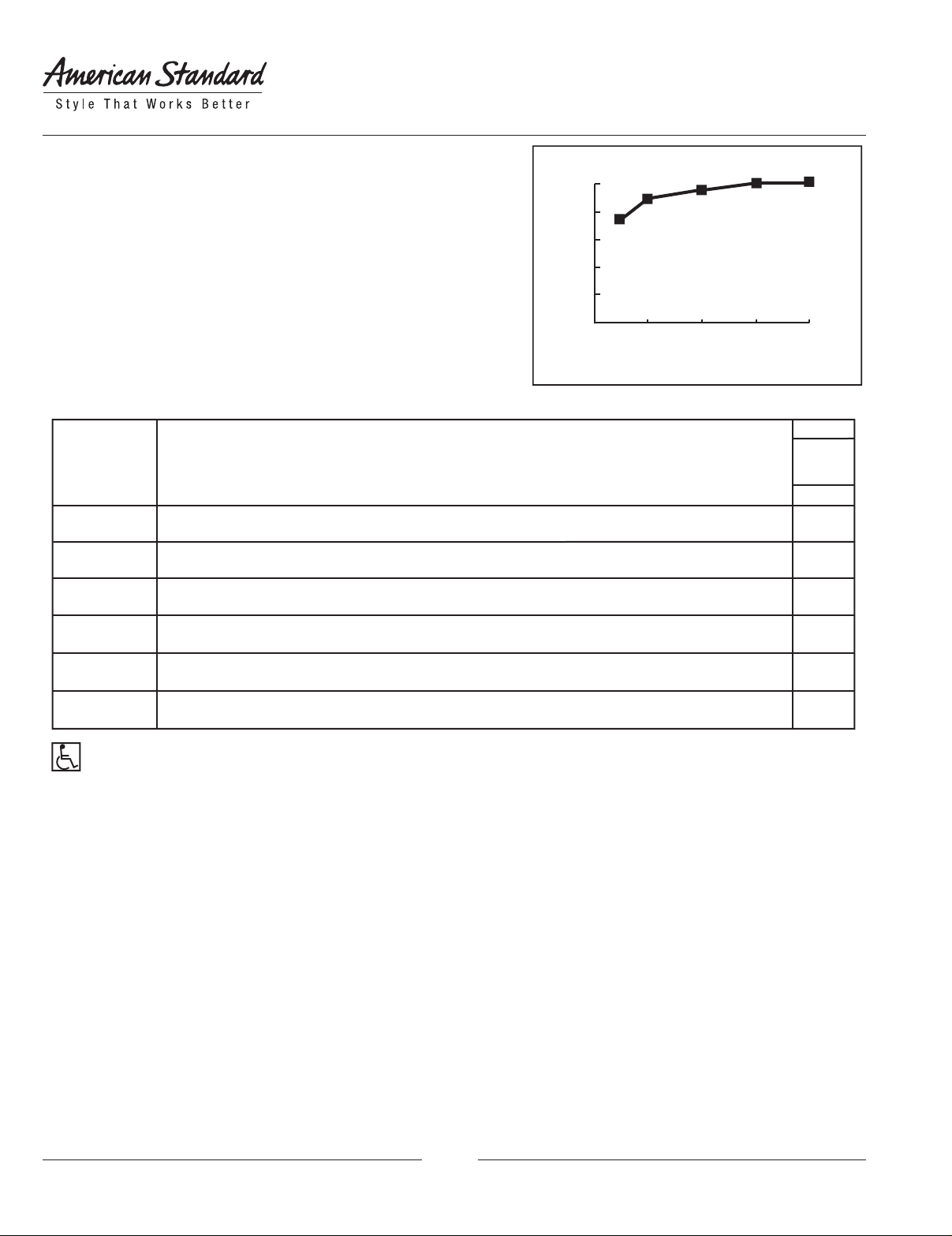

MONTERREY™ 0.5 GPM
TWO-HANDLE 8" WIDESPREAD LAVATORY FAUCET
WITH CONVENTIONAL SPOUT
MODEL NUMBER:
6500.175 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant Spray.
Vandal-Resistant Wrist Blade handles.
Less drain and pop-up hole.
6501.175 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant Spray.
Vandal-Resistant Wrist Blade handles. Pop-up drain.
6502.175 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant Spray.
Vandal-Resistant Wrist Blade handles. Grid strainer drain.
6500.145 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant Spray.
Vandal-Resistant Lever handles.
Less drain and pop-up hole.
6501.145 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant Spray.
Vandal-Resistant Lever handles. Pop-up drain.
57mm
(2-1/4")
89mm
(3-1/2")
Lever Handle
38mm
(1-1/2")
MAX.
51mm
(2
"
TYP.
) DIA.
381mm
(15-3/4
203mm
(8
"
)
"
)
53mm
(2-3/32
GENERAL DESCRIPTION:
Durable cast brass construction throughout. Cast brass
valve bodies with 8" rigid copper connection with
compression fittings. 1/2" male threaded inlet shanks with
brass coupling nuts. 1/4 turn ceramic disc valve cartridges.
Choice of Vandal-Resistant Wrist Blade or Lever handles
with blue & red color indexes. All brass drain bodies with
1-1/4" (32mm) tailpieces (on applicable models). 0.5
gpm/1.9L/min. maximum flow rate.
6502.145 Widespread Lavatory
0.5 gpm Pressure Compensating Vandal-Resistant Spray.
Vandal-Resistant Lever handles. Grid strainer drain.
98mm
"
)
(3-7/8")
35mm
(1-3/8") DIA.
MOUNTING
HOLES
1/2" NPSM
83mm
(3-1/4
"
)
57mm
(2-1/4
"
)
(2-7/32
104mm
(4-1/16
56mm
"
)
"
)
PRODUCT FEATURES:
Pressure Compensating Spray: Provides a constant
water flow of 0.5 gpm throughout the pressure range
Solid Brass Construction: Durable - Excellent in high
use applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION:
Two handle widespread lavatory faucet shall feature cast brass valve bodies with 8" rigid copper connection. Shall feature
water-conserving vandal-resistant 0.5 gpm/1.9L/min. pressure compensating spray. Vandal-Resistant handles. Shall also
feature 1/4 turn washerless ceramic disc valve cartridges. Fitting shall be American Standard Model # 650_.1_5.002.
© 2012 AS America Inc.
L95
Revised 6/11
Page 2
MONTERREY™ 0.5 GPM
TWO-HANDLE 8" WIDESPREAD LAVATORY FAUCET
WITH CONVENTIONAL SPOUT
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B 125
NSF 61/Section 9 and Annex G
Product
Number
6500.175
6501. 175
6502.175
6500.145
6501. 145
6502.145
Description
Widespread Lavatory. 0.5 gpm/1.9L/min pressure compensating vandal-resistant spray.
Vandal-Resistant Wrist Blade Handles. Less drain and pop-up hole.
Widespread Lavatory. 0.5 gpm/1.9L/min pressure compensating vandal-resistant spray.
Vandal-Resistant Wrist Blade Handles. Pop-up drain.
Widespread Lavatory. 0.5 gpm/1.9L/min pressure compensating vandal-resistant spray.
Vandal-Resistant Wrist Blade Handles. Grid strainer drain.
Widespread Lavatory. 0.5 gpm/1.9L/min pressure compensating vandal-resistant spray.
Vandal-Resistant Lever Handles. Less drain and pop-up hole.
Widespread Lavatory. 0.5 gpm/1.9L/min pressure compensating vandal-resistant spray.
Vandal-Resistant Lever Handles. Pop-up drain.
Widespread Lavatory. 0.5 gpm/1.9L/min pressure compensating vandal-resistant spray.
Vandal-Resistant Lever Handles. Grid strainer drain.
FLOW RATE*
0.5
0.4
0.3
0.2
0.1
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
80604020
Finish
Polished
Chrome
002
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES
© 2012 AS America Inc.
L96
Revised 6/11
