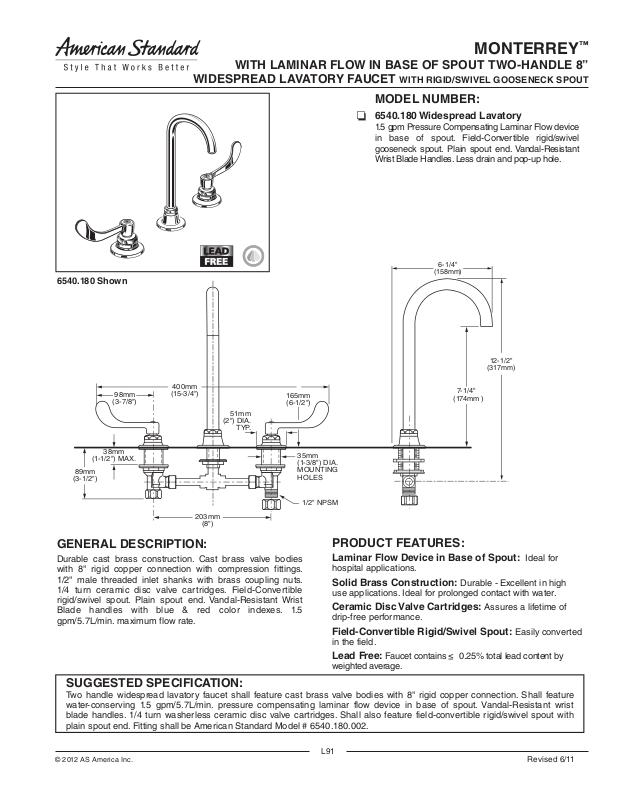

6540.180 Shown
S
C
S
S
SCG
S
MONTERREY
™
WITH LAMINAR FLOW IN BASE OF SPOUT TWO-HANDLE 8”
WIDESPREAD LAVATORY FAUCET WITH RIGID/SWIVEL GOOSENECK SPOUT
MODEL NUMBER:
6540.180 Widespread Lavatory
1.5 gpm Pressure Compensating Laminar Flow device
in base of spout. Field-Convertible rigid/swivel
gooseneck spout. Plain spout end. Vandal-Resistant
Wrist Blade Handles. Less drain and pop-up hole.

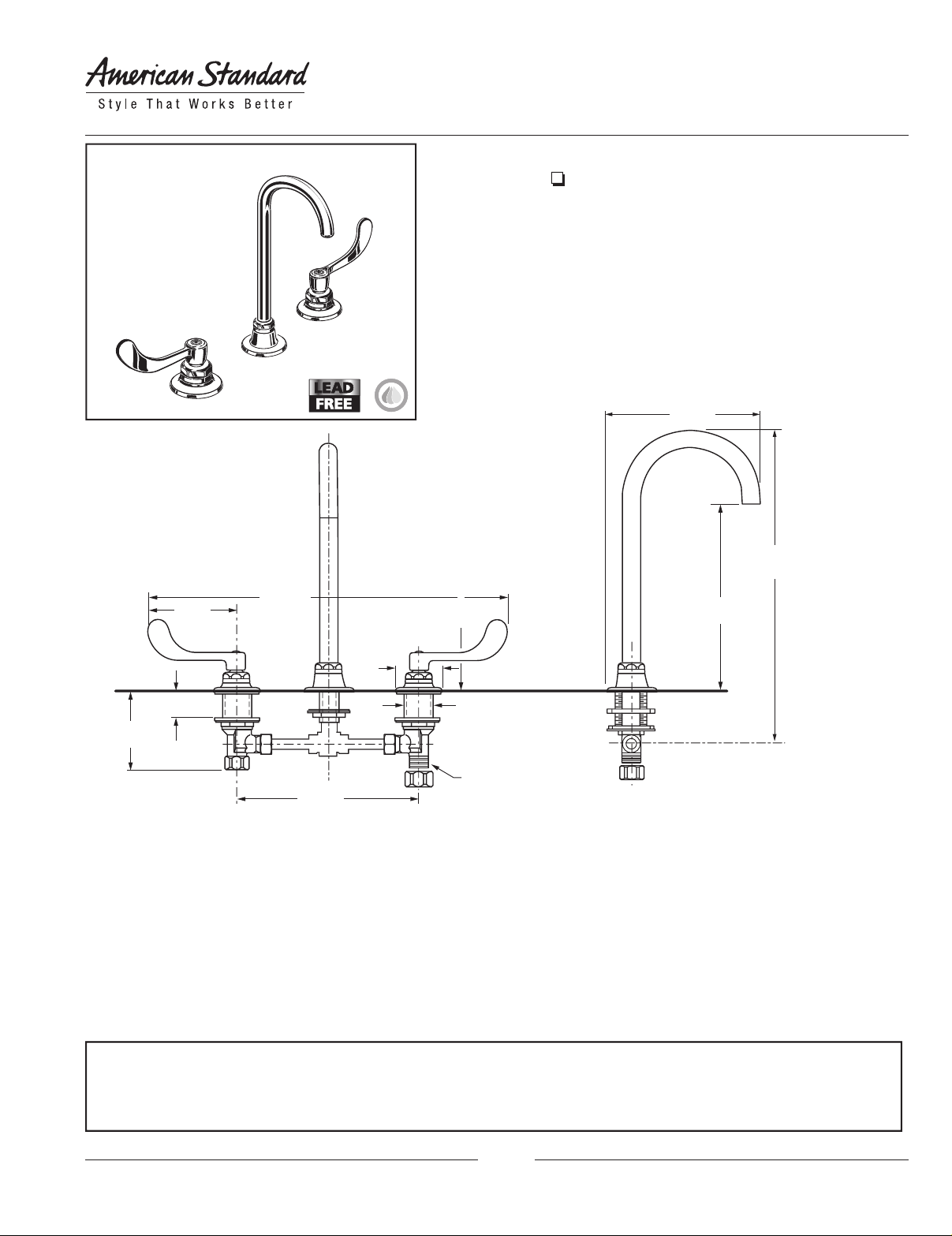

6-1/4"
(158mm)
12-1/2"
(317mm)
400mm
(15-3/4")
203mm
(8")
51mm
(2") DIA.
TYP.
165mm
(6-1/2")
89mm
(3-1/2")
98mm
(3-7/8")
38mm
(1-1/2") MAX.
GENERAL DESCRIPTION:
Durable cast brass construction. Cast brass valve bodies
with 8" rigid copper connection with compression fittings.
1/2" male threaded inlet shanks with brass coupling nuts.
1/4 turn ceramic disc valve cartridges. Field-Convertible
rigid/swivel spout. Plain spout end. Vandal-Resistant Wrist
Blade handles with blue & red color indexes. 1. 5
gpm/5.7L/min. maximum flow rate.
35mm
(1-3/8") DIA.
MOUNTING
HOLES
1/2" NPSM
PRODUCT FEATURES:
Laminar Flow Device in Base of Spout: Ideal for
hospital applications.
Solid Brass Construction: Durable - Excellent in high
use applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
7-1/4"
(174mm )
Field-Convertible Rigid/Swivel Spout: Easily converted
in the field.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION:
Two handle widespread lavatory faucet shall feature cast brass valve bodies with 8" rigid copper connection. Shall feature
water-conserving 1.5 gpm/5.7L/min. pressure compensating laminar flow device in base of spout. Vandal-Resistant wrist
blade handles. 1/4 turn washerless ceramic disc valve cartridges. Shall also feature field-convertible rigid/swivel spout with
plain spout end. Fitting shall be American Standard Model # 6540.180.002.
© 2012 AS America Inc.
L91
Revised 6/11

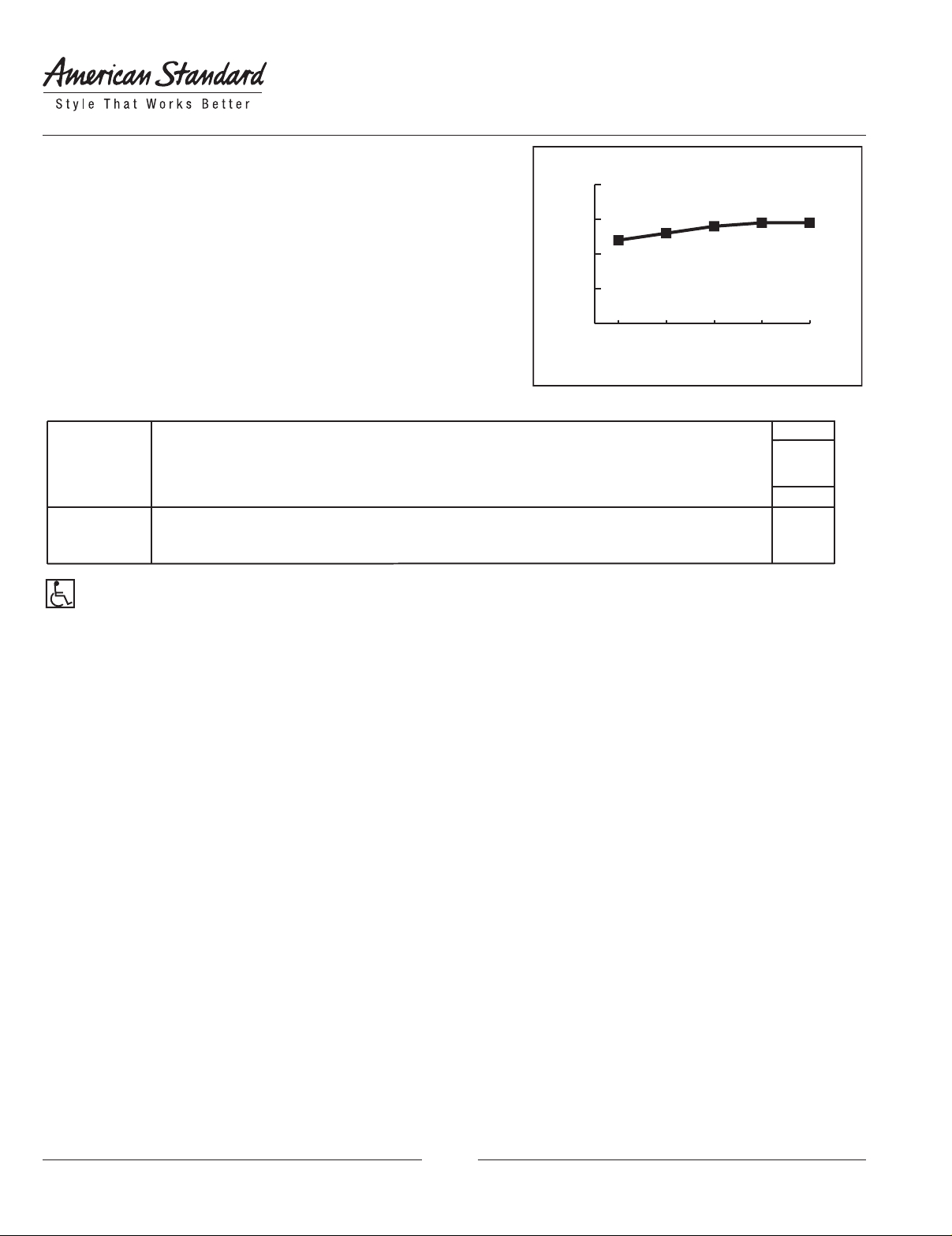

Page 2
S
MONTERREY
™
WITH LAMINAR FLOW IN BASE OF SPOUT TWO-HANDLE 8”
WIDESPREAD LAVATORY FAUCET WITH RIGID/SWIVEL GOOSENECK SPOUT
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI 117. 1
ASME A112.18.1
CSA B 125
NSF 61/Section 9 and Annex G
Product
Number
6540.180
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINE
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES
Description
Widespread Lavatory with field-convertible rigid/swivel gooseneck spout. 1.5 gpm/5.7L/min
pressure compensating laminar flow device in base of spout. Plain spout end.
Vandal-Resistant Wrist Blade Handles. Less drain and pop-up hole.
FLOW RATE*
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
10080604020
Finish
Polished
Chrome
002
