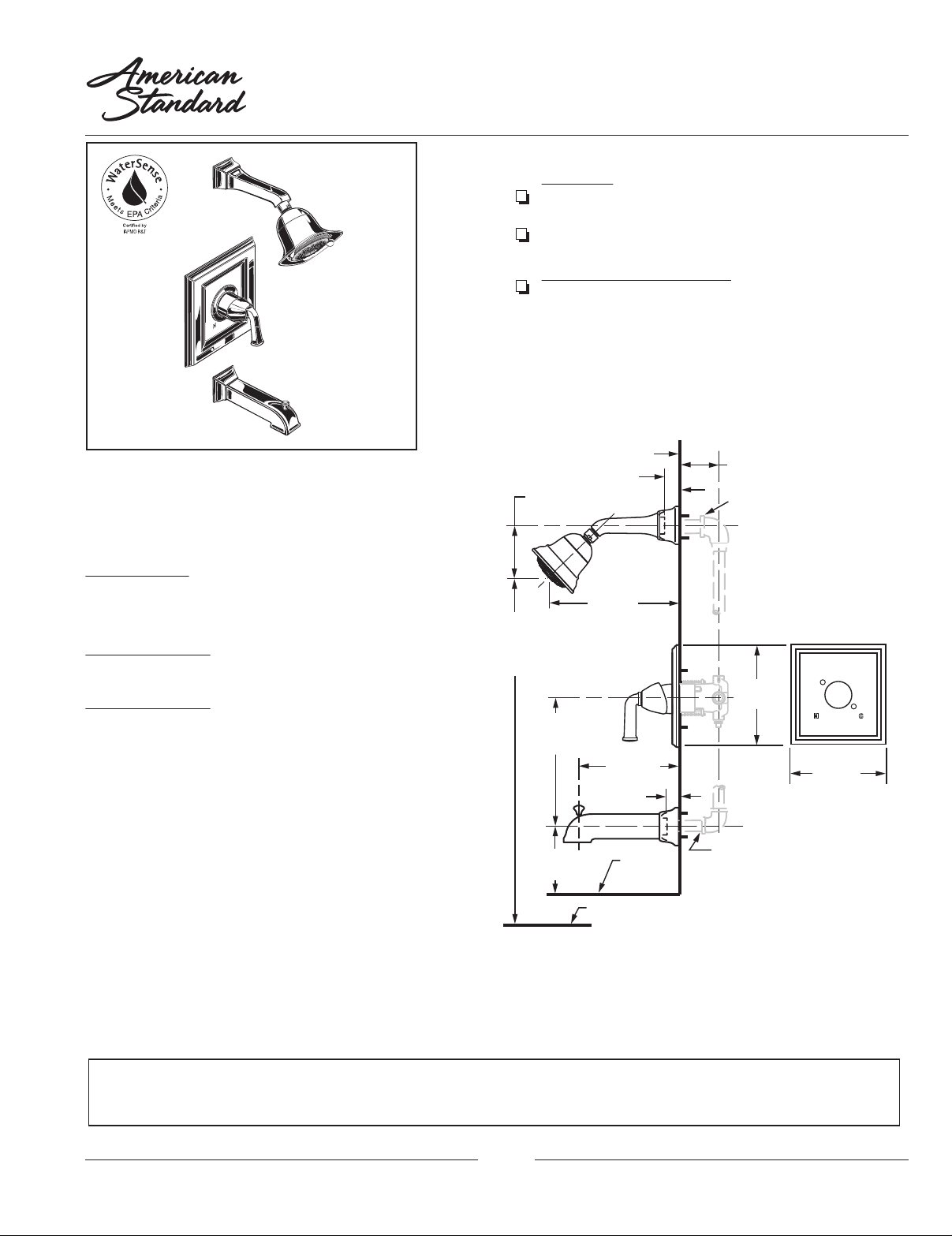

TOWN SQUARE

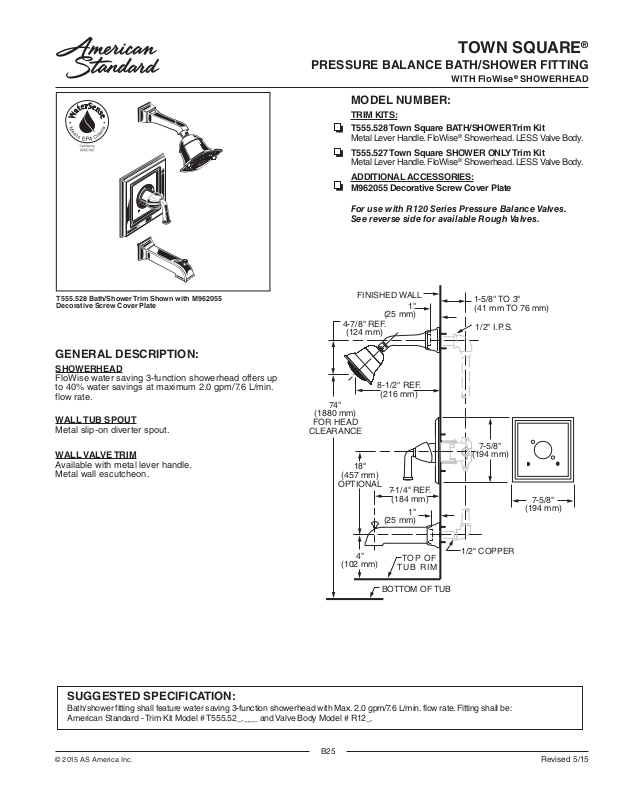

PRESSURE BALANCE BATH/SHOWER FITTING
WITH FloWise® SHOWERHEAD
MODEL NUMBER:
TRIM KITS:
T555.528 Town Square BATH/SHOWER Trim Kit
Metal Lever Handle. FloWise® Showerhead. LESS Valve Body.
T555.527 Town Square SHOWER ONLY Trim Kit
Metal Lever Handle. FloWise
ADDITIONAL ACCESSORIES:
M962055 Decorative Screw Cover Plate
For use with R120 Series Pressure Balance Valves.
See reverse side for available Rough Valves.
®
Showerhead. LESS Valve Body.
®
T555.528 Bath/Shower Trim Shown with M962055
Decorative Screw Cover Plate
GENERAL DESCRIPTION:
SHOWERHEAD
FloWise water saving 3-function showerhead offers up
to 40% water savings at maximum 2.0 gpm/7.6 L/min.
flow rate.
WALL TUB SPOUT
Metal slip-on diverter spout.
WALL VALVE TRIM
Available with metal lever handle.
Metal wall escutcheon.
4-7/8" REF.
(124 mm)
74"
(1880 mm)
FOR HEAD
CLEARANCE
18"
(457 mm)
OPTIONAL
(102 mm)
FINISHED WALL
1"
(25 mm)
8-1/2" REF.
(216 mm)
7-1/4" REF.
(184 mm)
1"
(25 mm)
4"
TOP OF
TUB RIM
BOTTOM OF TUB
1-5/8" TO 3"
(41 mm TO 76 mm)
1/2" I.P.S.
7-5/8"
(194 mm)
7-5/8"
(194 mm)
1/2" COPPER
SUGGESTED SPECIFICATION:
Bath/shower fitting shall feature water saving 3-function showerhead with Max. 2.0 gpm/7.6 L/min. flow rate. Fitting shall be:
American Standard - Trim Kit Model # T555.52_.___ and Valve Body Model # R12_.
© 2015 AS America Inc.
B25
Revised 5/15
Page 2

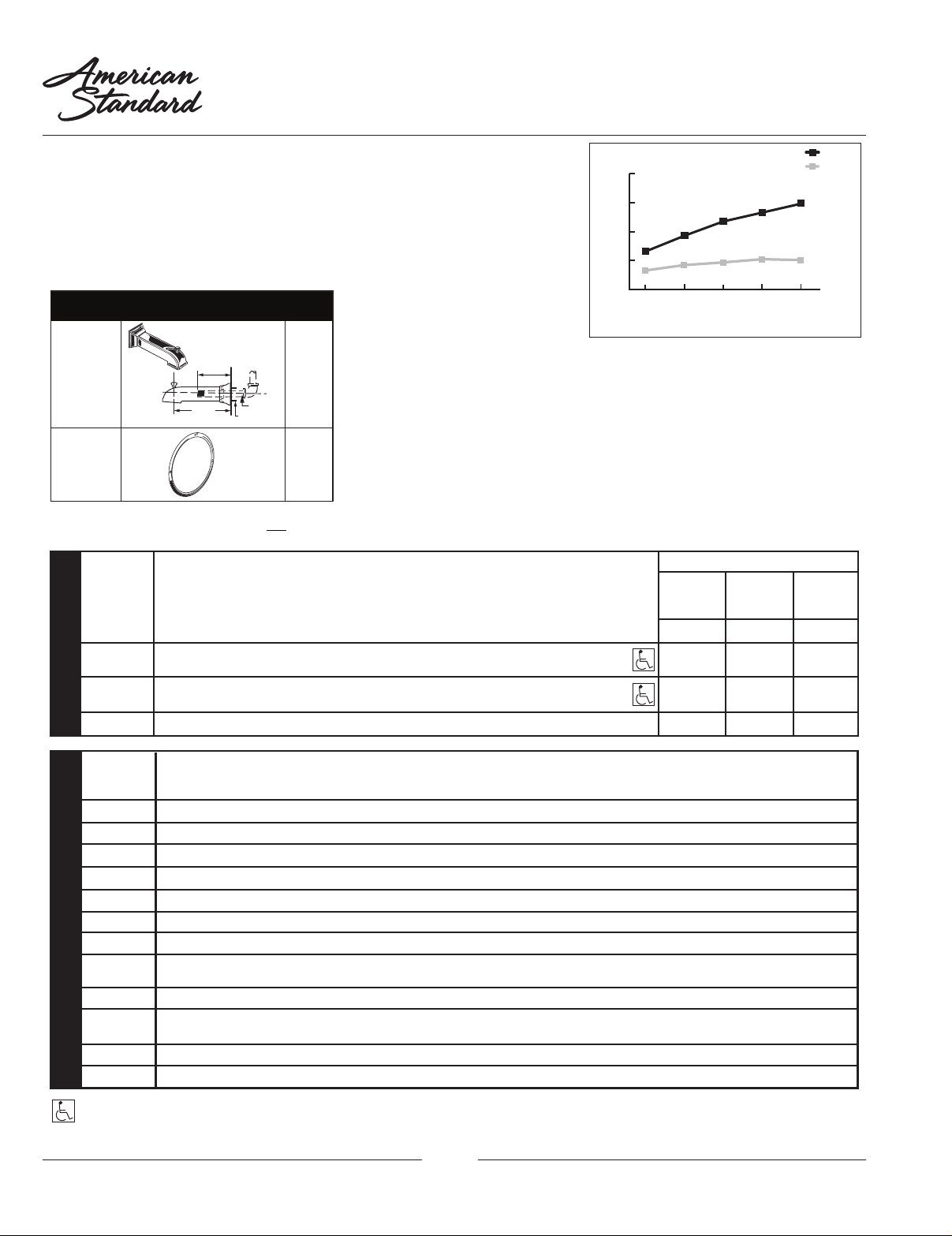

CODES AND STANDARDS
TOWN SQUARE
PRESSURE BALANCE BATH/SHOWER FITTING
WITH FloWise® SHOWERHEAD
®
These products meet or exceed the
following codes and standards:
ANSI A 117.1
ASSE 1016
ASME A112.18.1
CSA B 125.1
Modifications
4"
(100 mm)
IPS Spout
Factory
Installed
Decal Ring
REF.
C
1/2" NPT
1-1/4"(32 mm)
DIA. HOLE
7-1/4"
(184 mm)
REF.
O
N
F
F
O
H
(Red/Blue)
*To modify a product, add suffix after the
4th digit (ex. T064ITP502.002)
* TRIM & ROUGH MUST BE ORDERED SEPARATELY.
Product
Number
T555.528
TRIM KITS *
T555.527
M962055
Description
Bath/Shower Trim Kit. Metal Lever Handle. FloWise Showerhead.
L
ESS Valve Body.
Shower Only Trim Kit. Metal Lever Handle. FloWise Showerhead.
L
ESS Valve Body.
Decorative Screw Cover Plate
Parts
Suffix*
___IPT
___WD
FLOW RATE*
8
6
4
2
GALLONS PER MINUTE
0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
Polished
Chrome
002
Oil
Rubbed
Bronze
224
Spout
Shower
10080604020
PVD
Satin
Nickel
295
Product
Number
R121
R121SS
R120
R120SS
R125
R125SS
R127
R127SS
R128
ROUGH VALVE BODIES
R128SS
R129
R129SS
Description
Rough Valve Body less trim. Universal inlets/outlets.
Rough Valve Body less trim. Universal inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. Direct Sweat inlets/outlets.
Rough Valve Body less trim. Direct Sweat inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. Female Thread inlets/outlets.
Rough Valve Body less trim. Female Thread inlets/outletswith Screwdriver Stops.
Rough Valve Body less trim. PEX inlets/universal outlets for Crimp Ring PEX system (ASTM F1807).
Rough Valve Body less trim. PEX inlets/universal outlets for Crimp Ring PEX system (ASTM F1807)
with Screwdriver Stops.
Rough Valve Body less trim. PEX inlets/universal outlets for Cold Expansion PEX system (ASTM F1960).
Rough Valve Body less trim. PEX inlets/universal outlets for Cold Expansion PEX system (ASTM F1960)
with Screwdriver Stops.
Rough Valve Body less trim. CPVC inlets/universal outlets.
Rough Valve Body less trim. CPVC inlets/universal outlets with Screwdriver Stops.
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
© 2015 AS America Inc.
B26
Revised 5/15
