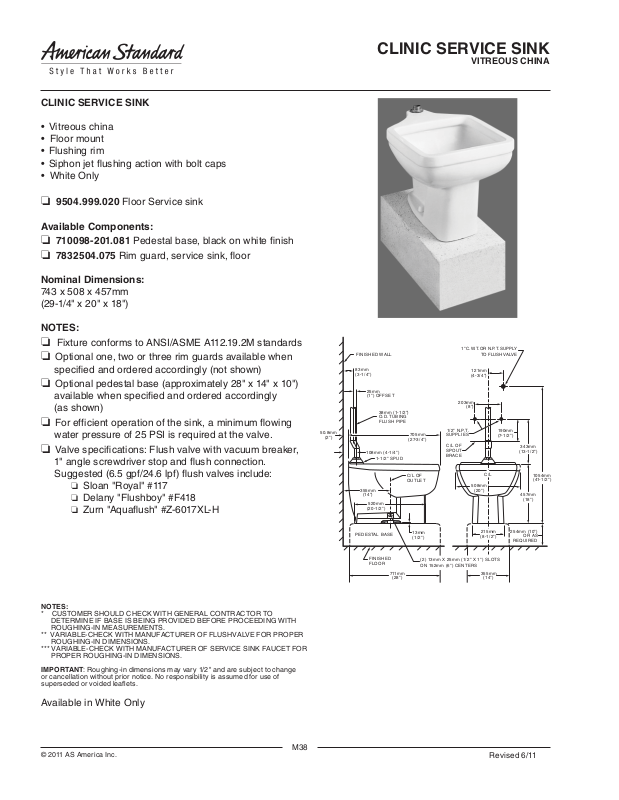

CLINIC SERVICE SINK
• Vitreous china
• Floor mount
• Flushing rim
• Siphon jet ushing action with bolt caps
• White Only
❏ 9504.999.020 Floor Service sink
Available Components:
❏ 710098-201.081 Pedestal base, black on white nish
❏ 7832504.075 Rim guard, service sink, oor
Nominal Dimensions:
743 x 508 x 457mm
(29-1/4" x 20" x 18")
NOTES:
❏ Fixture conforms to ANSI/ASME A112.19.2M standards
❏ Optional one, two or three rim guards available when
speci ed and ordered accordingly (not shown)
❏ Optional pedestal base (approximately 28" x 14" x 10")
available when speci ed and ordered accordingly
(as shown)
❏ For efficient operation of the sink, a minimum owing
water pressure of 25 PSI is required at the valve.
❏ Valve speci cations: Flush valve with vacuum breaker,
1" angle screwdriver stop and ush connection.
Suggested (6.5 gpf/24.6 lpf) ush valves include:
❏ Sloan "Royal" #117
❏ Delany "Flushboy" #F418
❏ Zurn "Aqua ush" #Z-6017XL-H
50.8mm
(2")

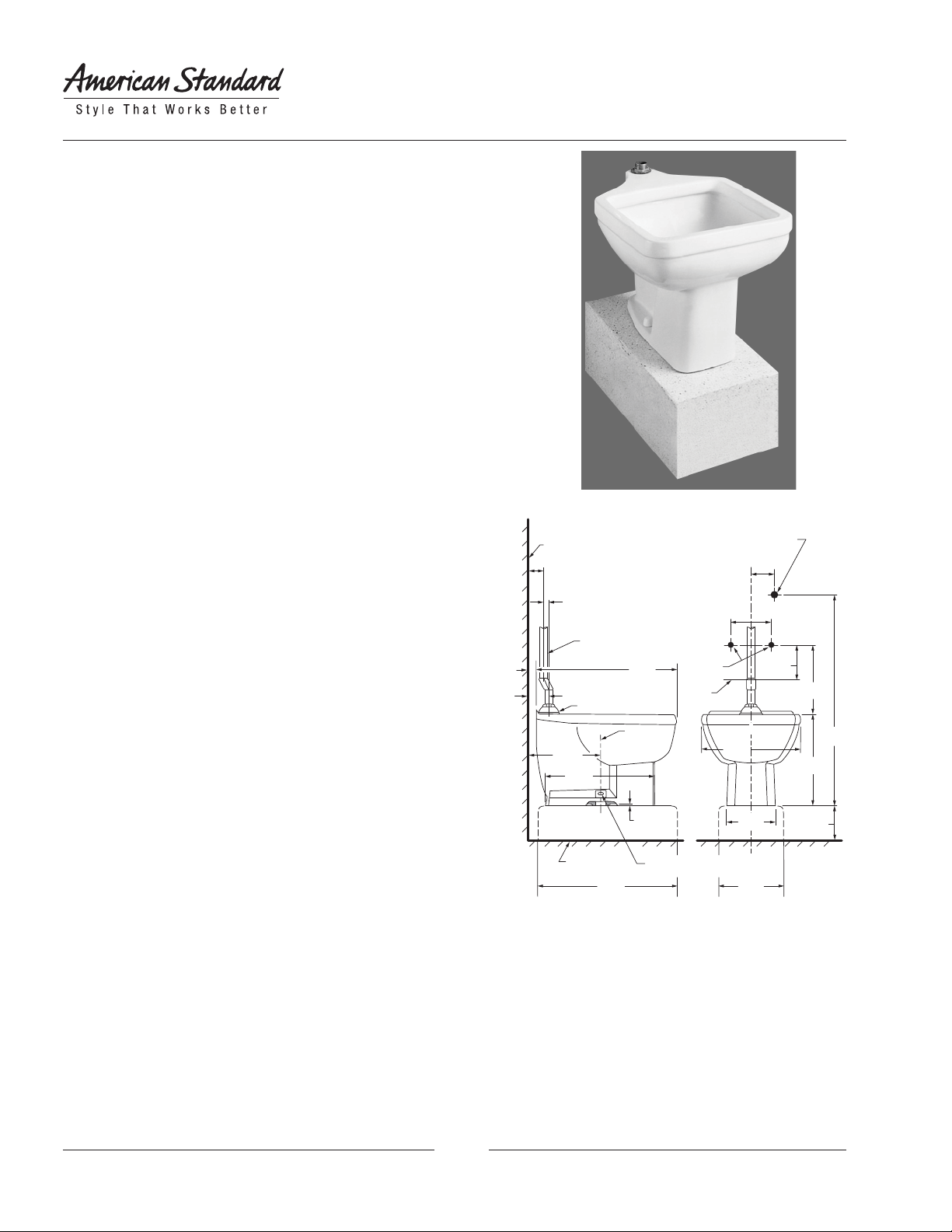

CLINIC SERVICE SINK
VITREOUS CHINA
FINISHED WALL
83mm
(3-1/4")
25mm
(1") OFFSET
38mm (1-1/2")
O.D. TUBING
FLUSH PIPE
108mm (4-1/4")
1-1/2" SPUD
355mm
(14")
520mm
(20-1/2")
705mm
(27-3/4")
C/L OF
OUTLET
1" C.W.T. OR N.P.T. SUPPLY
121mm
(4-3/4")
203mm
(8")
1/2" N.P.T.
SUPPLIES
C/L OF
SPOUT
BRACE
508mm
(20")
TO FLUSH VALVE
C/L
190mm
(7-1/2")
343mm
(13-1/2")
457mm
(18")
1054mm
(41-1/2")
NOTES:
* CUSTOMER SHOULD CHECK WITH GENERAL CONTRACTOR TO
DETERMINE IF BASE IS BEING PROVIDED BEFORE PROCEEDING WITH
ROUGHING-IN MEASUREMENTS.
** VARIABLE-CHECK WITH MANUFACTURER OF FLUSHVALVE FOR PROPER
ROUGHING-IN DIMENSIONS.
*** VARIABLE-CHECK WITH MANUFACTURER OF SERVICE SINK FAUCET FOR
PROPER ROUGHING-IN DIMENSIONS.
IMPORTANT: Roughing-in dimensions may vary 1/2" and are subject to change
or cancellation without prior notice. No responsibility is assumed for use of
superseded or voided leaflets.
Available in White Only
© 2011 AS America Inc.
M38
PEDESTAL BASE
FINISHED
FLOOR
711mm
(28")
13mm
(1/2")
(2) 13mm X 25mm (1/2" X 1") SLOTS
ON 152mm (6") CENTERS
254mm (10")
215mm
(8-1/2")
355mm
(14")
Revised 6/11
OR AS
REQUIRED
