Page 1
15

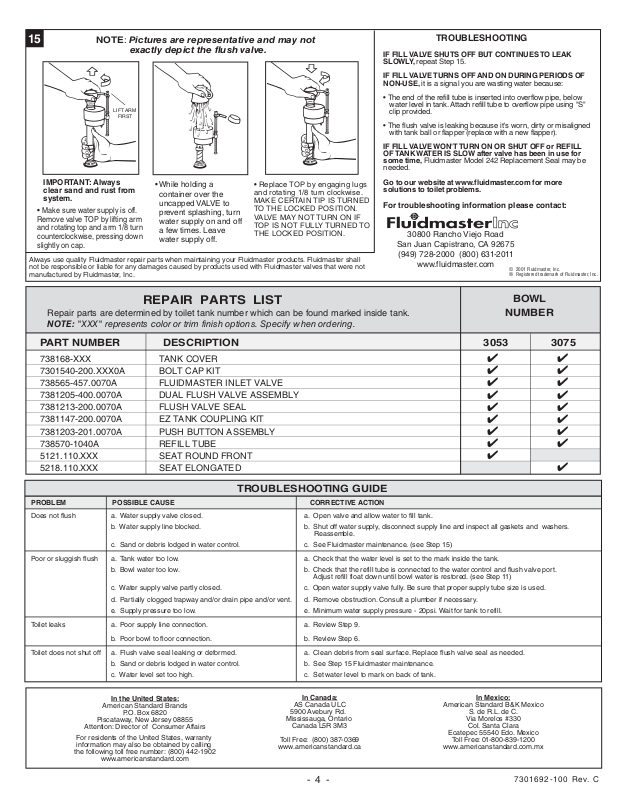

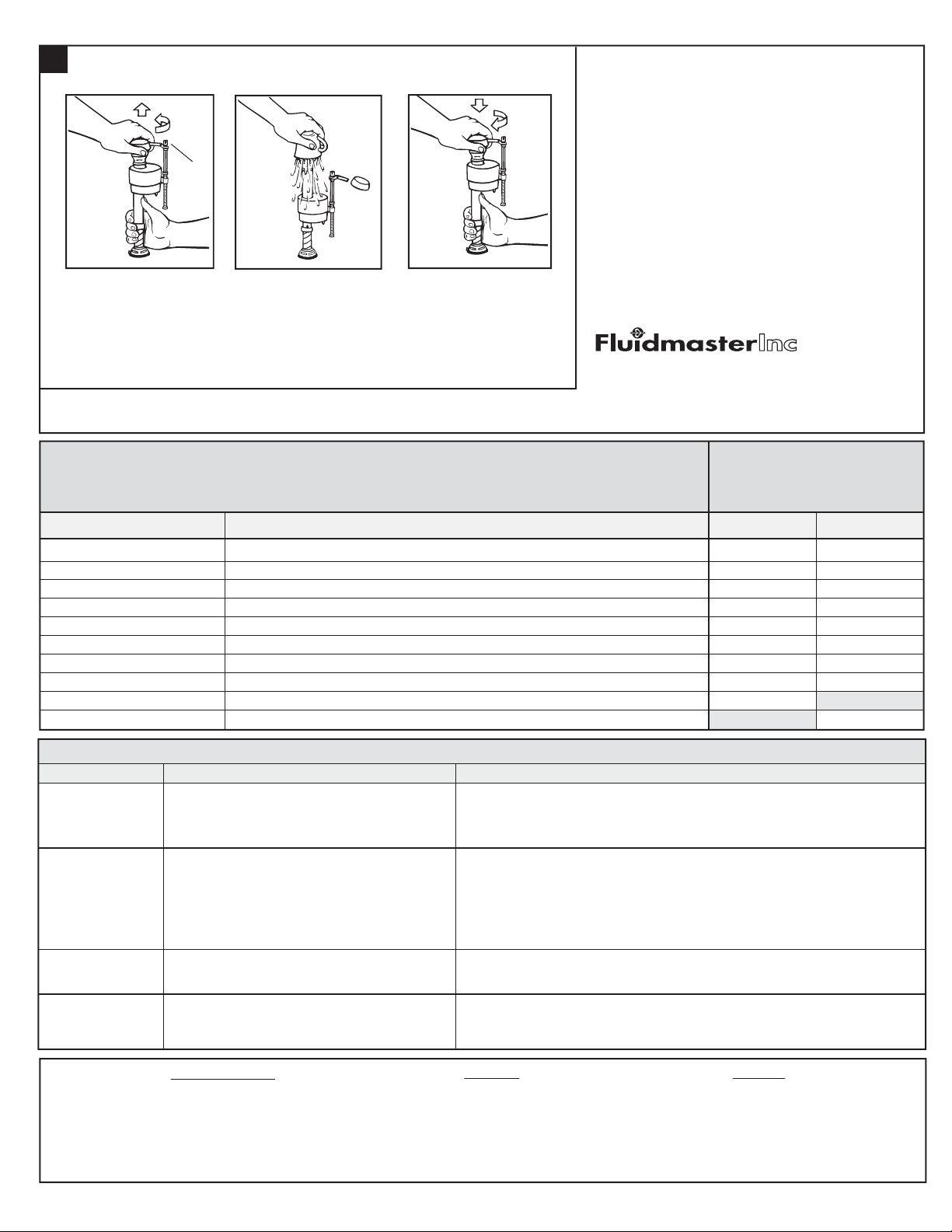

NOTE: Pictures are representative and may not
exactly depict the flush valve.
LIFT ARM
FIRST
IMPORTANT: Always
clear sand and rust from
system.
•
Make sure water supply is off.
Remove valve TOP by lifting arm
and rotating top and arm 1/8 turn
counterclockwise, pressing down
slightly on cap.
Always use quality Fluidmaster repair parts when maintaining your Fluidmaster products. Fluidmaster shall
not be responsible or liable for any damages caused by products used with Fluidmaster valves that were not
manufactured by Fluidmaster, Inc.
• While holding a
container over the
uncapped VALVE to
prevent splashing, turn
water supply on and off
a few times. Leave
water supply off.
• Replace TOP by engaging lugs
and rotating 1/8 turn clockwise.
MAKE CERTAIN TIP IS TURNED
TO THE LOCKED POSITION.
VALVE MAY NOT TURN ON IF
TOP IS NOT FULLY TURNED TO
THE LOCKED POSITION.
TROUBLESHOOTING
IF FILL VALVE SHUTS OFF BUT CONTINUES TO LEAK
SLOWLY, repeat Step 15.
IF FILL VALVE TURNS OFF AND ON DURING PERIODS OF
NON-USE, it is a signal you are wasting water because:
• The end of the refill tube is inserted into overflow pipe, below
water level in tank. Attach refill tube to overflow pipe using "S"
clip provided.
• The flush valve is leaking because it's worn, dirty or misaligned
with tank ball or flapper (replace with a new flapper).
IF FILL VALVE WON'T TURN ON OR SHUT OFF or REFILL
OF TANK WATER IS SLOW after valve has been in use for
some time, Fluidmaster Model 242 Replacement Seal may be
needed.
Go to our website at www.fluidmaster.com for more
solutions to toilet problems.
For troubleshooting information please contact:
30800 Rancho Viejo Road
San Juan Capistrano, CA 92675
(949) 728-2000 (800) 631-2011
www.fluidmaster.com
© 2001 Fluidmaster, Inc.
® Registered trademark of Fluidmaster, Inc.
REPAIR PARTS LIST
Repair parts are determined by toilet tank number which can be found marked inside tank.
NOTE: "XXX" represents color or trim finish options. Specify when ordering.
DESCRIPTION 3053 3075PART NUMBER
738168-XXX
7301540-200.XXX0A
738565-457.0070A
7381205-400.0070A
7381213-200.0070A
7381147-200.0070A
7381203-201.0070A
738570-1040A
5121.110.XXX
5218.110.XXX
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Does not flush
Poor or sluggish flush
Toilet leaks
Toilet does not shut off
a. Water supply valve closed.
b. Water supply line blocked.
c. Sand or debris lodged in water control.
a. Tank water too low.
b. Bowl water too low.
c. Water supply valve partly closed.
d. Partially clogged trapway and/or drain pipe and/or vent.
e. Supply pressure too low.
a. Poor supply line connection.
b. Poor bowl to floor connection.
a. Flush valve seal leaking or deformed.
b. Sand or debris lodged in water control.
c. Water level set too high.
TANK COVER
BOLT CAP KIT
FLUIDMASTER INLET VALVE
DUAL FLUSH VALVE ASSEMBLY
FLUSH VALVE SEAL
EZ TANK COUPLING KIT
PUSH BUTTON ASSEMBLY
REFILL TUBE
SEAT ROUND FRONT
SEAT ELONGATED
TROUBLESHOOTING GUIDE
a. Open valve and allow water to fill tank.
b. Shut off water supply, disconnect supply line and inspect all gaskets and washers.
Reassemble.
c. See Fluidmaster maintenance. (see Step 15)
a. Check that the water level is set to the mark inside the tank.
b. Check that the refill tube is connected to the water control and flush valve port.
Adjust refill float down until bowl water is restored. (see Step 11)
c. Open water supply valve fully. Be sure that proper supply tube size is used.
d. Remove obstruction. Consult a plumber if necessary.
e. Minimum water supply pressure - 20psi. Wait for tank to refill.
a. Review Step 9.
b. Review Step 6.
a. Clean debris from seal surface. Replace flush valve seal as needed.
b. See Step 15 Fluidmaster maintenance.
c. Set water level to mark on back of tank.
NUMBER
✔
✔
✔
✔
✔
✔
✔
✔
✔
BOWL
✔
✔
✔
✔
✔
✔
✔
✔
✔
In the United States:
American Standard Brands
P.O. Box 6820
Piscataway, New Jersey 08855
Attention: Director of Consumer Affairs
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 442-1902
www.americanstandard.com
In Canada:
AS Canada ULC
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Toll Free: (800) 387-0369
www.americanstandard.ca
- 4 -
American Standard B&K Mexico
www.americanstandard.com.mx
In Mexico:
S. de R.L. de C.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
Toll Free: 01-800-839-1200
7301692-100 Rev. C
