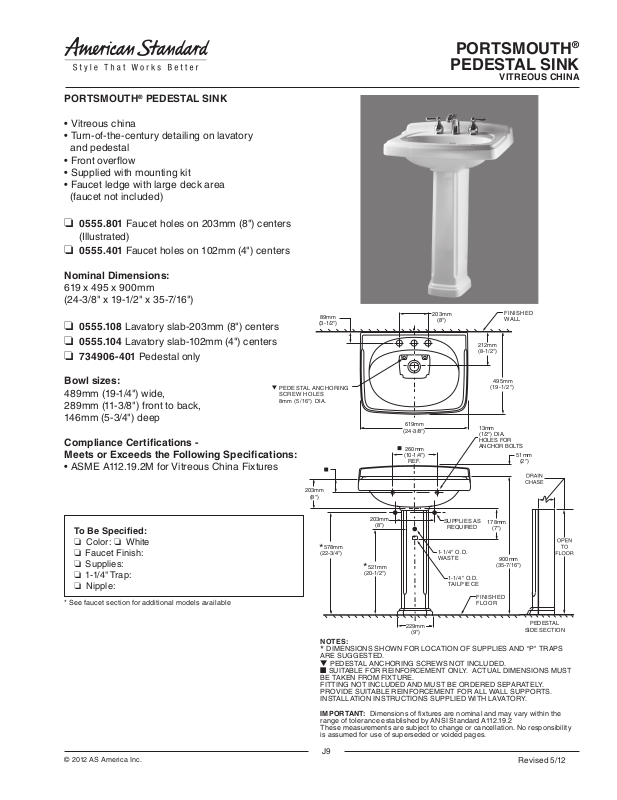

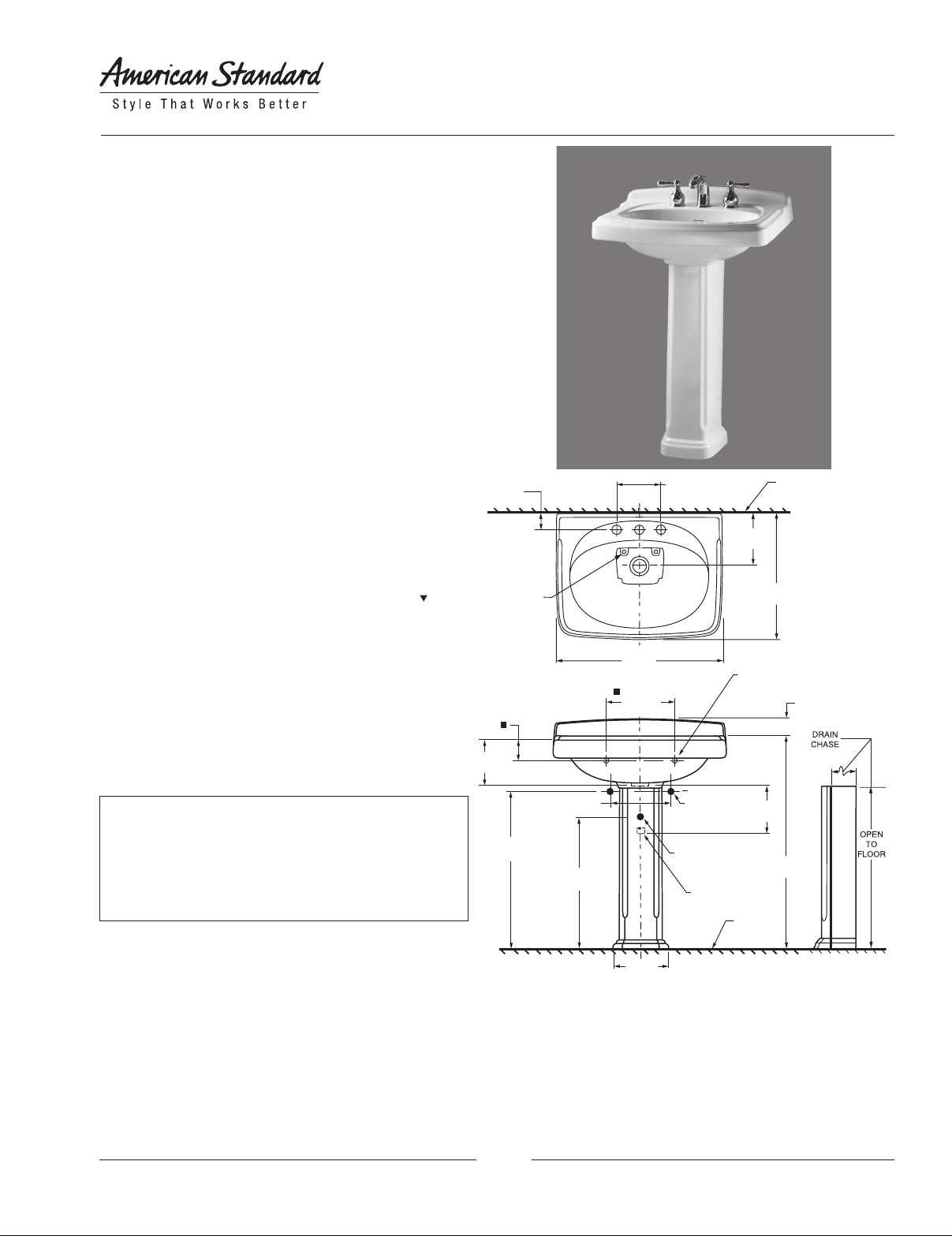

PORTSMOUTH® PEDESTAL SINK
FINISHED
• Vitreous china
• Turn-of-the-century detailing on lavatory
and pedestal
• Front overow
• Supplied with mounting kit
• Faucet ledge with large deck area
(faucet not included)
❏ 0555.801 Faucet holes on 203mm (8") centers
(Illustrated)
❏ 0555.401 Faucet holes on 102mm (4") centers
Nominal Dimensions:
619 x 495 x 900mm
(24-3/8" x 19-1/2" x 35-7/16")
❏ 0555.108 Lavatory slab-203mm (8") centers
❏ 0555.104 Lavatory slab-102mm (4") centers
❏ 734906-401 Pedestal only
89mm
(3-1/2")
PORTSMOUTH
PEDESTAL SINK
VITREOUS CHINA
203mm
(8")
212mm
(8-1/2")
WALL
®
Bowl sizes:
489mm (19-1/4") wide,
289mm (11-3/8") front to back,
PEDESTAL ANCHORING
SCREW HOLES
8mm (5/16
146mm (5-3/4") deep
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2M for Vitreous China Fixtures
To Be Specied:
❏ Color: ❏ White
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
❏ Nipple:
* See faucet section for additional models available
© 2012 AS America I nc.
495mm
(19-1/2")
") DIA.
619mm
(24-3/8")
260mm
(10-1/4")
REF.
203mm
(8")
203mm
(8")
578mm
*
(22-3/4")
521mm
*
(20-1/2")
229mm
(9")
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “ P" TRAPS
*
ARE SUGGESTED.
▼ PEDESTAL ANCHORING SCREWS NOT INCLUDED.
■ SUITABLE FOR REINFORCEMENT ONLY. ACTUAL DIMENSIONS MUST
BE TAKEN FROM FIXTURE.
FITTING NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
INSTALLATION INSTRUCTIONS SUPPLIED WITH LAVATORY.
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerance established by ANSI Standard A112.19.2
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
SUPPLIES AS
REQUIRED
1-1/4" O.D.
WASTE
1-1/4" O.D.
TAILPIECE
13mm
(1/2") DIA.
HOLES FOR
ANCHOR BOLTS
178mm
(7")
900mm
(35-7/16")
FINISHED
FLOOR
51mm
(2")
PEDESTAL
SIDE SECTION
J9
Revised 5/12
