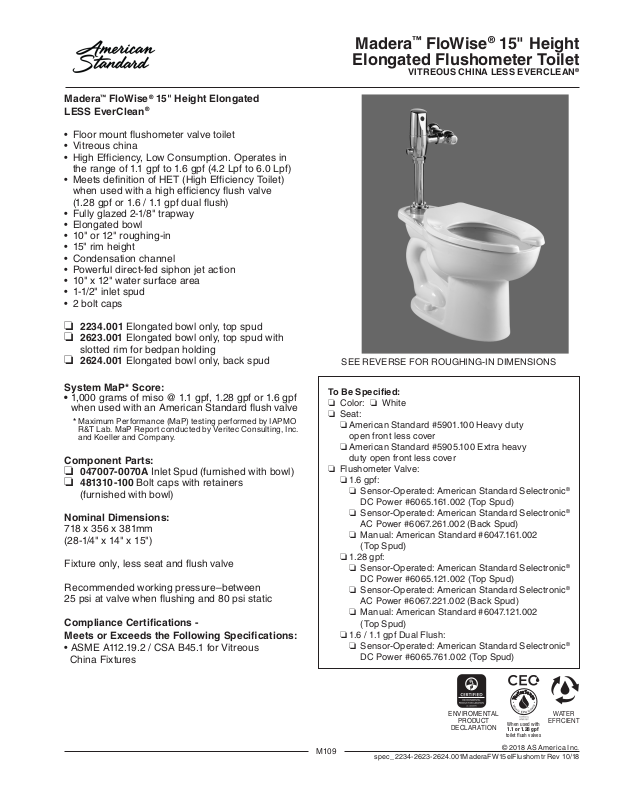

Page 1

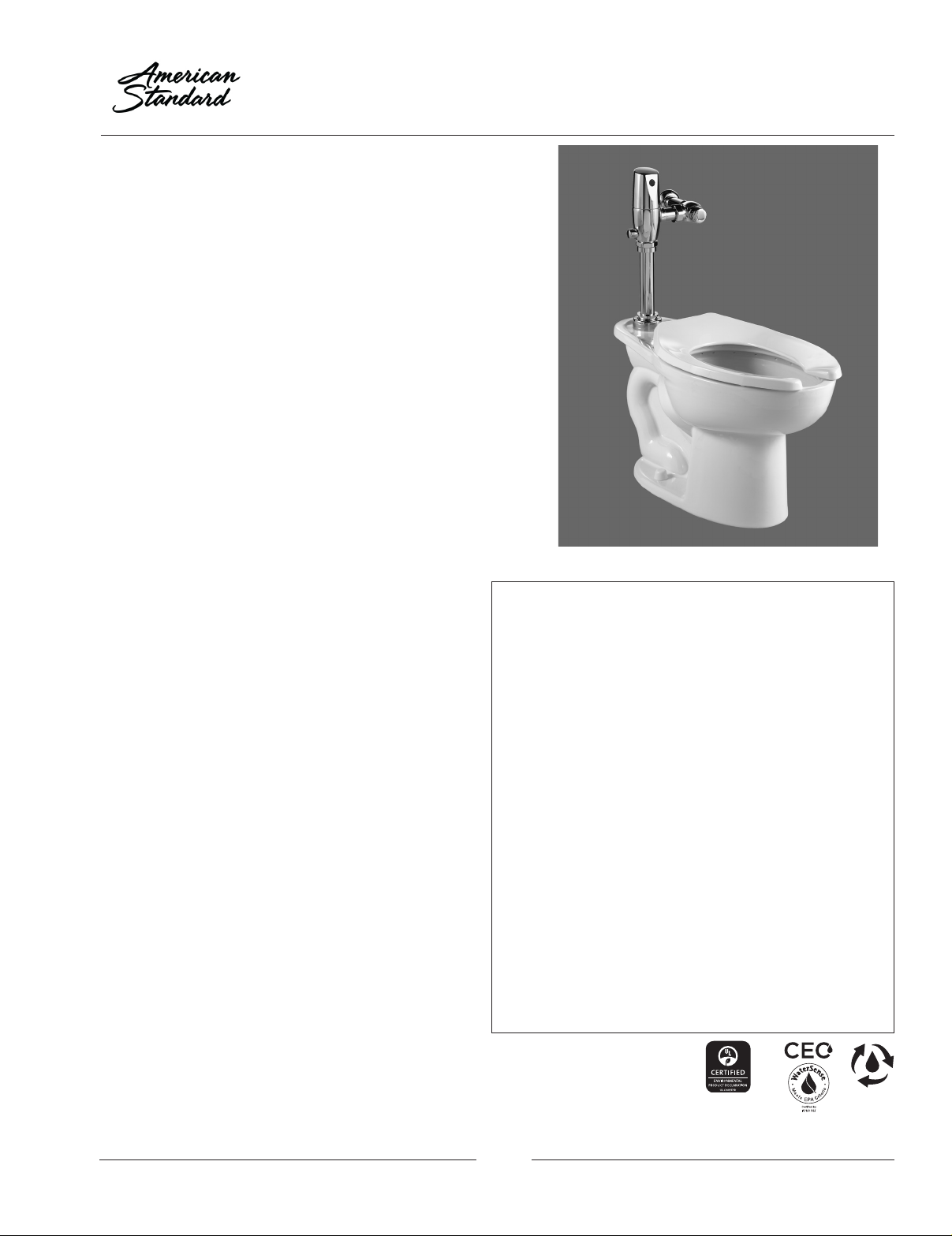

Madera™ FloWise® 15" Height
Elongated Flushometer Toilet
VITREOUS CHINA LESS EVERCLEAN
®
Madera™ FloWise® 15" Height Elongated
LESS EverClean
®
• Floor mount ushometer valve toilet
• Vitreous china
• High Efficiency, Low Consumption. Operates in
the range of 1.1 gpf to 1.6 gpf (4.2 Lpf to 6.0 Lpf)
• Meets denition of HET (High Efficiency Toilet)
when used with a high efficiency ush valve
(1.28 gpf or 1.6 / 1.1 gpf dual ush)
• Fully glazed 2-1/8" trapway
• Elongated bowl
• 10" or 12" roughing-in
• 15" rim height
• Condensation channel
• Powerful direct-fed siphon jet action
• 10" x 12" water surface area
• 1-1/2" inlet spud
• 2 bolt caps
❏ 2234.001 Elongated bowl only, top spud
❏ 2623.001 Elongated bowl only, top spud with
slotted rim for bedpan holding
❏ 2624.001 Elongated bowl only, back spud
System MaP* Score:
• 1,000 grams of miso @ 1.1 gpf, 1.28 gpf or 1.6 gpf
when used with an American Standard ush valve
* Maximum Performance (MaP) testing performed by IAPMO
R&T Lab. MaP Report conducted by Veritec Consulting, Inc.
and Koeller and Company.
Component Parts:
❏ 047007-0070A Inlet Spud (furnished with bowl)
❏ 481310-100 Bolt caps with retainers
(furnished with bowl)
Nominal Dimensions:
718 x 356 x 381mm
(28-1/4" x 14" x 15")
Fixture only, less seat and ush valve
Recommended working pressure–between
25 psi at valve when ushing and 80 psi static
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2 / CSA B45.1 for Vitreous
China Fixtures
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
To Be Specied:
❏ Color: ❏ White
❏ Seat:
❏ American Standard #5901.100 Heavy duty
open front less cover
❏ American Standard #5905.100 Extra heavy
duty open front less cover
❏ Flushometer Valve:
❏ 1.6 gpf:
❏ Sensor-Operated: American Standard Selectronic®
DC Power #6065.161.002 (Top Spud)
❏ Sensor-Operated: American Standard Selectronic®
AC Power #6067.261.002 (Back Spud)
❏ Manual: American Standard #6047.161.002
(Top Spud)
❏ 1.28 gpf:
❏ Sensor-Operated: American Standard Selectronic
❏ Sensor-Operated: American Standard Selectronic®
AC Power #6067.221.002 (Back Spud)
❏ Manual: American Standard #6047.121.002
(Top Spud)
❏ 1.6 / 1.1 gpf Dual Flush:
❏ Sensor-Operated: American Standard Selectronic®
DC Power #6065.761.002 (Top Spud)
DC Power #6065.121.002 (Top Spud)
®
M109
ENVIROMENTAL
PRODUCT
DE CLAR AT IO N
spec_2234-2623-2624.001MaderaFW15elFlushomtr Rev 10/18
When used with
1.1 or 1.28 gpf
toilet flush valves
© 2018 AS America Inc.
WATER
EFFICIENT
Page 2
Madera™ FloWise® 15" Height
Elongated Flushometer Toilet
VITREOUS CHINA LESS EVERCLEAN
®

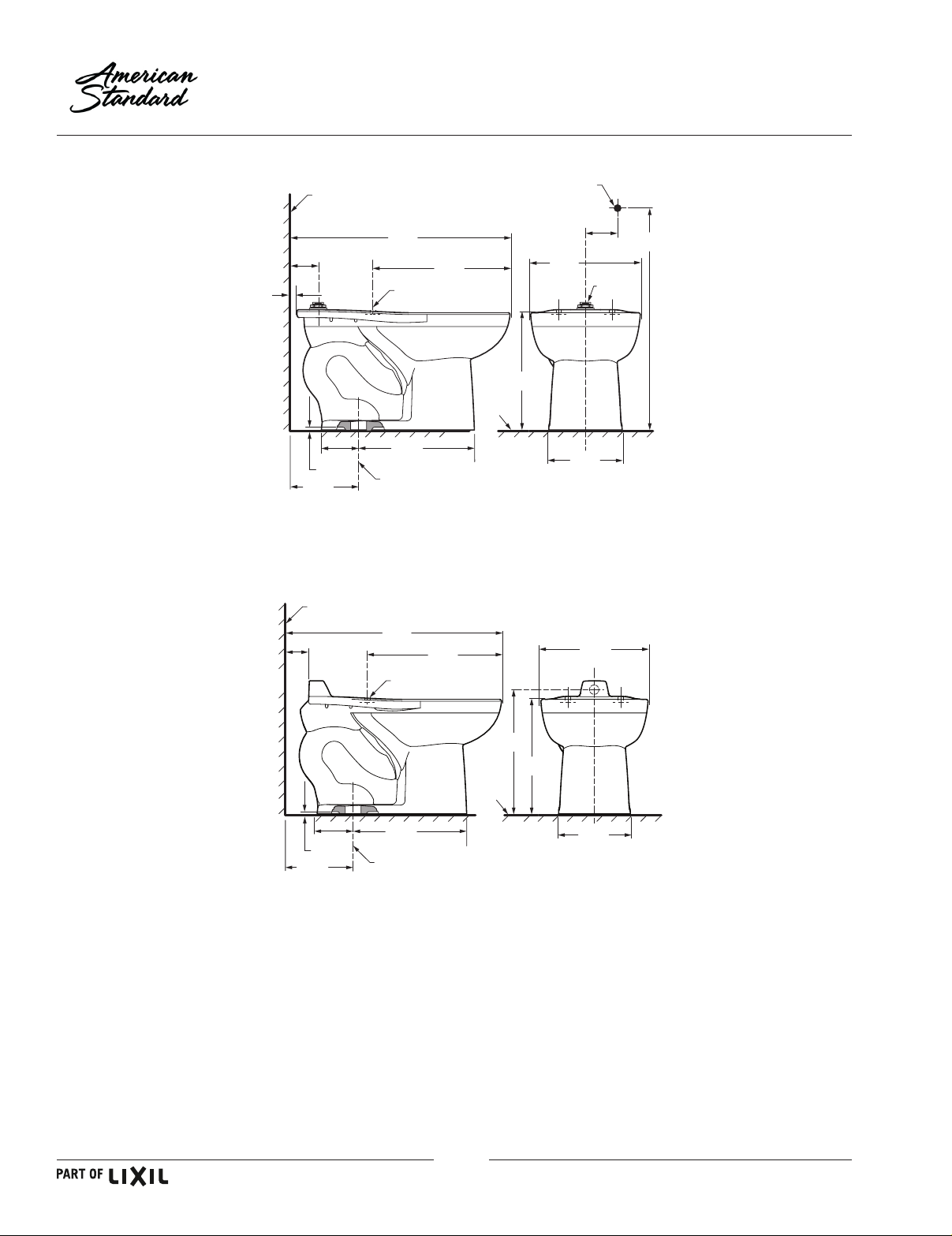

2234.001/2623.001
FINISHED WALL
718mm
(28-1/4")
102mm
(4")
13mm
(1/2")
254mm
(10")
25mm
(1")
150mm
(5-7/8")
C/L OF SEAT POST HOLES
140mm (5-1/2") CENTERS
362mm
(14-1/4")
C/L OF OUTLET
2624.001
FINISHED WALL
718mm
76mm
(3")
(28-1/4")
C/L OF SEAT POST HOLES
140mm (5-1/2") CENTERS
470mm
(18-1/2")
470mm
(18-1/2")
FINISHED
FLOOR
381mm
(15")
1" N.P.T. OR 1"
C.W.T. SUPPLY
TO FLUSH VALV E
121mm
(4-3/4")
356mm
(14")
254mm
(10")
356mm
(14")
1-1/2"
SPUD
673mm
(26-1/2")
400mm
(15-3/4")
381mm
(15")
FINISHED
FLOOR
150mm
(5-7/8")
13mm
(1/2")
254mm
(10")
NOTES:
PRODUCT 2234 SHOWN, 2623 SAME EXCEPT WITH SLOTTED RIM FOR BED PAN HOLDING.
TO COMPLY WITH AREA CODE GOVERNING THE HEIGHT OF VACUUM BREAKER ON THE FLUSHOMETER VALVE, THE PLUMBER MUST VERIFY
DIMENSIONS SHOWN FOR SUPPLY ROUGHING.
THIS TOILET DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 254MM (10") AND A MAXIMUM DIMENSION OF 305MM (12") FROM
FINISHED WALL TO C/L OF OUTLET.
FLUSHOMETER VALVE NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY. FLUSHOMETER VALVE REQUIREMENTS
FOR 12" (305MM) ROUGH-IN: SWEAT EXTENSION NIPPLE IS REQUIRED. REFER TO VALVE MANUFACTURER AND LOCAL CODES.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
362mm
(14-1/4")
C/L OF OUTLET
M110
254mm
(10")
© 2018 AS America Inc.
spec_2234-2623-2624.001MaderaFW15elFlushomtr Rev 10/18
