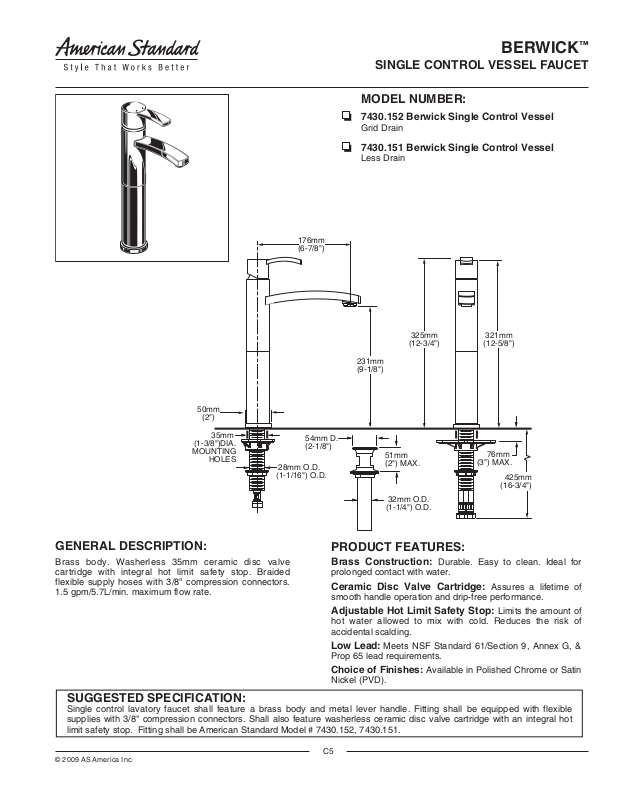

Page 1
GENERAL DESCRIPTION:
Brass body. Washerless 35mm ceramic disc valve
cartridge with integral hot limit safety stop. Braided
flexible supply hoses with 3/8" compression connectors.
1.5 gpm/5.7L/min. maximum flow rate.
PRODUCT FEATURES:
Brass Construction: Durable. Easy to clean. Ideal for
prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
smooth handle operation and drip-free performance.
Adjustable Hot Limit Safety Stop: Limits the amount of
hot water allowed to mix with cold. Reduces the risk of
accidental scalding.
Low Lead: Meets NSF Standard 61/Section 9, Annex G, &
Prop 65 lead requirements.
Choice of Finishes: Available in Polished Chrome or Satin
Nickel (PVD).
MODEL NUMBER:
7430.152 Berwick Single Control Vessel
Grid Drain
7430.151 Berwick Single Control Vessel
Less Drain
SUGGESTED SPECIFICATION:
Single control lavatory faucet shall feature a brass body and metal lever handle. Fitting shall be equipped with flexible
supplies with 3/8" compression connectors. Shall also feature washerless ceramic disc valve cartridge with an integral hot
limit safety stop. Fitting shall be American Standard Model # 7430.152, 7430.151.
176mm
(6-7/8")
325mm
(12-3/4")
321mm
(12-5/8")
50mm
(2")
231mm
(9-1/8")
28mm O.D.
(1-1/16") O.D.
35mm
(1-3/8")DIA.
MOUNTING
HOLES
54mm D.
(2-1/8")
51mm
(2") MAX.
76mm
(3") MAX.
32mm O.D.
(1-1/4") O.D.
425mm
(16-3/4")
SINGLE CONTROL VESSEL FAUCET
BERWICK
™
© 2009 AS A meric a Inc.
C5
Page 2
BERWICK
Product
Number
Description
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
NSF 61/Section 9 and Annex G
CSA B 125
7430.152
Berwick Single Control Monoblock faucet with grid drain.
Berwick Single Control Monoblock faucet less drain.
7430.151
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
PVD
Satin Nickel
295
Finish Options
Polished
Chrome
002
FLOW RATE*
GALLONS PER MINUTE
I N L E T P R ES SU R E ( P S I)
*Flow rates shown are for mixed hot and cold.
0.0
0.5
1.0
1.5
2.0
10080604020
™
SINGLE CONTROL VESSEL FAUCET
© 2009 AS A meric a Inc.
C6
