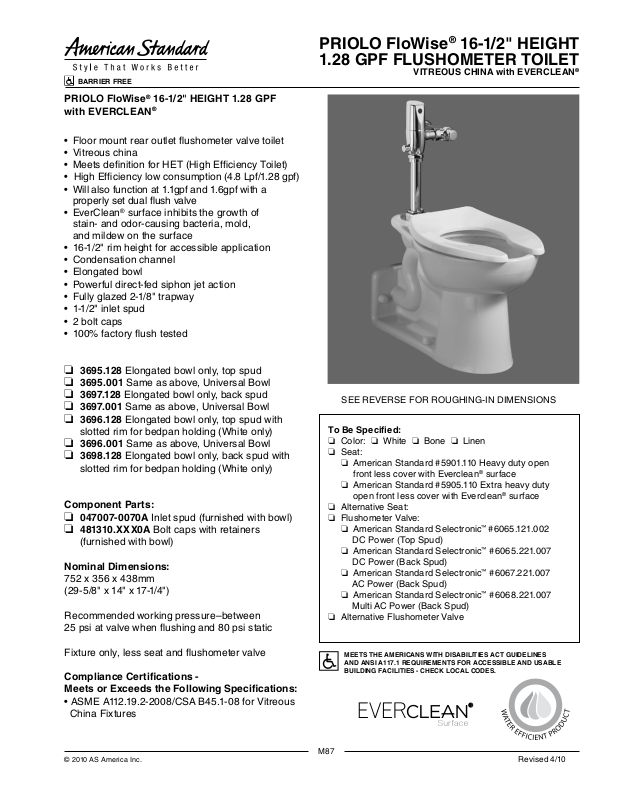

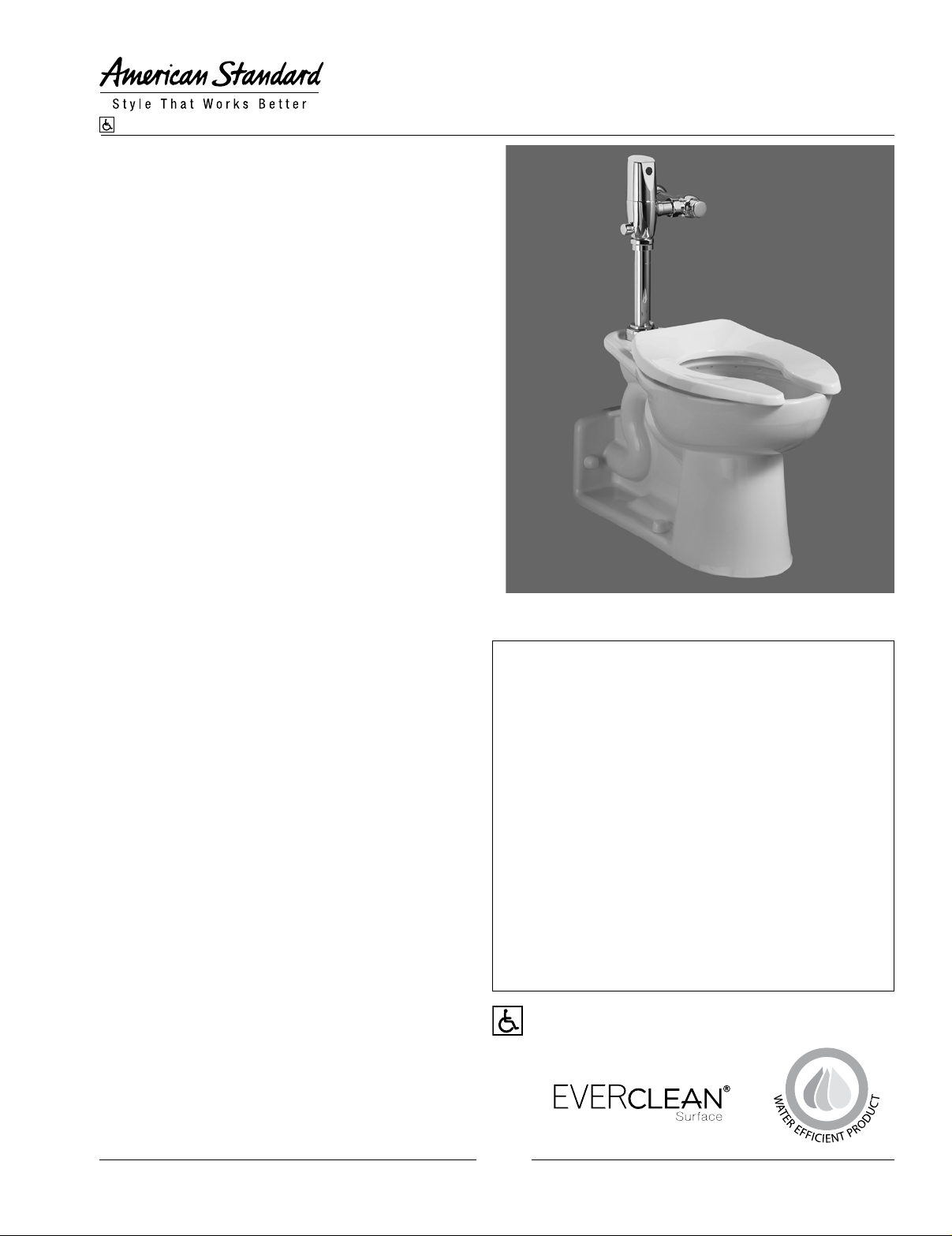

PRIOLO FloWise® 16-1/2" HEIGHT
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE
BUILDING FACILITIES - CHECK LOCAL CODES.
BARRIER FREE
1.28 GPF FLUSHOMETER TOILET
VITREOUS CHINA with EVERCLEAN
®
PRIOLO FloWise® 16-1/2" HEIGHT 1.28 GPF
with EVERCLEAN
®
• Floor mount rear outlet ushometer valve toilet
• Vitreous china
• Meets denition for HET (High Efciency Toilet)
• High Efciency low consumption (4.8 Lpf/1.28 gpf)
• Will also function at 1.1gpf and 1.6gpf with a
properly set dual ush valve
• EverClean® surface inhibits the growth of
stain- and odor-causing bacteria, mold,
and mildew on the surface
• 16-1/2" rim height for accessible application
• Condensation channel
• Elongated bowl
• Powerful direct-fed siphon jet action
• Fully glazed 2-1/8" trapway
• 1-1/2" inlet spud
• 2 bolt caps
• 100% factory ush tested
❏ 3695.128 Elongated bowl only, top spud
❏ 3695.001 Same as above, Universal Bowl
❏ 3697.128 Elongated bowl only, back spud
❏ 3697.001 Same as above, Universal Bowl
❏ 3696.128 Elongated bowl only, top spud with
slotted rim for bedpan holding (White only)
❏ 3696.001 Same as above, Universal Bowl
❏ 3698.128 Elongated bowl only, back spud with
slotted rim for bedpan holding (White only)
Component Parts:
❏ 047007-0070A Inlet spud (furnished with bowl)
❏ 481310.XXX0A Bolt caps with retainers
(furnished with bowl)
Nominal Dimensions:
752 x 356 x 438mm
(29-5/8" x 14" x 17-1/4")
Recommended working pressure–between
25 psi at valve when ushing and 80 psi static
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
To Be Specied:
❏ Color: ❏ White ❏ Bone ❏ Linen
❏ Seat:
❏ American Standard #5901.110 Heavy duty open
front less cover with Everclean® surface
❏ American Standard #5905.110 Extra heavy duty
open front less cover with Everclean® surface
❏ Alternative Seat:
❏ Flushometer Valve:
❏
American Standard Selectronic™ #6065.121.002
DC Power (Top Spud)
❏American Standard Selectronic™ #6065.221.007
DC Power (Back Spud)
❏American Standard Selectronic™ #6067.221.007
AC Power (Back Spud)
❏American Standard Selectronic™ #6068.221.007
Multi AC Power (Back Spud)
❏ Alternative Flushometer Valve
Fixture only, less seat and ushometer valve
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008/CSA B45.1-08 for Vitreous
China Fixtures
© 2010 AS America Inc.
M87
Revised 4/10
Page 2
BARRIER FREE
711mm
(28")
121mm
(4-3/ 4")
240mm
(9-1/ 2")
152mm
(6")
102mm
(4")
419mm
(16-1 /2)
470mm
(18-1 /2")
356mm
(14")
13mm
(1/2" )
345mm
(13-5 /8")
646mm
(25-3 /8")
60m m
(2- 3/8")
136 mm
(5- 3/8")
752 mm
(29 -5/8")
C/L O F SEAT PO ST HOLES
140mm (5-1/2") CENTERS
FINIS HED WALL
1" N. P.T. OR 1 " C.W.T. SUPPLY
TO FL USH VALVE
(SUGG ESTED)
C/L OF 1/ 2”
DIA . HOLE S
1-1/ 2"
SPUD
FINIS HED
FLOOR
13mm x 25mm
slots
(1/2" x 1")
217mm
(8-1/ 2")
102mm
(4")
C/L OF
WAST E
OUTL ET

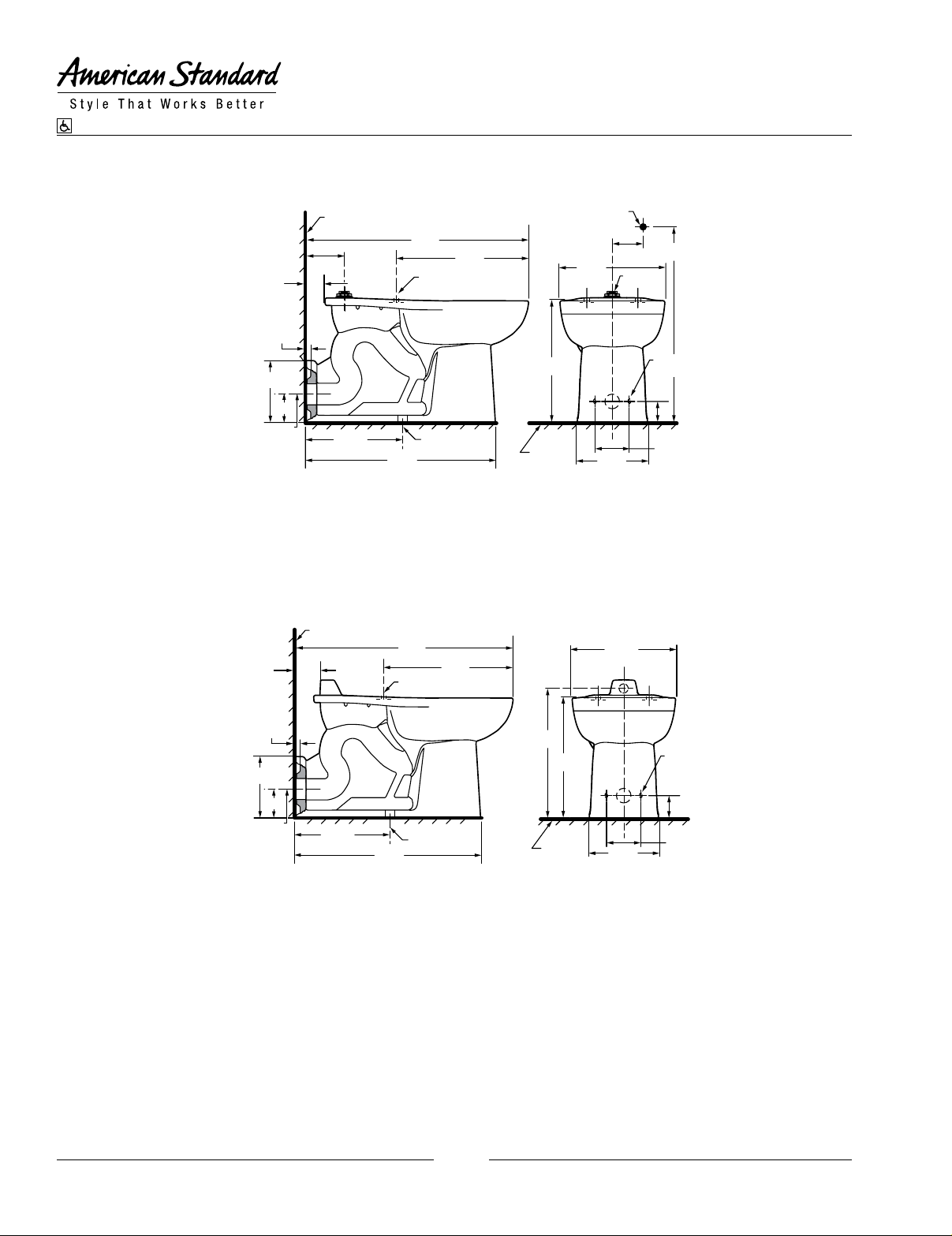

DIMENSIONS (Nominal) NOTE: Distance from floor to closet
flange centerline (rough-in) must be 4" (102 mm) with flange
surface flush to 1/16" (1.6mm) max. beyond finished wall.
DIMENSIONS (Nominal) NOTE: Distance from floor to closet
flange centerline (rough-in) must be 4" (102 mm) with flange
surface flush to 1/16" (1.6mm) max. beyond finished wall.
240mm
(9-1/ 2")
419mm
(16-1 /2")
438mm
(17-1 /4")
356mm
(14")
470mm
(18-1 /2")
217mm
(8-1/ 2")
102mm
(4")
112m m
(4-3 /8")
752m m
(29- 5/8")
C/L O F SEAT PO ST HOLES
140mm (5-1/2") CENTERS
FINIS HED WALL
C/L OF
WAST E
OUTL ET
152mm
(6")
102mm
(4")
FINIS HED
FLOOR
13mm
(1/2" )
13mm x 25mm
slots
(1/2" x 1")
345mm
(13-5 /8")
646mm
(25-3 /8")
C/L OF 1/ 2”
DIA . HOLE S
3695.128/3696.128
3695.001/3696.001
PRIOLO FloWise® 16-1/2" HEIGHT
1.28 GPF FLUSHOMETER TOILET
VITREOUS CHINA with EVERCLEAN
®
3697.128/3698.128
3697.001
© 2010 AS America Inc.
NOTES:
PRODUCTS 3695 AND 3696 SHOWN, 3697 AND 3698.160 SAME AS
EXCEPT WITH SLOTTED RIM FOR BED PAN HOLDING.
TO COMPLY WITH AREA CODE GOVERNING THE HEIGHT OF VACUUM
BREAKER ON THE FLUSHOMETER VALVE, THE PLUMBER MUST
VERIFY DIMENSIONS SHOWN FOR SUPPLY ROUGHING.
FLUSHOMETER VALVE NOT INCLUDED WITH FIX TURE AND MUST BE
ORDERED SEPARATELY. FLUSHOMETER VALVE REQUIREMENTS FOR
12" (305MM) ROUGH-IN: SWEAT EXTENSION NIPPLE IS REQUIRED.
REFER TO VALVE MANUFACTURER AND LOCAL CODES.
IMPORTANT: Dimensions of xtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
