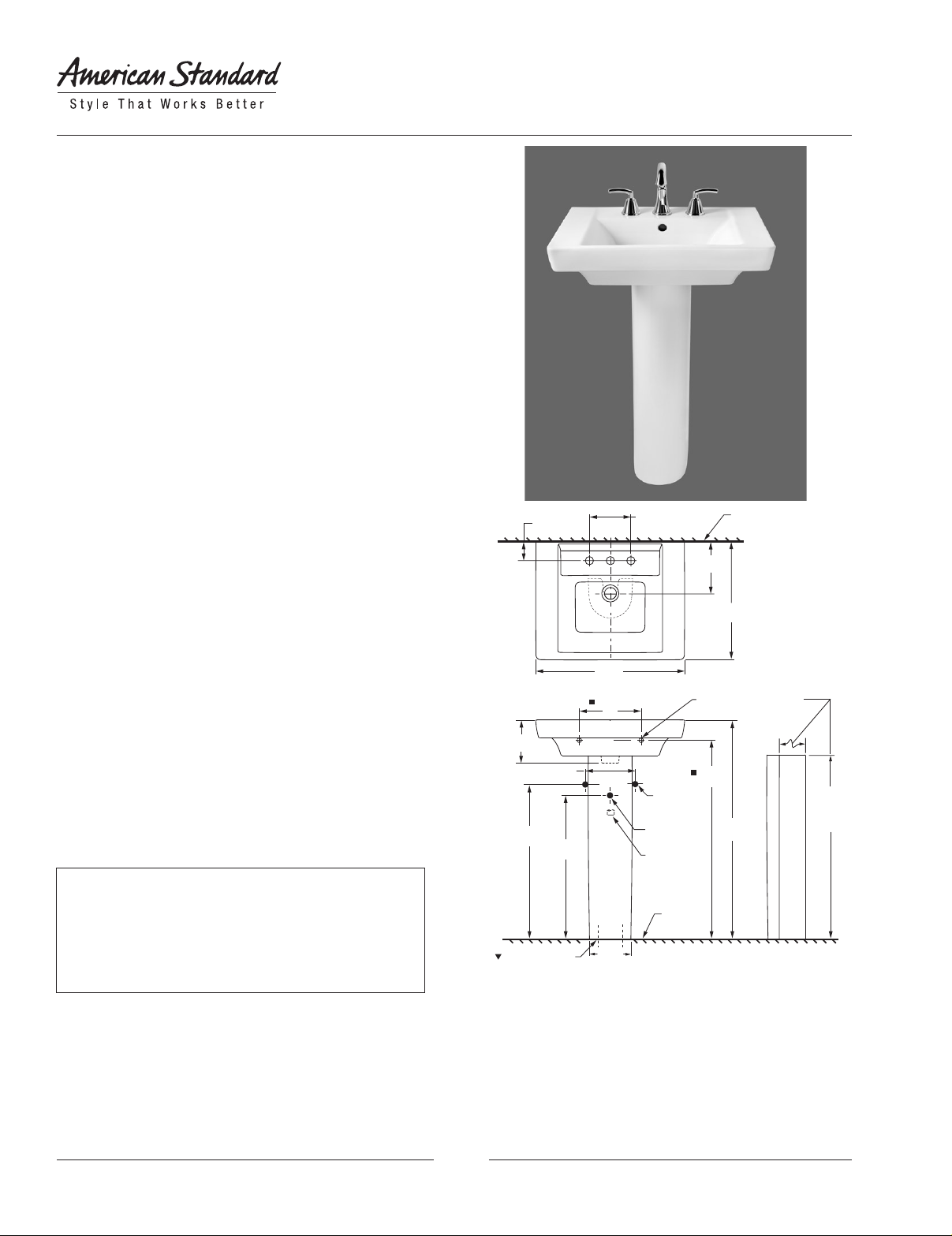

FIN ISHED
WAL L
483 mm
(19 )
610mm
(24)
73mm
(3)
203mm
(8)
221mm
(8-3/4)
254mm
(10)
178mm
(7)
13mm
(1/2) DIA.
HOLES FOR
ANCHOR BOLTS
902mm
(35-1/2)
760mm
(30)
OPEN
TO
FLOOR
*
636mm
(25)
*
591mm
(23-1/4)
170mm
(6-3/4)
203mm
(8)
SUPPLIES
AS
REQUIRED
DRAIN
CHASE
1-1 /4 O.D .
WAS TE
1-1 /4 O.D .
TAI LPIECE
FIN ISHED
FLO OR
817mm
(32-1/4)
PEDESTAL
SIDE SECTION
9-1 /2mm ( 3/8)D IA.
BAS E ANCH OR
SCR EW HOL ES

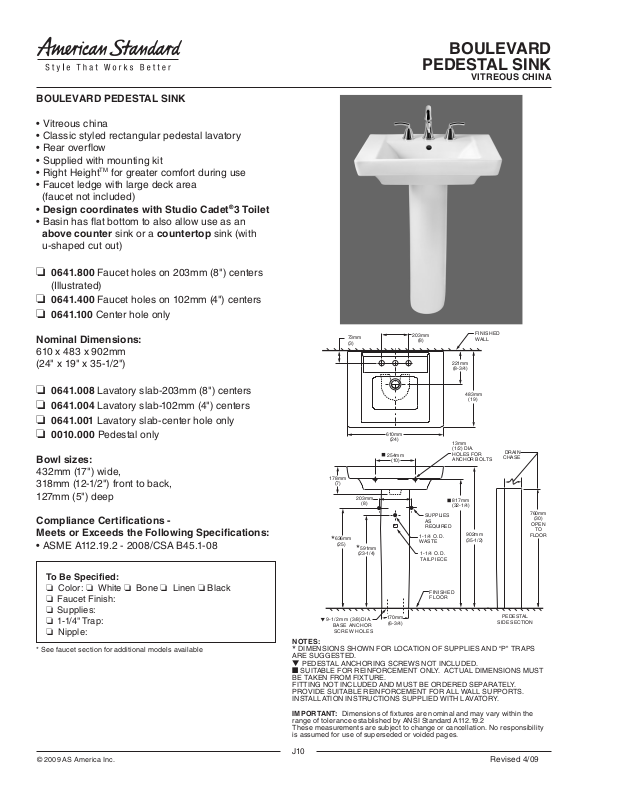

BOULEVARD PEDESTAL SINK
• Vitreous china
• Classic styled rectangular pedestal lavatory
• Rear overow
• Supplied with mounting kit
• Right HeightTM for greater comfort during use
• Faucet ledge with large deck area
(faucet not included)
• Design coordinates with Studio Cadet®3 Toilet
• Basin has at bottom to also allow use as an
above counter sink or a countertop sink (with
u-shaped cut out)
❏ 0641.800 Faucet holes on 203mm (8") centers
(Illustrated)
❏ 0641.400 Faucet holes on 102mm (4") centers
❏ 0641.100 Center hole only
Nominal Dimensions:
610 x 483 x 902mm
(24" x 19" x 35-1/2")
BOULEVARD
PEDESTAL SINK
VITREOUS CHINA
❏ 0641.008 Lavatory slab-203mm (8") centers
❏ 0641.004 Lavatory slab-102mm (4") centers
❏ 0641.001 Lavatory slab-center hole only
❏ 0010.000 Pedestal only
Bowl sizes:
432mm (17") wide,
318mm (12-1/2") front to back,
127mm (5") deep
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2 - 2008/CSA B45.1-08
To Be Specied:
❏ Color: ❏ White ❏ Bone ❏ Linen ❏ Black
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
❏ Nipple:
* See faucet section for additional models available
© 2009 AS America Inc.
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P" TR APS
*
ARE SUGGESTED.
▼ PEDESTAL ANCHORING SCREWS NOT INCLUDED.
■ SUITABLE FOR REINFORCEMENT ONLY. ACTUAL DIMENSIONS MUST
BE TAKEN FROM FIXTURE.
FITTING NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
INSTALLATION INSTRUCTIONS SUPPLIED WITH LAVATORY.
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerance established by ANSI Standard A112.19.2
These measurements are subject to c hange or cancellation. No responsibility
is assumed for use of superseded or voided pages.
