8888.044
DescriptionModel # Finishes
.002
JASMINE BRASS DIVERTER
TUB SPOUT
•1/2" IPS Connection
• All Brass Construction
Polished Chrome
.068
Blackened Bronze (PVD))
.295
Satin Nickel (PVD)

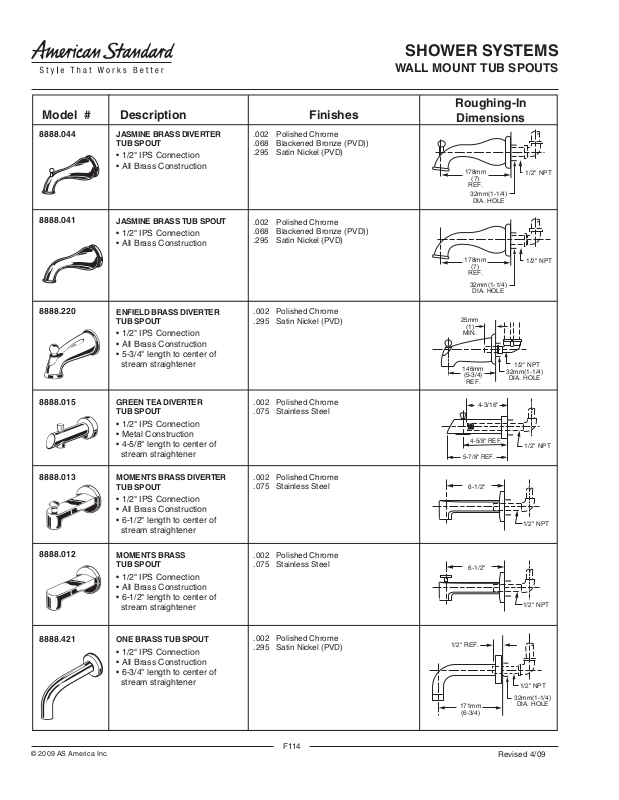

SHOWER SYSTEMS
WALL MOUNT TUB SPOUTS
Roughing-In
Dimensions
178mm
(7)
REF.
32mm(1-1/4)
DIA. HOLE
1/2" NPT
8888.041
8888.220
8888.015
8888.013
JASMINE BRASS TUB SPOUT
• 1/2" IPS Connection
• All Brass Construction
ENFIELD BRASS DIVERTER
TUB SPOUT
• 1/2" IPS Connection
• All Brass Construction
• 5-3/4" length to center of
stream straightener
GREEN TEA DIVERTER
TUB SPOUT
• 1/2" IPS Connection
• Metal Construction
• 4-5/8" length to center of
stream straightener
MOMENTS BRASS DIVERTER
TUB SPOUT
• 1/2" IPS Connection
• All Brass Construction
• 6-1/2" length to center of
stream straightener
.002
Polished Chrome
.068
Blackened Bronze (PVD))
.295
Satin Nickel (PVD)
.002
Polished Chrome
.295
Satin Nickel (PVD)
.002
Polished Chrome
.075
Stainless Steel
.002
Polished Chrome
.075
Stainless Steel
178mm
(7)
REF.
32mm(1-1/4)
DIA. HOLE
25mm
(1)
MIN.
146mm
(5-3/4)
REF.
4-3/16"
4-5/8" REF.
5-7/8" REF.
6-1/2"
1/2" NPT
1/2" NPT
32mm(1-1/4)
DIA. HOLE
1/2" NPT
1/2" NPT
8888.012
8888.421
© 2009 AS America Inc.
MOMENTS BRASS
TUB SPOUT
• 1/2" IPS Connection
• All Brass Construction
• 6-1/2" length to center of
stream straightener
ONE BRASS TUB SPOUT
• 1/2" IPS Connection
• All Brass Construction
• 6-3/4" length to center of
stream straightener
.002
Polished Chrome
.075
Stainless Steel
.002
Polished Chrome
.295
Satin Nickel (PVD)
F114
6-1/2"
1/2" REF.
171mm
(6-3/4)
1/2" NPT
1/2" NPT
32mm(1-1/4)
DIA. HOLE
Revised 4/09
Page 2
DescriptionModel # Finishes
8888.315 .002
TOWN SQUARE BRASS
DIVERTER TUB SPOUT
• 1/2" IPS Connection
• All Brass Construction
• 7-1/4" length to center of
stream straightener.
.068
.295
Polished Chrome
Blackened Bronze (PVD)
Satin Nickel (PVD)
SHOWER SYSTEMS
WALL MOUNT TUB SPOUTS
Roughing-In
Dimensions
25mm
(1)
MIN.
1/2" NPT
184mm
(7-1/4)
REF.
32mm(1-1/4)
DIA. HOLE
8888.427 .002
TOWN SQUARE BRASS
TUB SPOUT
• 1/2" IPS Connection
.068
.295
• All Brass Construction
• 7-1/4" length to center of
stream straightener.
8888.017
COPELAND SLIP-ON DIVERTER
TUB SPOUT
• For 1/2" Copper Pipe
.002
.068
.295
• Metal Construction
• 4-7/8" length to center of
stream straightener.
8888.054
TROPIC SLIP-ON DIVERTER
TUB SPOUT
.002
.295
• For 1/2" Copper Pipe
• Metal Construction
• 5-1/8" length to center of
stream straightener.
8888.033
DELUXE 5" BRASS TUB SPOUT
• 1/2" IPS Connection
.002
.295
• All Brass Construction
Polished Chrome
Blackened Bronze (PVD)
Satin Nickel (PVD)
Polished Chrome
Blackened Bronze (PVD)
Satin Nickel (PVD)
Polished Chrome
Satin Nickel (PVD)
Polished Chrome
Satin Nickel (PVD)
25mm
MIN.
124mm
(4-7/8)
25mm
MIN
130mm
(
5-1/8)
25mm
(1)
MIN.
184mm
(7-1/4)
REF.
(1)
REF.
(
1)
REF.
127mm
(5)
REF.
1/2" NPT
32mm(1-1/4)
DIA. HOLE
1/2" COPPER
FOR SLIP-ON
SPOUT
1/2" COPPER
1/2" I.P.S.
32mm(1-1/4)
DIA HOLE
8888.022
© 2009 AS America Inc.
DELUXE 5-1/8" BRASS DIVERTER
TUB SPOUT
• 1/2" IPS Connection
• All Brass Construction
.002
Polished Chrome
.295
Satin Nickel (PVD)
F115
127mm
(5)
REF
1/2" I.P.S.
32mm(1-1/4)
DIA HOLE
Revised 4/09
Page 3
8888.055
DescriptionModel # Finishes
DELUXE 4" DIVERTER TUB SPOUT
• 1/2" IPS Connection
• Metal Construction
SLIP-ON NON DIVERTER TUB SPOUT8888.056
• For 1/2" Copper Pipe
• Metal Construction
.002
Polished Chrome
.295
Satin Nickel (PVD)
.002
Polished Chrome
.295
Satin Nickel (PVD)
SHOWER SYSTEMS
WALL MOUNT TUB SPOUTS
Roughing-In
Dimensions
130mm
(5-1/8)
REF.
130mm
(5-1/8)
REF.
1/2" COPPER
32mm(1-1/4)
DIA HOLE
1/2" COPPER
32mm(1-1/4)
DIA HOLE
8888.026
STANDARD 4" DIVERTER TUB SPOUT8888.025
• 1/2" IPS Connection
• Metal Construction
SLIP-ON 4" DIVERTER TUB SPOUT
• For 1/2" Copper Water Tube
• Metal Construction
.002
Polished Chrome
.295
Satin Nickel (PVD)
.002 Polished Chrome
121mm
(4-3/4)
REF.
1/2"SPOUT
NIPPLE
32mm(1-1/4)
DIA HOLE
© 2009 AS America Inc.
F116
Revised 4/09
