American Standard ASD6973 Specifications

Download

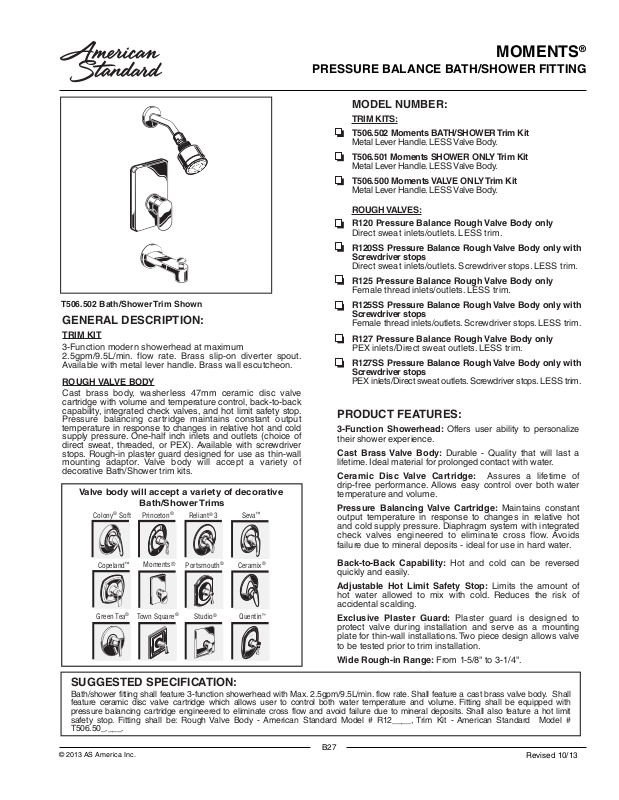

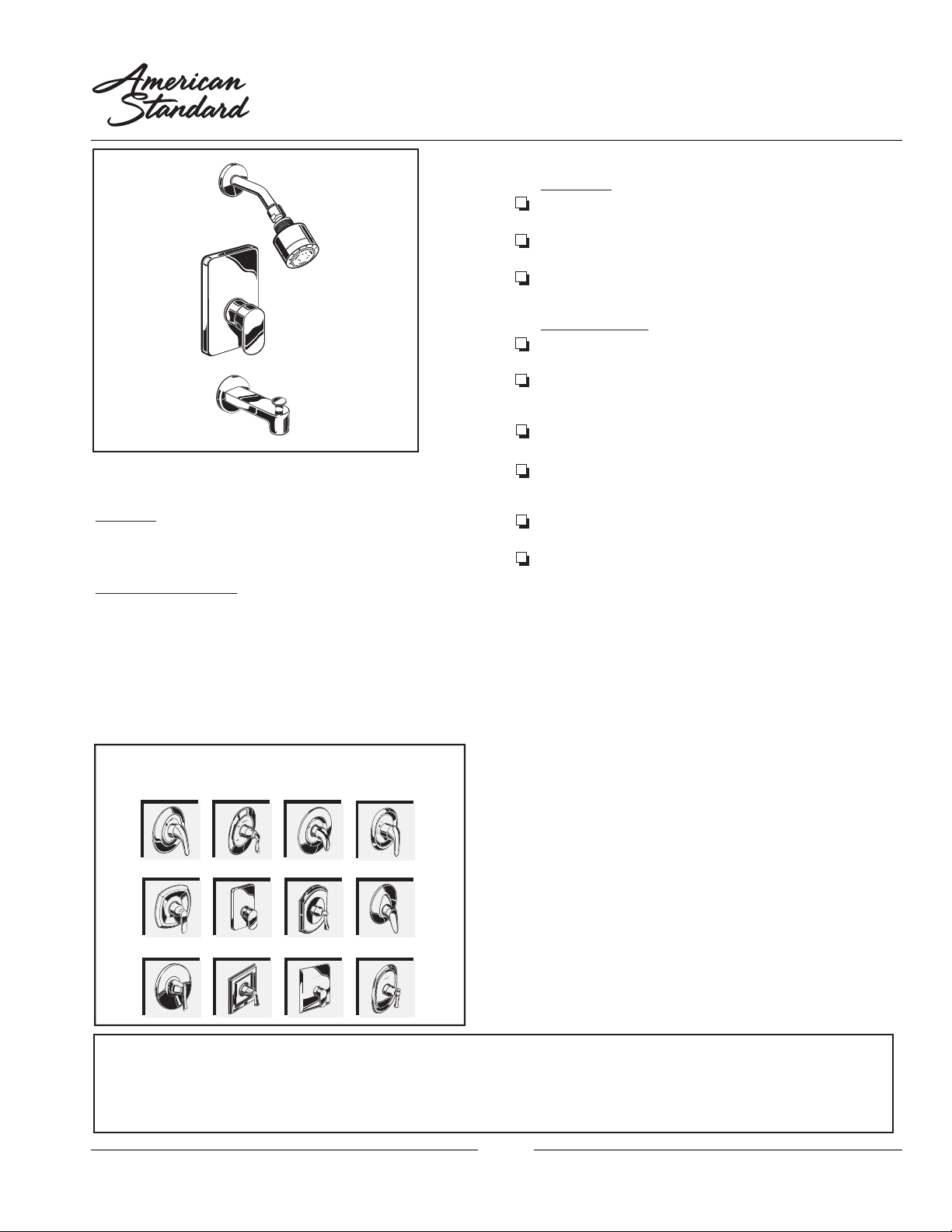

Page 1

T506.502 Bath/Shower Trim Shown

GENERAL DESCRIPTION:

TRIM KIT

3-Function modern showerhead at maximum

2.5gpm/9.5L/min. flow rate. Brass slip-on diverter spout. Available with metal lever handle. Brass wall escutcheon.

ROUGH VALVE BODY

Cast brass body, washerless 47mm ceramic disc valve cartridge with volume and temperature control, back-to-back capability, integrated check valves, and hot limit safety stop. Pressure balancing cartridge maintains constant output temperature in response to changes in relative hot and cold supply pressure. One-half inch inlets and outlets (choice of direct sweat, threaded, or PEX). Available with screwdriver stops. Rough-in plaster guard designed for use as thin-wall mounting adaptor. Valve body will accept a variety of decorative Bath/Shower trim kits.

Valve body will accept a variety of decorative

Bath/Shower Trims

Colony® Soft

Princeton

Reliant® 3

Seva

™

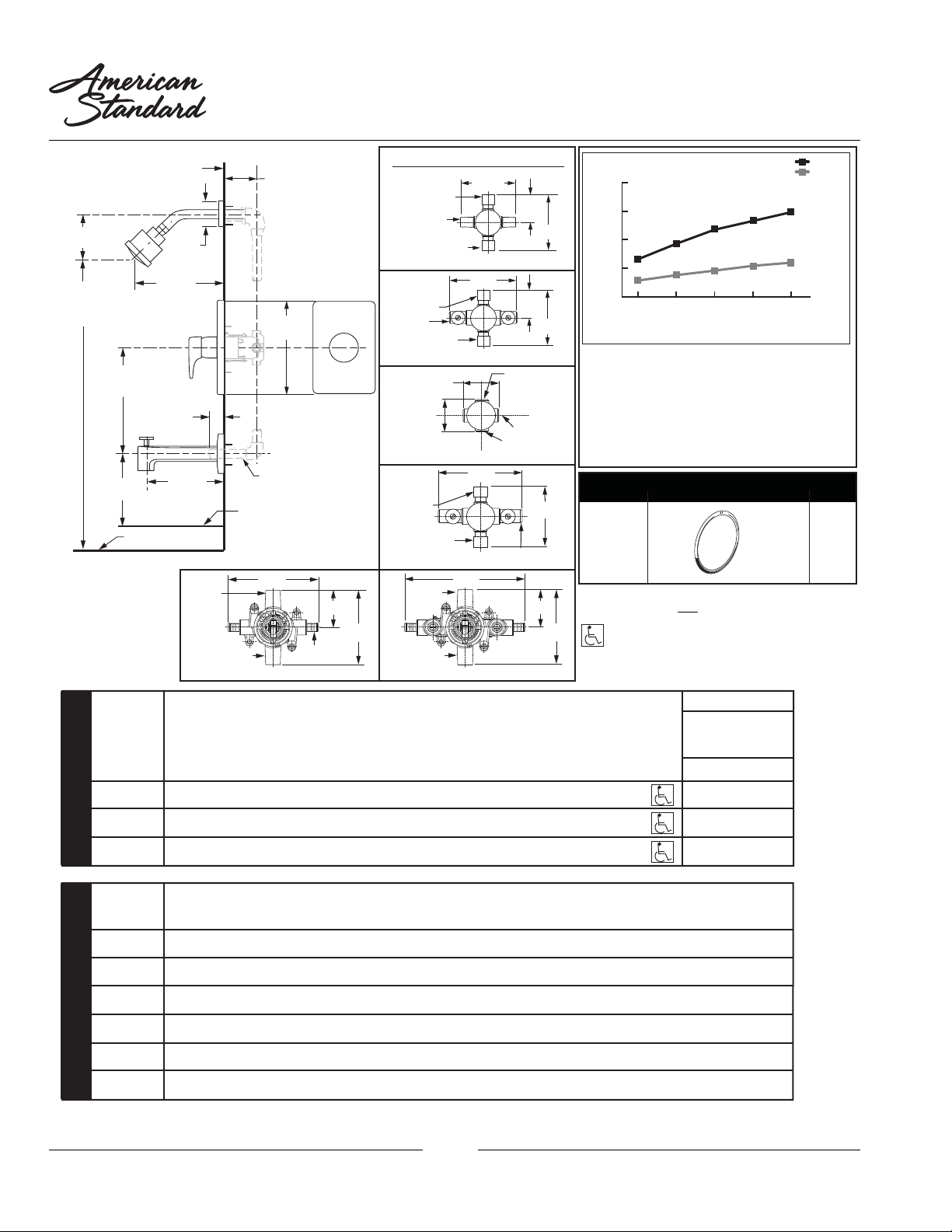

MOMENTS

PRESSURE BALANCE BATH/SHOWER FITTING

MODEL NUMBER:

TRIM KITS: T506.502 Moments BATH/SHOWER Trim Kit

Metal Lever Handle. LESS Valve Body.

T506.501 Moments SHOWER ONLY Trim Kit

Metal Lever Handle. LESS Valve Body.

T506.500 Moments VALVE ONLY Trim Kit

Metal Lever Handle. LESS Valve Body.

ROUGH VALVES: R120 Pressure Balance Rough Valve Body only

Direct sweat inlets/outlets. LESS trim.

R120SS Pressure Balance Rough Valve Body only with Screwdriver stops

Direct sweat inlets/outlets. Screwdriver stops. LESS trim.

R125 Pressure Balance Rough Valve Body only

Female thread inlets/outlets. LESS trim.

R125SS Pressure Balance Rough Valve Body only with Screwdriver stops

Female thread inlets/outlets. Screwdriver stops. LESS trim.

R127 Pressure Balance Rough Valve Body only

PEX inlets/Direct sweat outlets. LESS trim.

R127SS Pressure Balance Rough Valve Body only with Screwdriver stops

PEX inlets/Direct sweat outlets. Screwdriver stops. LESS trim.

PRODUCT FEATURES:

3-Function Showerhead: Offers user ability to personalize

their shower experience.

Cast Brass Valve Body: Durable - Quality that will last a lifetime. Ideal material for prolonged contact with water.

Ceramic Disc Valve Cartridge: Assures a lifetime of drip-free performance. Allows easy control over both water temperature and volume.

Pressure Balancing Valve Cartridge: Maintains constant output temperature in response to changes in relative hot and cold supply pressure. Diaphragm system with integrated check valves engineered to eliminate cross flow. Avoids failure due to mineral deposits - ideal for use in hard water.

Copeland

™

Moments

Portsmouth

Ceramix

Back-to-Back Capability: Hot and cold can be reversed quickly and easily.

Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.

Green Tea

Town Square

Studio

Quentin

™

Exclusive Plaster Guard: Plaster guard is designed to protect valve during installation and serve as a mounting

F F O

plate for thin-wall installations. Two piece design allows valve to be tested prior to trim installation.

Wide Rough-in Range: From 1-5/8" to 3-1/4".

SUGGESTED SPECIFICATION:

Bath/shower fitting shall feature 3-function showerhead with Max. 2.5gpm/9.5L/min. flow rate. Shall feature a cast brass valve body. Shall feature ceramic disc valve cartridge which allows user to control both water temperature and volume. Fitting shall be equipped with pressure balancing cartridge engineered to eliminate cross flow and avoid failure due to mineral deposits. Shall also feature a hot limit safety stop. Fitting shall be: Rough Valve Body - American Standard Model # R12____, Trim Kit - American Standard Model # T506.50_.___.

B27

Revised 10/13

Page 2

MOMENTS

PRESSURE BALANCE BATH/SHOWER FITTING

VALVE BODY OPTIONS

SHR. 1/2" NOM.

COPPER SWEAT

INLETS 1/2" NOM. COPPER SWEAT

TUB 1/2" NOM.

COPPER SWEAT

SHR. 1/2" NOM.

COPPER SWEAT

INLETS

1/2" NPT

TUB 1/2" NOM.

COPPER SWEAT

(3-3/8")

SHR.

1/2" NOM.

COPPER

SWEAT

TUB 1/2" NOM.

COPPER SWEAT

1/2" NOM.

COPPER

SWEAT

104mm

TUB 1/2" NOM.

COPPER SWEAT

5-5/8" REF.

(143mm)

74"

FOR HEAD

CLEARANCE

(1880mm)

(457mm)

OPTIONAL

(102mm)

FINISHED WALL

2-3/8" (60mm)

215mm (8-1/2")

REF.

18"

1-1/2" REF.

(38mm)

6-1/2"

(165mm)

BOTTOM OF TUB

SHR.

1/2" NOM.

COPPER

SWEAT

TUB 1/2" NOM.

COPPER SWEAT

3/4" TO 2-3/8" (19mm-60mm)

SHR

(213mm)

TUB

1/2" COPPER

TOP O F

TUB RIM

109mm (4-1/4")

PEX (R127)

8-3/8"

1/2" PEX INLETS

52mm

(2-1/32")

(ASTM F1807)

(4-1/16")

Product Number

Description

T506.502 Bath/Shower Trim Kit. Metal Lever Handle. LESS Valve Body.

TRIM KITS *

T506.501 Shower Only Trim Kit. Metal Lever Handle. LESS Valve Body.

T506.500 Valve Only Trim Kit. Metal Lever Handle. LESS Valve Body.

INLETS 103mm

(4-1/16")

51.5mm

(2-1/32")

SWEAT (R120)

149mm (5-7/8")

SWEAT (STOPS) (R120SS)

INLETS

86mm

(3-3/8")

86mm

THREADED (R125)

149mm (5-7/8")

THREADED (STOPS) (R125SS)

165mm (6-1/2")

SHR.

PEX (STOPS) (R127SS)

51mm

(2")

SHR 1/2" NPT

INLETS

1/2" NPT TUB PORT 1/2" NPT

INLETS 1/2" NPT

52mm

(2-1/32")

1/2" PEX INLETS

(ASTM F1807)

FLOW RATE*

103 mm (4-1/16")

GALLONS PER MINUTE

103mm

(4-1/16")

*Flow rates shown are for mixed hot and cold.

INLET PRESSURE (PSI)

CODES AND STANDARDS

These products meet or exceed the following codes and standards:

ANSI A 117.1 ASSE 1016 ASME A112.18.1 CSA B 125

Modifications

86mm

(3-3/8")

Factory Installed Decal Ring (Red/Blue)

*To modify a product, add suffix after the 4th digit (ex. T064ITP502.002)

104mm

(4-1/16")

Meets the American Disabilities Act Guidelines and ANSI A117.1 Requirements for the physically challenged.

Finish Options

Polished

Chrome

002

10080604020

Spout Shower

Parts

Suffix*

___WD

Product Number

R120

R120SS

R125

R125SS

R127

ROUGH VALVE BODIES

R127SS

Description

Rough Valve Body less trim. Direct Sweat inlets/outlets.

Rough Valve Body less trim. Direct Sweat inlets/outlets with Screwdriver Stops.

Rough Valve Body less trim. Female Thread inlets/outlets.

Rough Valve Body less trim. Female Thread inlets/outlets with Screwdriver Stops.

Rough Valve Body less trim. PEX inlets/ Direct Sweat outlets.

Rough Valve Body less trim. PEX inlets/ Direct Sweat outlets with Screwdriver Stops.

* TRIM & ROUGH MUST BE ORDERED SEPARATELY.

B28

Revised 10/13
