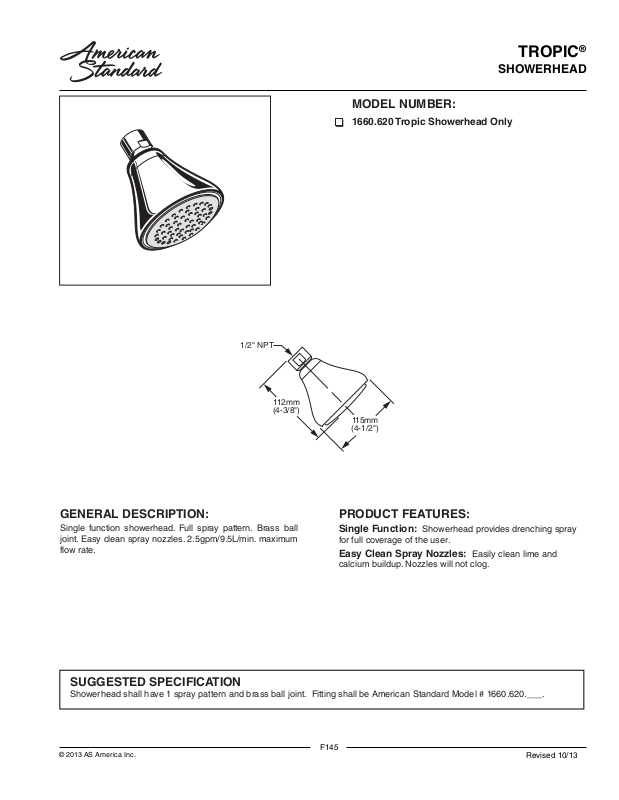

Page 1
SHOWERHEAD
MODEL NUMBER:
1660.620 Tropic Showerhead Only
TROPIC
®
1/2" NPT
112mm
(4-3/8")
GENERAL DESCRIPTION:
Single function showerhead. Full spray pattern. Brass ball
joint. Easy clean spray nozzles. 2.5gpm/9.5L/min. maximum
flow rate.
115mm
(4-1/2")
PRODUCT FEATURES:
Single Function: Showerhead provides drenching spray
for full coverage of the user.
Easy Clean Spray Nozzles: Easily clean lime and
calcium buildup. Nozzles will not clog.
SUGGESTED SPECIFICATION
Showerhead shall have 1 spray pattern and brass ball joint. Fitting shall be American Standard Model # 1660.620.___.
© 2013 AS America Inc.
F145
Revised 10/13
Page 2
TROPIC
SHOWERHEAD
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA 125.1
Product
Number
1660.620
Description
Tropic® Showerhead Only
3.0
2.5
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0
FLOW RATE
80 100604020
INLET PRESSURE (PSI)
Finish
Polished
Chrome
002
Showerhead Accessories
Product
Number
1660.240
1660.241
1660.242
© 2013 AS America Inc.
Description
Standard Shower Arm and Flange
Modern Shower Arm and Flange
Square Cast Shower Arm
F146
Revised 10/13
