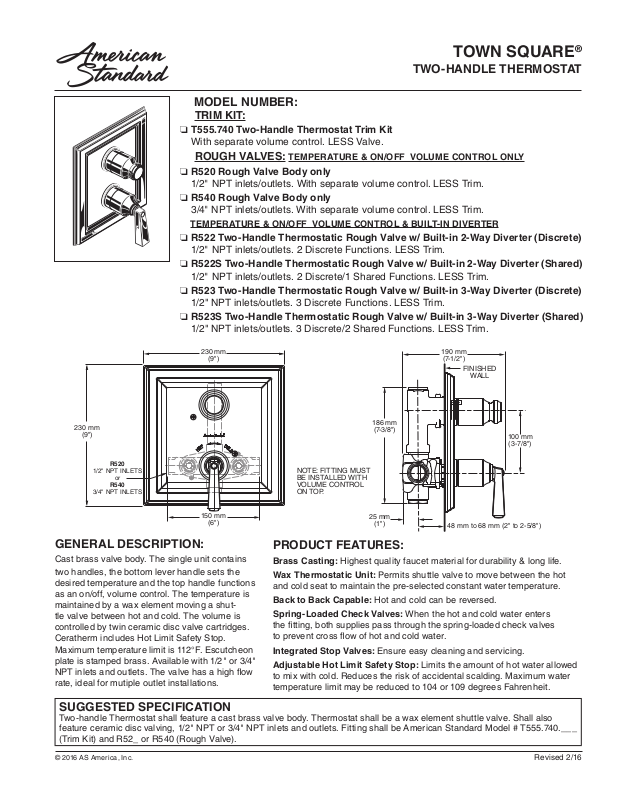

TOWN SQUARE

®

TWO-HANDLE THERMOSTAT

MODEL NUMBER:

TRI M K I T:

❏ T555.740 Two-Handle Thermostat Trim Kit

With separate volume control. LESS Valve.

ROUGH VALVES: TEMPERATURE & ON/OFF VOLUME CONTROL ONLY

❏ R520 Rough Valve Body only

1/2" NPT inlets/outlets. With separate volume control. LES S Trim.

❏ R540 Rough Valve Body only

3/4" NPT inlets/outlets. With separate volume control. LESS Tr i m.

TEMPERATURE & ON/OFF VOLUME CONTROL & BUILT-IN DIVERTER

❏ R522 Two-Handle Thermostatic Rough Valve w/ Built-in 2-Way Diverter (Discrete)

1/2" NPT inlets/outlets. 2 Discrete Functions. LESS Trim.

❏ R522S Two-Handle Thermostatic Rough Valve w/ Built-in 2-Way Diverter (Shared)

1/2" NPT inlets/outlets. 2 Discrete/1 Shared Functions. LESS Trim.

❏ R523 Two-Handle Thermostatic Rough Valve w/ Built-in 3-Way Diverter (Discrete)

1/2" NPT inlets/outlets. 3 Discrete Functions. LESS Trim.

❏ R523S Two-Handle Thermostatic Rough Valve w/ Built-in 3-Way Diverter (Shared)

1/2" NPT inlets/outlets. 3 Discrete/2 Shared Functions. LESS Trim.

230 mm

(9")

230 mm

(9")

R520

1/2" NPT INLETS

or

R540

3/4" NPT INLETS

150 mm

(6")

GENERAL DESCRIPTION:

Cast brass valve body. The single unit contains
two handles, the bottom lever handle sets the

desired temperature and the top handle functions
as an on/off, volume control. The temperature is
maintained by a wax element moving a shut­tle valve between hot and cold. The volume is
controlled by twin ceramic disc valve cartridges.
Ceratherm includes Hot Limit Safety Stop.
Maximum temperature limit is 112°F. Escutcheon
plate is stamped brass. Available with 1/2" or 3/4"
NPT inlets and outlets. The valve has a high ow
rate, ideal for mutiple outlet installations.

190 mm

(7-1/2")

FINISHED

WALL

186 mm

NOTE: FITTING MUST
BE INSTALLED WITH
VOLUME CONTROL
ON TOP.

(7-3/8")

25 mm

(1")

48 mm to 68 mm (2" to 2-5/8")

100 mm

(3-7/8")

PRODUCT FEATURES:

Brass Casting: Highest quality faucet material for durability & long life.

Wax Thermostatic Unit: Permits shuttle valve to move between the hot

and cold seat to maintain the pre-selected constant water temperature.

Back to Back Capable: Hot and cold can be reversed.

Spring-Loaded Check Valves: When the hot and cold water enters

the tting, both supplies pass through the spring-loaded check valves
to prevent cross ow of hot and cold water.

Integrated Stop Valves: Ensure easy cleaning and servicing.

Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed

to mix with cold. Reduces the risk of accidental scalding. Maximum water
temperature limit may be reduced to 104 or 109 degrees Fahrenheit.

SUGGESTED SPECIFICATION

Two-handle Thermostat shall feature a cast brass valve body. Thermostat shall be a wax element shuttle valve. Shall also
feature ceramic disc valving, 1/2" NPT or 3/4" NPT inlets and outlets. Fitting shall be American Standard Model # T555.740.___
(Trim Kit) and R52_ or R540 (Rough Valve).

© 2016 AS America, Inc.

Revised 2/16

TOWN SQUARE

TWO-HANDLE THERMOSTAT

®

CODES AND STANDARDS

These products meet or exceed the following
codes and standards:

ASSE 1016
ASME A112.18 .1
CSA B125.1

** TRIM & ROUGH MUST BE ORDERED SEPARATELY. Finish Options

Product
Number

TRIM KITS **

T555.740*

Description

Two-Handle Thermostat Trim Kit with separate volume control.

FLOW RATE*

25

20

15

10

5

GALLONS PER MINUTE

0

*Flow rates shown are for mixed hot and cold.

INLET PRESSURE (PSI)

Polished

Chrome

002 224 295

Rubbed

Bronze

Oil

3/4"
1/2"

80604020

PVD

Satin

Nickel

Product
Number Description

R520*

R540*

R522

R522S

R523

ROUGH VALVE BODIES

R523S

Two-Handle Thermostatic Rough Valve – 1/2" NPT Inlets/Outlets. With separate volume control only.
1 Function. LESS Trim

Two-Handle Thermostatic Rough Valve – 3/4" NPT Inlets/Outlets. With separate volume control only.
1 Function. LESS Trim

Two-Handle Thermostatic Rough Valve with Built-in 2-Way Diverter. 1/2" NPT Inlets/Outlets.
2 Discrete Functions. LESS Trim.

Two-Handle Thermostatic Rough Valve with Built-in 2-Way Diverter. 1/2" NPT Inlets/Outlets.
2 Discrete/1 Shared Functions. LESS Trim.

Two-Handle Thermostatic Rough Valve with Built-in 3-Way Diverter. 1/2" NPT Inlets/Outlets.
3 Discrete Functions. LESS Trim.

Two-Handle Thermostatic Rough Valve with Built-in 3-Way Diverter. 1/2" NPT Inlets/Outlets.
3 Discrete/2 Shared Functions. LESS Trim.

*NOTE: When used as a Bath/Shower a separate diverter valve is required (such as R420 or R430).
Requires twin ell (must be ordered separately) for use with diverter spouts.
