Page 1
1/2" NPT
13mm
(1/2)
32mm
(1-1/4)
53mm
(2-1/16)

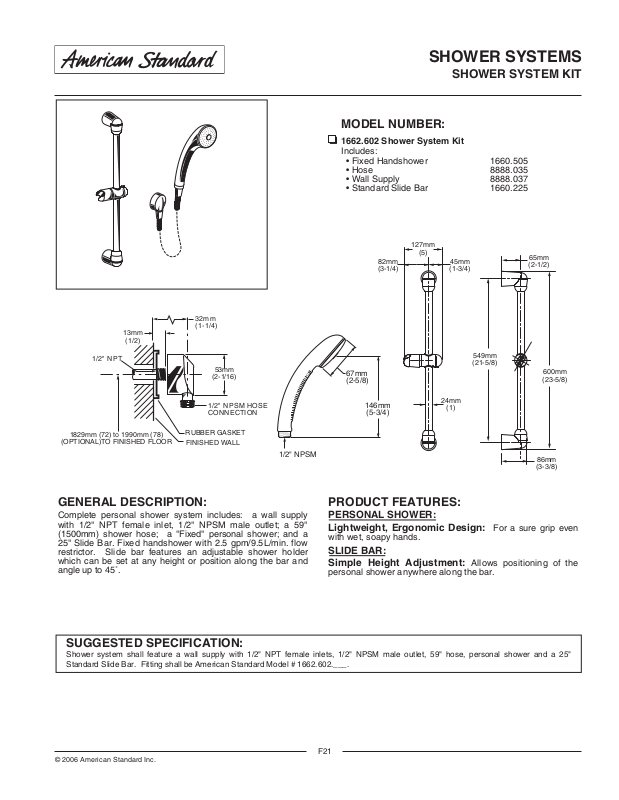

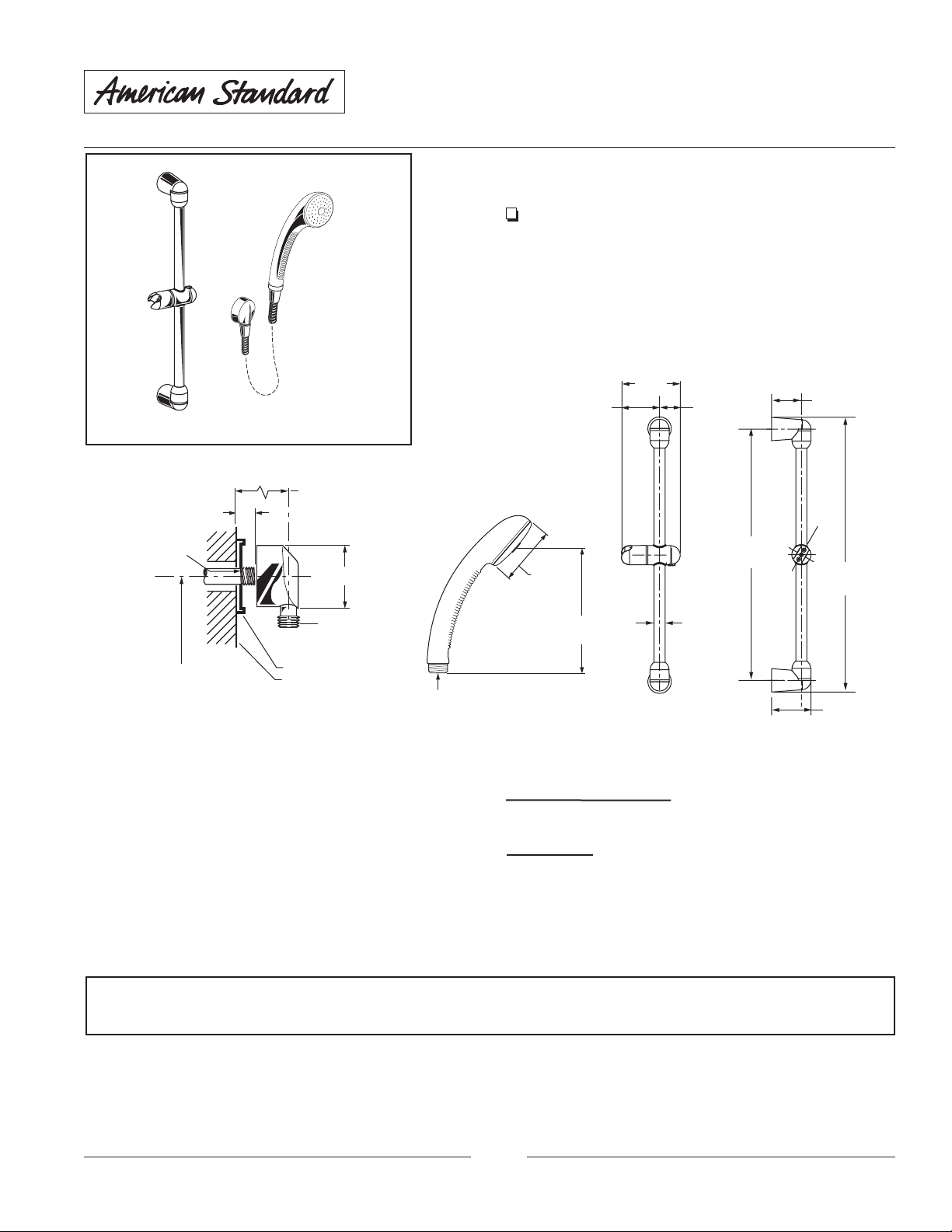

SHOWER SYSTEMS
SHOWER SYSTEM KIT
MODEL NUMBER:
1662.602 Shower System Kit
Includes:
• Fixed Handshower
• Hose
• Wall Supply
• Standard Slide Bar
127mm
(5)
45mm
(1-3/4)
67mm
(2-5/8)
82mm
(3-1/4)
549mm
(21-5/8)
1660.505
8888.035
8888.037
1660.225
65mm
(2-1/2)
600mm
(23-5/8)
1/2" NPSM HOSE
CONNECTION
1829mm (72) to 1990mm (78)
(OPTIONAL)TO FINISHED FLOOR
RUBBER GASKET
FINISHED WALL
1/2" NPSM
GENERAL DESCRIPTION:
Complete personal shower system includes: a wall supply
with 1/2" NPT female inlet, 1/2" NPSM male outlet; a 59"
(1500mm) shower hose; a "Fixed" personal shower; and a
25" Slide Bar. Fixed handshower with 2.5 gpm/9.5L/min. flow
restrictor. Slide bar features an adjustable shower holder
which can be set at any height or position along the bar and
angle up to 45˚.
146mm
(5-3/4)
PRODUCT FEATURES:
PERSONAL SHOWER:
Lightweight, Ergonomic Design: For a sure grip even
with wet, soapy hands.
SLIDE BAR:
Simple Height Adjustment: Allows positioning of the
personal shower anywhere along the bar.
24mm
(1)
86mm
(3-3/8)
SUGGESTED SPECIFICATION:
Shower system shall feature a wall supply with 1/2" NPT female inlets, 1/2" NPSM male outlet, 59" hose, personal shower and a 25"
Standard Slide Bar. Fitting shall be American Standard Model # 1662.602.___.
© 2006 American Standard Inc.
F21
Page 2
CODES AND STANDARDS
Install as required to comply with local code
requirements.
ASME A112.18.1
Product
Number
1662.602
Description
*
Shower System Kit. Contains "Fixed" handshower, hose,
wall supply and slide bar.
SHOWER SYSTEMS
SHOWER SYSTEM KIT
Finish
Polished
Chrome
002
*
NOTE: Mounting brackets are available for corner installations (repair part# 030787-YYY0A).
© 2006 American Standard Inc.
F22
