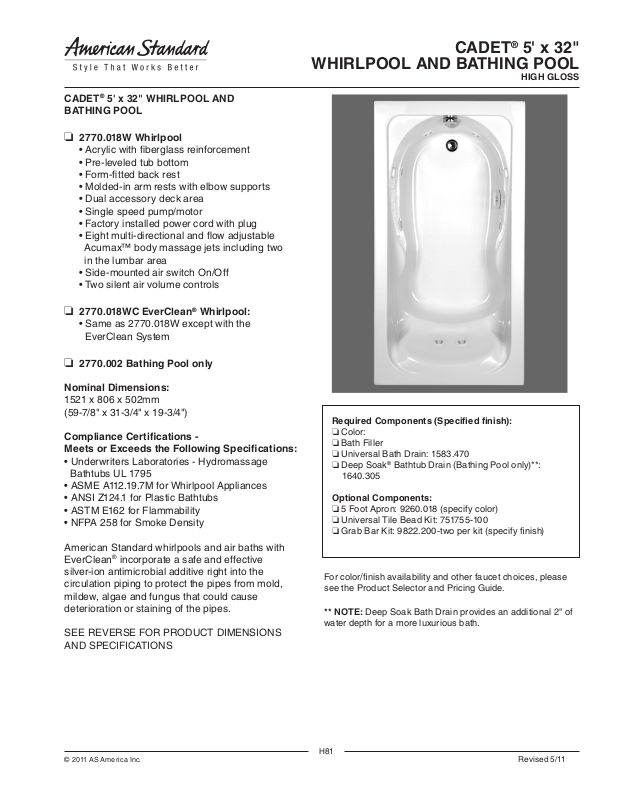

Page 1
CADET® 5' x 32" WHIRLPOOL AND
BATHING POOL
❏ 2770.018W Whirlpool
• Acrylic with berglass reinforcement
• Pre-leveled tub bottom
• Form-tted back rest
• Molded-in arm rests with elbow supports
• Dual accessory deck area
• Single speed pump/motor
• Factory installed power cord with plug
• Eight multi-directional and ow adjustable
Acumax™ body massage jets including two
in the lumbar area
• Side-mounted air switch On/Off
• Two silent air volume controls
CADET® 5' x 32"
WHIRLPOOL AND BATHING POOL
HIGH GLOSS
❏ 2770.018WC EverClean
®
Whirlpool:
• Same as 2770.018W except with the
EverClean System
❏ 2770.002 Bathing Pool only
Nominal Dimensions:
1521 x 806 x 502mm
(59-7/8" x 31-3/4" x 19-3/4")
Compliance Certications Meets or Exceeds the Following Specications:
• Underwriters Laboratories - Hydromassage
Bathtubs UL 1795
• ASME A112.19.7M for Whirlpool Appliances
• ANSI Z124.1 for Plastic Bathtubs
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
American Standard whirlpools and air baths with
EverClean® incorporate a safe and effective
silver-ion antimicrobial additive right into the
circulation piping to protect the pipes from mold,
mildew, algae and fungus that could cause
deterioration or staining of the pipes.
SEE REVERSE FOR PRODUCT DIMENSIONS
AND SPECIFICATIONS
Required Components (Specied nish):
❏ Color:
❏ Bath Filler
❏ Universal Bath Drain: 1583.470
❏ Deep Soak® Bathtub Drain (Bathing Pool only)**:
1640.305
Optional Components:
❏ 5 Foot Apron: 9260.018 (specify color)
❏ Universal Tile Bead Kit: 751755-100
❏ Grab Bar Kit: 9822.200-two per kit (specify nish)
For color/nish availability and other faucet choices, please
see the Product Selector and Pricing Guide.
** NOTE: Deep Soak Bath Drain provides an additional 2" of
water depth for a more luxurious bath.
© 2011 AS America Inc.
H81
Revised 5/11

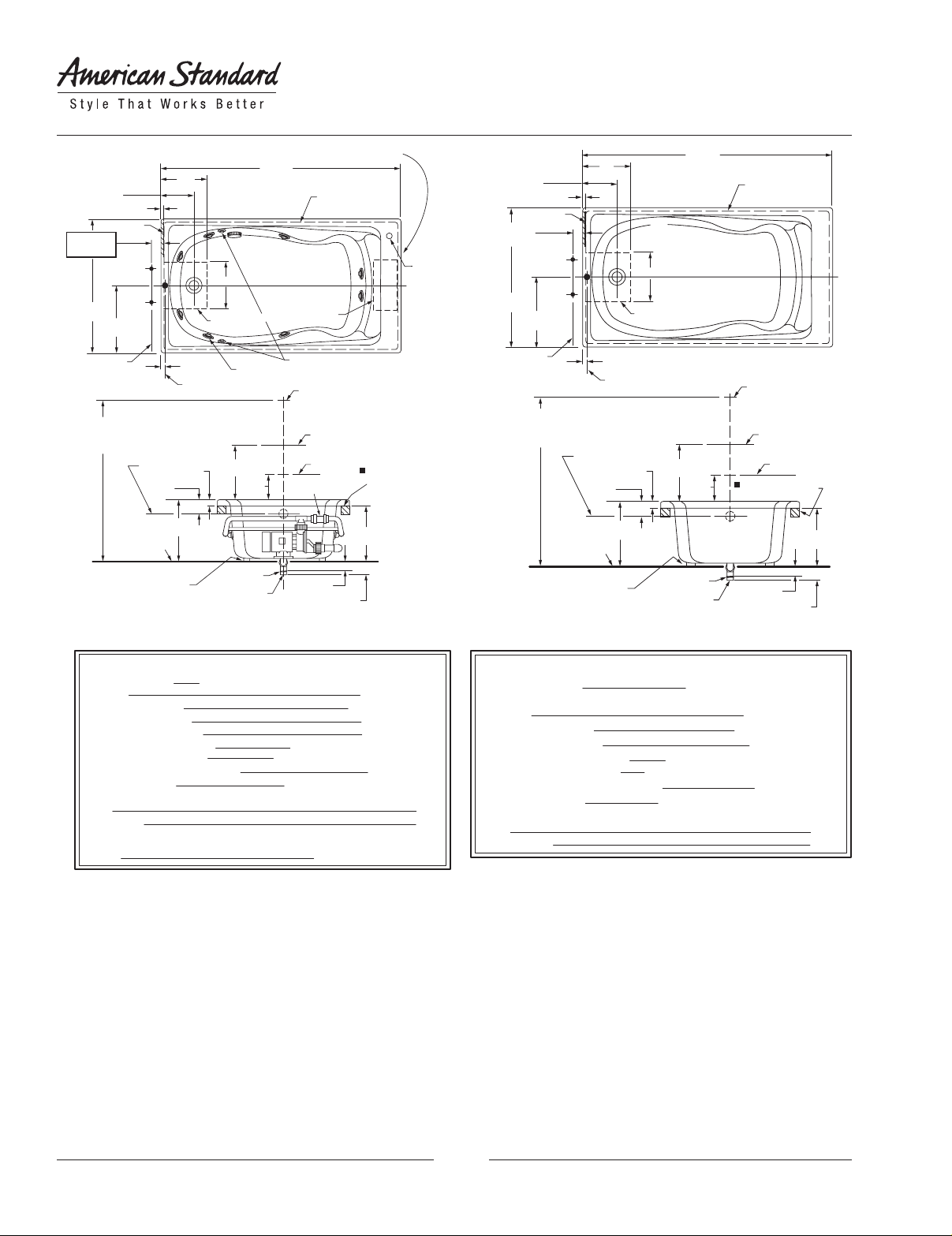

Page 2
CADET® 5' x 32"
PROVIDE ACCESS TO PUMP FOR
WHIRLPOOL AND BATHING POOL
HIGH GLOSS
8-3/4"
(222mm)
(19mm)
FINISHED
SEE FITTING
DIMENSIONS
USUA LLY B ETWEEN
WALL
SPECS FOR
31-3/4"
(806mm)
15-7/8"
(403mm)
C/L OF
SUPPLIES
OPTI ONAL TO
FINI SHED FLOOR
65" & 78"
(165 1 & 198 1mm )
3/4"
C/L OF
OVER FLOW
2-3/4"
(70mm)
ROUGH
FLOOR
INTEGRAL
SUPPORT
12"
(305mm)
(60mm)
(38mm)
19-3/4"
(502mm)
FEET
2-3/8"
C/L OF DRAIN
1-1/2"
9" (229mm)
CUTOUT IN FLOOR
FOR DRAIN
(8) JETS
12"
(305mm)
(102mm)
1-1/2" N.P.T.M.
THREADS
1-1/2" O.D.TAILPIECE
SERVICING ON ALL INSTALLATIONS
59-7/8"
(1521mm)
OUTLINE OF CUTOUT
58-3/8" X 30-1/4"
(1483 x 768mm)
PUMP
(2) AIR VALVES
C/L OF
SHOWER ARM
C/L OF
VALVES
C/L OF
SPOUT
SAFE-T-HEATER
4"
REMOVABLE
BLANK
2-3/4"
(70mm)
4-5/8"
(117mm)
LEVELING
STRINGER
NOT FOR
SUPPORT
18-1/4"
(464mm)
ON/OFF
SWITCH
8-3/4"
(222mm)
(19mm)
FINISHED
SEE FITTING
SPECS FOR
DIMENSIONS
WALL
31-3/4"
(806mm)
15-7/8"
(403mm)
C/L OF
SUPPLIES
OPT IONAL TO
FIN ISHED FLOOR
USU ALLY B ETWEE N
65" & 78"
(16 51 & 1 981mm )
3/4"
12"
(305mm)
2-3/8"
(60mm)
C/L OF DRAIN
C/L OF
OVE RFLOW
2-3/4"
(70mm)
502 mm
(19-3/4)
ROUGH
FLOOR
INTEGRAL
SUPPORT
FEET
9" (229mm)
CUTOUT IN FLOOR
FOR DRAIN
12"
1-1/2"
(305mm)
(38mm)
1-1/2" N.P.T.M.
THREADS
1-1/2" O.D.TAILPIECE
59-7/8"
(1521mm)
(102mm)
4"
OUTLINE OF CUTOUT
1473 mm x 768 mm
(58 X 30-1/4 )
C/L OF
SHOWER ARM
C/L OF
VALVES
C/L OF
SPOUT
LEVELING STRINGER
NOT FOR SUPPORT
18-1/4"
(464mm)
2-3/4"
(70mm)
4-5/8"
(117mm)
GENERAL SPECIF ICATIONS FO R 2770 WHIRLPOO L
INS TALL ED SI ZE
WEI GH T
WEI GH T w/ WATER
GAL . TO OVE RF LOW
MIN . O PE RATING GA L.
BATHI NG WE LL AT SU MP
BATHI NG WE LL AT RI M
WATER DE PT H TO OV ER FLOW
FLO OR LOADI NG
(PR OJ EC TED AR EA )
PTS .
CUB E (F T3)
5 9- 7/ 8 x 31-3/ 4 x 19-3 /4 I n. (15 21 x 80 6 x 50 2m m)
53- 1/ 2 x 26 In. ( 135 9m m x 69 9m m)
WHIRLP OOL EL ECTRICAL SPECI FICATIONS
85 Lb s. (39 K g. )
535 L bs . (243 K g. )
54 Ga l. (2 04 L.)
49 Ga l. (18 6 L. )
20 x 40 I n. (508m m x 1016m m)
14 In. (3 56 mm )
41 Lb s. /S q. F t. (19 7 Kg s/ Sq. m. )
15. 6
29. 6
120 V., 60 HZ, 15 A GF CIPUMP
GENERA L SPE CIFICATIONS FOR 2770 B ATHIN G POOL
INSTAL LE D SI ZE
WEIGHT
WEIGHT w /W AT ER
GAL. T O OV ER FLOW
BATHIN G WE LL AT SUM P
BATHIN G WE LL AT RIM
WATER DE PT H TO OVER FL OW
FLOOR LO AD IN G
(PROJE CT ED A REA)
PTS.
CUBE ( FT3)
59-7 /8 x 3 1-3/4 x 1 9- 3/ 4 In.
(1521m m x 80 6 mm x 50 2m m)
62 Lbs . (2 8 Kg.)
512 Lb s. ( 23 3 Kg.)
54 Gal . (2 04 L.)
20 x 4 0 In . (508mm x 10 16 mm)
53-1/2 x 2 6 In. (13 59 mm x 699mm)
14 In. ( 35 6m m)
39 Lbs ./ Sq . Ft. (18 9 Kg s/ Sq. m.)
NOTES:
BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND, OR PENINSULA TYPE INSTALLATION. SUMP OF
BATH IS SUPPORTED BY INTEGRAL FEET. NO ADDITIONAL SUPPORT REQUIRED. ENCLOSING MATERIAL BY OTHERS.
■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.
OPTIONAL 3 WALL TILING BEAD. KIT AND APRON NO. 9260.018 AVAILABLE AND MUST BE ORDERED SEPARATELY.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaet.
15.6
29.6
© 2011 AS America Inc.
H82
Revised 5/11
