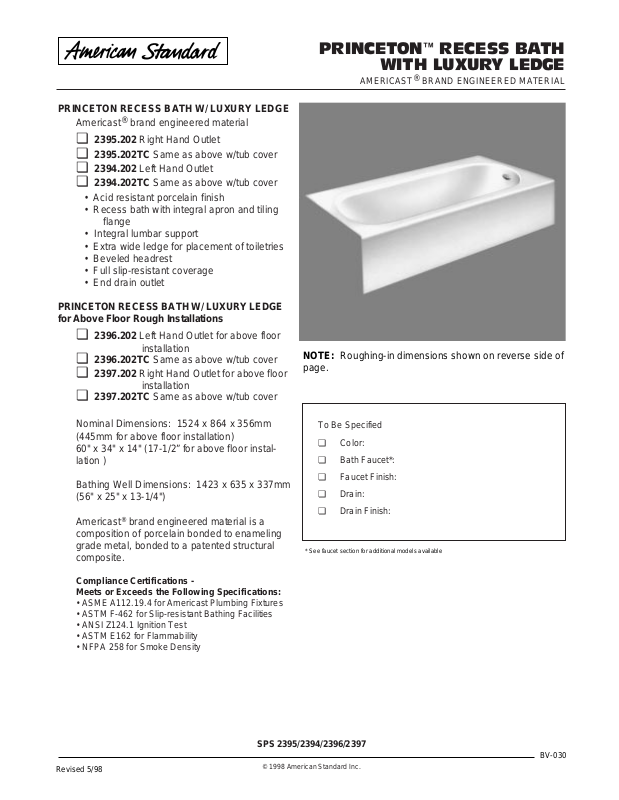

Page 1
PRINCETON™ RECESS BATH
WITH LUXURY LEDGE
AMERICAST®BRAND ENGINEERED MATERIAL
PRINCETON RECESS BATH W/ LUXURY LEDGE
Americast®brand engineered material
❏ 2395.202 Right Hand Outlet
❏ 2395.202TC Same as above w/tub cover
❏ 2394.202 Left Hand Outlet
❏ 2394.202TC Same as above w/tub cover
• Acid resistant porcelain finish
• Recess bath with integral apron and tiling
flange
• Integral lumbar support
• Extra wide ledge for placement of toiletries
• Beveled headrest
• Full slip-resistant coverage
• End drain outlet
PRINCETON RECESS BATH W/ LUXURY LEDGE
for Above Floor Rough Installations
❏ 2396.202 Left Hand Outlet for above floor
installation
❏ 2396.202TC Same as above w/tub cover
❏ 2397.202 Right Hand Outlet for above floor
installation
❏ 2397.202TC Same as above w/tub cover
Nominal Dimensions: 1524 x 864 x 356mm
(445mm for above floor installation)
60" x 34" x 14" (17-1/2” for above floor installation )
Bathing Well Dimensions: 1423 x 635 x 337mm
(56" x 25" x 13-1/4")
Americast®brand engineered material is a
composition of porcelain bonded to enameling
grade metal, bonded to a patented structural
composite.
Compliance Certifications Meets or Exceeds the Following Specifications:
• ASME A112.19.4 for Americast Plumbing Fixtures
• ASTM F-462 for Slip-resistant Bathing Facilities
• ANSI Z124.1 Ignition Test
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
To Be Specified
❏ Color:
❏ Bath Faucet*:
❏ Faucet Finish:
❏ Drain:
❏ Drain Finish:
© 1998 American Standard Inc.
SPS 2395/2394/2396/2397
* See faucet section for additional models available
BV-030
Revised 5/98

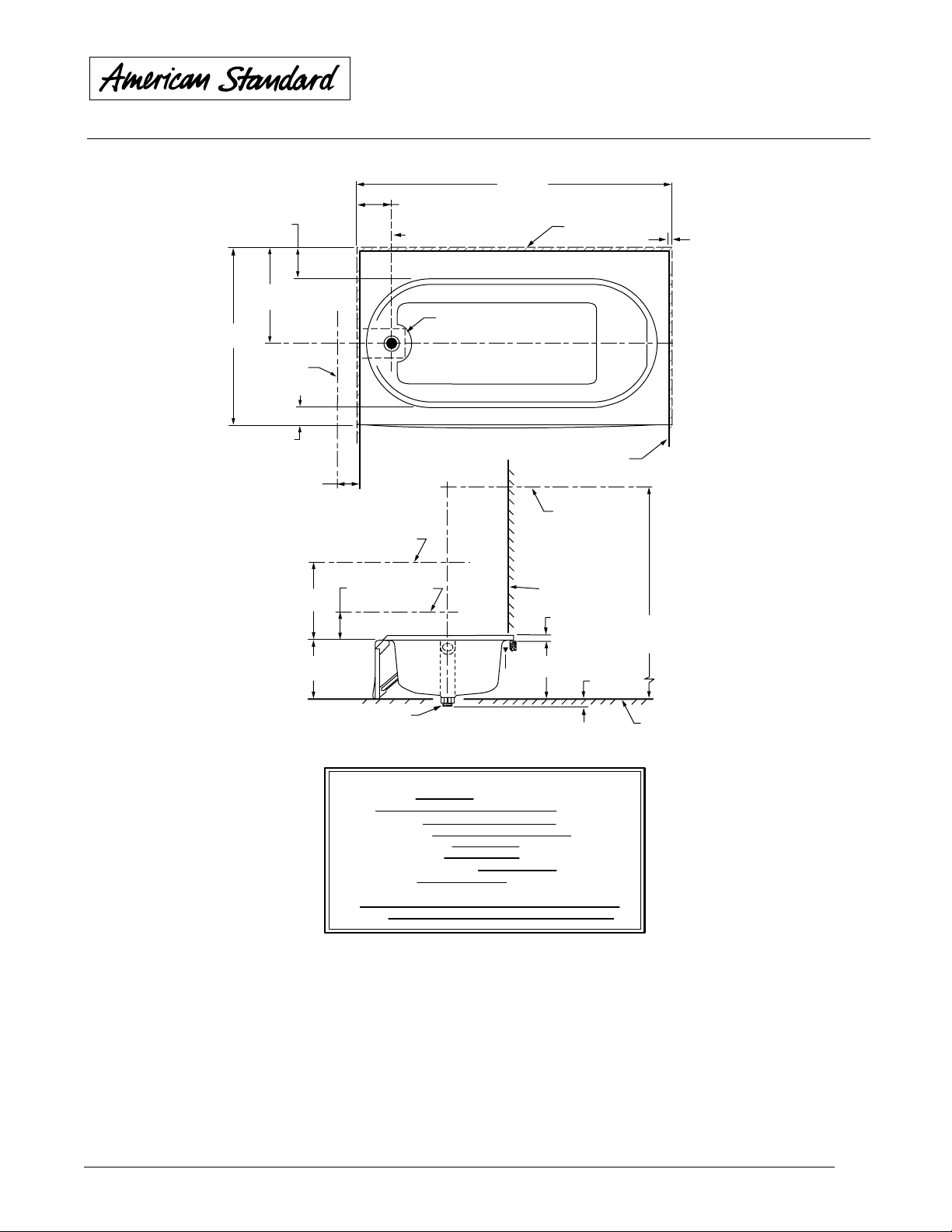

NOTE: Roughing-in dimensions shown on reverse side of
page.
Page 2
PRINCETON™ RECESS BATH
WITH LUXURY LEDGE
AMERICAST®BRAND ENGINEERED MATERIAL
© 1998 American Standard Inc.
SPS 2395/2394/2396/2397
1524mm
(60)
864mm
(34)
32mm
(1-1/4)
FINISHED
WALL
19mm
(3/4)
FINISHED
WALL
C/L OF DRAIN
197mm
(7-3/4)
ROUGH
FLOOR
356mm
(14)
FINISHED
WALL
464mm
(18-1/4)
149mm
(5-7/8)
SEE FITTING SPECS
FOR DIMENSION
C/L OF
SPOUT
C/L OF
VALVES
C/L OF
SHOWER ARM
346mm
(13-5/8)
25mm
(1)
1651-1981mm
(65-78)
OPTIONAL
70mm
(2-3/4)
117mm
(4-5/8)
1-1/2 N.P.T.
THREADS
1-1/2 O.D.
TAILPIECE
102mm
(4)
64mm
(2-1/2)
305mm
(12)
SEE
NOTE
89mm
(3-1/2)
C/L OF
SUPPLIES
229mm x 305mm
(9 x 12) CUTOUT
Dimensions of fixtures are nominal and may vary within the range of tolerances established by
ANSI Standard A112.19.4
These measurements are subject to change or cancellation. No responsibility is assumed for
use of superseded or voided leaflet.
IMPORTANT:
NOTES:
LEFT HAND OUTLET SHOWN, RIGHT HAND REVERSE DIMENSIONS. (2395.202).
SHOWN WITH POP-UP C.D. & O.
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH FITTING.
CONCEALED PIPING NOT FURNISHED.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH BATH.
▼
GENERAL SPECIFICATIONS FOR 2394/2395 BATHING POOL
1524 x 864 x 356mm (60 x 34 x 14 In).
54 Kg. (119 Lbs.)
211 Kg. (469 Lbs.)
159 L (42 Gal.)
1067 x 483mm (42 x 19 In.)
1423 x 635mm (56 x 25 In.)
241mm (9-1/2 In.)
160 Kgs./Sq.m (38 Lbs./Sq.Ft.)
9.3
20.1
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT
3
)
GENERAL SPECIFICATIONS FOR 2396/2397 BATHING POOL
1524 x 864 x 445mm (60 x 34 x 17-1/2 In).
57 Kg. (127 Lbs.)
215 Kg. (477 Lbs.)
159 L (42 Gal.)
1067 x 483mm (42 x 19 In.)
1423 x 635mm (56 x 25 In.)
241mm (9-1/2 In.)
163 Kgs./Sq.m (34 Lbs./Sq.Ft.)
9.3
20.1
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT
3
)
NOTE: Roughing-in shown for 2394/2395 only. Refer to
installation instruction for 2396/2397 above-floor installation.
Page 3
PRINCETON™RECESS BATH W/ LUXURY
LEDGE AND INTEGRAL O VERFLO W
AMERICAST®BRAND ENGINEERED MATERIAL
PRINCETON RECESS BATH W/ LUXURY LEDGE
AND INTEGRAL OVERFLOW
Americast
®
brand engineered material
❏ 2394.202 ICH (Chrome Trim)
Left Hand Outlet
❏ 2394.202 ICHTC Same as above
with Tub Cover
❏ 2395.202 ICH (Chrome Trim)
Right Hand Outlet
❏ 2395.202 ICHTC Same as above
with Tub Cover
❏ 2394.202 IPB (Polished Brass Trim)
Left Hand Outlet
❏ 2394.202 IPBTC Same as above
with Tub Cover
❏ 2395.202 IPB (Polished Brass Trim)
Right Hand Outlet
❏ 2395.202 IPBTC Same as above
with Tub Cover
• Lift and turn drain stopper assembly
included with bath
• Escutcheon included and installed on bath
• Acid resistant porcelain finish
• Recess bath with integral apron and tiling
flange
• Integral lumbar support
• Extra wide ledge for placement of toiletries
• Beveled headrest
• Full slip-resistant coverage
• End drain outlet
Nominal Dimensions: 1524 x 864 x 356mm
(60" x 34" x 14")
Bathing Well Dimensions: 1423 x 635 x 337mm
(56" x 25" x 13-1/4")
Americast
®
brand engineered material is a
composition of porcelain bonded to enameling
grade metal, bonded to a patented structural
composite.
Compliance Certifications Meets or Exceeds the Following Specifications:
• ASME A112.19.4 for Americast Plumbing Fixtures
• ASTM F-462 for Slip-resistant Bathing Facilities
• ANSI Z124.1 Ignition Test
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
To Be Specified
❏ Color:
❏ Bath Faucet*:
❏ Faucet Finish:
© 2000 American Standard Inc.
SPS 2394 ICH /2395 ICH /2394 IPB /2395 IPB
* See faucet section for models available
BV-038
Revised 6/00

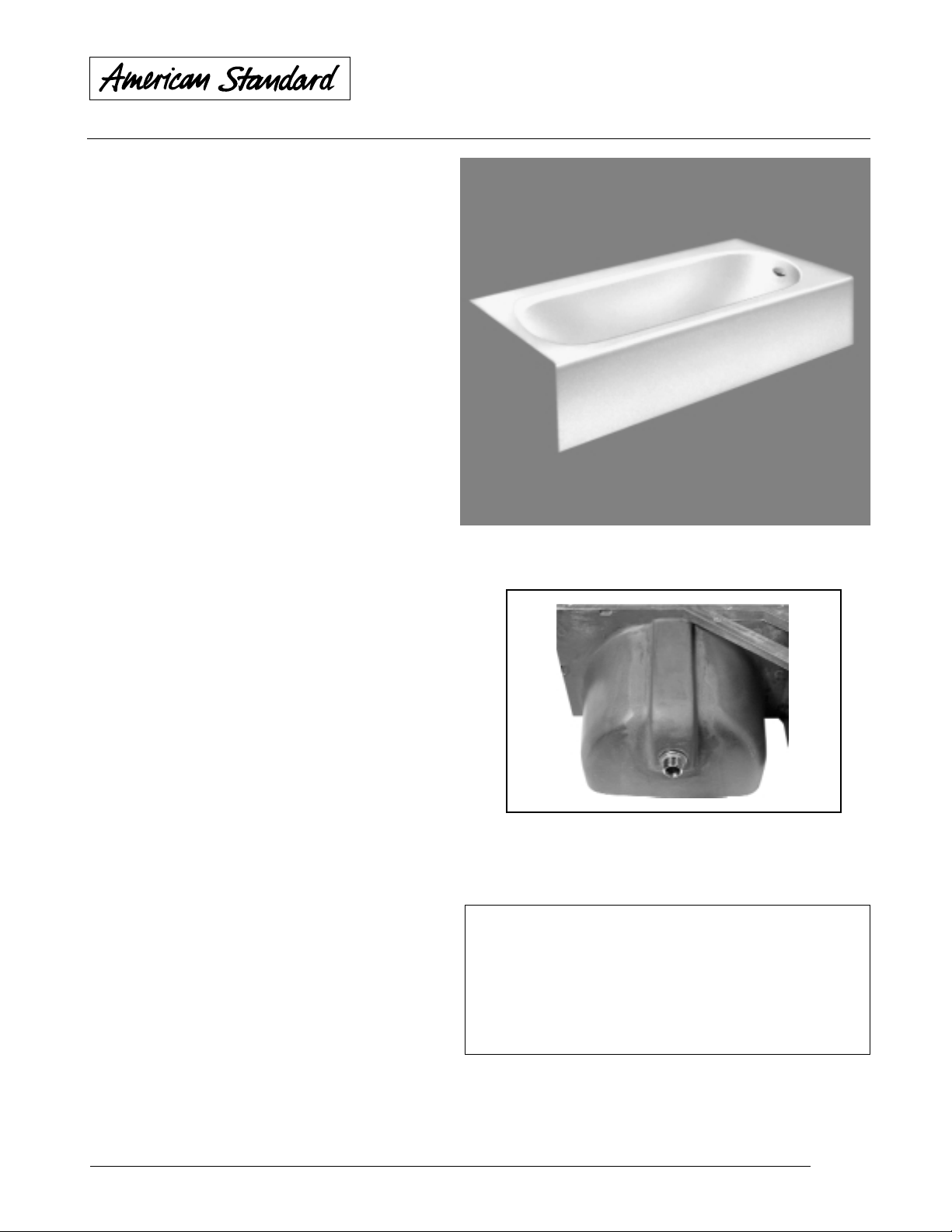

Photograph details integral overflow and drain
assembly. Drain assembly included with bath.
NOTE: Roughing-in dimensions shown on reverse side of
page.
Page 4
© 2000 American Standard Inc.
149mm
PRINCETON™RECESS BATH W/ LUXURY
LEDGE AND INTEGRAL O VERFLO W
AMERICAST®BRAND ENGINEERED MATERIAL
Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.4
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided leaflet.
IMPORTANT:
NOTES:
LEFT HAND OUTLET SHOWN, RIGHT HAND REVERSE DIMENSIONS. (2395.202.ICH).
DRAIN AND OVERFLOW ESCUTCHEON INCLUDED WITH BATH. REFER TO INSTALLA-
TION INSTRUCTIONS SUPPLIED WITH BATH FOR DRAIN INSTALLATION.
BATH FAUCET NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH FITTING.
CONCEALED PIPING NOT FURNISHED.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH BATH.
▼
(5-7/8)
463mm
(18-1/4)
762mm
(34)
C/L OF
SUPPLIES
89mm
(3-1/2)
SEE FITTING SPECS
FOR DIMENSION
1524mm
197mm
(7-3/4)
C/L OF
VALVES
C/L OF DRAIN
229mm x 305mm
(9 x 12) CUTOUT
(60)
FINISHED
WALL
FINISHED
WALL
C/L OF
SHOWER ARM
19mm
(3/4)
102mm
305mm
356mm
(4)
(12)
(14)
1-1/2 N.P.T.M.
THREADS OR
1-1/2 O.D. TUBING
SPOUT
SLIP JOINT
C/L OF
SEE
NOTE
FINISHED
WALL
25mm
(16)
346mm
(13-5/8)
44mm
(3/4)
1651-1981mm
(65-78)
OPTIONAL
ROUGH
FLOOR
GENERAL SPECIFICATIONS FOR 2394/2395 BATHING POOL
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
3
CUBE (FT
)
60 x 34 x 14 In. (1524 x 864 x 356mm)
33 Lbs./Sq.Ft. (159 Kgs./Sq.m)
118 Lbs. (54 Kg.)
468 Lbs. (213 Kg.)
42 x 19 In. (1067 x 483mm)
56 x 25 In. (1423 x 635mm)
42 Gal. (159 L)
9-1/2 In. (241mm)
20.1
9.3
Page 5
PRINCETON™RECESS BATH
w/LUXUR Y LEDGE AND INTEGRAL
O VERFLOWAMERICAST
®
BRAND ENGINEERED MATERIAL
PRINCETON RECESS BATH W/ LUXURY
LEDGE AND INTEGRAL OVERFLOW for Above
Floor Rough Installation
Americast
®
brand engineered material
❏ 2396.202 ICH (Chrome Trim) Left Hand
Outlet for above floor installation
❏ 2396.202 ICHTC Same as above
with Tub Cover
❏ 2397.202 ICH (Chrome Trim) Right Hand
Outlet for above floor installation
❏ 2397.202 ICHTC Same as above
with Tub Cover
❏ 2396.202 IPB (Polished Brass Trim)
Left Hand Outlet
❏ 2396.202 IPBTC Same as above
with Tub Cover
❏ 2397.202 IPB (Polished Brass Trim)
Right Hand Outlet
❏ 2397.202 IPBTC Same as above
with Tub Cover
• Lift and turn drain stopper assembly
included with bath
• Escutcheon included and installed on bath
• Acid resistant porcelain finish
• Recess bath with integral apron and tiling
flange
• Integral lumbar support
• Beveled headrest
• Full slip-resistant coverage
• End drain outlet
Nominal Dimensions: 1524 x 864 x 445mm
(60" x 34" x 17-1/2")
Bathing Well Dimensions: 1423 x 635 x 337mm
(56" x 25" x 13-1/4")
Americast
®
brand engineered material is a
composition of porcelain bonded to enameling
grade metal, bonded to a patented structural
composite.
Compliance Certifications Meets or Exceeds the Following Specifications:
• ASME A112.19.4 for Americast Plumbing Fixtures
• ASTM F-462 for Slip-resistant Bathing Facilities
• ANSI Z124.1 Ignition Test
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
To Be Specified
❏ Color:
❏ Bath Faucet*:
❏ Faucet Finish:
© 2000 American Standard Inc.
SPS 2396 ICH /2397 ICH /2396 IPB /2397 IPB
* See faucet section for models available
Photograph details integral overflow and drain
assembly. Drain assembly included with bath.
NOTE: Roughing-in dimensions shown on reverse side of
page.
BV-039
Revised 6/00
Page 6
PRINCETON™RECESS BATH
w/LUXUR Y LEDGE AND INTEGRAL
O VERFLOWAMERICAST
®
BRAND ENGINEERED MATERIAL
© 2000 American Standard Inc.
Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.4
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided leaflet.
IMPORTANT:
NOTES:
LEFT HAND OUTLET SHOWN, RIGHT HAND REVERSE DIMENSIONS. (2393.202.ICH).
DRAIN AND OVERFLOW ESCUTCHEON INCLUDED WITH BATH. REFER TO INSTALLA-
TION INSTRUCTIONS SUPPLIED WITH BATH FOR DRAIN INSTALLATION.
BATH FAUCET NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH FITTING.
CONCEALED PIPING NOT FURNISHED.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH BATH.
▼
149mm
(5-7/8)
464mm
(18-1/4)
864mm
(34)
C/L OF
SUPPLIES
89mm
(3-1/2)
SEE FITTING SPECS
FOR DIMENSION
1524mm
197mm
(7-3/4)
C/L OF DRAIN
229mm x 305mm
(9 x 12) CUTOUT
(60)
FINISHED
WALL
FINISHED
WALL
C/L OF
SHOWER ARM
19mm
(3/4)
C/L OF
305mm
(12)
445mm
(17-1/2)
1-1/2 O.D. TUBING
VALVES
102mm
(4)
1-1/2 N.P.T.M.
C/L OF
SPOUT
THREADS OR
SLIP JOINT
SEE
NOTE
FINISHED
WALL
23mm
(15/16)
435mm
(17-1/8)
1651-1981mm
(65-78)
OPTIONAL
ROUGH
FLOOR
GENERAL SPECIFICATIONS FOR 2396/2397ICH BATHING POOL
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
3
CUBE (FT
)
60 x 34 x 17-1/2 In. (1524 x 864 x 445mm)
127 Lbs. (58 Kg.)
477 Lbs. (217 Kg.)
42 Gal. (159 L)
42 x 19 In. (1067 x 483mm)
56 x 25 In. (1423 x 635mm)
9-1/2 In. (241mm)
34 Lbs./Sq.Ft. (163 Kgs./Sq.m)
11.1
22.9
Loading...
