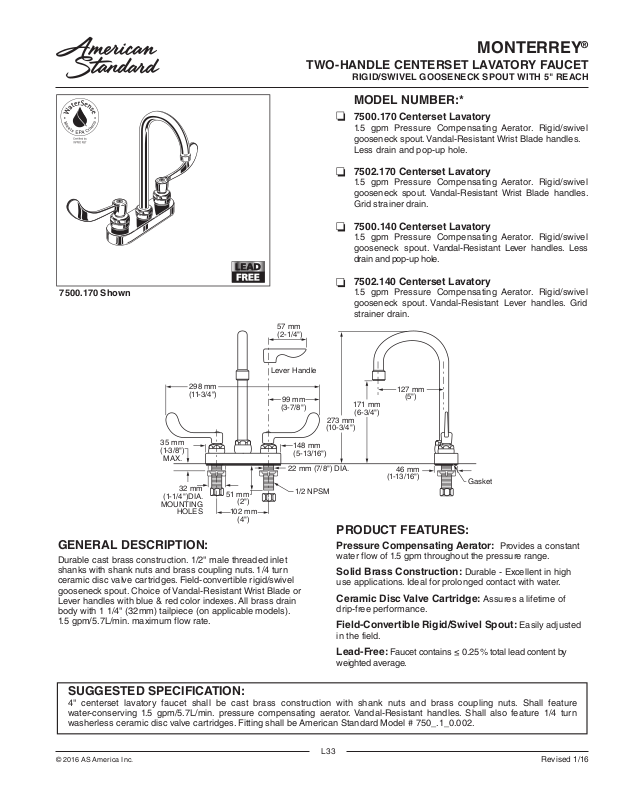

Page 1
7500.170 Shown
el
el
.
el
el
id
S
C
S
S
SCG
S
57 mm
(2-1/4
Lever Handle
298 mm
(11-3/4
"
35 mm
(1-3/8
"
)
MAX.
32 mm
"
)DIA.
(1-1/4
MOUNTING
HOLES
)
51 mm
(2
102 mm
(4
"
)
"
)
99 mm
(3-7/8
148 mm
(5-13/16
22 mm (7/8") DIA.
1/2 NPSM
GENERAL DESCRIPTION:
Durable cast brass construction. 1/2" male threaded inlet
shanks with shank nuts and brass coupling nuts. 1/4 turn
ceramic disc valve cartridges. Field-convertible rigid/swivel
gooseneck spout. Choice of Vandal-Resistant Wrist Blade or
Lever handles with blue & red color indexes. All brass drain
body with 1 1/4" (32mm) tailpiece (on applicable models).
1.5 gpm/5.7L/min. maximum flow rate.
MONTERREY
TWO-HANDLE CENTERSET LAVATORY FAUCET
RIGID/SWIVEL GOOSENECK SPOUT WITH 5" REACH
MODEL NUMBER:*
7500.170 Centerset Lavatory
1. 5 gpm Pressure Compensating Aerator. Rigid/swiv
gooseneck spout. Vandal-Resistant Wrist Blade handles.
Less drain and pop-up hole.
7502.170 Centerset Lavatory
1. 5 gpm Pressure Compensating Aerator. Rigid/swiv
gooseneck spout. Vandal-Resistant Wr ist Blade handles
Grid strainer drain.
7500.140 Centerset Lavatory
1. 5 gpm Pressure Compensating Aerator. Rigid/swiv
gooseneck spout. Vandal-Resistant Lever handles. Less
drain and pop-up hole.
7502.140 Centerset Lavatory
1. 5 gpm Pressure Compensating Aerator. Rigid/swiv
gooseneck spout. Vandal-Resistant Lever handles. Gr
strainer drain.
"
)
127 mm
"
)
273 mm
(10-3/4
171 mm
(6-3/4
"
)
"
)
")
"
)
(5
46 mm
(1-13/16
"
)
Gasket
PRODUCT FEATURES:
Pressure Compensating Aerator: Provides a constant
water flow of 1.5 gpm throughout the pressure range.
Solid Brass Construction: Durable - Excellent in high
use applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Field-Convertible Rigid/Swivel Spout: Easily adjusted
in the field.
Lead-Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
®
SUGGESTED SPECIFICATION:
4" centerset lavatory faucet shall be cast brass construction with shank nuts and brass coupling nuts. Shall feature
water-conserving 1.5 gpm/5.7L/min. pressure compensating aerator. Vandal-Resistant handles. Shall also feature 1/4 turn
washerless ceramic disc valve cartridges. Fitting shall be American Standard Model # 750_.1_0.002.
© 2016 AS America Inc.
L33
Revised 1/16
Page 2
CODES AND STANDARDS
These products meet or exceed the following
S
*PC
**Meets
codes and standards:
ASME A112.18.1
CSA B 125
NSF 372
Product
Number
7500.170
7502.170
7500.140
7502.140
Description
Centerset Lavatory with rigid/swivel gooseneck spout. 1.5 gpm/5.7L/min pressure compensating
aerator. Vandal-Resistant Wrist Blade Handles. Less drain and pop-up hole.
Centerset Lavatory with rigid/swivel gooseneck spout. 1.5 gpm/5.7L/min pressure compensating
aerator. Vandal-Resistant Wrist Blade Handles. Grid strainer drain.
Centerset Lavatory with rigid/swivel gooseneck spout. 1.5 gpm/5.7L/min pressure compensating
aerator. Vandal-Resistant Lever Handles. Less drain and pop-up hole.
Centerset Lavatory with rigid/swivel gooseneck spout. 1.5 gpm/5.7L/min pressure compensating
aerator. Vandal-Resistant Lever Handles. Grid strainer drain.
MONTERREY
TWO-HANDLE CENTERSET LAVATORY FAUCET
RIGID/SWIVEL GOOSENECK SPOUT WITH 5" REACH
FLOW RATE*
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
10080604020
Finish
Polished
Chrome
002
®
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINE
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES
Other Aerators Available:
Part Suffix Description
LV15
V15
LV10
V10
V05**
V035**
A - Pressure Compensating
Cal Green Code
1.5 gpm (5.7 Lpm) PCA Vandal-Resistant Non-Aerated Laminar Flow Outlet
1.5 gpm (5.7 Lpm) PCA Vandal-Resistant Aerator
1.0 gpm (3.8 Lpm) PCA Vandal-Resistant Non-Aerated Laminar Flow Outlet
1.0 gpm (3.8 Lpm) PCA Vandal-Resistant Aerator
0.5 gpm (1.9 Lpm) PCA Vandal-Resistant Multi-Laminar Spray
0.35 gpm (1.3 Lpm) PCA Vandal-Resistant Multi-Laminar Spray
© 2016 AS America Inc.
L34
Revised 1/16
